2014 TOYOTA VERSO S CD player

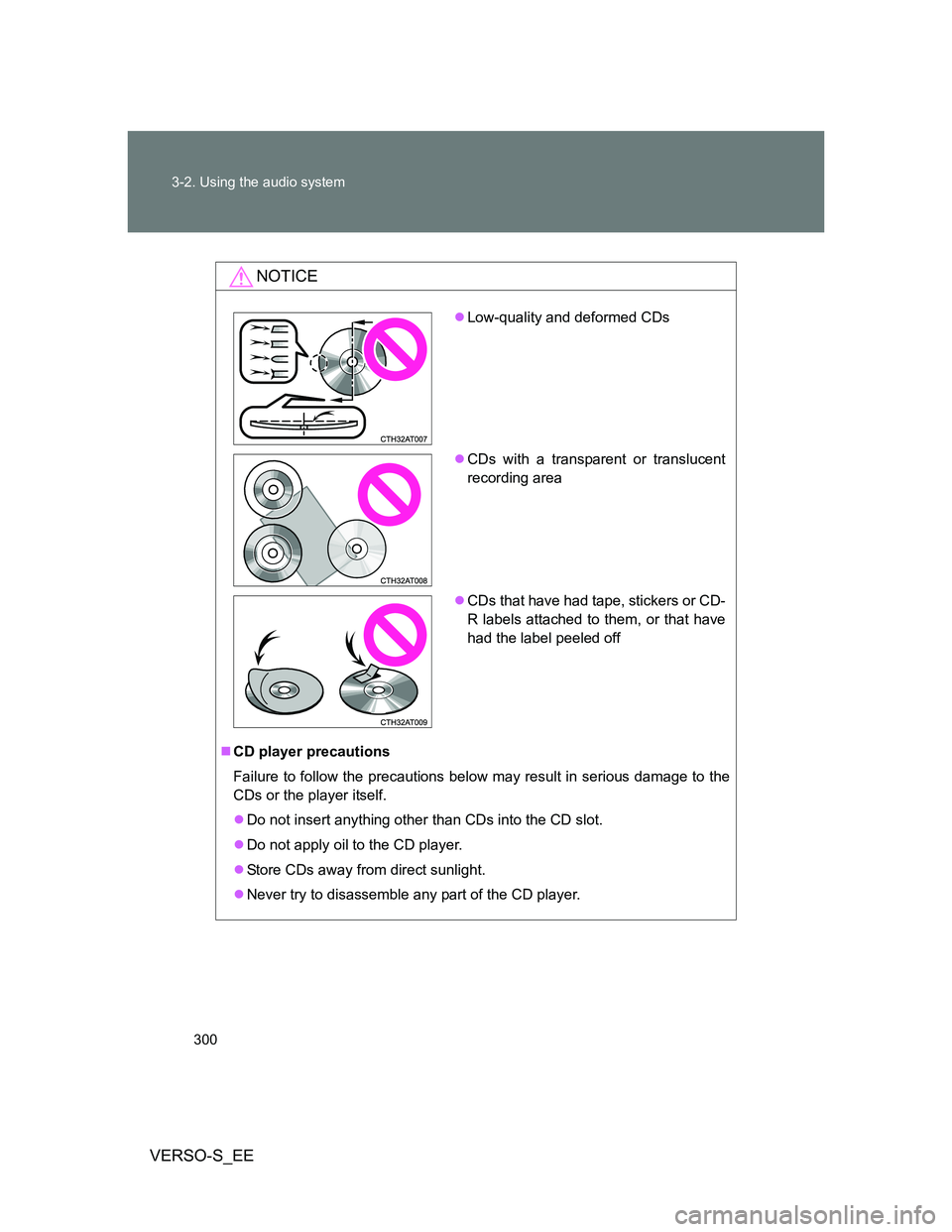

300 3-2. Using the audio system
VERSO-S_EE
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

304 3-2. Using the audio system
VERSO-S_EE
Display
Up to 24 characters can be displayed.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Canceling random and repeat playback
Press
(RPT) or (RDM), or press and hold “” on .
Error messages
“ERROR”: This indicates a problem either in the CD or inside the
player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“NO SUPPORT”: This indicates that the MP3/WMA file is not included in the
CD.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.

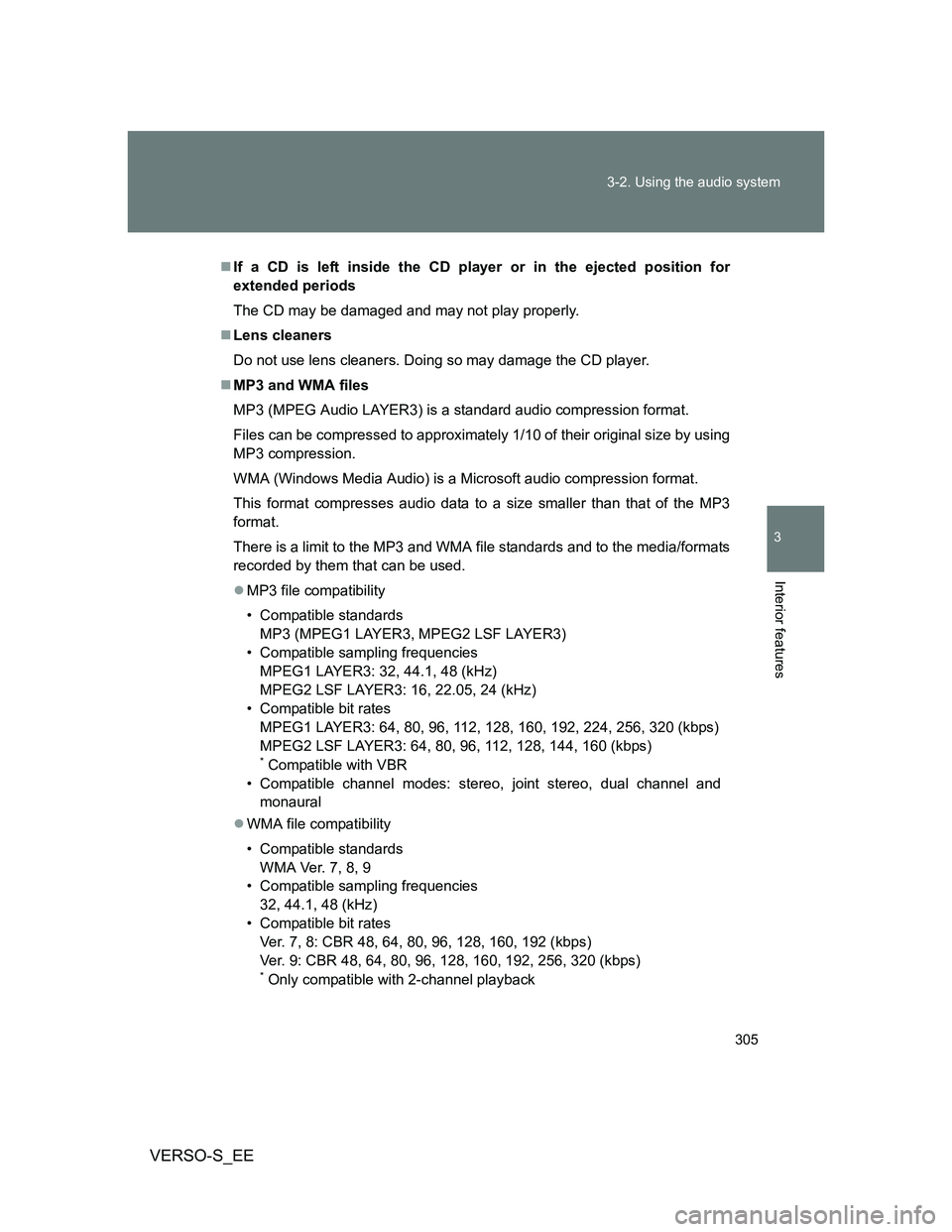

305 3-2. Using the audio system
3
Interior features
VERSO-S_EE
If a CD is left inside the CD player or in the ejected position for
extended periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
* Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and
monaural
WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
* Only compatible with 2-channel playback

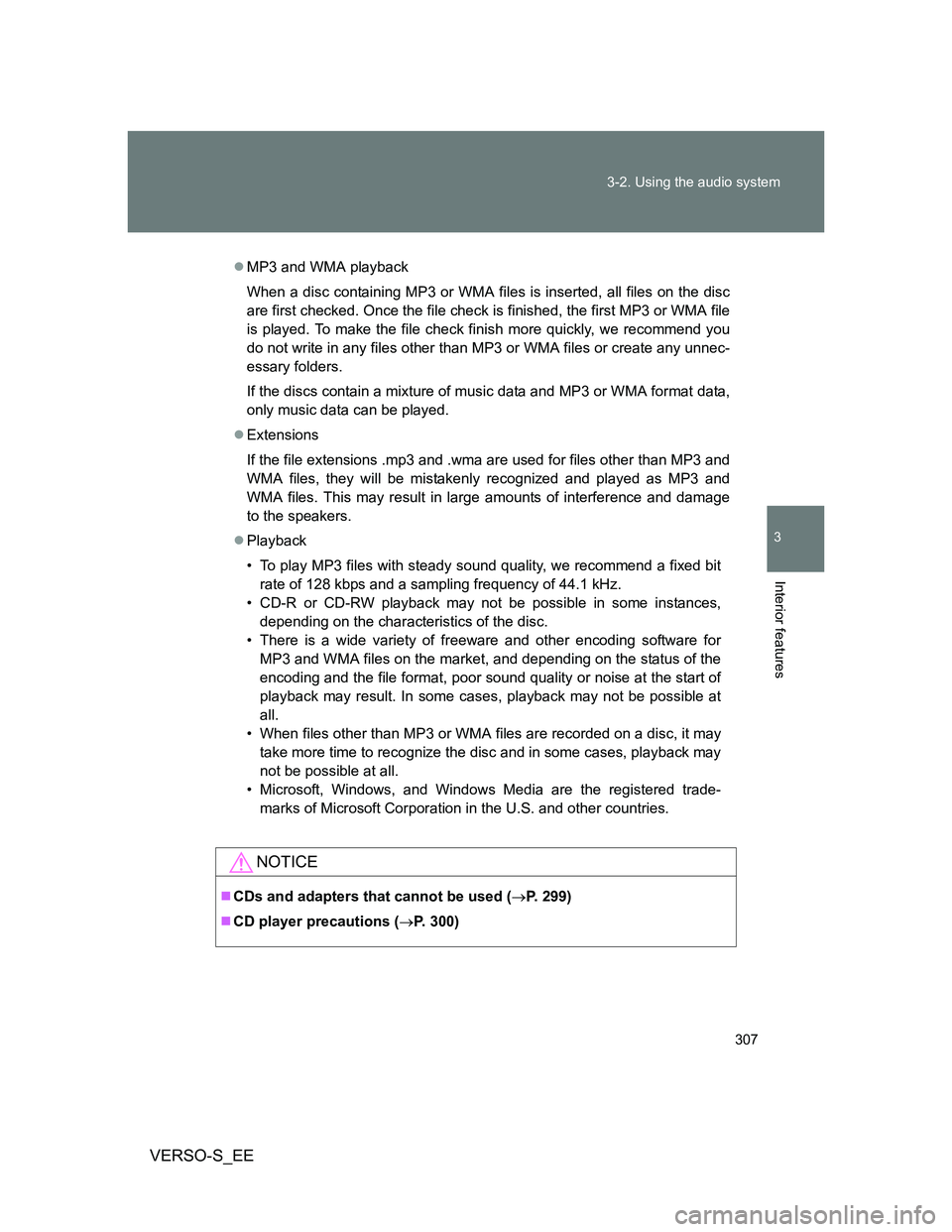

307 3-2. Using the audio system
3
Interior features
VERSO-S_EE
MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for
MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade-
marks of Microsoft Corporation in the U.S. and other countries.
NOTICE
CDs and adapters that cannot be used (P. 299)
CD player precautions (P. 300)

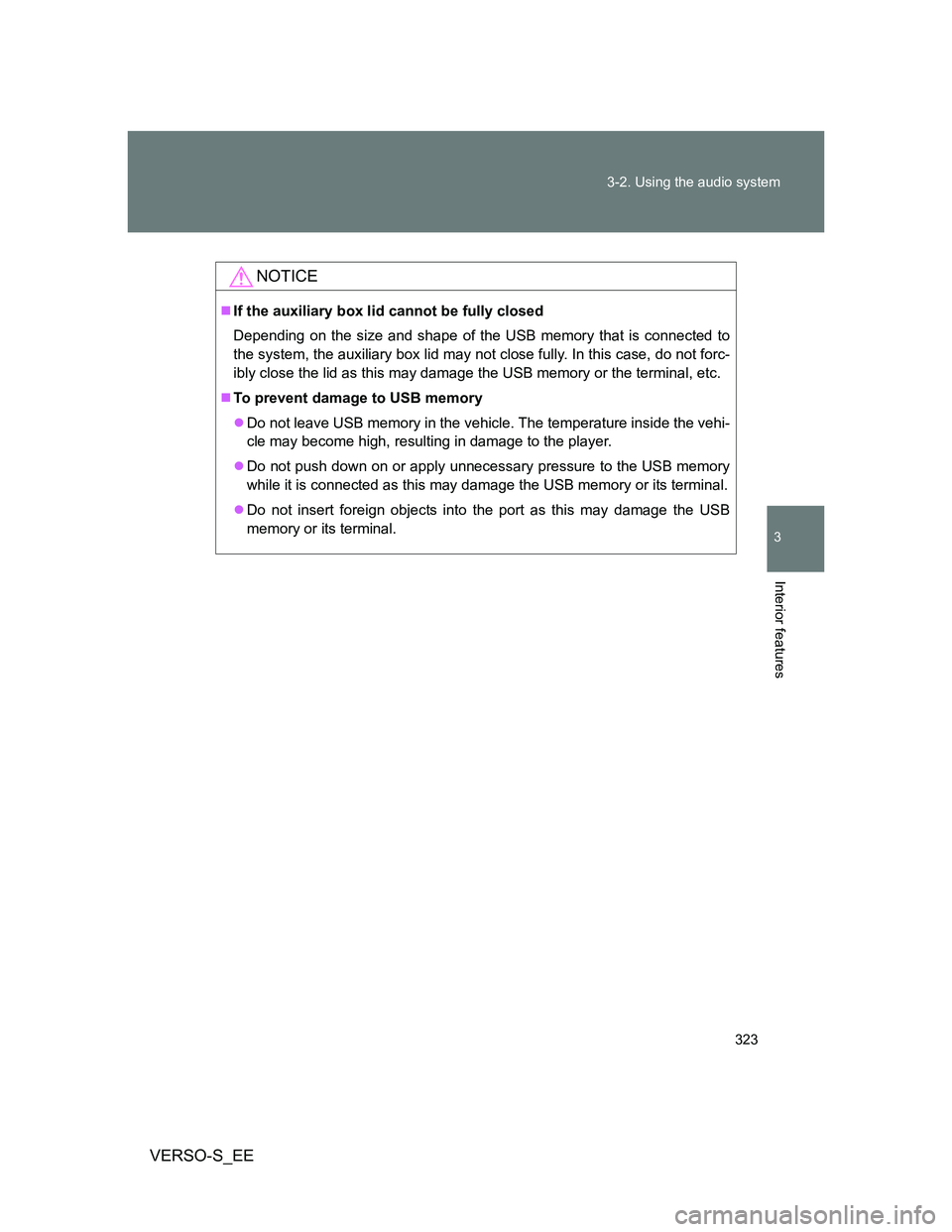

323 3-2. Using the audio system
3
Interior features
VERSO-S_EE
NOTICE
If the auxiliary box lid cannot be fully closed
Depending on the size and shape of the USB memory that is connected to
the system, the auxiliary box lid may not close fully. In this case, do not forc-
ibly close the lid as this may damage the USB memory or the terminal, etc.
To prevent damage to USB memory
Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the player.
Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

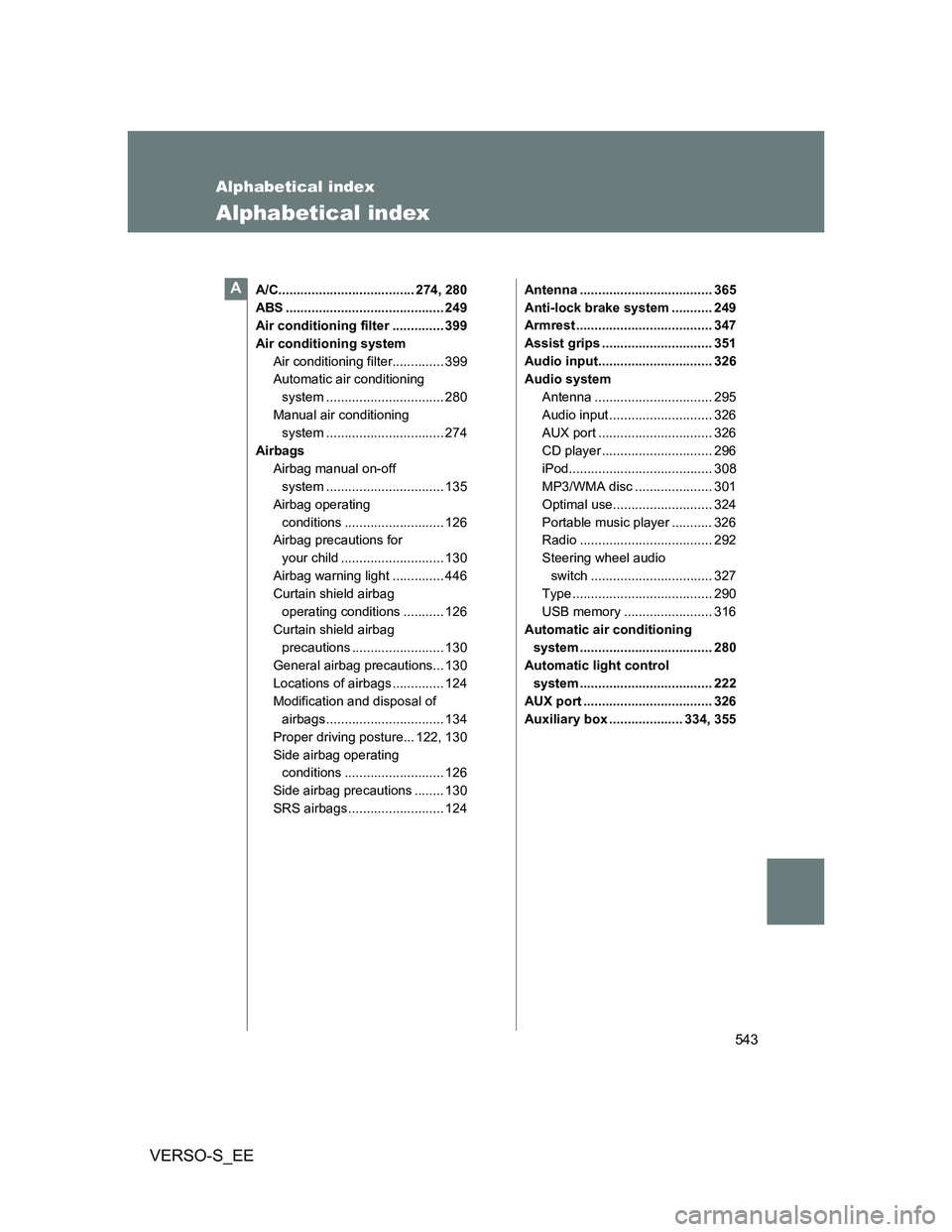

543
VERSO-S_EE
Alphabetical index
Alphabetical index
A/C..................................... 274, 280
ABS ........................................... 249
Air conditioning filter .............. 399
Air conditioning system
Air conditioning filter.............. 399
Automatic air conditioning
system ................................ 280
Manual air conditioning
system ................................ 274
Airbags
Airbag manual on-off
system ................................ 135
Airbag operating
conditions ........................... 126
Airbag precautions for
your child ............................ 130
Airbag warning light .............. 446
Curtain shield airbag
operating conditions ........... 126
Curtain shield airbag
precautions ......................... 130
General airbag precautions... 130
Locations of airbags .............. 124
Modification and disposal of
airbags ................................ 134
Proper driving posture... 122, 130
Side airbag operating
conditions ........................... 126
Side airbag precautions ........ 130
SRS airbags .......................... 124Antenna .................................... 365
Anti-lock brake system ........... 249
Armrest ..................................... 347
Assist grips .............................. 351
Audio input............................... 326
Audio system
Antenna ................................ 295
Audio input ............................ 326
AUX port ............................... 326
CD player .............................. 296
iPod....................................... 308
MP3/WMA disc ..................... 301
Optimal use........................... 324
Portable music player ........... 326
Radio .................................... 292
Steering wheel audio
switch ................................. 327
Type ...................................... 290
USB memory ........................ 316
Automatic air conditioning
system .................................... 280
Automatic light control
system .................................... 222
AUX port ................................... 326
Auxiliary box .................... 334, 355A

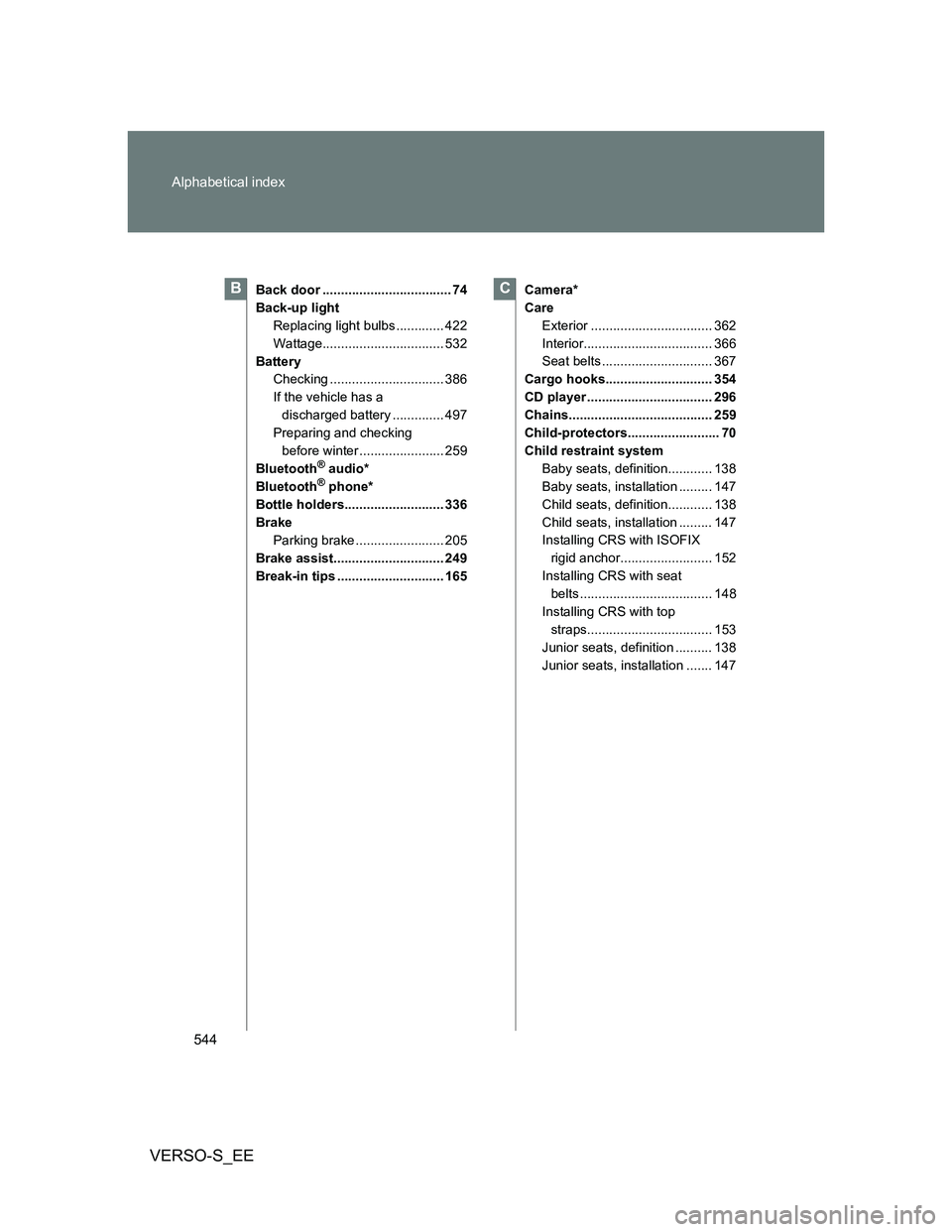

544 Alphabetical index
VERSO-S_EE
Back door ................................... 74
Back-up light
Replacing light bulbs ............. 422
Wattage................................. 532
Battery
Checking ............................... 386
If the vehicle has a
discharged battery .............. 497
Preparing and checking
before winter ....................... 259
Bluetooth
® audio*
Bluetooth® phone*
Bottle holders........................... 336
Brake
Parking brake ........................ 205
Brake assist.............................. 249
Break-in tips ............................. 165Camera*
Care
Exterior ................................. 362
Interior................................... 366
Seat belts .............................. 367
Cargo hooks............................. 354
CD player .................................. 296
Chains....................................... 259
Child-protectors......................... 70
Child restraint system
Baby seats, definition............ 138
Baby seats, installation ......... 147
Child seats, definition............ 138
Child seats, installation ......... 147
Installing CRS with ISOFIX
rigid anchor......................... 152
Installing CRS with seat
belts .................................... 148
Installing CRS with top
straps.................................. 153
Junior seats, definition .......... 138
Junior seats, installation ....... 147
BC
