This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4 EV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4 EV
operations. Every RAV4 EV owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
RAV4 EVINDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEW
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7

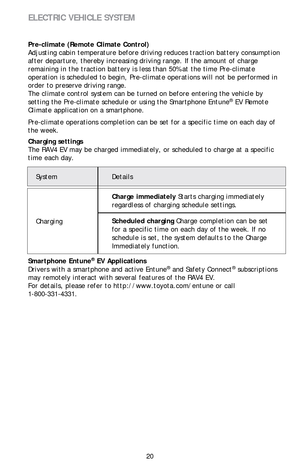

Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12

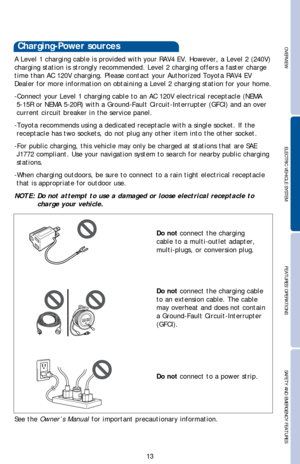

Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11
ELECTRIC VEHICLE SYSTEM
2014Rav4EV_v3.indd 29/8/13 2:29 AM13-TCS-06958_VehChargeOpQRG_RAV4EV_1_0F_lm.indd 29/8/13 3:49 AM
Page 3 of 52
OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEWFEATURES/OPERATIONS
Air Conditioning/Heating 37
Clock 38
Cruise control 41
Door locks 35
Hill-start Assist Control (HAC) 43
iPod
®/USB/AUX port 40Light control-Instrument panel 35Lights & turn signals 33
Multi-Information Display 42
Navigation system 38-39
Parking brake 30
Power outlets-12V DC 42
Seat adjustments-Front 31
Seat adjustments-Rear 31
Seat heaters 37
Seats-Folding down rear seats 32
Seats-Head restraints 32
Steering wheel switches 40
Telephone controls (Bluetooth
®) 36
Tilt and telescopic steering wheel 41
Transmission 30
VSC OFF button 43
Windows-Power 34
Windshield wipers & washers
34
Doors-Child safety locks 44
Emergency tire puncture repair kit 45
Floor mat installation 47
Seat belts 44
Seat belts-Shoulder belt anchor 45
Star Safety System
TM 46-47
Tire Pressure Monitoring
(warning) System
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7
Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12
Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11
27-2829
45
SAFETY AND EMERGENCY FEATURES
ELECTRIC VEHICLE SYSTEM
Page 4 of 52
2
OVERVIEW
Instrument panel
Steering wheel audio controls*
Telephone controls*
Multi-Information Display switch
Speech command button*
Cruise control
Headlight and turn signal control
Wiper and washer controls
Emergency flasher switch
Navigation/Audio system*
Power button
Immobilizer indicator
Clock and HVAC display
Front passenger occupant classification indicator
Air Conditioning controls
Seat heater controls
Steering wheel controls
Page 5 of 52
OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Rear window and outside rearview mirror defogger switch
12V DC power outlet
SPORT mode switch
VSC OFF switch
Tilt and telescopic steering release
Manual headlight leveling dial
Instrument panel light control
* For details, refer to the “Navigation System Owner’s Manual.”
Page 6 of 52
4
OVERVIEW
Open door warning
EV System indicator
SOC (State Of Charge) gauge
Driving range
Service indicator and reminder
Speedometer
Multi-Information Display
Transmission shift position indicator
Odometer and two trip meters
Display change button
Instrument cluster
12-volt battery charging system warning1
Plug-in indicator (yellow/green) Brake system warning (red)
1
Output control warning
Master warning
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
SOC (state of charge) warning
Brake system warning (yellow)1
1 If indicator does not turn off within a few seconds of starting EV System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Page 7 of 52
OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5 Transmission shift position indicator
Turn signal indicator
SRS Airbag warning1
Headlight low/high beam indicator
Low Tire Pressure Warning1
Electric power steering system warning1
Slip indicator/Hill-start Assist Control (HAC) indicator1
Cruise control indicator2/Cruise control SET indicator2
Anti-lock Brake System warning1
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2014 Owner’s Manual.
Vehicle Stability Control (VSC) OFF indicator1
Traction Control OFF indicator1
Front passenger occupant classification indicator1
Charging indicator
READY indicator ECO Driving Indicator Light
1
SPORT mode indicator
Immobilizer indicator
Page 8 of 52
6
OVERVIEW

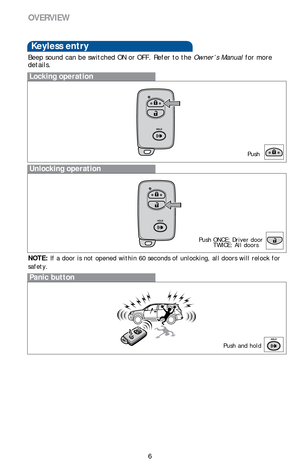

Keyless entry
Locking operation
Unlocking operation
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more
details.
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
Push
