871-2. Hybrid system
1
PRIUS +_OM_OM47888E_(EE)
For safety and security
■If a warning light comes on, a warning message is displayed, or the
12-volt battery is disconnected
The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level
warning light ( →P. 380) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel is about
7 L [1.8 gal., 1.5 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)
■ Electromagnetic waves
●High voltage parts and cables on hybrid vehicles incorporate electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.
■ Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100
(Battery electric vehicle safety).

1062. Instrument cluster
PRIUS +_OM_OM47888E_(EE)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate a malfunction.
*1
(If equipped)
Hybrid system overheat
warning light ( →P. 380) Rear passengers’ seat
belt reminder light
(
→ P. 381)
(Yellow)
(If equipped)
Cruise control indicator
(→ P. 380)
(If equipped)
Smart entry & start
system warning light
(→ P. 386)
Open door warning light
( → P. 380)
*1
(If equipped)
Master warning light
(→ P. 381)
Low fuel level warning
light ( →P. 380)
*1Tire pressure warning
light ( →P. 381)
Driver’s and front
passenger’s seat belt
reminder light ( →P. 381)
*1
(If equipped)
Go to service warning
light ( →P. 382)

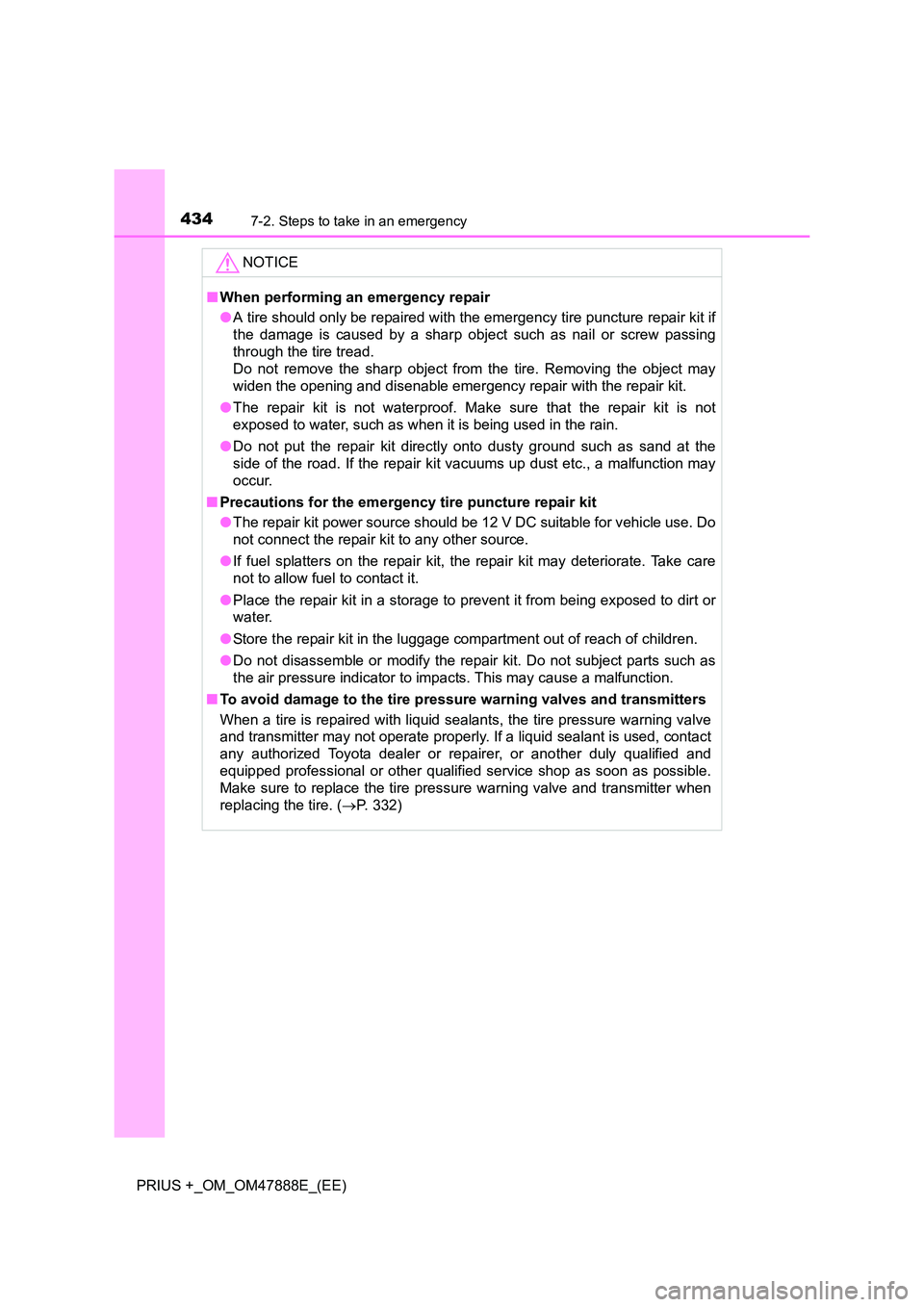

4347-2. Steps to take in an emergency
PRIUS +_OM_OM47888E_(EE)NOTICE
■
When performing an emergency repair
●A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
● The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
● Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
■ Precautions for the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
● If fuel splatters on the repair kit, the repair kit may deteriorate. Take care
not to allow fuel to contact it.
● Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
● Store the repair kit in the luggage compartment out of reach of children.
● Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pres sure warning valve and transmitter when
replacing the tire. ( →P. 332)

489Alphabetical index
PRIUS +_OM_OM47888E_(EE)
Seat belts .................................... 38Adjusting the seat belt............. 41
Child restraint system
installation............................. 68
Cleaning and maintaining the seat belt ........................ 306
Emergency Locking Retractor............................... 42
How to wear your seat belt ..... 36
How your child should wear the seat belt .......................... 42
Pregnant women, proper seat belt use ......................... 44
Reminder light and buzzer .... 381
Seat belt pretensioners ........... 41
SRS warning light ................. 377
Seat heaters ............................. 279
Seats Adjustment ............ 165, 169, 174
Adjustment precautions ........ 167
Child seats/child restraint system installation .......... 59, 67
Cleaning ................................ 305
Front seats ............................ 165
Head restraint ....................... 177
Properly sitting in the seat....... 36
Seat heaters.......................... 279
Second seats ........................ 169
Third seats ............................ 174 Sensor
Automatic headlight system ................................ 216
Inside rear view mirror .......... 183
Radar sensor ................ 240, 256
Service reminder indicators ............................... 104
Shift lever ................................. 208
Shift lever light......................... 280
Side airbags ............................... 46
Side doors ................................ 142
Side mirrors ............................. 184 Adjustment ............................ 184
Folding .................................. 184
Heaters ................................. 273
Side turn signal lights Replacing light bulbs............. 364
Turn signal lever ................... 213
Smart entry & start system ..... 151 Antenna location ................... 151
Entry functions ...................... 142
Starting the hybrid system .... 201
Warning message ................. 400
Snow tires ................................ 265
Spare tire
Inflation pressure .................. 461
Storage location .................... 405
Spark plug ................................ 458
Specifications .......................... 452
Speech command system
*
Speedometer ............................ 110
SRS airbags ............................... 46
S
*: Refer to the “Navigation and multimedia system Owner’s Manual”.

492Alphabetical index
PRIUS +_OM_OM47888E_(EE)
USB memory*
USB port*
Vanity lightsVanity lights........................... 292
Wattage................................. 462
Vanity mirrors .......................... 292 Vanity lights........................... 292
Wattage................................. 462
Vehicle identification number ................................... 453
Vehicle Stability Control (VSC)....................................... 248
VSC (Vehicle Stability Control) .................................. 248
Warning buzzers Approach warning ................. 238
Brake system ........................ 376
Downshifting ......................... 210
Driver’s seat belt reminder .... 381
Front passenger’s seat belt reminder ............................. 381
Open door ............................. 380
Pre-crash warning ................. 254
Radar cruise control .............. 238
Seat belt reminder................. 381 Warning lights
ABS....................................... 377
Automatic headlight leveling system ................................ 380
Brake system ........................ 376
Charging system ................... 376
Cruise control........................ 380
Driver’s seat belt reminder .... 381
Electronic engine control
system ................................ 377
Electric power steering ......... 377
Front passenger’s seat belt reminder ............................. 381
Go to service......................... 382
High coolant temperature ..... 380
Hybrid battery indicator ......... 379
Hybrid system ....................... 377
Hybrid system overheat ........ 380
LED headlight ....................... 379
Low engine oil pressure ........ 377
Low fuel level ........................ 380
Low hybrid battery (traction battery) ................. 380
Malfunction indicator lamp .... 377
Master warning light.............. 381
Open door ............................. 380
Parking lock system ...... 378, 379
P position request
indicator.............................. 379
PCS ...................................... 378
Rear passenger’s seat belt
reminder ............................. 381
Seat belt reminder light ......... 381
Slip indicator ......................... 378
SRS ...................................... 377
Tire pressure......................... 381
U
V
W
