104 1-5. Opening and closing the windows and moon roof
■Moon roof open reminder function
An alarm will sound and a message is shown on the multi-information dis-
play when the driver’s door is opened with the moon roof not fully closed and
the “POWER” switch off.
CAUTION
■Opening the moon roof
Observe the following precautions.
Failure to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the moon roof is being oper-
ated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury. The
driver is responsible for instructing children not to operate the moon roof.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.

When driving2
149
2-1. Driving proceduresDriving the vehicle............ 150
Engine (ignition) switch ............................. 160
Power (ignition) switch ..... 164
EV drive mode ................. 172
Hybrid transmission ......... 175
Turn signal lever .............. 178
Parking brake ................... 179
Horn ................................. 180
2-2. Instrument cluster Gauges and meters ......... 181
Indicators and warning lights ................. 184
Multi-information display............................ 187
2-3. Operating the lights and wipers
Headlight switch ............... 204
Fog light switch ................ 208
Windshield wipers and washer .................... 210
Rear window wiper and washer .................... 214 2-4. Using other driving
systems
Cruise control ................... 217
Driving assist systems ..... 221
2-5. Driving information Cargo and luggage .......... 226
Vehicle load limits ............ 230
Winter driving tips ............ 231
Trailer towing ................... 235
Dinghy towing .................. 236

164
2-1. Driving procedures
Power (ignition) switch (vehicles with a smart key system)
Performing the following operations when carrying the electronic
key on your person starts the hybr id system or changes “POWER”
switch modes.
■ Starting the hybrid system
Check that the parking brake is set.
Check that the shift lever is set in P.
If the shift lever is not set in P, the hybrid system may not be
started. ( P. 175)
Firmly depress the brake pedal.
will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
Press the “POWER” switch.
Continue depressing the brake
pedal until the hybrid system is
completely started.
The hybrid system can be
started from any “POWER”
switch mode.
STEP1
STEP2
STEP3
STEP4

165
2-1. Driving procedures
2
When driving
Check that the “READY” indicator is on.
If the “READY” indicator changes from a flashing light to a solid
light and a beep sound, the hybrid system is starting normally.
The vehicle will not move when
the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if
the engine is stopped. (The engine starts or stops automatically in
accordance with the state of the vehicle.)
■ Stopping the hybrid system
Stop the vehicle completely.
Shift the shift lever to P.
Set the parking brake. ( P. 179)
Press the “POWER” switch.
Slowly release the brake pedal and check that on the
multi-information display is off.
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5

166 2-1. Driving procedures

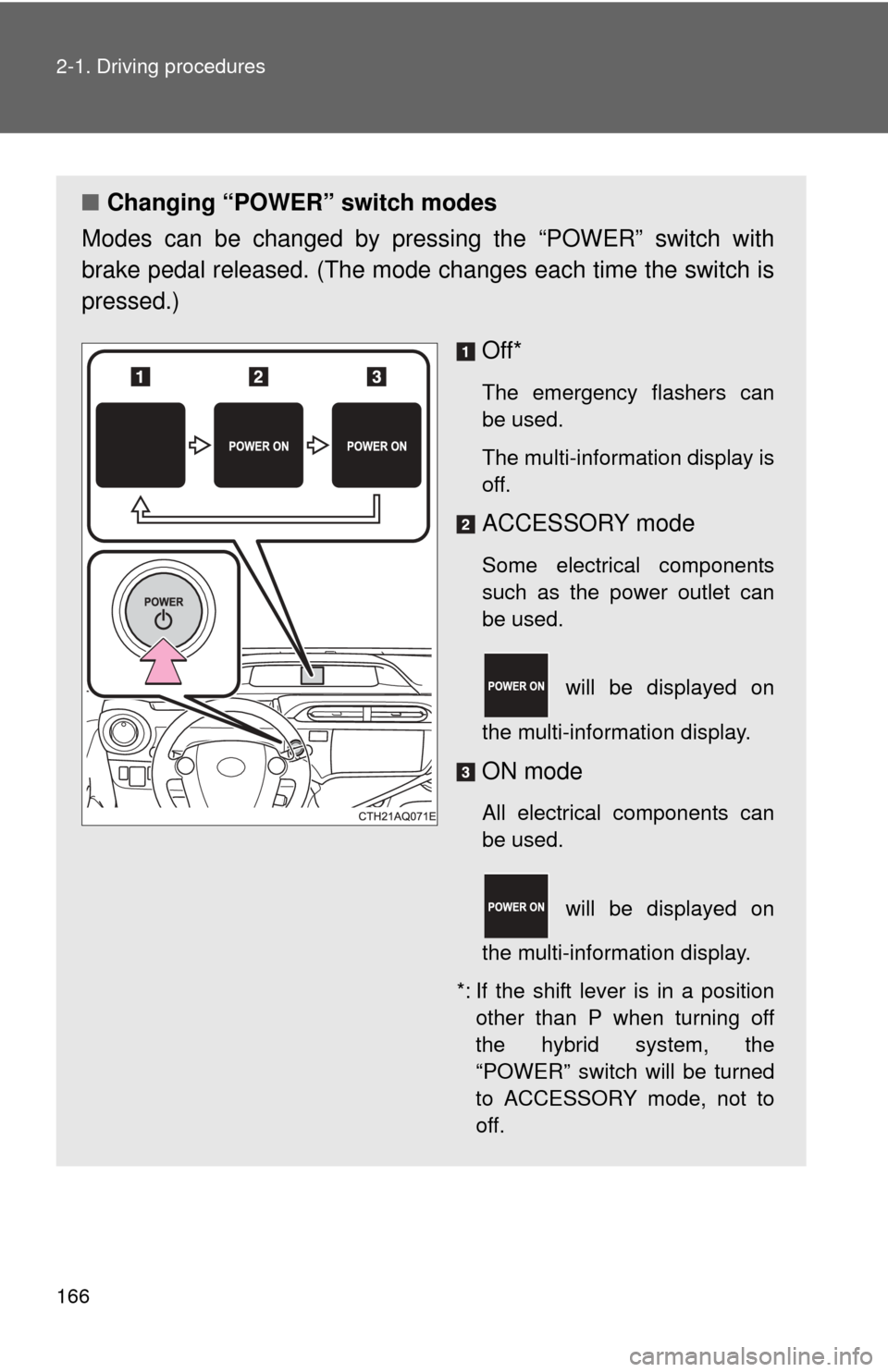

■Changing “POWER” switch modes
Modes can be changed by pres sing the “POWER” switch with
brake pedal released. (The mode changes each time the switch is
pressed.)
Off*
The emergency flashers can
be used.
The multi-information display is
off.
ACCESSORY mode
Some electrical components
such as the power outlet can
be used.
will be displayed on
the multi-information display.
ON mode
All electrical components can
be used.
will be displayed on
the multi-information display.
*: If the shift lever is in a position other than P when turning off
the hybrid system, the
“POWER” switch will be turned
to ACCESSORY mode, not to
off.

167
2-1. Driving procedures
2
When driving
When stopping the hybrid system with the shift lever in a
position other than P
If the hybrid system is stopped with the shift lever in a position other
than P, the “POWER” switch will not be turned off but instead be
turned to ACCESSORY mode. Perform the following procedure to
turn the switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that is displayed on the multi-information dis-
play and then press the “POWER” switch once.
Check that on the multi- information display is off.
■Auto power off function
When the shift lever is in P, if the vehicle is left in ACCESSORY or ON mode
with the hybrid system not operating for more than 20 minutes (ACCES-
SORY mode) or one hour (ON mode), the “POWER” switch will automati-
cally turn off. However, this function cannot entirely prevent 12-volt battery
discharge. Do not leave the vehicle with the “POWER” switch in ACCES-
SORY or ON mode for long periods of time when the hybrid system is not
operating.
■ Sounds and vibrations specific to a hybrid vehicle
P. 2 8
■ Electronic key battery depletion
P. 5 8
■ When the ambient temperature is low, such as during winter driving
conditions
It may take time until the “READY” indicator comes on.
■ Conditions affecting operation
P. 5 5
STEP1
STEP2
STEP3
STEP4

168 2-1. Driving procedures
■Notes for the entry function
P. 5 6
■ If the hybrid system does not start
●The immobilizer system may not have been deactivated. ( P. 110)
Contact your Toyota dealer.
■ Steering lock
After turning the “POWER” switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
“POWER” switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the hybrid system is turned on and off repeatedly in a short period
of time. In this case, refrain from operating the hybrid system. After about 10
seconds, the steering lock motor will resume functioning.
● Check that the shift lever is securely set
in P. The hybrid system may not start if
the shift lever is not securely in the P
position. “SHIFT TO P POSITION TO
START” will be displayed on the multi-
information display.
“STEERING LOCK ACTIVE” will be dis-
played on the multi-information display.
Check that the shift lever is set in P. Press
the “POWER” switch while turning the
steering wheel left and right.

171
2-1. Driving procedures
2
When driving
NOTICE
■
To prevent 12-volt battery discharge
●Do not leave the “POWER” switch in ACCESSORY or ON mode for long
periods of time without the hybrid system on.
● If is displayed on the multi-information display, the “POWER”
switch is not off. Exit the vehicle after turning the “POWER” switch off.
● Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the
“POWER” switch will not be turned off but instead be turned to ACCES-
SORY mode. If the vehicle is left in ACCESSORY mode, 12-volt battery
discharge may occur.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
your Toyota dealer immediately.
■ Symptoms indicating a malfunction with the “POWER” switch
If the “POWER” switch seems to be operating somewhat differently than
usual, such as the switch sticking slightly, there may be a malfunction. Con-
tact your Toyota dealer immediately.
