2014 TOYOTA DYNA 100/150 child lock

KEYS AND DOORS15
Window lock switch
For driver’s use
For passenger’s use
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s door
or the driver ’s door that controls the
passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
CAUTION
To avoid death or serious injury, you
must do the following.
DBefore you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
DWhen small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
DBe sure to remove the key from the
engine switch when you leave your
vehicle.
DNever leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.
Dyna100/150_EE

30SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS
Adjust the seat as needed (driver ’s seat
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
the belt is not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
DIf the seat belt does not function
normally, immediately contact any
authorized Toyota dealer or repairer,
or another duly qualified and
equipped professional. Do not use
the seat until the seat belt is fixed,
because it cannot protect an adult
occupant or your child from death
or serious injury.
Dyna100/150_EE
—3−point type

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS33
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
the belt is not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
DIf the seat belt does not function
normally, immediately contact any
authorized Toyota dealer or repairer,
or another duly qualified and
equipped professional. Do not use
the seat until the seat belt is fixed.
It cannot protect an adult occupant
or your child from death or serious
injury.

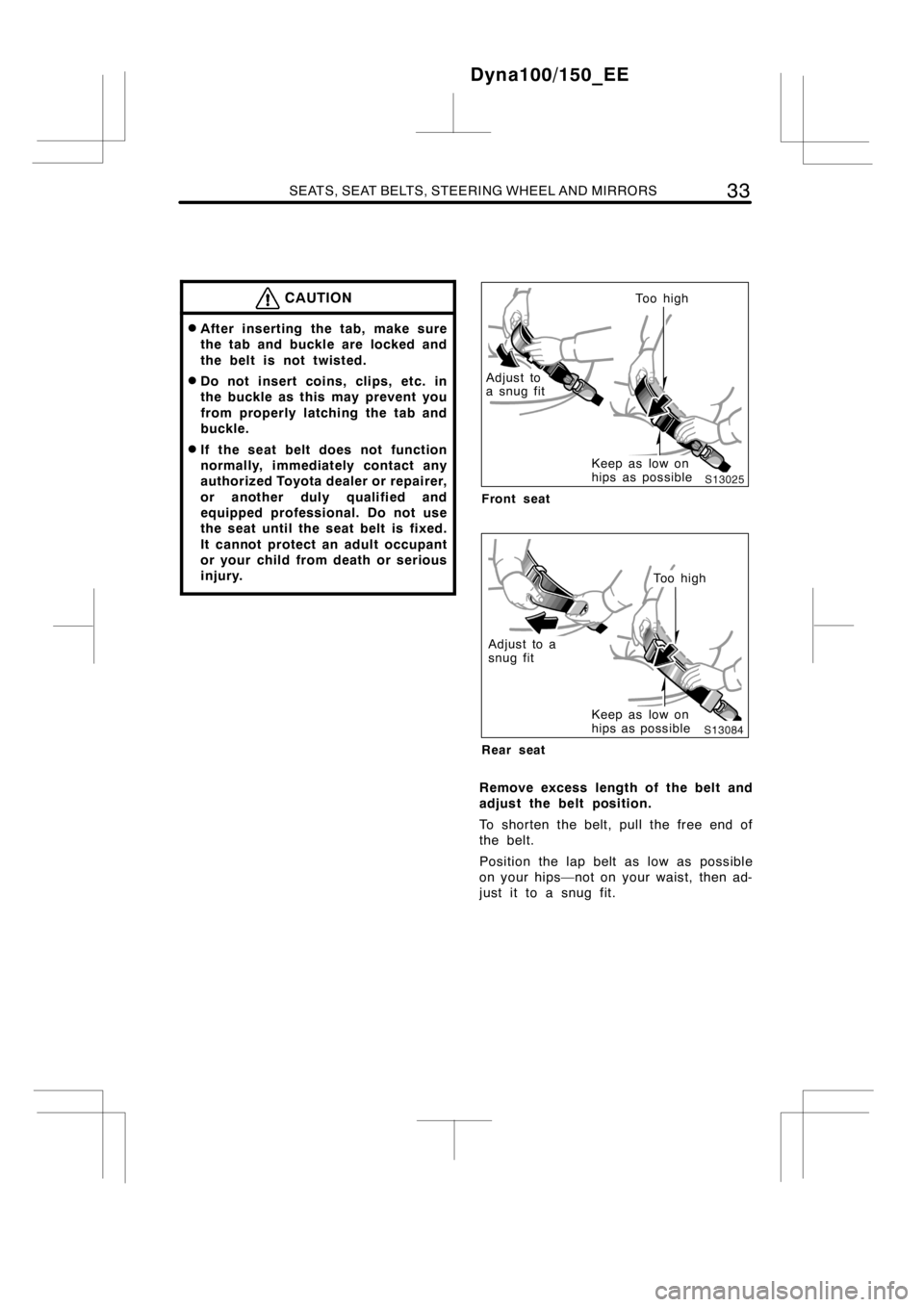

Adjust to
a snug fit
Keep as low on
hips as possibleTo o h i g h
Front seat
To o h i g h
Adjust to a
snug fit
Keep as low on
hips as possible
Rear seat
Remove excess length of the belt and
adjust the belt position.
To shorten the belt, pull the free end of
the belt.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS45
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Toyota recommends that you use a child
restraint system which conforms to the
regulation “ECE No.44”.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.CAUTION
When the child restraint system is
not in use:
DKeep the child restraint system
properly secured on the seat even
if it is not in use. Do not store the
restraint unsecured in the passen-
ger compartment.
DIf it is necessary to detach the
child restraint system, remove it
from the vehicle or store it securely
in the luggage compartment. This
will prevent it from injuring passen-
gers in the event of a sudden stop,
sudden swerve or accident.
DAfter installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop, sudden
swerve or accident.
When installing a child restraint system
witha3−point seat belt, you will need a
locking clip.
If your child restraint systemdoes not
provide a locking clip, you can purchase
the following item from any authorized
Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119−22010)
Dyna100/150_EE
—Child restraint system

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS49
CAUTION
Do not install a child restraint system
on the front center position. This seat
position is not designed to hold a
child restraint system.
If used in the front center position,
depending on its type, the child re-
straint system may interfere with the
proper usage of the driver ’s and front
passenger ’s seat belts. It may also
hamper your driving.
To install the child seat:
1. Run the center lap belt through or
around the child seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
DIf the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact any authorized Toyota
dealer or repairer, or another duly
qualified and equipped professional,
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS51
To remove the child seat:
Press the buckle release button.(A) BABY SEAT INSTALLATION
A baby seat is used in rear−facing posi-
tion only.
An ELR (Emergency Locking Retractor)
belt requires a locking clip to install a
child restraint system.
Dyna100/150_EE
—Installation with 3−point
type seat belt

52SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS

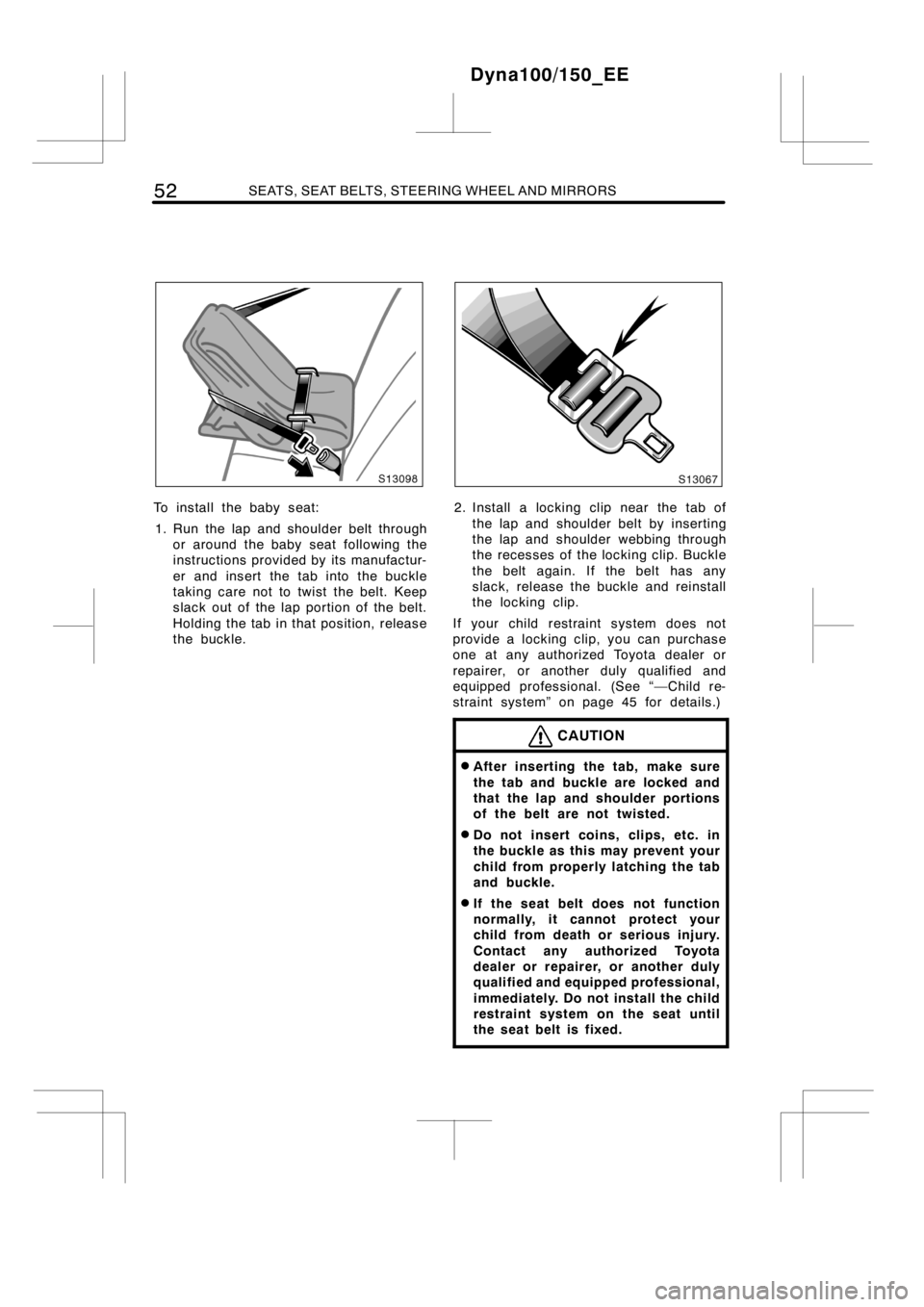

To install the baby seat:
1. Run the lap and shoulder belt through
or around the baby seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
slack out of the lap portion of the belt.
Holding the tab in that position, release

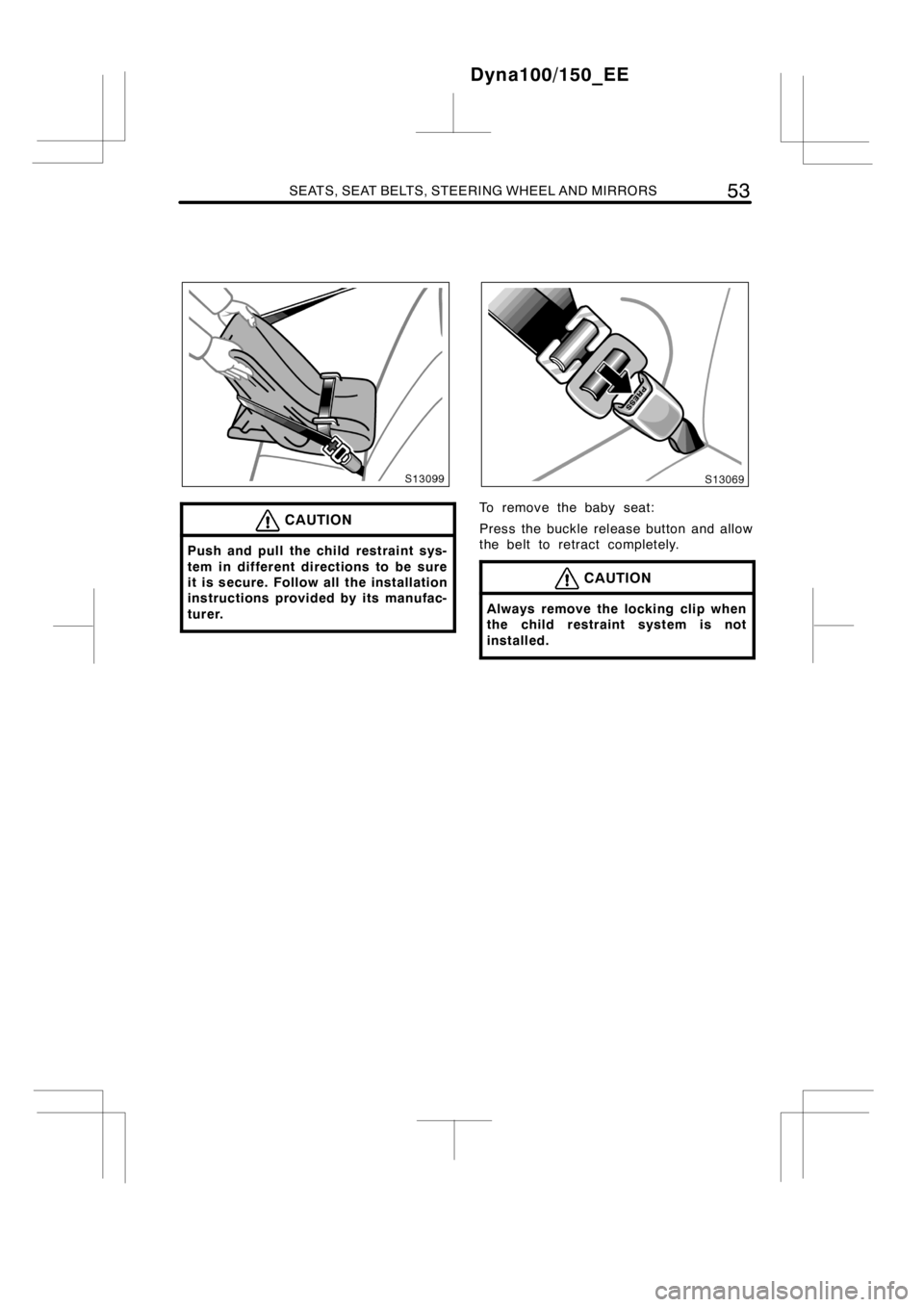

the buckle.2. Install a locking clip near the tab of
the lap and shoulder belt by inserting
the lap and shoulder webbing through
the recesses of the locking clip. Buckle
the belt again. If the belt has any
slack, release the buckle and reinstall
the locking clip.
If your child restraint systemdoes not
provide a locking clip, you can purchase
one at any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional. (See “—Child re-
straint system” onpage 45 for details.)
CAUTION
DAfter inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
DDo not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
DIf the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact any authorized Toyota
dealer or repairer, or another duly
qualified and equipped professional,
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
Dyna100/150_EE

SEATS, SEAT BELTS, STEERING WHEEL AND MIRRORS53
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

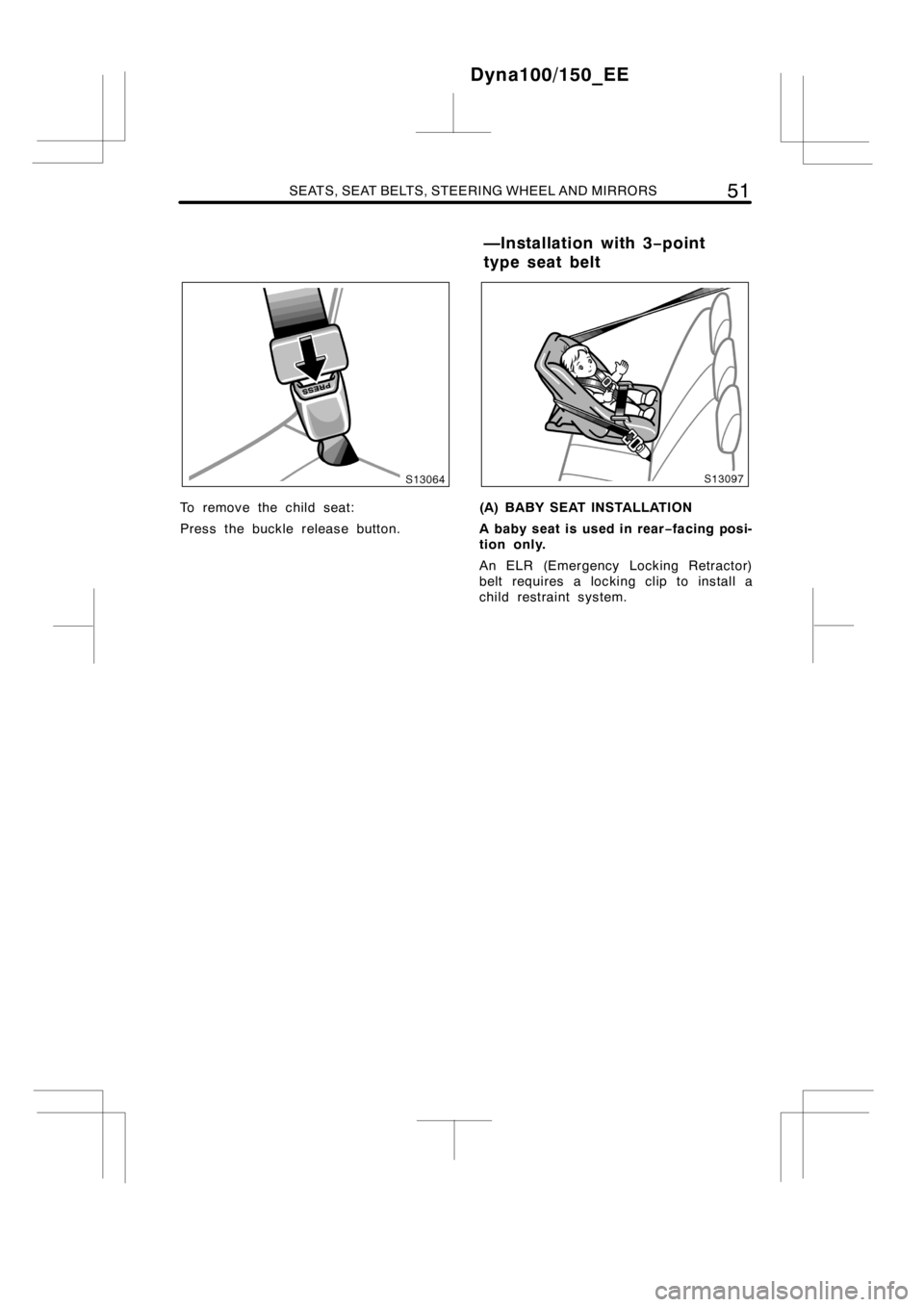

To remove the baby seat:
Press the buckle release button and allow
the belt to retract completely.
CAUTION
Always remove the locking clip when
the child restraint system is not
installed.
Dyna100/150_EE
