2014 TOYOTA COROLLA Owners Manual

4016-3. Using the storage features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)■
Front
■Rear
Pull the lid to open.
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glass or paper cups containing liquid. The contents may spill
and glass cups may break.
Cup holders

4026-3. Using the storage features
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Adjusting the size of the cup holder (front)
■Removing the cup holder insert (front)Remove the cup holder insert.
Change the cup holder insert position.
The cup holder insert may be removed for
cleaning.
CAUTION
■Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
1
2

403
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)
6-4. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover.
The clock can be adjusted.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g.1:00 to 1:29  1:00
1:30 to 1:59  2:00
Other interior features
Sun visors
1
2
Vanity mirrors
Clock
1
2
3

4046-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)
The temperature display shows temperatures within the range of -40F
(-40C) to 122F (50C).
■The outside temperature is displayed when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When the vehicle is stopped, or moving at low speeds (less than 9 mph [15
km/h]).
●When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
■When “--F” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
Outside temperature display
Ty p e AType B
Ty p e CType D

4056-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■The power outlet can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
Power outlet
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power
outlet may cause a short circuit.
●To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is off.

4066-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
CAUTION
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.

4076-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)

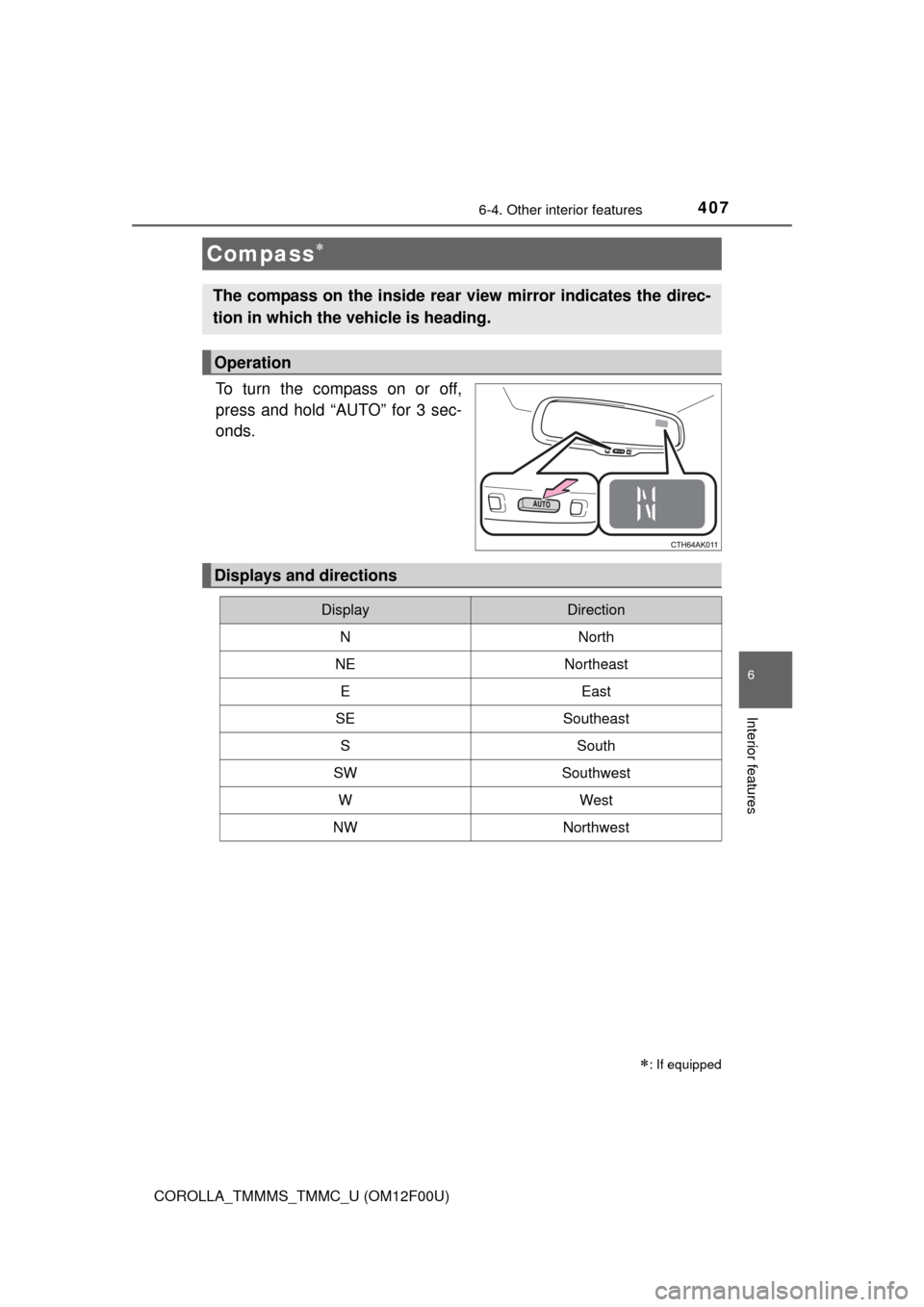

To turn the compass on or off,
press and hold “AUTO” for 3 sec-
onds.
Compass
: If equipped
The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

4086-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12F00U)
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according to
the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
■
Deviation calibration
Stop the vehicle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press the switch and referring to the map above, select the num-
ber of the zone where you are.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.
Calibrating the compass
1
2
3
