2014 TOYOTA COROLLA fog light bulb

15Pictorial index
COROLLA_TMMMS_TMMC_U (OM12F00U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 216
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 448
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Checking/rotation/tire pressure warning system
*1 . . . . . . . P. 448
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 431
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 184
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 184
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . . P. 184
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . P. 172, 174, 176, 180
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 470, Watts: P. 553)
*1: If equipped
*2: Vehicles with a drive monitor display
*3: Vehicles with a multi-information display
8
9
10
11
12
13
14
15

4707-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)
Check the wattage of the light bulb to be replaced. (P. 553)
■Front
Light bulbs
You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight high beams
Front turn signal/parking lights
Front side marker lights
Front fog lights (if equipped)1
2
3
4

4747-3. Do-it-yourself maintenance
COROLLA_TMMMS_TMMC_U (OM12F00U)

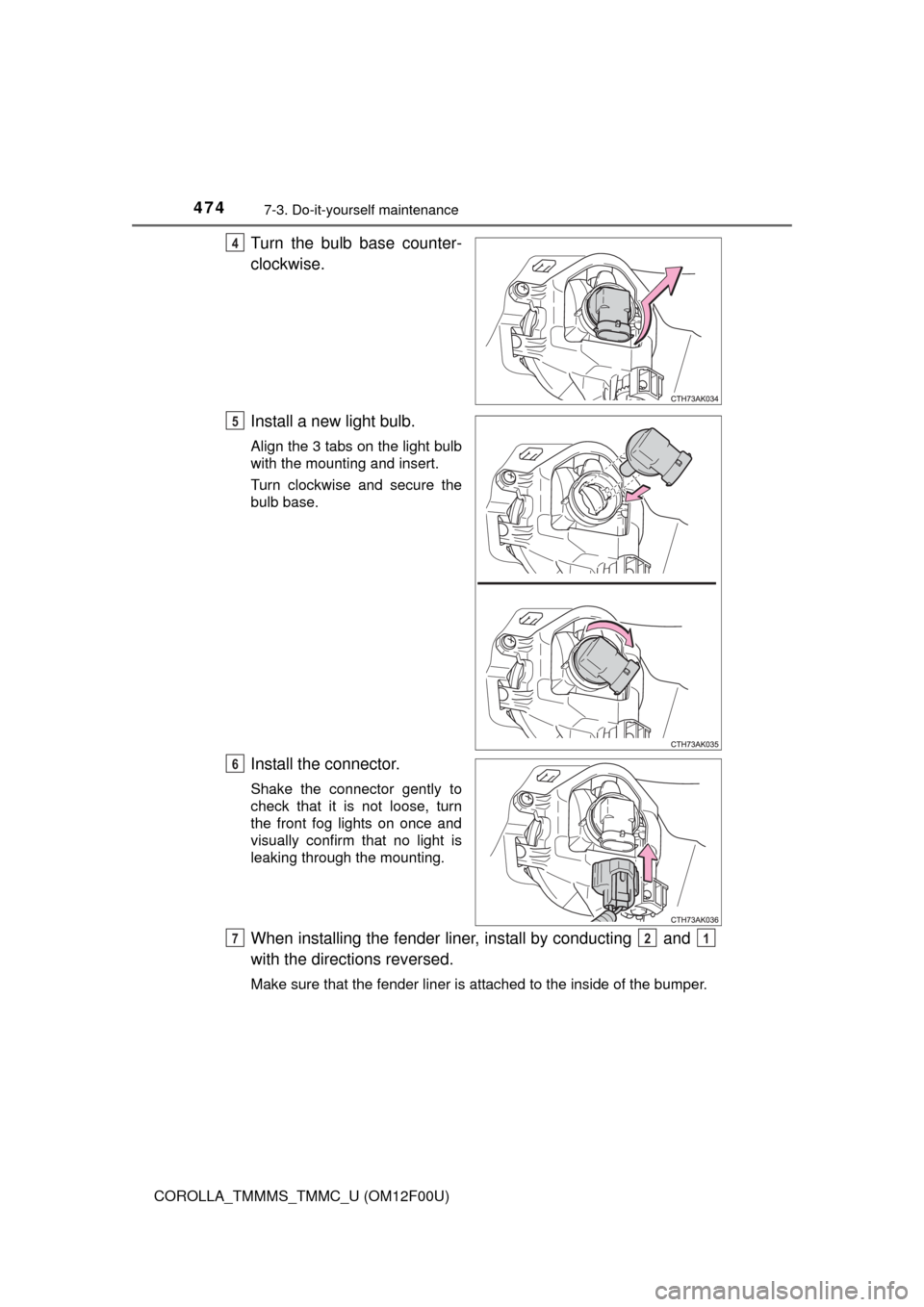

Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
4
5
6
721

5539-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12F00U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam 9005 60 A
Front side marker
lights5B
Front turn signal/park-
ing lights7444NA 28/8 C
Front fog lights
*19 D
Side turn signal
lights
*5C
Rear turn signal lights21 C
Stop/tail and rear side
marker lights 7443 21/5 B
License plate lights5B
Back-up lights 921 16 B
InteriorFront personal/inte-
rior lights (vehicles
without a moon roof)8B
Front personal/inte-
rior lights (vehicles
with a moon roof)5B
Rear interior light8E
Trunk light3.8 B
A: HB3 halogen bulbs
C: Wedge base bulbs (amber)
E: Double end bulbs
*: If equippedB: Wedge base bulbs (clear)
D: H16 halogen bulbs

604Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
Flat tire
Vehicles with a spare tire ...... 514
Floor mats .................................. 24
Fluid
Automatic transmission......... 550
Brake .................................... 551
Continuously variable
transmission ....................... 550
Washer ................................. 447
Fog lights ................................. 191
Replacing light bulbs............. 473
Switch ................................... 191
Wattage ................................ 553
Front interior light ................... 396
Front passenger occupant
classification system .............. 46
Front seats ............................... 120
Adjustment ............................ 120
Cleaning................................ 417
Correct driving posture ........... 26
Head restraints ..................... 124
Seat heaters ......................... 411
Front turn signal lights ........... 182
Replacing light bulbs............. 476
Turn signal lever ................... 182
Wattage ................................ 553Fuel ........................................... 194
Capacity................................ 546
Fuel gauge........................ 77, 82
Fuel pump shut off system ... 491
Information............................ 554
Refueling .............................. 194
Type.............................. 194, 546
Warning light......................... 494
Fuel filler door ......................... 194
Refueling .............................. 194
Fuel pump shut off system..... 491
Fuses ........................................ 467
Gauges ................................. 77, 82
Glove box ................................. 399
F
G

606Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
LATCH anchors ......................... 58
Lever
Auxiliary catch lever .............. 431
Hood lock
release lever ....................... 431
Shift lever ...... 172, 174, 176, 180
Turn signal lever ................... 182
Wiper lever............................ 192
License plate lights ................. 184
Light switch ........................... 184
Replacing light bulbs............. 479
Wattage ................................ 553
Light bulbs
Replacing .............................. 470
Wattage ................................ 553
Lights
Fog light switch ..................... 191
Front Interior light.................. 396
Headlight switch.................... 184
Illuminated entry system ....... 397
Interior lights list .................... 395
Personal lights ...................... 396
Rear interior light .................. 397
Replacing light bulbs............. 470
Trunk light ............................. 108
Turn signal lever ................... 182
Wattage ................................ 553
Lock steering column ..... 162, 169Maintenance
Do-it-yourself maintenance... 428
General maintenance ........... 423
Maintenance data ................. 544
Maintenance
requirements ...................... 420
Reset the maintenance
data .................................... 421
Malfunction indicator lamp..... 493
Manual air conditioning
system.................................... 380
Manual transmission............... 180
Master warning light ............... 494
Meter ..................................... 77, 82
Drive monitor display .............. 77
Indicators ................................ 75
Meters............................... 77, 82
Multi-information display ......... 82
Warning lights ......................... 73
Mirrors
Inside rear view mirror .......... 129
Outside rear view mirror
defoggers ................... 381, 389
Outside rear view mirrors ..... 131
Vanity mirrors ....................... 403
Moon roof ................................. 137
Jam protection function ........ 138
Operation .............................. 137
MP3 disc ........................... 232, 302
Multi-information display.......... 82
Customizing vehicle
features ................................ 86
Drive monitor .......................... 84
Switching the display .............. 82
Trip information....................... 84
Warning message................. 504
LM

607Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
Multimedia system .................. 283
Audio input ............................ 286
AUX port/USB
port ..................................... 286
Bluetooth
® audio................... 336
CD player .............................. 302
iPod....................................... 308
MP3/WMA disc ..................... 302
Optimal use........................... 299
Portable music player ........... 286
Radio .................................... 300
Steering wheel audio
switch ................................. 285
USB memory ........................ 313
Navigation system
*
Noise from under vehicle............ 8
Odometer.............................. 77, 82
Oil
Engine oil .............................. 546
Opener
Hood ..................................... 431
Trunk..................................... 106
Outside rear view mirrors ....... 131
Adjusting and folding ............ 131
Outside rear view mirror
defoggers ................... 381, 389
Outside temperature
display .................................... 404
Overheating, Engine................ 537Paddle shift switches ...... 177, 178
Parking brake........................... 183
Operation .............................. 183
Parking brake engaged
warning buzzer ................... 504
Parking brake engaged
warning message ............... 504
Parking lights........................... 184
Light switch ........................... 184
Replacing light bulbs ............ 476
Wattage ................................ 553
Personal lights......................... 396
Power outlet ............................. 405
Power steering......................... 211
Warning light......................... 493
Power windows ....................... 133
Jam protection function ........ 134
Operation .............................. 133
Window lock switch .............. 133
N
O
P
*: For vehicles with a navigation system, refer to the
“Navigation System Owner’s Manual”.

608Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12F00U)
Radiator .................................... 442
Radio................................. 230, 300
Rear interior light..................... 397
Rear seat
Folding down ........................ 122
Rear turn signal lights............. 182
Replacing light bulbs............. 477
Turn signal lever ................... 182
Wattage ................................ 553
Rear view mirror
Inside rear view mirror .......... 129
Outside rear view mirrors...... 131
Rear view monitor system ...... 201
Rear window defogger .... 381, 389
Refueling .................................. 194
Capacity ................................ 546
Fuel types ............................. 546
Opening the fuel tank cap ..... 195
Replacing
Electronic key battery ........... 464
Fuses .................................... 467
Light bulbs ............................ 470
Tires ...................................... 514
Reporting safety defects
for U.S. owners ...................... 580
Reset the maintenance data ... 421Seat belt reminder light .......... 494
Seat belts ................................... 28
Adjusting the seat belt ............ 29
Automatic Locking
Retractor (ALR) .................... 30
Child restraint system
installation ............................ 59
Cleaning and maintaining
the seat belt........................ 418
Emergency Locking Retractor
(ELR) .................................... 30
How to wear your seat belt ..... 28
How your child should wear
the seat belt.......................... 30
Pregnant women, proper
seat belt use ......................... 31
Reminder light and buzzer.... 494
Seat belt extender .................. 30
Seat belt pretensioners........... 29
SRS warning light ................. 493
Seat heaters ............................. 411
Seats ......................................... 120
Adjustment............................ 120
Adjustment precautions ........ 121
Child seats/child restraint
system installation................ 57
Cleaning ............................... 417
Head restraints ..................... 124
Properly sitting in the seat ...... 26
Seat heaters ......................... 411
Sensor
Automatic headlight
system ................................ 188
Inside rear view mirror .......... 130
RS
