2014 TOYOTA AVENSIS engine coolant

5

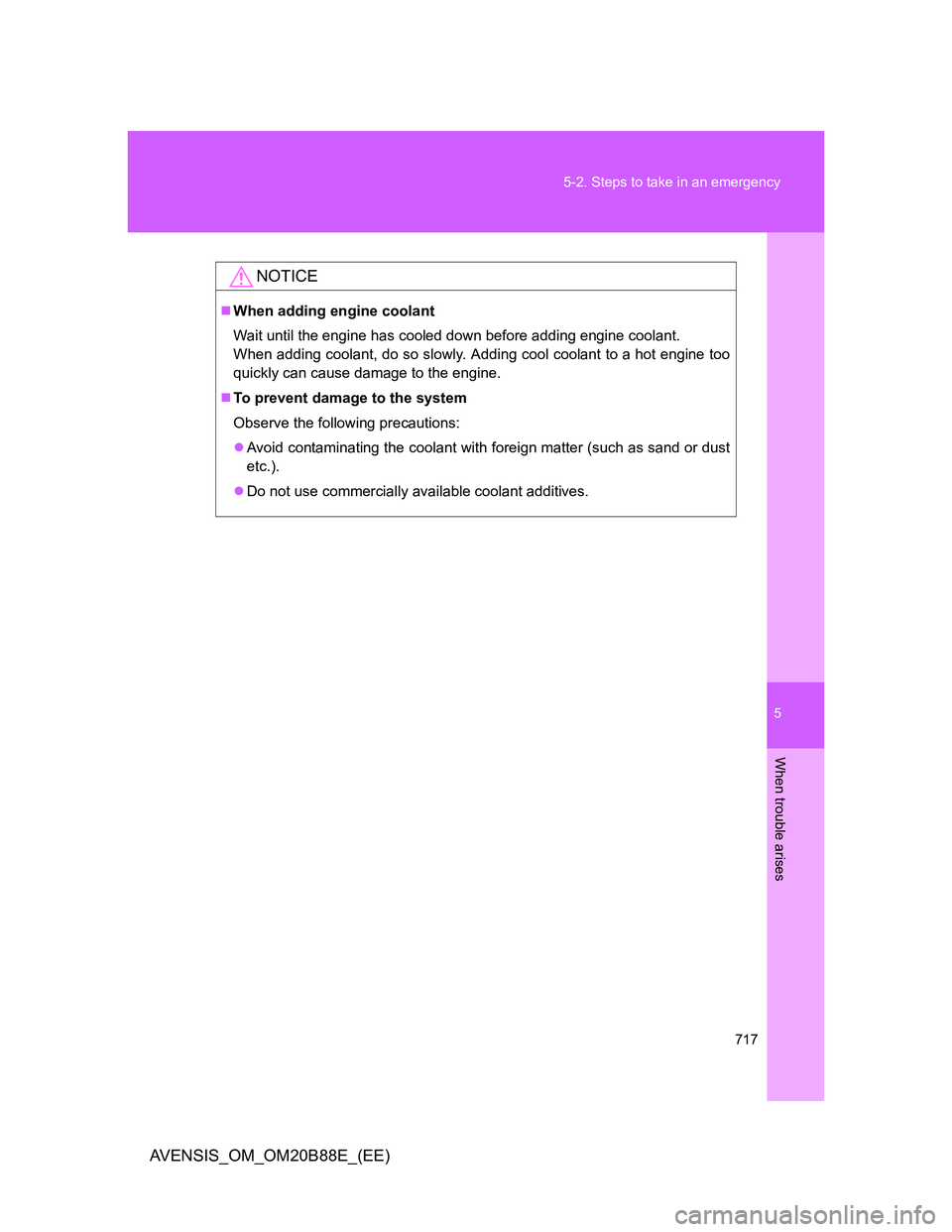

717 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)
NOTICE
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
To prevent damage to the system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use commercially available coolant additives.

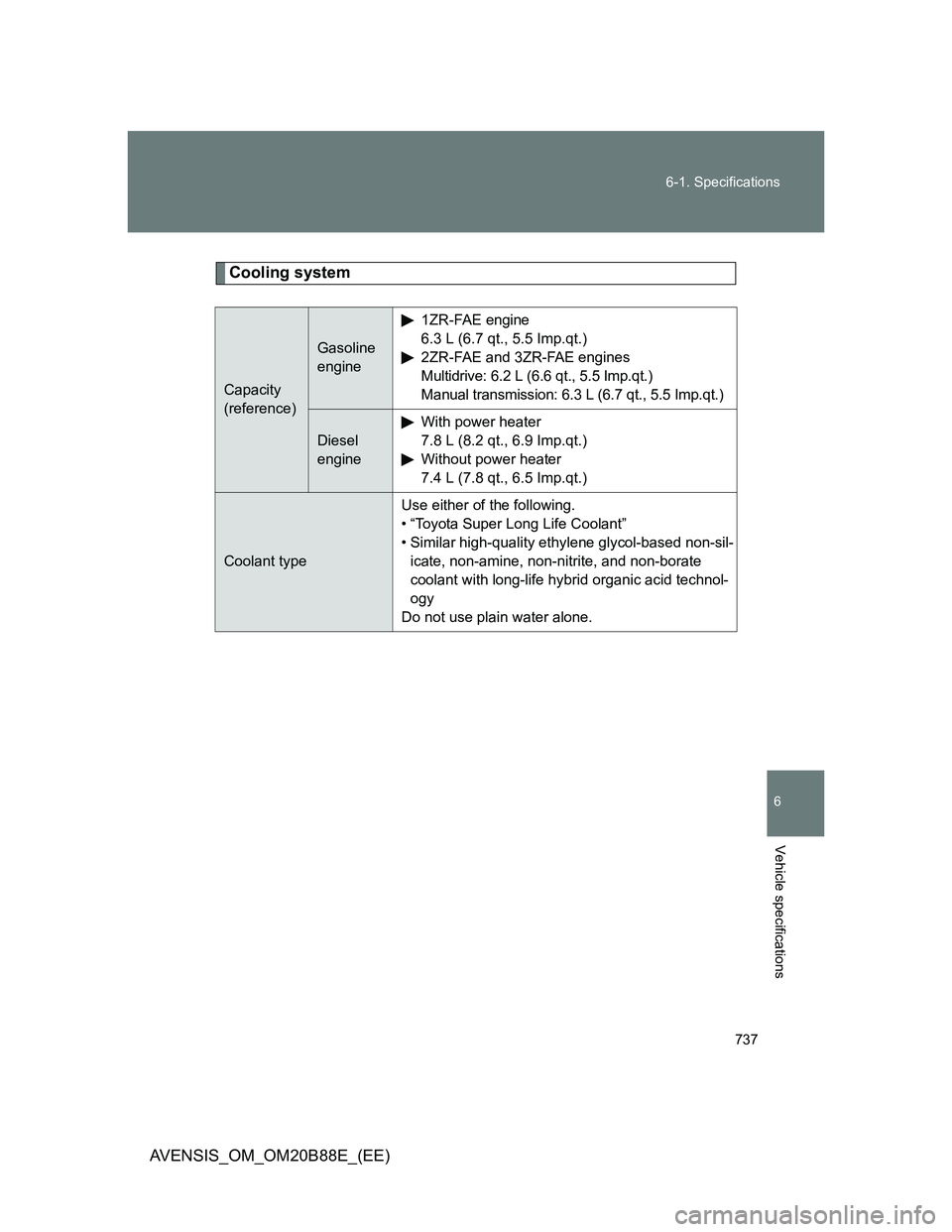

737 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engine
1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.5 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sil-
icate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

764 Alphabetical index
AVENSIS_OM_OM20B88E_(EE)
Engine
Compartment ........................ 527
Engine switch ................ 200, 205
Hood ..................................... 523
How to start the
engine ......................... 200, 205
Identification number............. 726
If the engine will not start ...... 693
If you run out of fuel and
the engine stalls.................. 718
Ignition switch ............... 200, 205
Overheating .......................... 714
Engine coolant
Capacity ................................ 737
Checking ............................... 536
Preparing and checking
before winter ....................... 336
Engine coolant temperature
gauge ...................................... 232
Engine immobilizer system .... 127
Engine oil
Capacity ................................ 731
Checking ............................... 530
Preparing and checking
before winter ....................... 336
Engine switch................... 200, 205
First-aid kit holder ................... 498
Floor mat .................................. 496
Fluid
Washer.................................. 542
Front fog lights
Replacing light bulbs ............. 576
Switch ................................... 259
Wattage................................. 748Front position/daytime
running lights
Replacing light bulbs............. 576
Switch ................................... 252
Wattage ................................ 748
Front seats
Adjustment .............................. 90
Driving position memory ......... 95
Front turn signal lights
Replacing light bulbs............. 576
Wattage ................................ 748
Fuel
Capacity ................................ 729
Fuel gauge ............................ 232
Fuel pump shut off system.... 608
Gas station information ......... 776
If you run out of fuel and
the engine stalls ................. 718
Information ............................ 749
Refueling............................... 121
Type ...................................... 729
Fuel door .................................. 121
Fuel filler door.......................... 121
Fuel filter .................................. 543
Fuel pump shut off system ..... 608
Fuses ........................................ 560
Gas station information .......... 776
Gauges ..................................... 232
Gear Shift Indicator ................. 223
Glove box ................................. 474
Glove box light......................... 474
Hands-free system
*
(for cellular phone)................ 434
Hazard lights
Switch ................................... 596
Head restraint ............................ 98
Headlight cleaner..................... 261
FG
H

770
AVENSIS_OM_OM20B88E_(EE)
What to do if...
What to do if...
A tire punctures
P. 640If you have a flat tire (vehicles with
a spare tire for sedan)
P. 654If you have a flat tire (vehicles with
a spare tire for wagon)
P. 668If you have a flat tire (vehicles with
emergency tire puncture repair kit)
The engine does not start
P. 693If the engine will not start
P. 718If you run out of fuel and the
engine stalls (diesel engine)
P. 127Engine immobilizer system
P. 709If the battery is discharged
The shift lever cannot be
moved outP. 696If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 714If your vehicle overheats
The key is lostP. 703If you lose your keys
The battery runs outP. 709If the battery is discharged
The doors cannot be lockedP. 7 2Side doors
P. 8 4Back door
