6267-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front passenger detection sensor, seat belt reminder and warning
buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
Once(Flashes
in yellow
for 30
seconds)
Smart entry & start system
indicator light
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the engine
switch was pressed two
consecutive times.
Touch the
electronic key
to the engine
switch while
depressing the
brake pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

6337-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Indicates a malfunction in the smart entry & start
system (if equipped)
A buzzer also sounds.
Indicates that the speed limiter system is mal-
functioning. (if equipped)
A buzzer also sounds.
Indicates a malfunction in the P position control
system. (hybrid model)
• In this situation, there is a possibility that the
parking lock mechanism will not work.
When parking, park the vehicle on a flat sur-
face and apply the parking brake securely.
Also, it may not be possible to turn the power
switch off. If this happens, applying the park-
ing brake will enable the switch to be turned
off.
• A buzzer also sounds.
Indicates a malfunction in the Toyota parking
assist-sensor (if equipped)
• The malfunctioning assist-sensor is flashing.
• A buzzer also sounds.
Warning messageDetails
(Flashes)

6407-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean with DPF cata-
lytic converter, drive the
vehicle at a speed of 65
km/h (40 mph) or
greater for 20 to 30
minutes as much as
possible until the mes-
sage goes off.
Do not turn off the
engine as much as
possible until the mes-
sage goes off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h (40
mph) or greater, or the
DPF system warning
light does not turn off
even after driving for
more than 30 minutes,
have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
Indicates that Toyota
parking assist-sensor is
dirty or covered with
ice. (if equipped)
A buzzer also
sounds.
Clean the sensor.
Warning messageDetailsCorrection procedure
(Diesel engine)

7588-2. Customization
UK_AURIS/AURIS_HV_EE (OM12G88E)Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustom-
ized setting
Alarm*1
(P. 104)Sensitivity adjustment of
the intrusion sensor when
the window is open
StandardLow—O
Smart entry
& start
system
*1
(P. 157)
and
wireless
remote
control
(P. 194)
“Lock/unlock feedback
lights” (Enable/disable the
operation of the emer-
gency flashers when the
vehicle is locked or
unlocked)
OnOff—O
“Auto relock timer” (Adjust
the time elapsed before
the automatic door lock
function is activated if a
door is not opened after
being unlocked)
30
seconds
60
seconds
—O
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff—O
Smart entry
& start
system
*1
(P. 157)
“Entry and start system”
(Smart entry & start sys-
tem can be disabled)
OnOffOO
Number of consecutive
door lock operations2 times
As many
as
desired
—O
Push-
button
start
*1
(P. 181)Push-button startOnOff—O
Wireless
remote
control
(P. 194)
Wireless remote controlOnOff—O
12

7598-2. Customization
UK_AURIS/AURIS_HV_EE (OM12G88E)
8
Vehicle specifications
Wireless
remote
control
(P. 194)
Back door unlocking oper-
ation
*2Press and
hold (short)
One short
press
—OPush twice
Press and
hold (long)
Off
Automatic
light control
system
(P. 314)
“Light sensor sensitivity”
(Adjust the sensitivity of
the ambient light sen-
sor)
*1
Standard-2 to 2OO
“Follow me home” (Time
elapsed before headlights
automatically turn off)30
seconds
60
seconds
—O90
seconds
120
seconds
Automatic High Beam sys-
tem
*1OnOff—O
Turn signal
lever
(P. 311)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(The turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light.)
ItemFunctionDefault
settingCustom-
ized setting12

769What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12G88E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 104)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 631)
When a warning light turns on, refer to P. 613.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

777Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Hood.......................................... 504
Open ..................................... 504
Hooks
Cargo hooks.......................... 467
Coat hooks ............................ 485
Grocery bag hooks................ 470
Retaining hooks (floor mat) ..... 38
Horn .......................................... 313
Hybrid battery
(traction battery) ...................... 84
Hybrid battery
(traction battery) air vents ...... 85
Hybrid system ............................ 80
Emergency shut off system..... 85
Energy monitor/
consumption screen ........... 147
EV drive mode ...................... 288
High voltage components ....... 84
Hybrid System Indicator ........ 138
Hybrid system precautions...... 84
Hybrid vehicle driving tips ..... 384
If the hybrid system
will not start......................... 704
Overheating .......................... 723
Power (ignition) switch .......... 282
Starting the hybrid system .... 282
Hybrid System Indicator ......... 138
Hybrid transmission ................ 303Identification ............................ 735
Engine................................... 736
Vehicle .................................. 735
Ignition switch
(engine switch) .............. 268, 272
Ignition switch
(power switch) ....................... 282
Illuminated entry system ........ 460
Immobilizer system ............. 91, 99
Indicators ................................. 121
Initialization
Engine oil maintenance
data .................................... 519
Power windows ..................... 226
Tire pressure
warning system .................. 537
Inside rear view mirror ............ 219
Intercooler ................................ 523
Interior lights............................ 457
Intrusion sensor ...................... 108
ISOFIX rigid anchors ................. 68I
*: Refer to “Navigation and multimedia system Owner’s manual”.

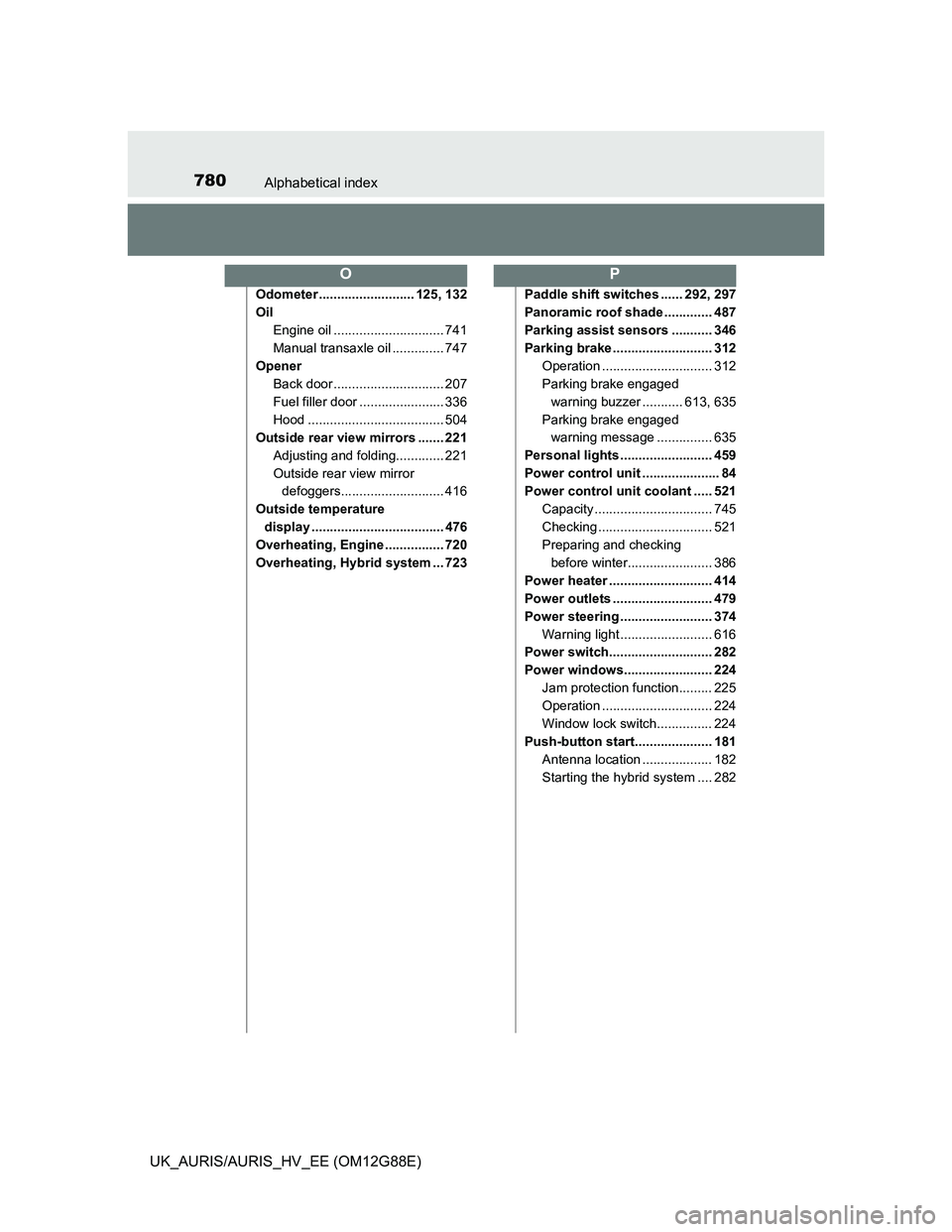

780Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Odometer .......................... 125, 132
Oil
Engine oil .............................. 741
Manual transaxle oil .............. 747
Opener
Back door .............................. 207
Fuel filler door ....................... 336
Hood ..................................... 504
Outside rear view mirrors ....... 221
Adjusting and folding............. 221
Outside rear view mirror
defoggers............................ 416
Outside temperature
display .................................... 476
Overheating, Engine ................ 720
Overheating, Hybrid system ... 723Paddle shift switches ...... 292, 297
Panoramic roof shade ............. 487
Parking assist sensors ........... 346
Parking brake ........................... 312
Operation .............................. 312
Parking brake engaged
warning buzzer ........... 613, 635
Parking brake engaged
warning message ............... 635
Personal lights ......................... 459
Power control unit ..................... 84
Power control unit coolant ..... 521
Capacity ................................ 745
Checking ............................... 521
Preparing and checking
before winter....................... 386
Power heater ............................ 414
Power outlets ........................... 479
Power steering ......................... 374
Warning light ......................... 616
Power switch............................ 282
Power windows........................ 224
Jam protection function......... 225
Operation .............................. 224
Window lock switch............... 224
Push-button start..................... 181
Antenna location ................... 182
Starting the hybrid system .... 282
OP
