Opening and Locking 19
Brief Overview – Opening and
Locking from Outside
The Porsche Entry & Drive option can be recognized by the buttons A in the door handles.
This brief overview does not replace the information provided under “OPENING AND LOCKING FROM OUTSIDE”.
Warnings, in particular, are not replaced by this brief overview.
Key Porsche Entry & Drive
What do I want to do?What do I have to do?What happens?
Unlocking Using the key:
Press the button on the key once.
Press the button on the key twice within 5 seconds.
With Porsche Entry & Drive:
Grip the door handle fully.
The emergency flasher flashes once. The driver’s door can be opened.
The emergency flasher flashes once.
Both vehicle doors can be opened.
The driver’s door can be opened.
LockingUsing the key: Press the button on the key.
With Porsche Entry & Drive: Press the button A on the door handle.
The emergency flasher flashes twice. The doors are locked.
Lock if persons/animals are remaining in vehicle
(Switch off the alarm system’s interior surveillance)
Please see the chapter “SWITCHING OFF INTERIOR SURVEILLANCE AND INCLINATION SENSOR” on page 216.
Switching off alarmUnlock the vehicle.
With Porsche Entry & Drive:
Grip the door handle fully.
The alarm stops.
14_991_Turbo_21.book Seite 19 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 21
Unlocking and opening doors
Unlocking with the key
1. Press button once. The emergency flasher flashes once.The driver’s door is unlocked.orPress button twice within 5 seconds. The emergency flasher flashes once.Both vehicle doors are unlocked.2. Pull the door handle.
Unlocking with Porsche Entry & Drive (keyless)
Either door can be unlocked if you have the key and position yourself on the side of the vehicle (driver’s side, passenger’s side) that you wish to open.1. Grip the door handle fully. The emergency flasher flashes once.The doors are unlocked.2. Pull the door handle.
Information
The vehicle is locked automatically after 30 seconds if none of the doors or the luggage compartment is opened.
If the interior surveillance system and inclination sensor have been switched off (restricted anti-theft protection), this also remains the case after automatic relocking.As a result, the doors can be opened from inside by pulling the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
When locked again, the interior surveillance system and inclination sensor are activated once more.
Switching off operational readiness (for vehicles with Porsche Entry & Drive)
Operational readiness of Porsche Entry & Drive is switched off after 96 hours for the driver’s door and after 36 hours for the passenger door if the vehicle is not unlocked within this time.1. Pull the door handle once to activate the system again.2. Pull the door handle again to open the door.
Side-selective door unlock function
When unlocking the vehicle, you can choose to unlock only the driver's door or also the passenger's door. You can unlock both doors irrespective of the selected setting. fPress button on the key twice within 5 seconds.
For information on modifying the opening and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
14_991_Turbo_21.book Seite 21 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 25
3.Raise lid slightly and unlatch the safety catch with the red lever (arrow).4. Open the luggage compartment fully.
Opening luggage compartment lid with the key
Information
When the luggage compartment lid is unlocked, the vehicle doors are also unlocked.
Unlocking and opening luggage compartment lid with the key
1. Press button . 2. Raise lid slightly and unlatch the safety catch with the red lever.3. Open the lid.
Unlocking and opening luggage compartment lid with Porsche Entry & Drive (keyless)
The luggage compartment lid can be opened if you are in the front area of the vehicle with the key.fHold your hand between the Porsche Crest and the license plate ( illustration). – The lid is unlocked via a sensor and pops open.– The vehicle doors are also unlocked.fRaise lid slightly and unlatch the safety catch with the red lever.fOpen the lid
14_991_Turbo_21.book Seite 25 Mittwoch, 9. April 2014 2:19 14

Seats, Mirrors and Steering Wheel 39
fSit back as far from the dashboard or steering wheel as is practical, while still maintaining full vehicle control.fAlways hold the steering wheel by the outer rim. Never rest your hands on the center of the steering wheel where the airbag module is located.fAlways keep feet in the footwell while driving. Do not put feet on the dashboard or the seat area. Do not lean against the inside of the door or outside the window while the vehicle is moving.
Objects and load have to be stored securely to keep from causing injury.fDo not transport heavy objects on or in front of the passenger seat. These could impair the function of the airbags, the safety belts, and occupant sensing.fDo not hang objects (e.g., jackets, coats, coat hangers) over the backrest.fObjects must not protrude out of the door storage compartment.fDo not add any additional coverings or stickers to the steering wheel or in the area of the passenger airbag, side airbags, knee airbags, and head airbags. Doing so may adversely affect the functioning of the airbag system or cause harm to the occupants if the airbag system should deploy.Do not use protective seat covers.
fNo objects should be placed over or near the airbag on the instrument panel, because any such objects could cause harm if the vehicle is in a crash severe enough to cause the airbag to inflate.fGive your passenger all of the information in this chapter.
A modified airbag system cannot offer protection. They may not trigger or could trigger in an uncontrolled way. An uncontrolled triggering of the airbag system can result in serious personal injury or death.fDo not modify the seat coverings, since such changes can block the seat-mounted side airbag. Do not attach additional cushions, protective coverings, or pillows to the seats. Do not affix things to the seats or cover them with other materials. Do not cover the back of the backrest. Do not make changes to the seats, the cushion or foam, the occupant sensor, and to the seat base frame.fNo changes must be made to the wiring or components of the airbag system. Doing so may disable the airbag system or cause inadvertent inflation.fDo not install any wiring for electrical accessory equipment in the vicinity of the airbag wiring harnesses. Doing so may disable the airbag system or cause inadvertent inflation.
fIf the warning light comes on, the airbag system should be repaired immediately by your authorized Porsche dealer.fUsing accessories not approved by Porsche can cause the occupant sensing to be impaired.fDo not squeeze objects, such as the fire extinguisher, or first aid kit under the seat.fOnly have seats removed and installed by an authorized Porsche dealer so that occupant sensing components will not be damaged.
Information
Airbag components (e.g. steering wheel, door lining, seats) may be disassembled only by an authorized Porsche dealer.fWhen disposing of a used airbag unit, our safety instructions must be followed. These instructions can be obtained at any authorized Porsche dealer.
Function of the airbag system
Airbags are a supplemental safety system. Your primary protection comes from your safety belts.
The front airbags are triggered during a frontal collision of sufficient force and direction.In the event of a side impact of corresponding force, the side airbag on the impact side is triggered.
Safe Storage of ObjectsDANGERh
Modification to Airbag SystemDANGERh
14_991_Turbo_21.book Seite 39 Mittwoch, 9. April 2014 2:19 14

42 Seats, Mirrors and Steering Wheel
Information
fAfter switching on the ignition, the PASS AIR BAG OFF warning light lights up for a few seconds as a check.
PASS AIR BAG OFF indicator lamp lights up
The passenger airbag is switched off.
PASS AIR BAG OFF indicator lamp does not light up
The passenger airbag is active and ready for operation.
Risk of serious personal injury or death due to the passenger airbag triggering unintentionally.
When the ignition is on and the up to one-year old child is seated in the child restraint system on the passenger seat the indicator lamp “PASS AIR BAG OFF“ must be on.
If the “PASS AIR BAG OFF” indicator lamp does not light up, it could indicate a fault in the system, and the airbag could inflate in a collision, placing the child at risk of death or severe injury from the inflating airbag.In this case:fChild restraint systems facing forwards: Install on the rear seats.fChild restraint systems facing rearwards: Do not drive with a rearward facing child restraint system.fHave the fault remedied at your nearest authorized Porsche dealer.
Airbag Warning light
Faults are indicated by a warning light on the tachometer.
The airbag warning light illuminates when the electronic monitoring of the airbag system detects a malfunction of the sensors, safety belt system, occupant detection system, PASS AIR BAG OFF indicator lamp, related wiring, airbag modules and control units.fIn the following cases you should immediately consult an authorized Porsche dealer in order to assure the airbag system is functioning properly: – If the warning light does not light up when the ignition is switched on or – If the warning light does not go out once the engine is running or – If the warning light appears while driving.
Information
If you sell your Porsche, notify the purchaser that the vehicle is equipped with airbags, and refer them to the chapter “Airbag systems“ in the owner’s manual (safety and disposal rules).
Further information on the airbag system can be found on stickers attached to the sun visors, as well as on all airbag components.
For special recommendations on the use of child restraints:fPlease see the chapter “CHILD RESTRAINT SYSTEMS” on page 42.
Child Restraint Systems
Porsche recommends that all infants and children be restrained in child restraint systems at all times while the vehicle is in motion in accordance with applicable laws.
When possible, use only child restraint systems recommended by Porsche. These systems have been tested and adjusted to the interior of your Porsche and the appropriate child weight groups.Other systems have not been tested and could entail an increased risk of injury.
The use of infant or child restraints is required by law in all 50 US states and the Canadian provinces. The child restraint system should be one that complies with U.S. Federal/Canadian Motor Vehicle Safety Standards and should be secured by a lap belt portion of a lap-shoulder belt or for child seats equipped with the LATCH system ( Lower Anchorage and Tether for Children, also known as ISOFIX) to the LATCH anchorages.
All child restraint systems are designed to be secured in vehicle seats by lapbelts or the lapbelt portion of a lap-shoulder belt.
You can obtain child seats that are LATCH compatible at your authorized Porsche dealer.fAlways observe the separate installation instructions for your child seat.
Children could be endangered in a crash if their child restraints are not properly secured in the vehicle.fMake sure that all child restraints are properly secured.
DANGERh
Improper use of child restraint
DANGERh
14_991_Turbo_21.book Seite 42 Mittwoch, 9. April 2014 2:19 14

50 Seats, Mirrors and Steering Wheel
Folding exterior mirrors in and out electrically
fPress button D. Both exterior mirrors fold in and out automatically.
If the electrical adjustment facility fails
fFold mirror in or out manually.
Information
At speeds greater than approx. 30 mph (50 km/h), the exterior mirrors can no longer be folded in.
Folding exterior mirrors in and out automatically
The exterior mirrors are folded in automatically after the vehicle is locked.
Prerequisite: – The function is activated on the multi-function display.
Folding exterior mirrors out automatically
fSwitch on ignition. The exterior mirrors fold out.
Information
The exterior mirrors do not fold out automatically after the ignition is switched on if they were folded in manually using the button D.
If the electrical adjustment facility fails
fFold the mirror outwards by hand as far as it will go.
Storing exterior mirror settings
On vehicles with memory, individual exterior mirror settings can be stored on the person buttons on the driver’s side and on the car key.
For further information on retrieving and storing vehicle settings:fPLEASE SEE THE CHAPTER “COMFORT ENTRY FUNCTION” on page 34.
Exterior mirror heating
The exterior mirror heating is activated automatically when the heated rear window is switched on while the engine is running.
For information on switching on the heated rear window:fPlease see the chapter “HEATED REAR WINDOW/ EXTERIOR MIRROR HEATING” on page 60.
If the charging condition of the battery is critical, the exterior mirror heating function is restricted initially and then switched off.
Swivelling down mirror glass as parking aid
When reverse gear is engaged, the mirror on the passenger’s side swivels down slightly to show the curb area.fPlease see the chapter “SWIVELLING DOWN MIRROR GLASS AS PARKING AID” on page 210.
Automatic Anti-Dazzle Interior and
Exterior Mirrors
The interior mirror’s reflection is undistorted.
Sensors on the front and rear sides of the interior mirror measure the incident light. The mirror automatically changes to anti-dazzle position or reverts to its normal state, depending on the light intensity.
Information
The incident light within the detection area of light sensor C must not be restricted (e.g. by stickers on the rear window).
Switching off automatic anti-dazzle function
fPress button B. The indicator light A goes out.
14_991_Turbo_21.book Seite 50 Mittwoch, 9. April 2014 2:19 14

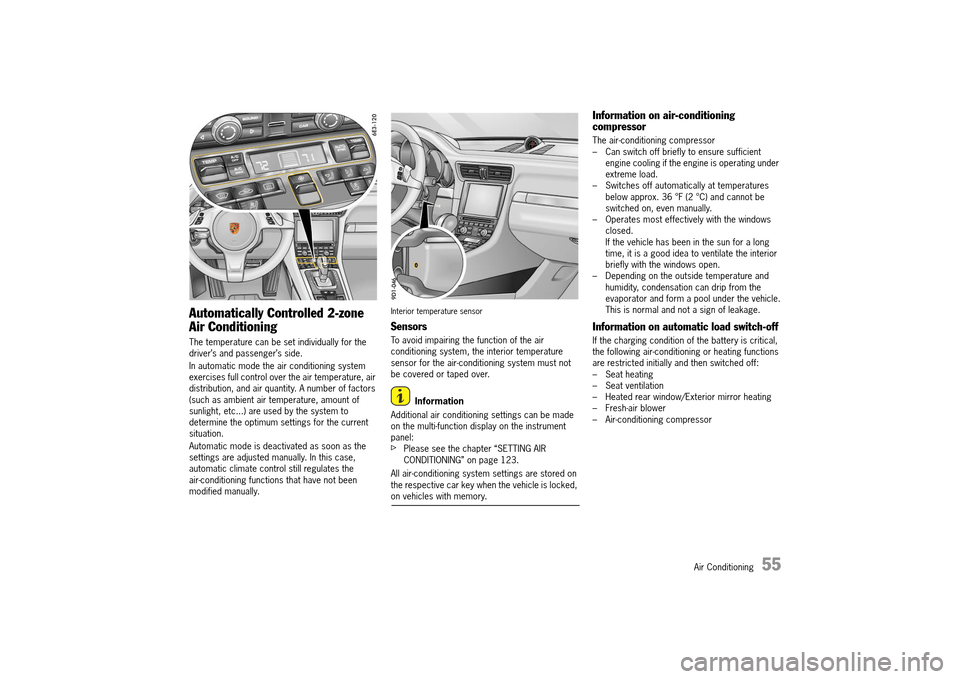

Air Conditioning 55
Automatically Controlled 2-zone
Air Conditioning
The temperature can be set individually for the driver’s and passenger’s side.
In automatic mode the air conditioning system exercises full control over the air temperature, air distribution, and air quantity. A number of factors (such as ambient air temperature, amount of sunlight, etc...) are used by the system to determine the optimum settings for the current situation.
Automatic mode is deactivated as soon as the settings are adjusted manually. In this case, automatic climate control still regulates the air-conditioning functions that have not been modified manually.
Interior temperature sensor
Sensors
To avoid impairing the function of the air conditioning system, the interior temperature sensor for the air-conditioning system must not be covered or taped over.
Information
Additional air conditioning settings can be made on the multi-function display on the instrument panel:fPlease see the chapter “SETTING AIR CONDITIONING” on page 123.
All air-conditioning system settings are stored on the respective car key when the vehicle is locked, on vehicles with memory.
Information on air-conditioning compressor
The air-conditioning compressor – Can switch off briefly to ensure sufficient engine cooling if the engine is operating under extreme load.– Switches off automatically at temperatures below approx. 36 °F (2 °C) and cannot be switched on, even manually.– Operates most effectively with the windows closed.If the vehicle has been in the sun for a long time, it is a good idea to ventilate the interior briefly with the windows open.– Depending on the outside temperature and humidity, condensation can drip from the evaporator and form a pool under the vehicle.This is normal and not a sign of leakage.
Information on automatic load switch-off
If the charging condition of the battery is critical, the following air-conditioning or heating functions are restricted initially and then switched off:– Seat heating– Seat ventilation– Heated rear window/Exterior mirror heating– Fresh-air blower– Air-conditioning compressor
14_991_Turbo_21.book Seite 55 Mittwoch, 9. April 2014 2:19 14

82 Lights, Turn Signals and Windshield Wipers
Instrument Lighting
The lighting is automatically adjusted to the ambient brightness via light sensors.In addition, when the vehicle lighting is switched on, the instrument and switch brightness can be adjusted manually.fTurn adjustment button A in the appropriate direction and hold until the desired brightness has been reached.
Adjusting the brightness while driving may cause you to lose control of the vehicle.fDo not reach through the steering-wheel spokes when driving.
Turn Signal/High Beam/Headlight
Flasher Stalk/Parking Light Switch
Turn signal, low beam and high beam are ready for operation when the ignition is on.1 – Turn signal light, left2 – Turn signal light, right3 – High beam, High Beam Assistant4 – Headlight flasher (also with the ignition switched off)
Stalk in center position – dipped beam
Turn signal lights
fPush the stalk once to the lower or upper pressure point 1 or 2. The turn signal lights flash three times.
High-beam headlight
Switching on and off (on vehicles WITHOUT High Beam Assistant)
fSwitching on : Push the stalk once to the front pressure point 3. The indicator light lights up on the tachometer.fSwitching off : Push the stalk once to the rear pressure point 4.
Activating/deactivating High Beam Assistant
The following conditions must be met before High Beam Assistant is activated:– Darkness– Light switch position is selected.– Vehicle speed is more than approx. 37 mph (60 km/h).– High Beam Assistant is activated on the multi-function display in the instrument panel.Please see the chapter “ACTIVATING AND DEACTIVATING HIGH BEAM ASSISTANT” on page 120.fActivating : Push the stalk once to the front pressure point 3. The indicator light in the speedometer lights up. The vehicle automatically selects between low beam and high beam.If the high beam is switched on, the indicator light on the tachometer lights up.fDeactivating : Push the stalk once to the rear pressure point 4. The High Beam Assistant can only be deactivated if the indicator light on the tachometer is lit.
Adjusting the brightness while drivingWARNINGh
