2014 Peugeot 308 width

94
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

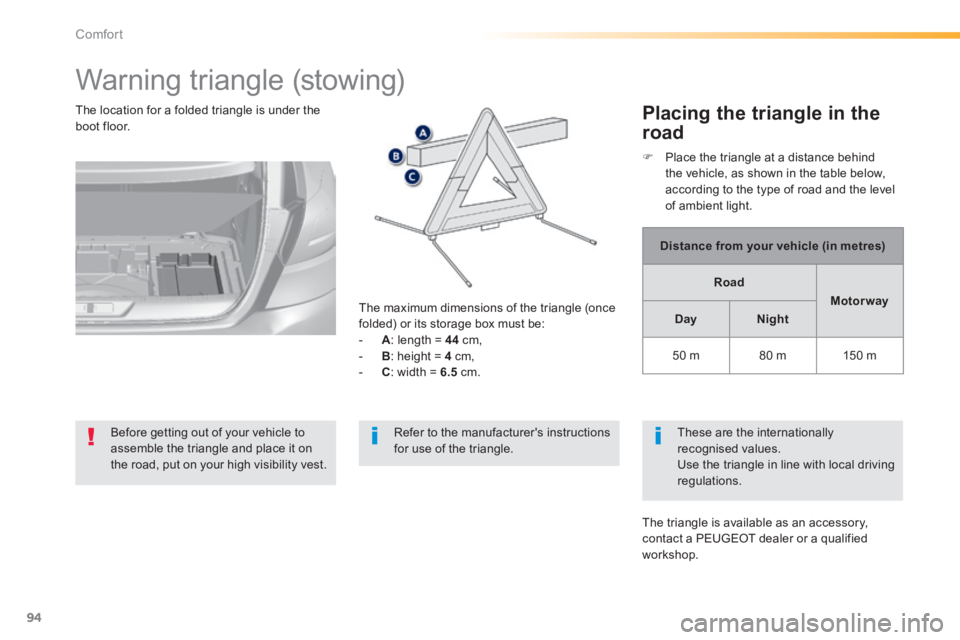

Warning triangle (stowing)
Before getting out of your vehicle to assemble the triangle and place it on the road, put on your high visibility vest.
The maximum dimensions of the triangle (once folded) or its storage box must be: - A : length = 44 cm, - B : height = 4 cm, - C : width = 6.5 cm.
The location for a folded triangle is under the boot floor. Placing the triangle in the
road
Distance from your vehicle (in metres)
Road
Motor way
DayNight
50 m 80 m 150 m
These are the internationally recognised values. Use the triangle in line with local driving regulations.
The triangle is available as an accessory, contact a PEUGEOT dealer or a qualified workshop.
 Place the triangle at a distance behind the vehicle, as shown in the table below, according to the type of road and the level of ambient light.
Refer to the manufacturer's instructions for use of the triangle.

145
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

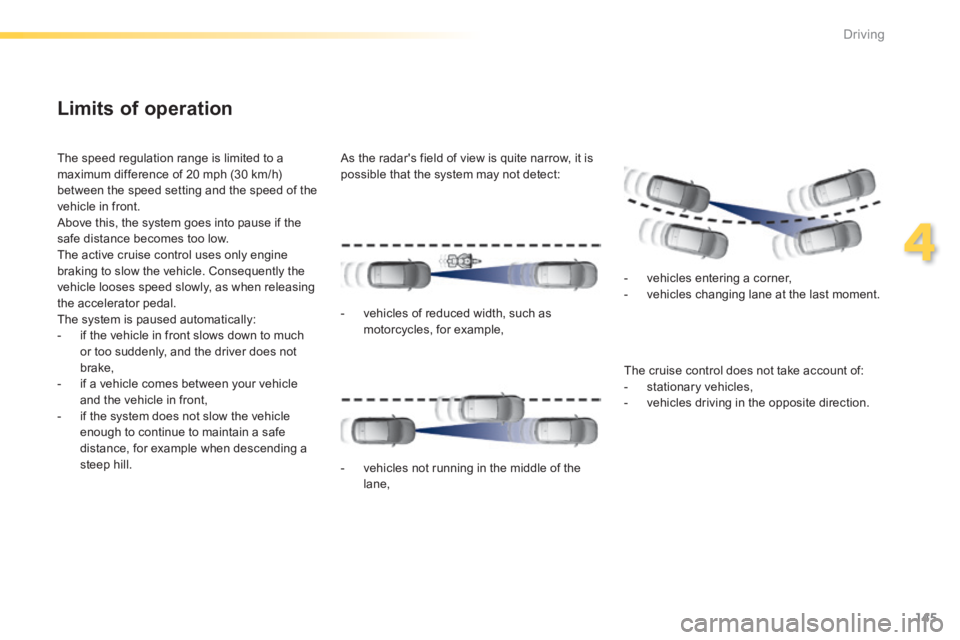

The speed regulation range is limited to a maximum difference of 20 mph (30 km/h) between the speed setting and the speed of the vehicle in front. Above this, the system goes into pause if the
safe distance becomes too low. The active cruise control uses only engine braking to slow the vehicle. Consequently the vehicle looses speed slowly, as when releasing the accelerator pedal. The system is paused automatically: - if the vehicle in front slows down to much or too suddenly, and the driver does not brake, - if a vehicle comes between your vehicle and the vehicle in front, - if the system does not slow the vehicle enough to continue to maintain a safe distance, for example when descending a steep hill.
Limits of operation
As the radar's field of view is quite narrow, it is possible that the system may not detect:
The cruise control does not take account of: - stationary vehicles, - vehicles driving in the opposite direction.
- vehicles of reduced width, such as motorcycles, for example,
- vehicles not running in the middle of the lane,
- vehicles entering a corner, - vehicles changing lane at the last moment.

161
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

Reversing camera
Clean the reversing camera regularly using a soft, dry cloth.
The reversing camera is activated automatically when reverse gear is engaged. Depending on version, the image is displayed in the touch screen or the instrument panel.
The superimposed representation of guide lines helps with the manoeuvre. They are represented by lines marked "on the ground" and do not allow the position of the vehicle to be determined relative to tall obstacles (for example: other vehicles, ...).
The blue lines represent the general direction
of the vehicle (the difference corresponds to the width of your vehicle without the mirrors). The red lines represent a distance of about 30 cm beyond the edge of your vehicle's rear b u m p e r. The green lines represent distances of about 1 and 2 metres beyond the edge of your vehicle's rear bumper. The turquoise blue curves represent the maximum turning circle.
The reversing camera cannot in any circumstances be a substitute for the vigilance and responsibility of the driver.
The reversing camera function may be completed with parking sensors.
Opening the tailgate causes the display to disappear.
High pressure jet washing When washing your vehicle, do not direct the lance within 30 cm of the camera lens.
