111
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
Key left in reader
You are warned by a message if the electronic key is is still in the reader on opening the driver's door.

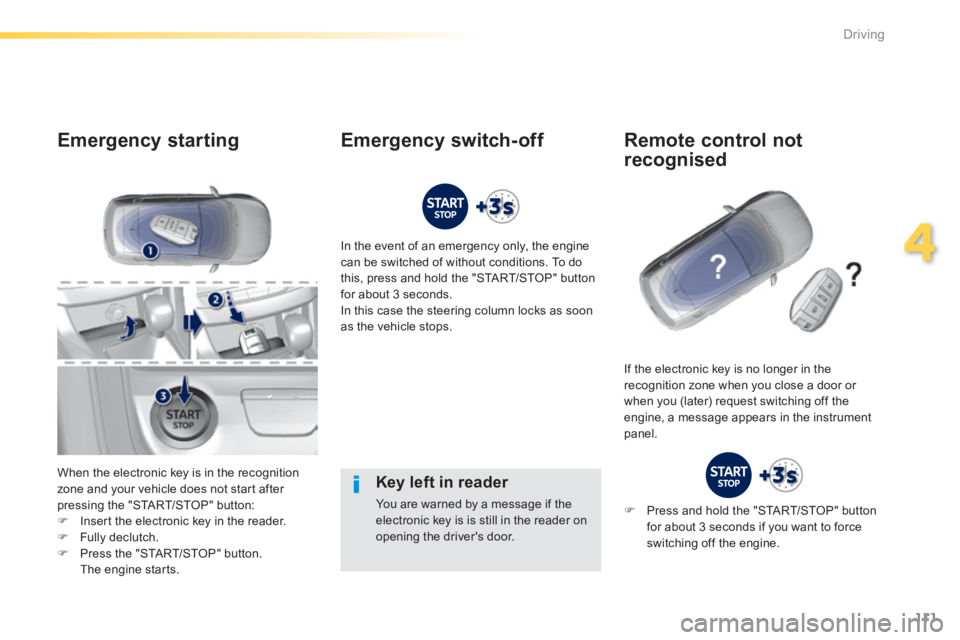

Emergency starting
When the electronic key is in the recognition zone and your vehicle does not start after pressing the "START/STOP" button:  Insert the electronic key in the reader.
 Fully declutch.  Press the "START/STOP" button. The engine starts.
In the event of an emergency only, the engine can be switched of without conditions. To do this, press and hold the "START/STOP" button for about 3 seconds. In this case the steering column locks as soon as the vehicle stops.
If the electronic key is no longer in the recognition zone when you close a door or when you (later) request switching off the engine, a message appears in the instrument panel.
Emergency switch-off Remote control not
recognised
 Press and hold the "START/STOP" button for about 3 seconds if you want to force switching off the engine.

171
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013

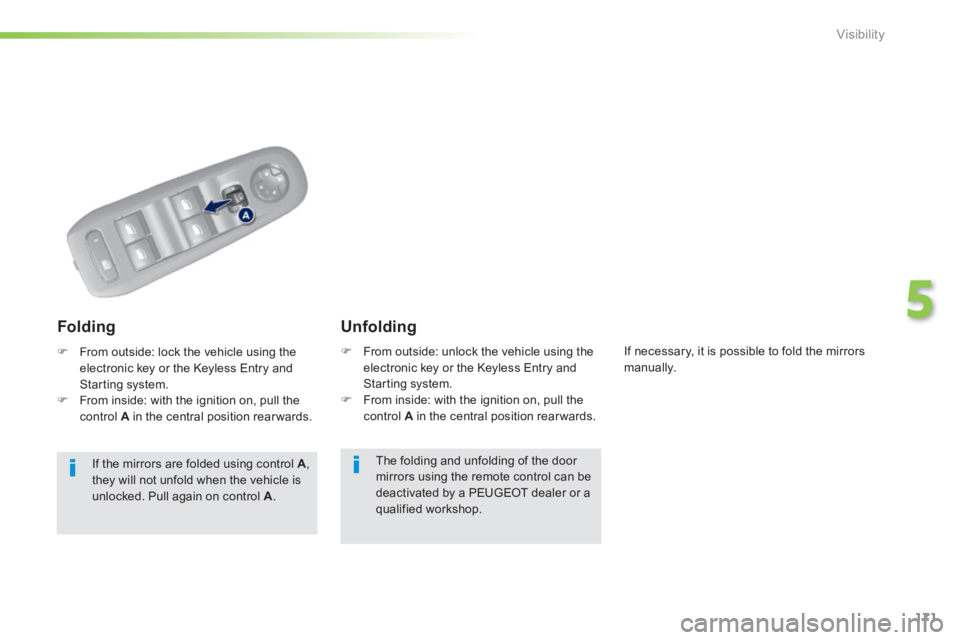

The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
 From outside: unlock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
Unfolding Folding
 From outside: lock the vehicle using the electronic key or the Keyless Entry and Starting system.  From inside: with the ignition on, pull the control A in the central position rear wards.
If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .
If necessary, it is possible to fold the mirrors manually.

179
5
Visibility
308_EN_CHAP05_VISIBILITE_ED02-2013
To make your approach to the vehicle easier, these illuminate: - the zones facing the driver’s and passenger’s doors, - the zones for ward of the door mirrors and rear ward of the front doors.

Mirror spotlamps
Switching on
The spotlamps come on: - when you unlock the vehicle, - when you switch off the ignition, - when you open a door, - when you use the remote control to locate the vehicle.
Switching off
They are timed to go off automatically.
Exterior welcome lighting
The remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is activated when the lighting control is in the " AUTO " position and the level of light detected by the sunshine sensor is low.
Switching on
 Press the open padlock on the remote control or one of the front door handles with Keyless Entry and Starting. The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.
Switching off
The exterior welcome lighting switches off automatically after a set time, when the ignition is switched on or on locking the vehicle.
Programming
The activation, deactivation and choice of welcome lighting duration are done in the " Driving assistance " menu then " Vehicle settings ".

253
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

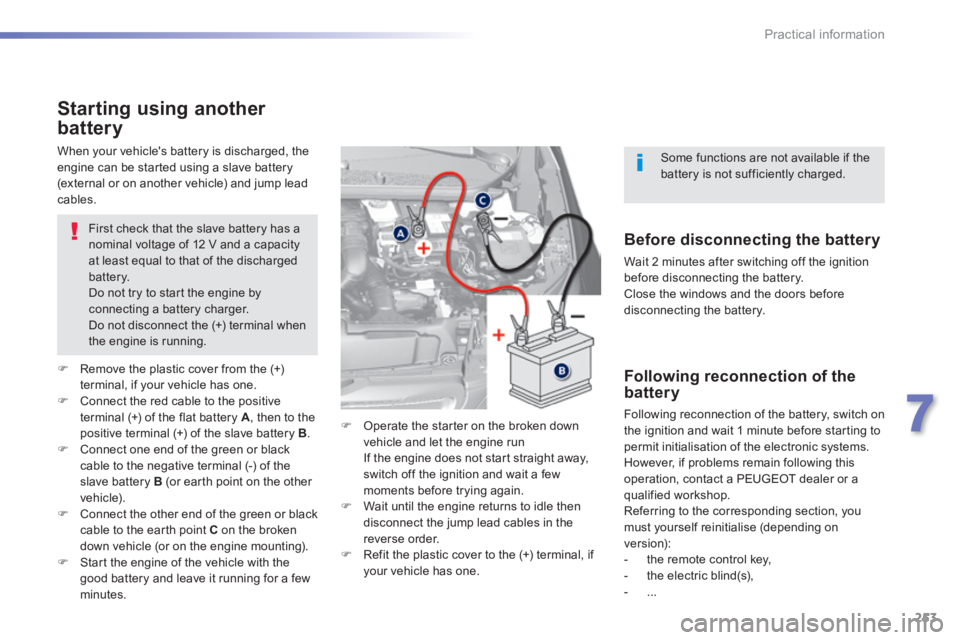

Starting using another
battery
First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery. Do not try to start the engine by connecting a battery charger. Do not disconnect the (+) terminal when the engine is running.
 Remove the plastic cover from the (+) terminal, if your vehicle has one.  Connect the red cable to the positive terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B .  Connect one end of the green or black cable to the negative terminal (-) of the slave battery B (or earth point on the other vehicle).  Connect the other end of the green or black cable to the earth point C on the broken down vehicle (or on the engine mounting).  Start the engine of the vehicle with the good battery and leave it running for a few minutes.
 Operate the starter on the broken down vehicle and let the engine run If the engine does not start straight away, switch off the ignition and wait a few moments before trying again.  Wait until the engine returns to idle then disconnect the jump lead cables in the reverse order.  Refit the plastic cover to the (+) terminal, if your vehicle has one.
When your vehicle's battery is discharged, the engine can be started using a slave battery (external or on another vehicle) and jump lead cables.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Following reconnection of the battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to permit initialisation of the electronic systems. However, if problems remain following this operation, contact a PEUGEOT dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise (depending on version): - the remote control key, - the electric blind(s), - ...
Some functions are not available if the battery is not sufficiently charged.

254
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
The batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries and vehicle batteries to a special collection point.
It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.
Protect your eyes and face before handling the battery. All operations on the battery must be carried out in a well ventilated area and away from naked flames and sources of sparks, so as to avoid the risk of explosion or fire. Do not try to charge a frozen battery; the battery must first be thawed out to avoid the risk of explosion. If the battery has been frozen, before charging have it checked by a PEUGEOT dealer or a qualified workshop who will check that the internal components have not been damaged and the casing is not cracked, which could cause a leak of toxic and corrosive acid. Do not reverse the polarity and use only a 12 V charger. Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Wash your hands after wards.
With Stop & Start, the battery does not have to be disconnected for charging.
 Disconnect the battery from the vehicle.  Follow the instructions for use provided by the manufacturer of the charger.  Connect the battery starting with the negative terminal (-).  Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove them and clean them.

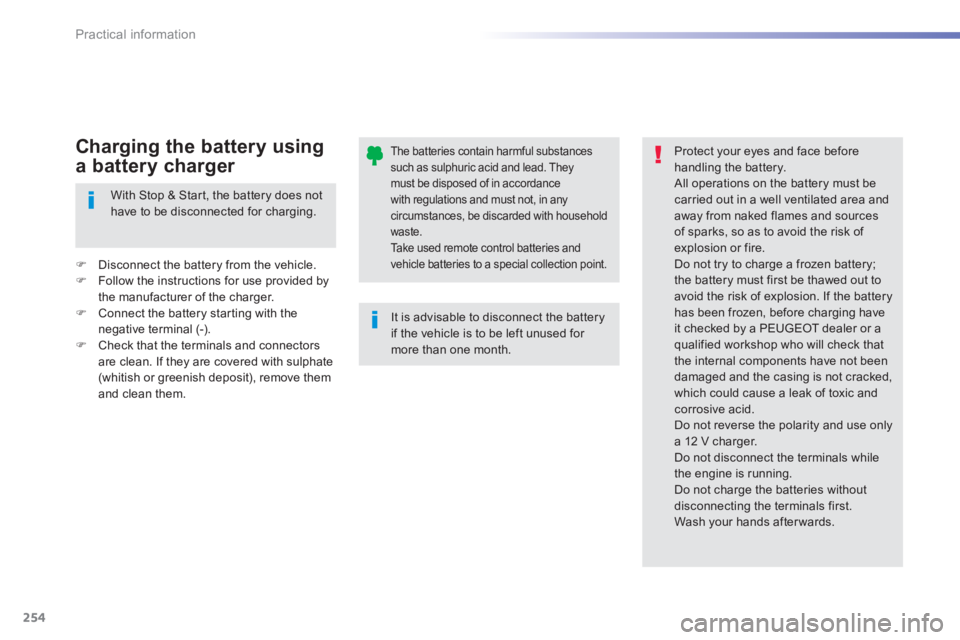

Charging the battery using
a battery charger

389
.
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
JACK socket ..............84, 87, 310, 314, 374, 376Jukebox (playing) ..........................................315
Keeping children safe .....................................198, 200, 204-220Key ....................................................46, 63, 112Key, electronic .........................46, 53 -56, 61, 63Key in ignition warning ..................................108Keyless Entry and Starting ..............................55 -57, 63, 109, 112Key with remote control ........46 -50, 56, 63, 112
Labels, identification .....................................287Lamps, warning and indicator ..................Lamps, warning and indicator ..................Lamps, warning and indicator13 -25LED daytime running lamps .........................17 7LEDs - light-emitting diodes .........235, 240, 242Level, AdBlue® additive® additive® .................................271Level, brake fluid ...........................................281Level, headlamp wash ..........................183, 282Levels and checks ................268, 269, 280-282Light-emitting diodes - LEDs ..........................235, 236, 238, 240, 242Lighting ..........................................................173Lighting bulbs (replacement) ................235 -244Lighting control stalk .....................................173Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer31Lighting, guide-me home ......................17 7, 178Lighting, interior ....................................Lighting, interior ....................................Lighting, interior185, 18 6Lighting on reminder .....................................Lighting on reminder .....................................Lighting on reminder176Loading ...................................................10, 262Load reduction mode ....................................255
Load space cover ............................................Load space cover ............................................Load space cover92Locating your vehicle ................................50, 54Locking the boot..............................................60Locking the doors .....................................48, 56Long objects, transporting ..............................89Lumbar adjustment ...................................76, 80K
L
Main beam ............................173, 235, 237, 239Maintenance ...................................................10Map reading lamps .......................................185Markings, identification .................................287Massage function ...........................................80Mat ..................................................................85Memorising a speed .....................................132Menu ...................................298, 300, 302, 316, 318, 320, 336, 348, 350Menu, main ...................................................368Menus (Touch screen) ..................................294Mini fuel level ............................................22, 72Mirror, rear view ............................................172Mirrors, door..........................................15 6 , 170Mountings for ISOFIX seats .................213, 214MP3 CD .................................................310, 371
Number plate lamps ......................................244
Radio ....................................................304, 369RDS .......................................................307, 369Rear foglamp.........................240, 241, 243, 244Rear screen (demisting) ................................107
Oil filter ..........................................................Oil filter ..........................................................Oil filter283Oil level....................................................29, 280Opening the bonnet ......................................267Opening the boot ..........................46, 53 -55, 58Opening the doors ........................46, 47, 53, 55Operation indicator lamps ........................13 -25
M
N
R
O
Paint colour code ..........................................287Panoramic glass sunroof ................................Panoramic glass sunroof ................................Panoramic glass sunroof71Park Assist ....................................................162Parking brake, electric ............20, 114, 119, 284Parking brake, manual ....................15, 113, 284Parking sensors, front ...................................160Parking sensors, rear....................................159Particle emission filter ...........................Particle emission filter ...........................Particle emission filter281-283Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter283PEUGEOT CONNECT APPS .......................3 47PEUGEOT Connect Assistance ...................290PEUGEOT Connect SOS .............................290PEUGEOT Connect Sound (RD5) ..........................................................365Player, CD MP3 .....................................310, 371Port, USB ..................84, 87, 310, 314, 374, 376Priming the fuel system ................................270Protecting children ................198, 200, 204-220Puncture ........................................................221
P

390
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
Tables of fuses ......................................245 -250Tank, AdBlue® additive® additive® .........................271, 276Ta n k , f u e l ...................................................22, 72Technical data ...............................................285Telephone .............................................3 52, 371Temperature adjustment ...................97, 99, 101Temperature control for heated seats ............79Temperature, coolant ......................................26Temporary puncture repair kit ......................221Three flashes function (direction indicators) ...................................187TMC (Traffic info) ..........................................330To o l s ......................................................221, 227Total distance recorder ...................................Total distance recorder ...................................Total distance recorder30Touch screen..........................34, 36, 38, 40, 42, 132, 191, 293, 295Touch screen (Menus) ............................3 7, 2 9 4To w b a r ...........................................................To w b a r ...........................................................To w b a r260Towed loads ..................................................285Towing the vehicle ........................................257Traction control (ASR) ..............................17, 2 1Traffic information (TA) .........................3 31, 370Traffic information (TMC) ..............................330Tr a i l e r ............................................................Tr a i l e r ............................................................Tr a i l e r260Trip computer ............................................Trip computer ............................................Trip computer32-35Trip distance recorder .....................................Trip distance recorder .....................................Trip distance recorder30Tyre pressures ................................11, 233, 287Ty r e s ..............................................................287Tyre under-inflation detection .................24, 189
Safety for children .................198, 200, 204-220Screen, instrument panel ..................12, 32, 123Screen menu map ........298, 300, 302, 316, 318, 320, 336, 348, 350, 380 -382Screen, monochrome ...................................380Screen, multifunction (with audio equipment) ........................44, 368
Under-inflation (detection) ............................189Unlocking ..................................................46 - 61Unlocking the boot ....................................54, 58Update risk areas ..........................................325Updating the date ................................42, 43, 44
T
S
U
Recharging the battery .................................254Reduction of electrical load ..........................255Refilling AdBlue.............................................276Regeneration of the particle emissions filter ............................................emissions filter ............................................emissions filter283Reinitialising the remote control ...............52, 62Remote control .........................46-48, 53-57, 63Removable screen (snow shield)..........259, 260Removing a wheel ........................................230Removing the mat ...........................................85Repair kit, puncture .......................................221Replacing bulbs ....................................235 -244Replacing fuses ....................................245 -250Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter283Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter283Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter283Replacing wiper blades.........................18 4, 256Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator28Resetting the trip recorder ..............................Resetting the trip recorder ..............................Resetting the trip recorder30Reversing camera .........................................161Reversing lamp .....................................240, 242Risk areas (update) .......................................325Roof bars ...............................................262, 263Roof blind ........................................................71Routine checks ....................................283, 284Running out of fuel (Diesel) ..........................270
Screen, multifunction (without audio equipment) ............................45Screenwash ..................................................182Screenwash fluid level ..........................183, 282Screenwash reservoir ...................................Screenwash reservoir ...................................Screenwash reservoir282SCR (Selective Catalytic Reduction) ..................271Seat adjustment ........................................76, 77Seat belts ......................................19 6 -198, 210Seats, electric .................................................77Seats, rear .................................................Seats, rear .................................................Seats, rear81, 82Serial number, vehicle ..................................287Service indicator .............................................Service indicator .............................................Service indicator27Servicing .........................................................10Setting the clock .................................42, 43, 44Sidelamps .............173, 235, 236, 238 -240, 242Side repeater ................................................Side repeater ................................................Side repeater239Ski flap ............................................................89Snow chains ..................................................234Spare wheel ..........................................227, 228Speed limiter .........................................Speed limiter .........................................Speed limiter132, 13 3Spotlamps, side ....................................179, 2 3 9Starting the engine .......................108, 109, 124Starting using another battery ......................253Steering mounted controls, audio ...................................................2 9 7, 3 6 7Stop & Start ................................24, 35, 72, 106, 129, 130, 251, 267, 283Storage ..........................................84, 86, 89 -91Storage wells ............................................90, 91Storing driving positions .................................78Stowing rings ............................................90, 91Switching off the engine ...............1 0 8 , 1 0 9 , 111Synchronising the remote control ..................................52, 62Synthesiser, voice .........................................335System settings .............................................344
