58
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Boot
 After unlocking the vehicle with the remote control, press the opening control and then raise the tailgate.
Opening using the "Keyless
Entry and Starting" remote
control
 Press this button, the vehicle is unlocked.
Opening using the key
Complete unlocking is selected by default. This setting is done in the "Driving assistance" menu, then "Vehicle settings"and "Vehicle access" .
Complete unlocking Selective unlocking
 Press this button, the boot is unlocked.
Use this button for access to additional information.

61
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

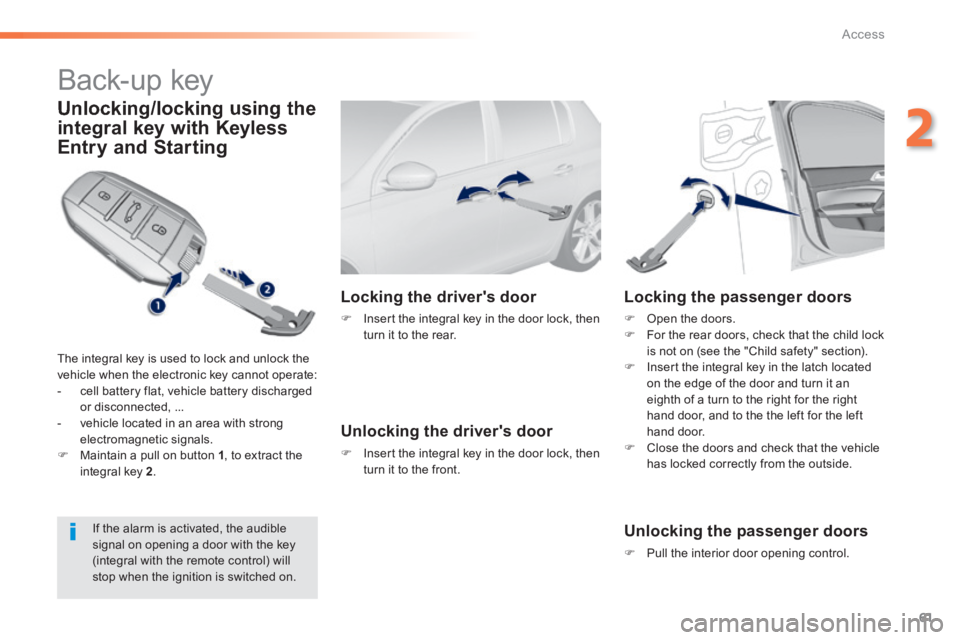

Back-up key
Unlocking/locking using the
integral key with Keyless
Entry and Starting
The integral key is used to lock and unlock the vehicle when the electronic key cannot operate: - cell battery flat, vehicle battery discharged or disconnected, ... - vehicle located in an area with strong electromagnetic signals.  Maintain a pull on button 1 , to extract the integral key 2 .
Locking the driver's door
 Insert the integral key in the door lock, then turn it to the rear.
Unlocking the driver's door
 Insert the integral key in the door lock, then turn it to the front.
Locking the passenger doors
 Open the doors.  For the rear doors, check that the child lock is not on (see the "Child safety" section).  Insert the integral key in the latch located on the edge of the door and turn it an eighth of a turn to the right for the right hand door, and to the the left for the left hand door.  Close the doors and check that the vehicle has locked correctly from the outside.
Unlocking the passenger doors
 Pull the interior door opening control.
If the alarm is activated, the audible signal on opening a door with the key (integral with the remote control) will stop when the ignition is switched on.

62
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

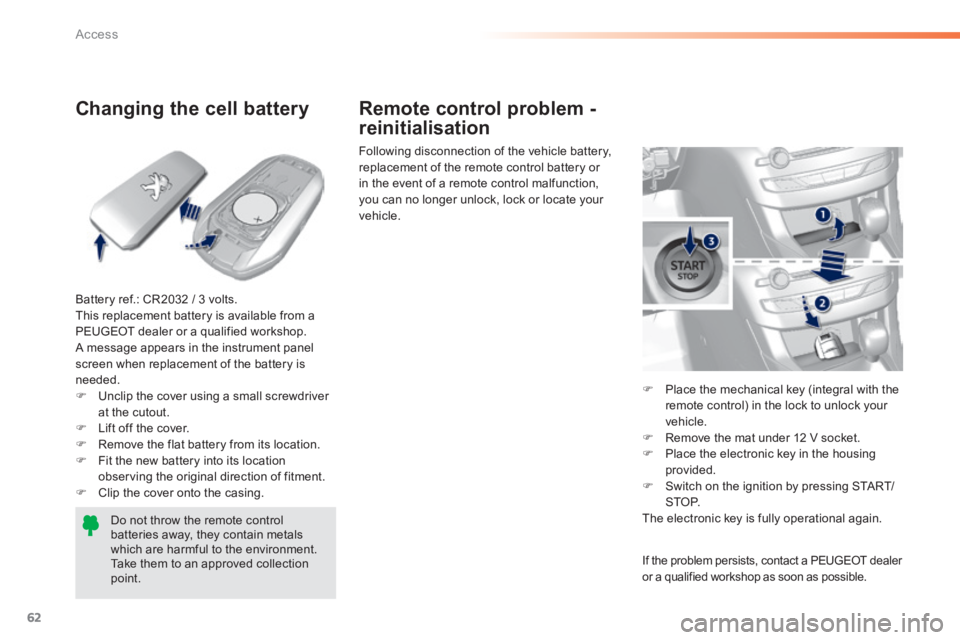

Changing the cell battery
Battery ref.: CR2032 / 3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message appears in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a small screwdriver at the cutout.  Lift off the cover.  Remove the flat battery from its location.  Fit the new battery into its location observing the original direction of fitment.  Clip the cover onto the casing.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 Place the mechanical key (integral with the remote control) in the lock to unlock your vehicle.  Remove the mat under 12 V socket.  Place the electronic key in the housing provided.  Switch on the ignition by pressing START/S T O P. The electronic key is fully operational again.
Remote control problem -
reinitialisation
If the problem persists, contact a PEUGEOT dealer or a qualified workshop as soon as possible.

63
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents. The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised. The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.

66
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Deactivation
 Press this unlocking button on the remote control.
or
 Unlock the vehicle using the "Keyless Entry and Starting" system.
If the vehicle self-locks automatically (occurs after 30 seconds if a door or the boot is not opened), the monitoring system is not reactivated automatically. To reactivate the system, it is necessary to unlock and then lock the vehicle again, using the remote control or the "Keyless Entry and Starting" system.
The monitoring system is deactivated: the indicator lamp in the button is off and the direction indicators flash for about 2 seconds.

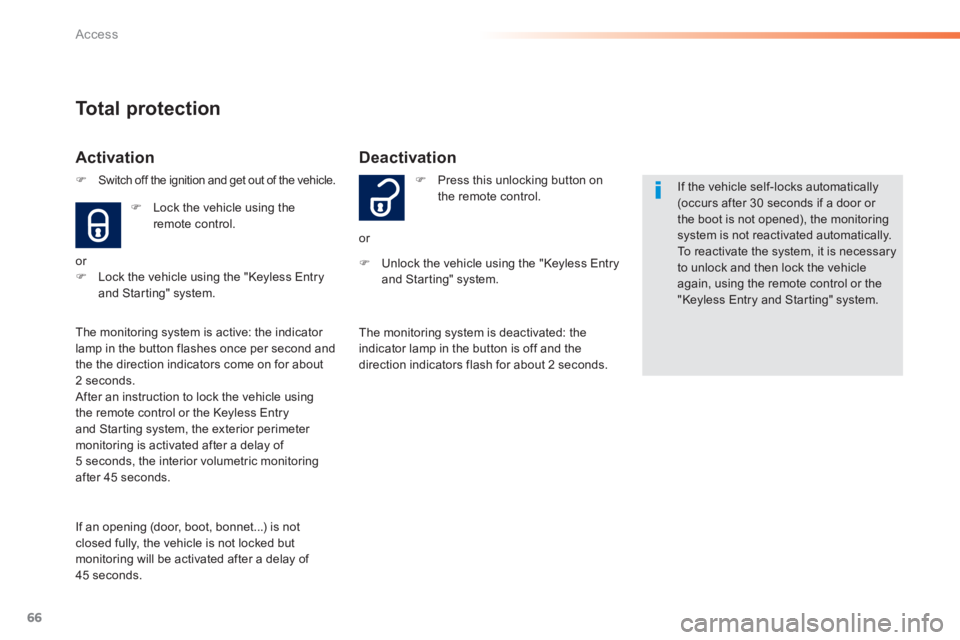

Total protection
Activation
 Lock the vehicle using the
remote control.
or  Lock the vehicle using the "Keyless Entry and Starting" system.
The monitoring system is active: the indicator lamp in the button flashes once per second and the the direction indicators come on for about 2 seconds. After an instruction to lock the vehicle using the remote control or the Keyless Entry and Starting system, the exterior perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring after 45 seconds.
If an opening (door, boot, bonnet...) is not closed fully, the vehicle is not locked but monitoring will be activated after a delay of 45 seconds.
Switch off the ignition and get out of the vehicle.

67
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

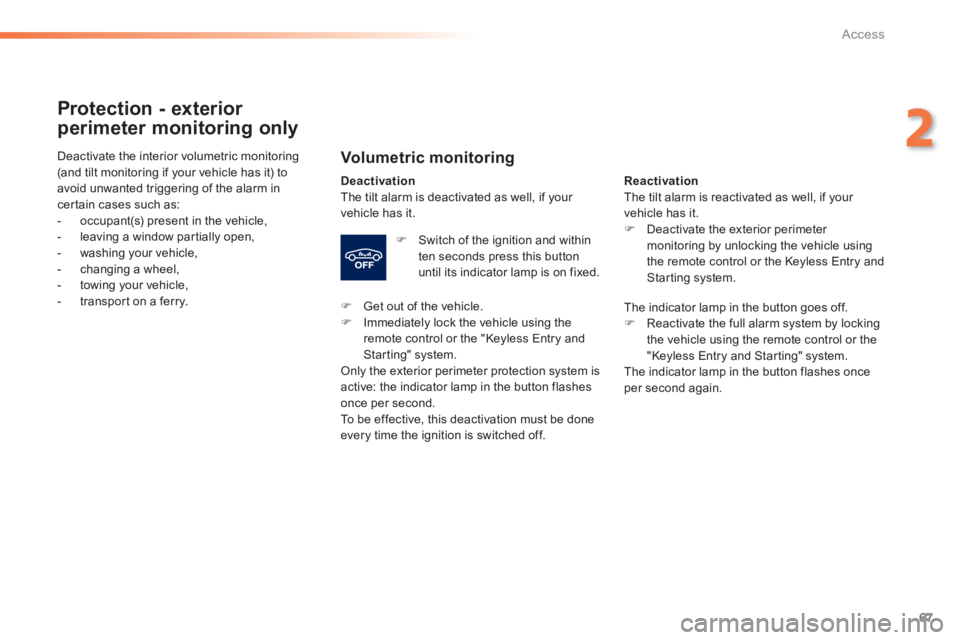

Protection - exterior
perimeter monitoring only
Volumetric monitoring
Deactivation The tilt alarm is deactivated as well, if your vehicle has it.
 Switch of the ignition and within ten seconds press this button until its indicator lamp is on fixed.
 Get out of the vehicle.  Immediately lock the vehicle using the remote control or the "Keyless Entry and Starting" system. Only the exterior perimeter protection system is active: the indicator lamp in the button flashes once per second. To be effective, this deactivation must be done every time the ignition is switched off.
Deactivate the interior volumetric monitoring (and tilt monitoring if your vehicle has it) to avoid unwanted triggering of the alarm in certain cases such as: - occupant(s) present in the vehicle,
- leaving a window partially open, - washing your vehicle, - changing a wheel, - towing your vehicle, - transport on a ferry.
Reactivation The tilt alarm is reactivated as well, if your vehicle has it.  Deactivate the exterior perimeter monitoring by unlocking the vehicle using the remote control or the Keyless Entry and Starting system.
The indicator lamp in the button goes off.  Reactivate the full alarm system by locking the vehicle using the remote control or the "Keyless Entry and Starting" system. The indicator lamp in the button flashes once per second again.

68
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

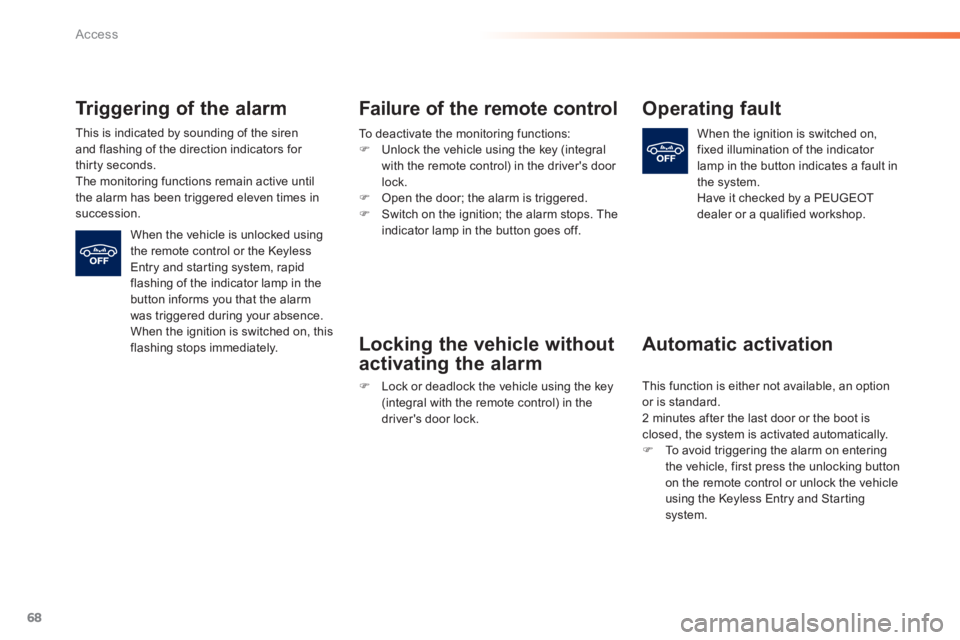

Triggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty seconds. The monitoring functions remain active until the alarm has been triggered eleven times in succession.
When the vehicle is unlocked using the remote control or the Keyless Entry and starting system, rapid flashing of the indicator lamp in the button informs you that the alarm was triggered during your absence. When the ignition is switched on, this flashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:  Unlock the vehicle using the key (integral with the remote control) in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
 Lock or deadlock the vehicle using the key (integral with the remote control) in the driver's door lock.
Operating fault
When the ignition is switched on, fixed illumination of the indicator lamp in the button indicates a fault in the system. Have it checked by a PEUGEOT dealer or a qualified workshop.
Automatic activation
This function is either not available, an option or is standard. 2 minutes after the last door or the boot is closed, the system is activated automatically.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system.

108
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

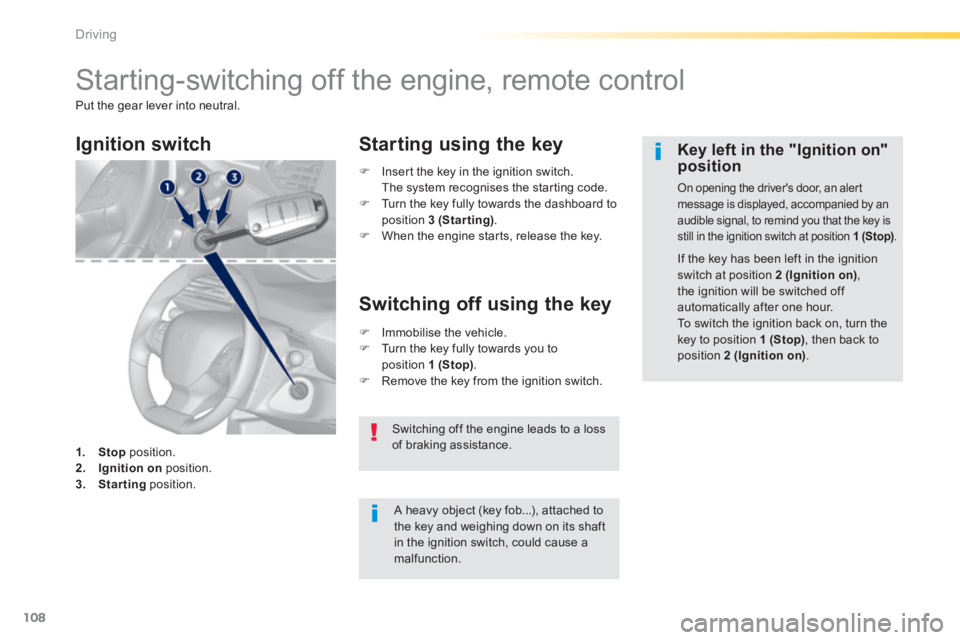

Starting-switching off the engine, remote control
Put the gear lever into neutral.
A heavy object (key fob...), attached to the key and weighing down on its shaft in the ignition switch, could cause a malfunction.
Key left in the "Ignition on" position
On opening the driver's door, an alert message is displayed, accompanied by an audible signal, to remind you that the key is still in the ignition switch at position 1 (Stop) .
If the key has been left in the ignition switch at position 2 (Ignition on) , the ignition will be switched off automatically after one hour. To switch the ignition back on, turn the key to position 1 (Stop) , then back to position 2 (Ignition on) .
Ignition switch
1. Stop position. 2. Ignition on position. 3. Starting position.
Starting using the key
 Insert the key in the ignition switch. The system recognises the starting code.  Turn the key fully towards the dashboard to position 3 (Starting) .
 When the engine starts, release the key.
 Immobilise the vehicle.  Turn the key fully towards you to position 1 (Stop) .  Remove the key from the ignition switch.
Switching off using the key
Switching off the engine leads to a loss of braking assistance.
