2014 Peugeot 308 light

36
Monitoring
308_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013

Touch screen
It gives access to: - the heating/air conditioning controls, - menus for adjusting settings for vehicle functions and systems, - audio and display configuration menus, - audio system and telephone controls and the display of associated information.
For reasons of safety, the driver should only carr y out operations that require close attention, with the vehicle stationary. Some functions are not accessible when driving.
General operation
Recommendations
It is necessary to press firmly, particularly for "flick" gestures (scrolling through lists, moving the map...). A light wipe is not enough. The screen does not recognise pressing with
more than one finger. This technology allows use at all temperatures and when wearing gloves. Do not use pointed objects on the touch screen. Do not touch the touch screen with wet hands. Uses a soft clean cloth to clean the touch screen.
And, depending on equipment, it allows: - the display of alert messages and the visual parking sensors information, - access to the controls for the navigation system and Internet services, and the display of associated information.
State of indicator lamps
Some buttons contain an indicator lamp that gives the state of the corresponding function. Green indicator: you have switched on the corresponding function. Orange indicator: you have switched off the corresponding function.

39
1
Monitoring
308_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
ButtonCorresponding functionComments
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped together under three tabs: - " Driving assistance " - "[Automatic rear wiper in reverse]" (Activation of rear wiper coupled to reverse gear; see the "[ Visibility]" section) - "[Collision risk alert]" (Activation of the collision risk alert system; see the "[Driving] section") - "[ Lighting ]" - "[Guide-me-home lighting]" (Automatic guide me home lighting; see the "[ Visibility]" section), - "[Welcome lighting]" (Exterior welcome lighting; see the "[ Visibility]" section), - "[Mood lighting]" (Interior mood lighting; see the "[ Visibility]" section). - " Vehicle access " - "[Driver plip action]" (Selective unlocking of the driver's door; see the "[Access]" section). - "[Unlocking boot]" (Selective unlocking of the boot; see the "[Access]" section). Select or deselect the tabs at the bottom of the screen to display the functions required.
Diagnostic List of current alerts.
Parking sensors Deactivation of the function.
Inter-vehicle time Activation of the function.

48
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time.
Driving with the doors locked may render access for the emergency services difficult in an emergency. As a safety measure (children on board), never leave the vehicle without taking your key, even for a short period.

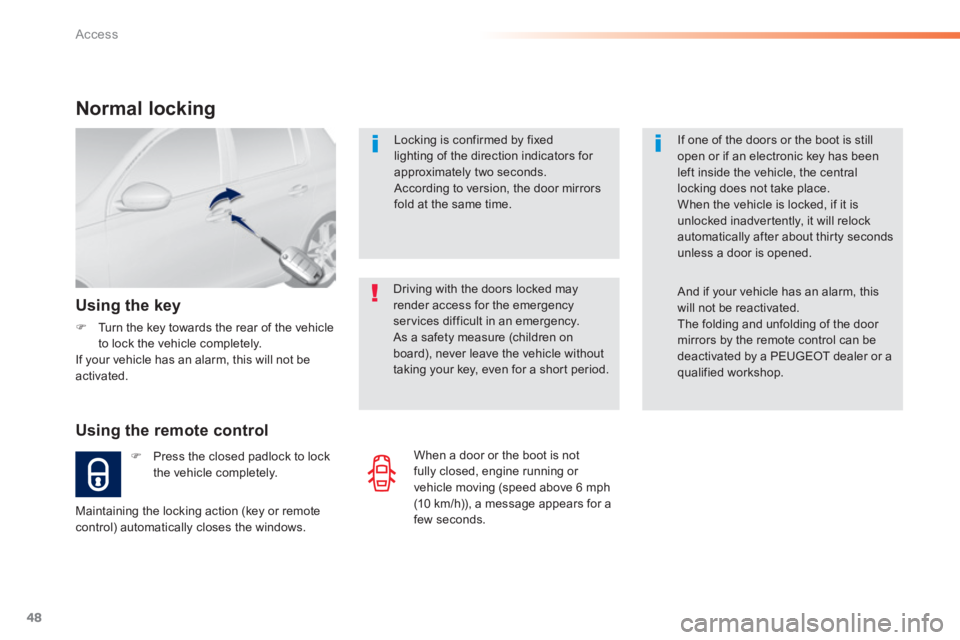

Normal locking
Using the remote control
 Press the closed padlock to lock the vehicle completely.
Using the key
 Turn the key towards the rear of the vehicle to lock the vehicle completely. If your vehicle has an alarm, this will not be activated.
Maintaining the locking action (key or remote control) automatically closes the windows.
If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the central locking does not take place. When the vehicle is locked, if it is unlocked inadvertently, it will relock automatically after about thirty seconds unless a door is opened.
And if your vehicle has an alarm, this will not be reactivated. The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
When a door or the boot is not fully closed, engine running or vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.

49
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the key
 Turn the key to the rear in the driver's door lock to lock the vehicle completely.  Turn the key to the rear again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds. Depending on version, the door mirrors fold at the same time.
Using the remote control
 Press the closed padlock to lock the vehicle completely.
 Press the closed padlock again within five seconds to deadlock the vehicle.

50
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
 Press the closed padlock on the remote control.
Locating your vehicle
This will switch on the courtesy lamps and the direction indicators will flash for around ten seconds.
Remote operation of lighting
A short press this button switches on the lighting remotely (sidelamps, dipped beam headlamps and number plate lamps).
A second press before the end of the timed period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen.
Keep safely, away from your vehicle, the label attached to the keys given to you on acquisition of the vehicle.
In this case, your vehicle will not start; contact a PEUGEOT dealer as soon as possible.
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must be locked.

52
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Changing the battery
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
If the battery is flat, you are informed by lighting of this warning lamp in the instrument panel, an audible signal and a message in the screen.  Unclip the cover using a screwdriver in the cutout.  Remove the cover.  Extract the flat battery from its location.  Place the new battery into its location observing the original direction.  Clip the cover in place.
Remote control problem
Reinitialisation
 Switch off the ignition.  Turn the key to position 2 (Ignition) .  Press the closed padlock immediately for a few seconds.  Switch off the ignition and remove the key from the ignition switch. The remote control is fully operational again.
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock
or lock your vehicle.  Then, reinitialise the remote control. If the problem persists, contact a PEUGEOT dealer as soon as possible.
Battery ref.: CR1620 / 3 volts.

54
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Unlocking the boot Locking
Locking is confirmed by fixed lighting of the direction indicators for a few seconds. Depending on your version, the door mirrors fold, the alarm is activated.
 Press the closed padlock to lock the vehicle completely. Hold the button down until the windows close completely.
 Press this button until the direction indicators flash rapidly. The vehicle is completely unlocked and if your vehicle has an alarm, it is deactivated.
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must be locked.
Locating your vehicle
 Press the closed padlock on the remote control. This will switch on the courtesy lamps and the direction indicators will flash for around ten seconds.
Driving with the doors locked may make access to the passenger compartment by the emergency services difficult in
the event of an emergency. Be aware of children when operating the windows.
As a safety measure (children on board), never leave the vehicle without taking the key for the Keyless Entry and Starting system, even for a short period. Guard against theft when the key for the Keyless Entry and Starting system is in the recognition zone with the vehicle unlocked. In order to preserve the charge of the cell battery in the remote control, the "hands-free" functions go into extended stand-by after 21 days of non-use. To restore these functions, press one of the remote control buttons or start the engine with the electronic key in the reader.
If a door or the boot is not properly closed, with the engine runningor the vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.

56
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Locking
 With the electronic key in the recognition zone A , press with a finger on one of the front door handles (at the markings) to lock the vehicle. Maintain pressure with your finger until the windows close completely.
Locking is confirmed by fixed lighting of the direction indicators for a few seconds. Depending on your version, the door mirrors fold, the alarm is activated. Ensure that no one prevents the correct operation of the windows.
Be aware of children when operating the windows.
For reasons of safety and theft protection, do not leave your electronic key in the vehicle, even when you are close to it.
It is recommended that you keep it on your person: in a pocket, bag, ...
If a door or the boot is not properly closed, with the engine runningor the vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.
 With the key in the recognition zone A , press the tailgate locking control to lock the vehicle.
