2014 Peugeot 308 light

238
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
For reassembly, carry out these operations in reverse order.

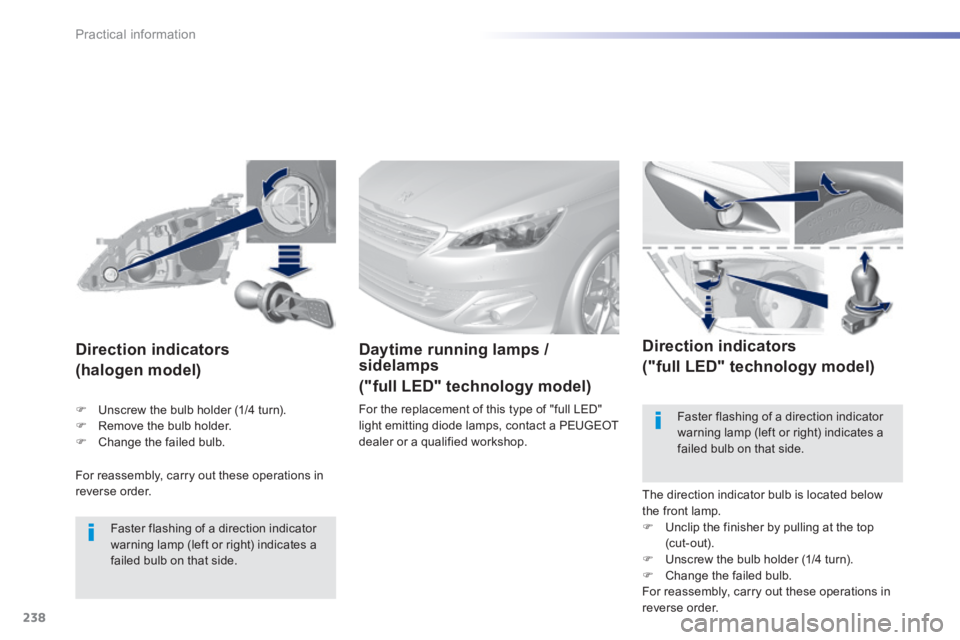

Direction indicators
(halogen model)
Faster flashing of a direction indicator warning lamp (left or right) indicates a failed bulb on that side.
Daytime running lamps / sidelamps
("full LED" technology model)
For the replacement of this type of "full LED" light emitting diode lamps, contact a PEUGEOT dealer or a qualified workshop.
Direction indicators
("full LED" technology model)
The direction indicator bulb is located below the front lamp.  Unclip the finisher by pulling at the top (cut-out).  Unscrew the bulb holder (1/4 turn).  Change the failed bulb. For reassembly, carry out these operations in reverse order.
Faster flashing of a direction indicator
warning lamp (left or right) indicates a failed bulb on that side.
 Unscrew the bulb holder (1/4 turn).  Remove the bulb holder.  Change the failed bulb.

239
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
Integrated direction indicator side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs.
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.
Front foglamps
 Unclip the finisher by pulling at the top (cut-out).  Remove the two screws to remove the unit from its housing.
 Disconnect the connector.  Unscrew the bulb holder (1/4 turn).  Remove the bulb holder.  Change the failed bulb. For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps

240
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
1. Sidelamps (light emitting diodes - LEDs).2. Reversing lamps (W16W).3. Direction indicators (PY21W amber).4. Brake lamps (light emitting diodes - LEDs).5. Foglamps (P21W).
Rear lamps (saloon)
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT
dealer or qualified workshop.
Reversing lamps, direction indicators (on the wings)
 Disconnect the lamp connector.  Remove the lamp fixing nut.  Carefully remove the lamp unit from outside.  Unscrew the bulb holder (a quarter of a turn) and change the bulb. For reassembly, carry out these operations in reverse order.
 Open the tailgate then remove the access cover.

242
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
Rear lamps (SW)
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT dealer or qualified workshop.
Direction indicators (on the wings)
 Open the tailgate then remove the access cover.  Remove the two lamp fixing nut (pipe spanner or socket recommended).  Disengage the retaining clip, carefully removing the lamp unit from outside.
 Disconnect the lamp connector.  Remove the sealing foam.  Unclip the bulb holder by pressing on the two tongues.  Replace the bulb. For reassembly, carry out these operations in reverse order.
1. Sidelamps (light emitting diodes - LEDs).2. Direction indicators (PY21W amber).3. Brake lamps (light emitting diodes - LEDs).4. Reversing lamps (W16W).5. Foglamps (P21W).

244
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
For the replacement of this type of lamp, contact a PEUGEOT dealer or a qualified workshop.

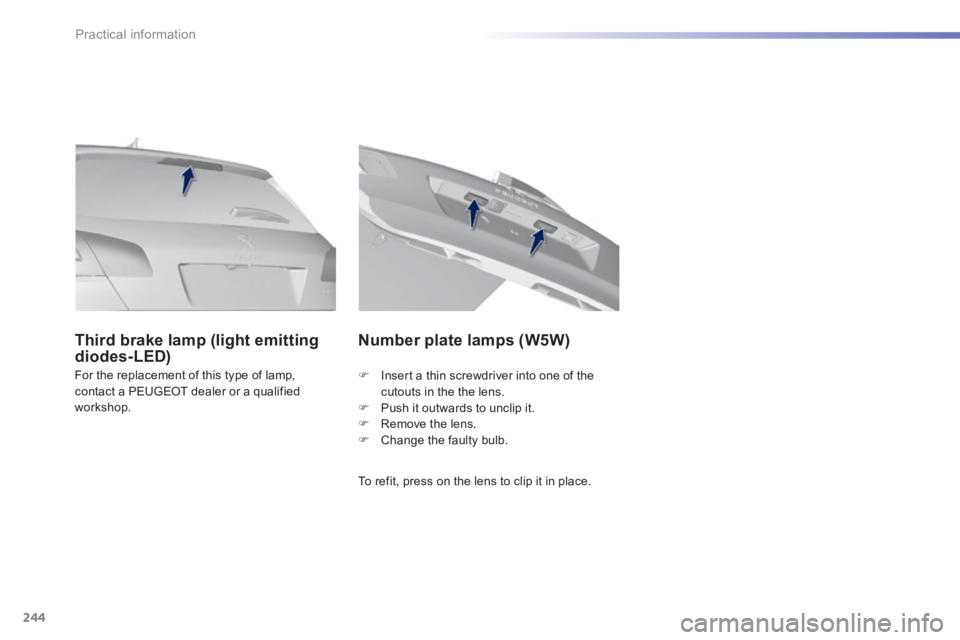

Third brake lamp (light emitting diodes-LED)
Number plate lamps (W5W)
To refit, press on the lens to clip it in place.
 Insert a thin screwdriver into one of the cutouts in the the lens.  Push it outwards to unclip it.  Remove the lens.  Change the faulty bulb.

247
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Fuse N° Rating (A)Functions
F1515 12 V accessory socket.
F1615 Cigarette lighter.
F1715 Audio system.
F1820 Audio system (battery +).
Access to the fuses
 Unclip the cover by pulling at top left, then
right.
Version 1 (FULL)

248
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
Version 2 (ECO)
Fuse N°Rating (A)Functions
F6 A or B15 Audio system.
F1310 Cigarette lighter.
F1410 12 V accessory socket.
F28 A or B15 Audio system (battery +).

260
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
Towing a trailer
We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a qualified workshop. If the towbar is not fitted by a PEUGEOT dealer, it is imperative that it is fitted in accordance with the vehicle manufacturer's instructions. Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Blanking cover
When towing, you must remove the blanking cover if your vehicle has one. Contact a PEUGEOT dealer or a qualified workshop for this. Driving with a trailer places greater demands on the towing vehicle and the driver must take particular care.
Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
The cover is located behind the lower air intake grille.
