2014 Peugeot 308 Owner's Manual - RHD (UK, Australia)

383

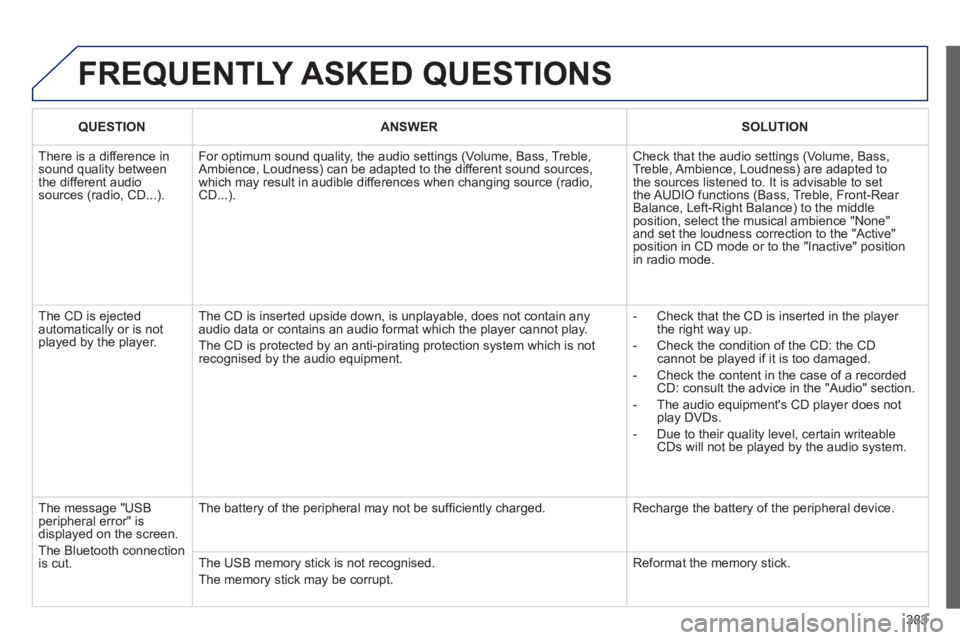

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

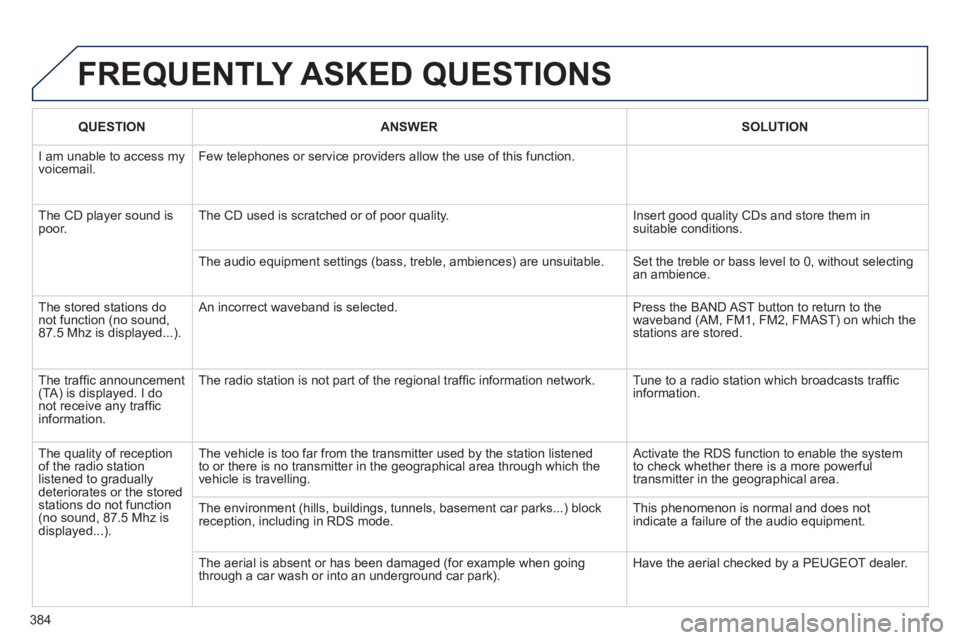

384
QUESTIONANSWERSOLUTION
I am unable to access my voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
FREQUENTLY ASKED QUESTIONS

385

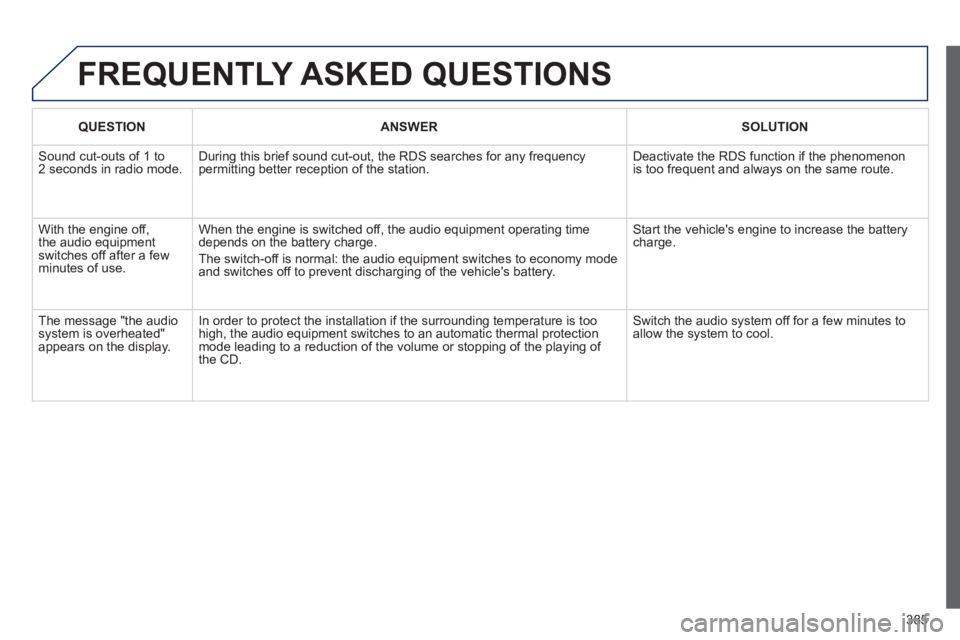

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

386

387
.
Alphabetical index
Accessories .........................................263, 264Accessory position .......................................11 0Accessory socket, 12V .............................84, 87AdBlue® .........................................................271Additive, AdBlue ......................................25, 271Adjusting headlamps ....................................180Adjusting head restraints ................................79Adjusting the steering wheel ..........................75Airbags ....................................................23, 19 9Airbags, curtain .....................................202, 203Airbags, front........................................200, 203Airbags, lateral ......................................202, 203Air conditioning ...........................10, 97, 99, 101Air conditioning, digital .................................101Air conditioning, manual .............96, 97, 99, 106Air distribution adjustment ............................101Air filter ..........................................................Air filter ..........................................................Air filter283Air flow ............................................................10Air flow adjustment ...........................97, 99, 103Air intake .......................................................105Air recirculation .............................................105Air vents ..........................................................95Alarm ...............................................................65Anti-theft .................................................5 0 , 112Armrest ...............................................84, 86, 89Armrest, front ..................................................86Armrest, rear ...................................................Armrest, rear ...................................................Armrest, rear89Assistance call .............................188, 289, 290Audible warning ............................................188Audio cable ...........................310, 313, 314, 376Audio streaming (Bluetooth) .........310, 313, 379Automatic braking on risk of collision .........................................22, 151, 15 4Automatic emergency braking ..............151, 15 4Automatic illumination of headlamps ....174, 178Automatic operation of hazard warning lamps ............................................187
Automatic rain sensitive windscreen wipers ..............................181, 183Auxiliary sockets .......84, 87, 310, 314, 374, 376
Changing a wheel .................................2 2 7, 2 3 3Changing a wiper blade ........................18 4, 256Changing the date ...............................42, 43, 44Changing the remote control battery ........52, 62Changing the time ...............................42, 43, 45Checking levels .....................................280-282Checking the engine oil level ..................29, 280Checking tyre pressures (using the kit) ........226Checks ..................................................267-284Child lock .......................................................220Child seats, ISOFIX ......................213, 215, 216Children .........................216, 198, 200, 204-220Child seats ....................204 -206, 210, 211, 219Child seats, conventional ..............................210Cold climate screen ......................................259Collision risk alert .........................................151Colour screen .......................................294, 295Connectors, audio ............87, 310, 314, 374, 376Container, AdBlue .........................................276Coolant level ...........................................26, 281Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator26Courtesy lamps .............................................185Cruise control ................................132, 13 6, 13 9Cruise control, active ....................................13 9Cup holder .......................................................Cup holder .......................................................Cup holder84
A
CD
B
Battery ...........................................251-254, 283Battery, charging ...........................................254Battery, remote control .......................52, 62, 63Bicycle carrier ...............................................Bicycle carrier ...............................................Bicycle carrier263Blind spot sensors ........................................15 6Blue HDi ........................................................271Bluetooth (hands-free) ..........................352, 377Bluetooth (telephone) ............................352, 377Bonnet ...........................................................267Bonnet stay ...................................................267Boot ...........................................................90, 91Boot (opening) ...........................................54, 58Brake discs ....................................................284Brake lamps ..........................................240, 242Brake pads ....................................................284Brakes .....................................................24, 284
230 V socket .............................................84, 88
Capacity, fuel tank ..........................................72CD .........................................................310, 370CD MP3 .................................................310, 371Central locking ..........................................46-53Changing a bulb ....................................235 -244Changing a fuse ....................................245 -250
DAB (Digital Audio Broadcasting) ....................308, 309, 372, 373Date (setting) .......................................42, 43, 44Daytime running lamps .........177, 235, 236, 238Deactivating ESC ..........................................195Deactivating the passenger airbag ...............200Deadlocking ..............................................49, 57

388
Alphabetical index
Gearbox, automatic ...automatic ...automatic10, 12, 15, 121, 124, 129, 130, 284Gearbox, manual ..............10, 12, 15, 121, 12 2, 129, 284
Identification plates .......................................287Ignition on......................................104, 108, 110Indicator lamps, status ..............................13 -25Indicators, direction ......................................187Inflating accessories (using the kit) ..............226
F
GI
H
Eco-driving .....................................................10Economy mode .............................................255Electric window controls .................................69Electronic engine immobiliser...........50, 63, 112Electronic stability control (ESC) ..................193Emergency boot release .................................60Emergency call ............................188, 289, 290Emergency starting .......................................253Emergency warning lamps .....................94, 187Energy economy mode .................................255Engine compartment ...........................268, 269Engine compartment fusebox .......................249Engine, Diesel .................................74, 269, 270Engine oil level ........................................29, 280
Defrosting ..............................................10 6, 107Demisting ..............................................10 6, 107Denon (audio system) ...................................291Diesel ..............................................................74Diesel additive level ......................................282Diesel engine pre-heat warning lamp ............15Digital Audio Broadcasting (DA B) .................................308, 309, 372, 373Dimensions ...................................................286Dipped beam .................................173, 235, 237Dipstick ....................................................29, 280Direction indicators .......187, 235, 238, 240, 242Distance alert ................................................147Driving economically.......................................10Doors backup control ......................................61Dynamic emergency braking ........................118Dynamic (sport) .............................................128Dynamic stability control (DSC) ........17, 21, 195
E
Gear lever, automatic gearbox .....................124Gear lever, manual gearbox .........................12 2Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator123Glove box, cooled ...........................................84Guidance .......................................................329Guide-me-home ............................................178
Halogen headlamps ..............................235, 237Hands-free kit .......................................352, 377Hazard warning lamps ............................94, 187Headlamp adjustment ...................................180Headlamp wash ............................................182Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir282Head restraints, front ......................................79Head restraints, rear .................................Head restraints, rear .................................Head restraints, rear82, 83Heated seats ...................................................79Heating ....................................................9 7, 1 0 1Height and reach adjustment, steering wheel ..............................................75High load retaining net ..................................396Hill start assist ...............................................121
Engine, petrol ..................................74, 268, 285Environment .................10, 52, 62, 96, 254, 282ESC/ASR .......................................................193
Filling with fuel ...........................................7 2 -74Fitting a wheel ...............................................232Fitting roof bars .....................................262, 263Fittings, boot .............................................90, 91Flashing indicators ........187, 235, 238, 240, 242Foglamps ......................................................175Foglamps, front ....................................235, 239Foglamps, rear ..............................................Foglamps, rear ..............................................Foglamps, rear175Folding the rear seats .....................................82Frequency (radio) .................................305, 369Front seats ......................................................76Fuel............................................................10 , 74Fuel consumption ............................................10Fuel filler cap ...................................................72Fuel filler flap ...................................................72Fuel gauge ..........................................12, 22, 72Fuel tank..............................................12, 22, 72Fuses .....................................................245 -250

389
.
Alphabetical index
Inflating tyres ..........................................10, 287Inputs for audio system .....................84, 87, 310, 314, 374, 376Instrument panel .............................................12Instrument panel screen ...................12, 2 2, 123Intelligent Traction Control ............................19 4Interior fittings .................................................84Interior mood lighting ....................................18 6ISOFIX ..........................................................213ISOFIX mountings.................................213, 214
Jack ...............................................................227Jack cable .....................................................314JACK socket ..............84, 87, 310, 314, 374, 376Jukebox (playing) ..........................................315
Keeping children safe ...........198, 200, 204-220Key ....................................................46, 63, 112Key, electronic .........................46, 53 -56, 61, 63Key in ignition warning ..................................108Keyless Entry and Starting .......................55 -57, 63, 109, 112Key with remote control .................................46 -50, 56, 63, 112
Labels, identification .....................................287Lamps, warning and indicator ..................Lamps, warning and indicator ..................Lamps, warning and indicator13 -25LED daytime running lamps .........................17 7LEDs - light-emitting diodes .........235, 240, 242Level, AdBlue® additive® additive® .................................271Level, brake fluid ...........................................281Level, headlamp wash ..........................183, 282Levels and checks ................268, 269, 280-282Light-emitting diodes - LEDs ..........................235, 236, 238, 240, 242Lighting ..........................................................173Lighting bulbs (replacement) ................235 -244Lighting control stalk .....................................173Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer31Lighting, guide-me home ......................17 7, 178Lighting, interior ....................................Lighting, interior ....................................Lighting, interior185, 18 6Lighting on reminder .....................................Lighting on reminder .....................................Lighting on reminder176Loading ...................................................10, 262Load reduction mode ....................................255Load space cover ............................................Load space cover ............................................Load space cover92Locating your vehicle ................................50, 54Locking the boot..............................................60Locking the doors .....................................48, 56Long objects, transporting ..............................89Lumbar adjustment ...................................76, 80
Main beam ............................173, 235, 237, 239Maintenance ...................................................10Map reading lamps .......................................185Markings, identification .................................287Massage function ...........................................80Mat ..................................................................85Memorising a speed .....................................132Paint colour code ..........................................287Panoramic glass sunroof ................................Panoramic glass sunroof ................................Panoramic glass sunroof71
Oil filter ..........................................................Oil filter ..........................................................Oil filter283Oil level....................................................29, 280Opening the bonnet ......................................267Opening the boot ..........................46, 53 -55, 58Opening the doors ........................46, 47, 53, 55Operation indicator lamps ........................13 -25
M
P
O
J
K
Menu ...................................298, 300, 302, 316, 318, 320, 336, 348, 350Menu, main ...................................................368Menus (Touch screen) ..................................294Mini fuel level ............................................22, 72Mirror, rear view ............................................172Mirrors, door..........................................15 6 , 170Mountings for ISOFIX seats .................213, 214MP3 CD .................................................310, 371
L
Number plate lamps ......................................244
N

390
Alphabetical index
Service indicator .............................................Service indicator .............................................Service indicator27Servicing .........................................................10Setting the clock .................................42, 43, 44Sidelamps .............173, 235, 236, 238 -240, 242Side repeater ................................................Side repeater ................................................Side repeater239Ski flap ............................................................89Snow chains ..................................................234Spare wheel ..........................................227, 228Speed limiter .........................................Speed limiter .........................................Speed limiter132, 13 3Spotlamps, side ....................................179, 2 3 9Starting using another battery ......................253Starting the engine .......................108, 109, 124Steering mounted controls, audio ...................................................2 9 7, 3 6 7Stop & Start ................................24, 35, 72, 106, 129, 130, 251, 267, 283Storage ..........................................84, 86, 89 -91Storage wells ............................................90, 91Stowing rings ............................................90, 91Switching off the engine ...............1 0 8 , 1 0 9 , 111Synchronising the remote control .............52, 62Synthesiser, voice .........................................335System settings .............................................344
Tables of fuses ......................................245 -250Tank, AdBlue® additive® additive® .........................271, 276Ta n k , f u e l ...................................................22, 72Technical data ...............................................285Telephone .............................................3 52, 371Temperature adjustment ...................97, 99, 101Temperature control for heated seats ............79Temperature, coolant ......................................26Temporary puncture repair kit ......................221
Radio ....................................................304, 369RDS .......................................................307, 369Rear foglamp.........................240, 241, 243, 244Rear screen (demisting) ................................107Recharging the battery .................................254Reduction of electrical load ..........................255Refilling AdBlue.............................................276Regeneration of the particle emissions filter ............................................emissions filter ............................................emissions filter283Reinitialising the remote control ...............52, 62Remote control .........................46-48, 53-57, 63Removable screen (snow shield)..........259, 260Removing a wheel ........................................230Removing the mat ...........................................85Repair kit, puncture .......................................221Replacing bulbs ....................................235 -244
Safety for children .................198, 200, 204-220Screen, instrument panel ..................12, 32, 123Screen menu map ................................298, 300, 302, 316, 318, 320, 336, 348, 350, 380 -382Screen, monochrome ...................................380Screen, multifunction (with audio equipment) ........................44, 368Screen, multifunction (without audio equipment) ............................45Screenwash ..................................................182Screenwash fluid level ..........................183, 282Screen-wash reservoir .................................Screen-wash reservoir .................................Screen-wash reservoir282SCR (Selective Catalytic Reduction) ............271Seat adjustment ..............................................76Seat belts ......................................19 6 -198, 210Seats, rear .................................................Seats, rear .................................................Seats, rear81, 82Serial number, vehicle ..................................287
T
RS
Park Assist ....................................................162Parking brake, manual ....................15, 113, 284Parking brake, electric ............20, 114, 119, 284Parking sensors, front ...................................160Parking sensors, rear....................................159Particle emission filter ...........................Particle emission filter ...........................Particle emission filter281-283Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter283PEUGEOT CONNECT APPS .......................3 47PEUGEOT Connect Assistance ...................290PEUGEOT Connect SOS .............................290PEUGEOT Connect Sound (RD5) ................365Player, CD MP3 .....................................310, 371Port, USB ..................84, 87, 310, 314, 374, 376Priming the fuel system ................................270Protecting children ................198, 200, 204-220Puncture ........................................................221
Replacing fuses ....................................245 -250Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter283Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter283Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter283Replacing wiper blades.........................18 4, 256Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator28Resetting the trip recorder ..............................Resetting the trip recorder ..............................Resetting the trip recorder30Reversing camera .........................................161Reversing lamp .....................................240, 242Risk areas (update) .......................................325Roof bars ...............................................262, 263Roof blind ........................................................71Routine checks ....................................283, 284Running out of fuel (Diesel) ..........................270
