2014 OPEL ASTRA J Manual user

In brief7
3-door hatchback
To open the tailgate, push the brand
emblem at the bottom half.
Press button x on remote control to
unlock and open the tailgate. The
doors remain locked.
4-door notchback
Press button x on the remote
control for at least 2 seconds; the boot lid opens slightly.
Radio remote control 3 23, Central
locking system 3 25, Load
compartment 3 28.
Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 42, Seat adjustment
3 42.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

8In brief
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 42, Seat adjustment
3 42, Seat folding 3 45.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 42, Seat adjustment
3 42.
Seat inclination
Lever pumping motion
up=front end higherdown=front end lower
Seat position 3 42, Seat adjustment
3 42.

In brief9
Power seat adjustment
Operate switch 1:
forwards/
backwards=length adjustmentupwards/
downwards=height adjustmentupwards/
downwards
at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest
adjustmentPower seat adjustment 3 46, Seat
folding 3 45.Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 40.

10In briefSeat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 42, Seat belts
3 49, Airbag system 3 52.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 34, Automatic anti-
dazzle interior mirror 3 34.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 33,
Electric adjustment 3 33, Folding
exterior mirrors 3 33, Heated
exterior mirrors 3 34.

In brief11Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 52, Ignition
positions 3 165.

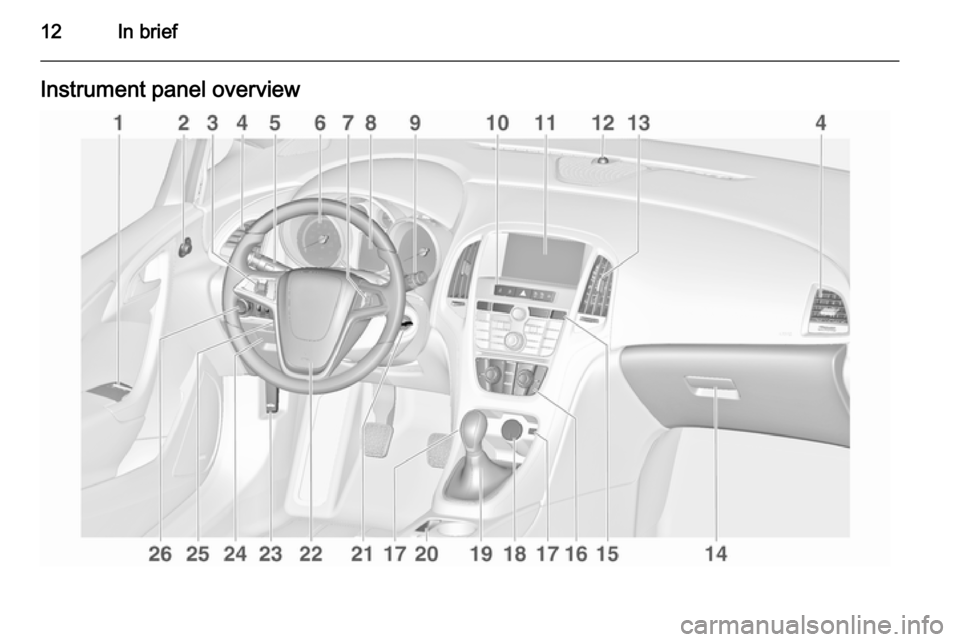

12In briefInstrument panel overview

In brief13
1Power windows .....................35
2 Exterior mirrors .....................33
3 Cruise control .....................183
Speed limiter ....................... 185
Adaptive cruise control .......186
Forward collision alert .........193
4 Side air vents ...................... 162
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................149
Exit lighting ......................... 153
Parking lights ...................... 150
Buttons for Driver
Information Centre ..............121
6 Instruments ........................ 110
7 Steering wheel controls .....102
8 Driver Information Centre .... 121
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ....................10410Sport mode ........................ 181
Central locking system ..........25
Fuel selector ....................... 111
Hazard warning flashers ....149
Control indicator for airbag
deactivation ........................ 115
Control indicator for front
passenger seat belt ...........115
Tour mode .......................... 181
11 Info-Display ........................ 126
12 Anti-theft alarm system
status LED ........................... 30
13 Centre air vents .................. 162
14 Glovebox .............................. 62
15 Traction Control system .....178
Electronic Stability Control . 179
Parking assist ..................... 198
Advanced parking assist .....201
Lane departure warning .....211Eco button for stop-start
system ................................. 167
Unlock button for boot lid ......28
16 Climate control system ........ 155
17 AUX input, USB input, SD
card slot ................................ 12
18 Power outlet ........................ 108
19 Selector lever, manual
transmission ....................... 175
Automatic transmission ......171
20 Electric parking brake .........176
21 Ignition switch with
steering wheel lock ............165
22 Horn ................................... 103
Driver airbag ........................ 53
23 Bonnet release lever ..........226
24 Storage compartment,
fuse box ............................. 255
25 Steering wheel adjustment 102
26 Light switch ........................ 142
Headlight range
adjustment ......................... 144
Front fog lights ...................149

14In brief
Rear fog light ...................... 150
Instrument illumination .......151
