Page 9 of 217
In brief7
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly. Do not lean on the
seat backrest whilst adjusting it.
Seat position 3 35, Seat adjustment
3 36, Seat folding 3 37.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 35, Seat adjustment
3 36.
Power seat adjustment
Operate switches.
Page 10 of 217
8In brief
Positioning=move front switch
forwards/backwardsHeight of
front part of
seat=move front part of
front switch
upwards/
downwardsHeight of
rear part of
seat=move rear part of
front switch
upwards/
downwardsHeight of
entire seat=move entire front
switch upwards/
downwardsBackrest=move upper part of
rear switch
forwards/backwards
Seat position 3 35, Power seat
adjustment 3 38.
Head restraint adjustment
Press release button, adjust height
and engage.
Head restraints 3 34.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 35, Seat belts
3 41, Airbag system 3 44.

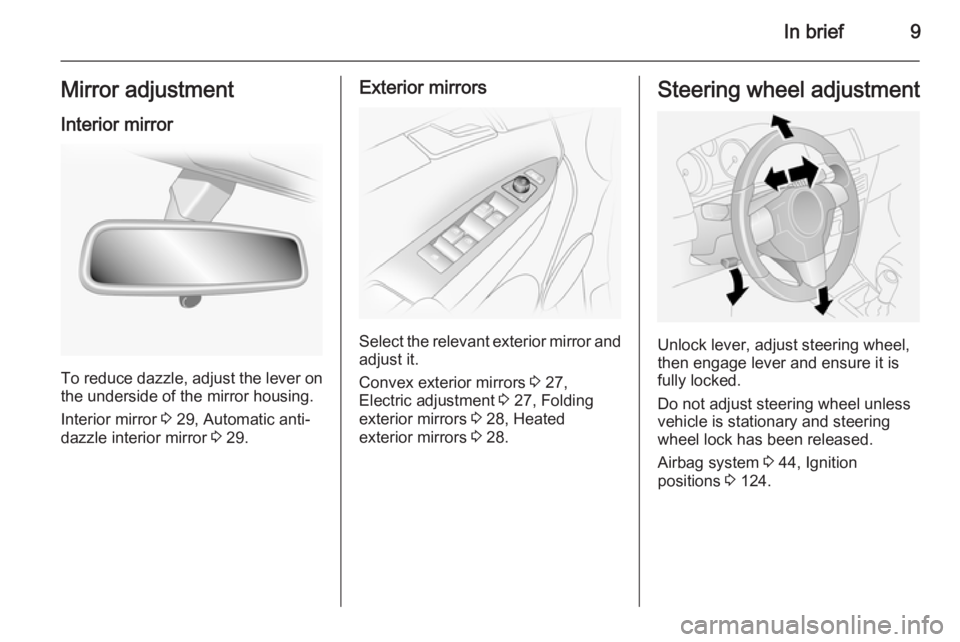

Page 11 of 217
In brief9Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 29, Automatic anti-
dazzle interior mirror 3 29.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 27,
Electric adjustment 3 27, Folding
exterior mirrors 3 28, Heated
exterior mirrors 3 28.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 44, Ignition
positions 3 124.
Page 12 of 217
10In briefInstrument panel overview
Page 13 of 217

In brief11
1Side air vents .....................120
2 Fixed air vents .................... 121
3 High beam .......................... 107
Headlight flash ...................107
Turn and lane-change
signals ................................ 109
Exit lighting ......................... 113
Parking lights .....................110
Cruise control ....................... 91
4 Remote control on
steering wheel ......................73
Trip computer .....................101
5 Horn ..................................... 74
6 Instruments .......................... 80
7 Windscreen wiper and
washer system, headlight
washer system .....................74
Rear window wiper and
washer system .....................768Info-Display .......................... 94
Check control, tyre
pressure monitoring
system ................................ 176
Trip computer .....................101
9 Centre air vents .................. 120
10 Hazard warning flashers ....108
Parking assist ..................... 142
Electronic Stability Control . 138
Descent control system ...... 139
Status LED for anti-theft
alarm system ........................ 24
Folding exterior mirrors ........28
Eco button for stop/start
system ................................. 125
11 Infotainment system .............10
12 Front passenger airbag ........47
13 Status LEDs for front
passenger airbag .................49
Control indicator for front
passenger seat belt .............42
14 Glovebox .............................. 5615Fuse box ............................ 170
16 Climate control system ....... 115
17 Ignition switch with
steering wheel lock ............124
18 Accelerator pedal ...............123
19 Driver airbag ........................ 47
20 Brake pedal ........................ 136
21 Clutch pedal ....................... 123
22 Steering wheel adjustment ..73
23 Bonnet release ...................153
24 Coin storage ......................... 57
25 Card holder .......................... 57
26 Light switch ........................ 106
Automatic light control .......106
Instrument illumination .......111
Rear fog light ...................... 110
Front fog lights ...................109
Headlight range
adjustment ......................... 107
Page 14 of 217
Page 15 of 217
In brief13Exterior lighting
Turn light switch
AUTO=Automatic light control:
Headlights are switched
on and off automatically.7=Off (or deactivation of
automatic light control)8=Sidelights9=Headlights
Press button
>=Front fog lightsr=Rear fog light
Lighting 3 106.
Headlight flash, high beam and
low beamheadlight
flash=pull leverhigh
beam=push leverlow beam=pull lever back towards steering wheel
Automatic light control 3 106, High
beam 3 107, Headlight flash 3 107.
Turn and lane-change signalsright=lever upleft=lever down
Turn and lane-change signals
3 109, Parking lights 3 110.
Page 16 of 217
14In brief
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 108.
Horn
Press j.
Washer and wiper systems
Windscreen wiper&=fast%=slow$=timed interval wiping or
automatic wiping with rain
sensor§=off
For a single wipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 74, Wiper
blade replacement 3 160.
