2014 NISSAN ROGUE sensor

The sunload sensor, located on the top and cen-
ter of the instrument panel, helps the system
maintain a constant temperature. Do not put any-
thing on or around this sensor.The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.
This refrigerant does not harm the earth’s
ozone layer.
Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. For additional information, refer to “Air
conditioner system refrigerant and oil recommen-
dations” in the “Technical and consumer informa-
tion” section of this manual.
A NISSAN dealer is able to service your “environ-
mentally friendly” air conditioning system.
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.
RADIO
With the ignition placed in the ACC or ON posi-
tion, press the POWER button/VOLUME control
knob to turn the radio on. If you listen to the radio
with the engine not running, the ignition should
be placed in the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external influ-
ences. Intermittent changes in reception quality
normally are caused by these external influences.
Using a cellular phone in or near the vehicle
may influence radio reception quality.
Radio reception
Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance ra-
dio reception. These circuits are designed to
extend reception range, and to enhance the qual-
ity of that reception.
However, there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These char-
acteristics are completely normal in a given re-
ception area and do not indicate any malfunction
in your NISSAN radio system.
LHA2949
SERVICING AIR CONDITIONER AUDIO SYSTEM
Monitor, climate, audio, phone and voice recognition systems4-37

Sensor maintenance........................... 5-35
Break-in schedule ................................ 5-35
Fuel efficient driving tips ........................... 5-35
Increasing fuel economy ........................... 5-37
All-wheel drive (AWD) (if so equipped) ..............5-37
All-Wheel Drive (AWD) Lock Switch
Operations . .................................. 5-38
Parking/parking on hills. . .......................... 5-40
Power steering . .................................. 5-41
Brake system .................................... 5-42
Brake precautions ............................. 5-42
Anti-lock Braking System (ABS) .................5-42
Brake assist .................................. 5-43
Vehicle Dynamic Control (VDC) system .............5-44
Chassis Control .................................. 5-45
Active trace control . . .......................... 5-45Active engine brake
............................ 5-46
Active ride control ............................. 5-47
Hill Descent Control (HDC) System
(if so equipped) . . . ............................... 5-48
Hill start assist system ............................ 5-49
Cold weather driving .............................. 5-50
Freeing a frozen door lock ......................5-50
Anti-freeze .................................... 5-50
Battery ....................................... 5-50
Draining of coolant water .......................5-50
Tire equipment ................................ 5-50
Special winter equipment .......................5-51
Driving on snow or ice ......................... 5-51
Engine block heater (if so equipped)
(Canada only) ................................. 5-51

●When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CAUTION
● The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.
● Do not place metalized film or any
metal parts (antenna, etc.) on the win-
dows. This may cause poor reception of
the signals from the tire pressure sen-
sors, and the TPMS will not function
properly. Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to illu-
minate.
Some examples are:
– Facilities or electric devices using similar radio
frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle.
– If a computer (or similar equipment) or a DC/AC converter is being used in or near the
vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation. NOTE:
Changes or modification not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation of the device.
TPMS with Easy Fill Tire Alert
When adding air to an under-inflated tire, the
TPMS with Easy Fill Tire Alert provides visual and
audible signals outside the vehicle to help you
inflate the tires to the recommended COLD tire
pressure.
Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shift lever to the P (Park) position.
3. Place the ignition switch to the ON position. Do not start the engine.
Starting and driving5-5

Operation:1. Add air to the tire.
2. After a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard indica-
tors stop flashing.
4. Perform the above steps for each tire. ●If the tire is over-inflated more than ap-
proximately 4 psi (30 kPa) , the horn
beeps and the hazard indicators flash 3
times. To correct the pressure, push the
core of the valve stem on the tire briefly to
release pressure. When the pressure
reaches the designated pressure, the
horn beeps once.
● If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates that
the Easy Fill Tire Alert is not operating.
● The TPMS will not activate the Easy Fill
Tire Alert under the following conditions:
– If there is interference from an external device or transmitter.
– The air pressure from the inflation device is not sufficient to inflate the tire. – There is a malfunction in the TPMS sys-
tem.
– There is a malfunction in the horn or haz- ard indicators.
– The identification code of the tires pres- sure sensor is not registered to the sys-
tem.
– The battery of the tire pressure sensor is low.
● If the Easy Fill Tire Alert does not operate
due to TPMS interference, move the ve-
hicle about 3 ft (1 m) backward or forward
and try again.
If the Easy Fill Tire Alert is not working, use a tire
pressure gauge.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss of
control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could cause you to lose control of your vehicle.
As with
any vehicle, loss of control could result in a
collision with other vehicles or objects or
cause the vehicle to roll over, particularly if
the loss of control causes the vehicle to
slide sideways. Be attentive at all times, and
avoid driving when tired. Never drive when under
the influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness) . Always wear your seat belt
as outlined in the “Safety – Seats, seat belts and
supplemental restraint system” section of this
manual, and also instruct your passengers to do
so.
Seat belts help reduce the risk of injury in colli-
sions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.
OFF-ROAD RECOVERY
If the right side or left side wheels unintentionally
leave the road surface, maintain control of the
vehicle by following the procedure below. Please
note that this procedure is only a general guide.
The vehicle must be driven as appropriate based
on the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
5-6Starting and driving

To turn off the cruise control,use one of the
following three methods.
● Push the CANCEL button.
● Tap the brake pedal.
● Push the ON·OFF switch off. The CRUISE
indicator light in the vehicle information dis-
play goes out. The Forward Collision Warning (FCW) system
will warn the driver by a warning light and chime
when your vehicle is getting close to the vehicle
ahead in the traveling lane.
The FCW system will function when your vehicle
is driven at speeds of approximately 10 MPH
(15 km/h) and above.
The FCW system uses the distance sensor
A
located behind the front bumper to measure the
distance to the vehicle ahead. When the system
judges that your vehicle is getting close to the
vehicle ahead in the travel lane, FCW Indicator
(orange) on the instrument panel blinks and a
warning chime sounds.
The FCW system can be turned on/off by using
the settings menu on the information display. See
“How to enable/disable the FCW system” using
the settings menu in this section.
LSD2192
FORWARD COLLISION WARNING
(FCW) SYSTEM (if so equipped)
Starting and driving5-31

APPROACH WARNING
NOTE:
The warning chime may sound and the sys-
tem display may blink when the distance
sensor detects vehicles in other lanes
Aor
objects on the side of the road
A. This may
cause the FCW system to operate inappro-
priately. The distance sensor may detect
these objects when the vehicle is driven on
winding roads, narrow roads, hilly roads, or
when entering or exiting a curve. In these
cases you will have to manually control the
proper distance ahead of your vehicle. Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .
PRECAUTIONS ON FCW SYSTEM
WARNING
●
The FCW system is intended to warn
you before a collision occurs; it cannot
prevent a collision. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● As there is a performance limit, the sys-
tem may not provide a warning in cer-
tain conditions.
● The system will not detect the following
objects:
– Pedestrians, animals or obstacles in the roadway
– Oncoming vehicles in the same lane
● The system will not detect another ve-
hicle under the following conditions:
FCW Indicator (orange)
LIC2727SSD0284A
5-32Starting and driving

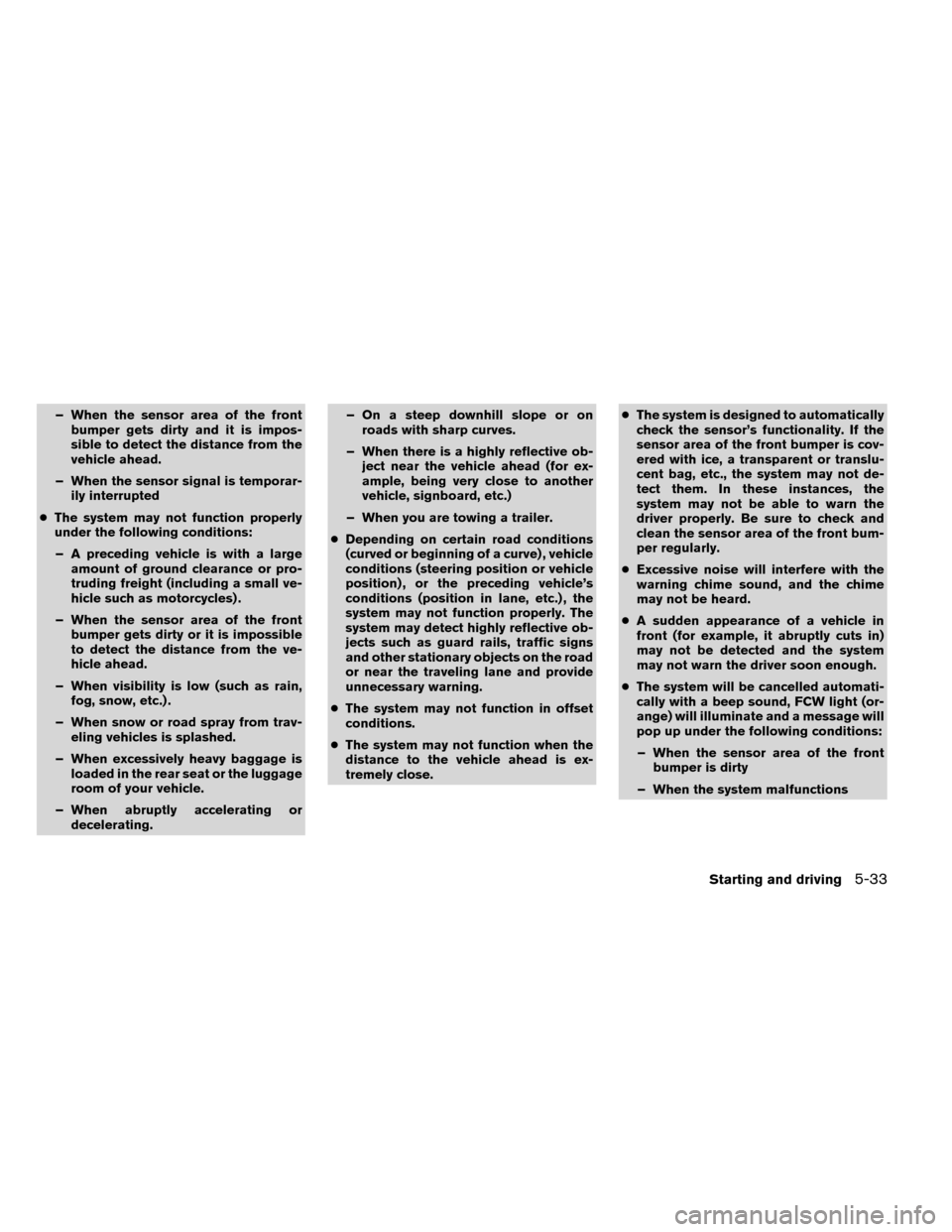

– When the sensor area of the frontbumper gets dirty and it is impos-
sible to detect the distance from the
vehicle ahead.
– When the sensor signal is temporar- ily interrupted
● The system may not function properly
under the following conditions:
– A preceding vehicle is with a large amount of ground clearance or pro-
truding freight (including a small ve-
hicle such as motorcycles) .
– When the sensor area of the front bumper gets dirty or it is impossible
to detect the distance from the ve-
hicle ahead.
– When visibility is low (such as rain, fog, snow, etc.) .
– When snow or road spray from trav- eling vehicles is splashed.
– When excessively heavy baggage is loaded in the rear seat or the luggage
room of your vehicle.
– When abruptly accelerating or decelerating. – On a steep downhill slope or on
roads with sharp curves.
– When there is a highly reflective ob- ject near the vehicle ahead (for ex-
ample, being very close to another
vehicle, signboard, etc.)
– When you are towing a trailer.
● Depending on certain road conditions
(curved or beginning of a curve) , vehicle
conditions (steering position or vehicle
position) , or the preceding vehicle’s
conditions (position in lane, etc.) , the
system may not function properly. The
system may detect highly reflective ob-
jects such as guard rails, traffic signs
and other stationary objects on the road
or near the traveling lane and provide
unnecessary warning.
● The system may not function in offset
conditions.
● The system may not function when the
distance to the vehicle ahead is ex-
tremely close. ●
The system is designed to automatically
check the sensor’s functionality. If the
sensor area of the front bumper is cov-
ered with ice, a transparent or translu-
cent bag, etc., the system may not de-
tect them. In these instances, the
system may not be able to warn the
driver properly. Be sure to check and
clean the sensor area of the front bum-
per regularly.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
● A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system
may not warn the driver soon enough.
● The system will be cancelled automati-
cally with a beep sound, FCW light (or-
ange) will illuminate and a message will
pop up under the following conditions:
– When the sensor area of the front bumper is dirty
– When the system malfunctions
Starting and driving5-33

If the system cancels and a message appears
with a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine off.
Check to see if the sensor area of the front
bumper is blocked. If the sensor area of the front
bumper is blocked, remove the object blocking
and restart the engine.
If the sensor is malfunctioning, have the system
checked by a NISSAN dealer.
FCW SYSTEM OPERATION
The FCW system is active at speeds of approxi-
mately 10 MPH (15 km/h) and above, when the
system turns on.
When FCW is turned on, FCW Indicator (white)
will turn on. FCW system is activated using the
settings menu on the information display. See
“How to enable/disable the FCW system” using
the settings menu in this section.
How to enable/disable the FCW
system
Perform the following steps to enable or disable
the FCW system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set FCW system to on or off, use the ↑↓
buttons to navigate in the menu and use the
ENTER button to select or change item:
● To turn on the warning use the ENTER
button to check box for “Forward.”
● To turn off the warning use the ENTER
button to clear box for “Forward.”
– The FCW light will illuminate on the Ve- hicle Information Display when the sys-
tem is on.
Forward Collision Warning light
LIC2727
5-34Starting and driving
