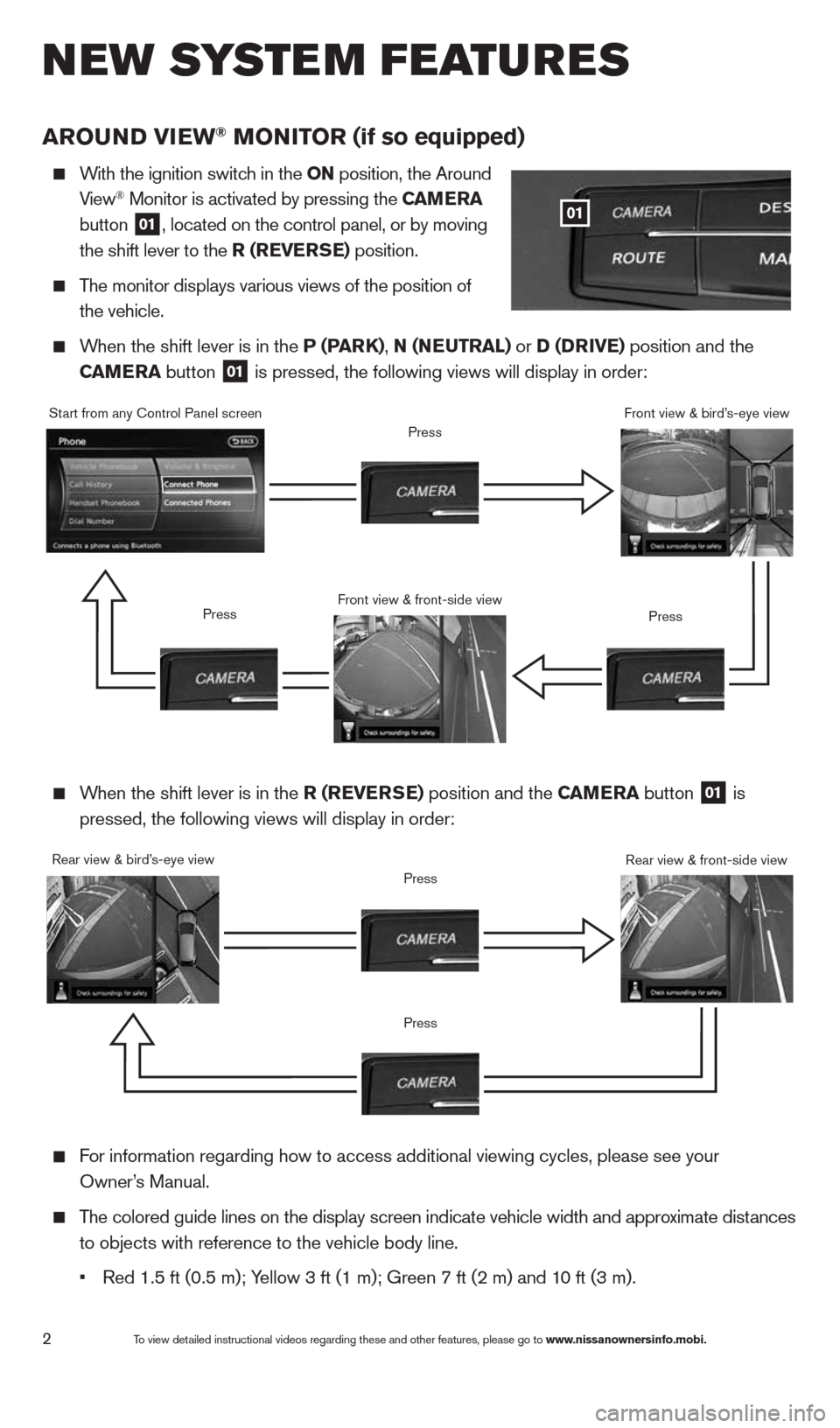

arOu ND VI ew® MONITOr (if so equipped)
With the ignition switch in the ON position, the Around
View® Monitor is activated by pressing the C aMera
button
01, located on the control panel, or by moving
the shift lever to the r (reVer Se) position.
The monitor displays various views of the position of
the vehicle.
When the shift lever is in the P (P arK), N (N euTraL) or D (D rIVe) position and the
C aM era button
01 is pressed, the following views will display in order:
01
When the shift lever is in the r (reVer Se) position and the C aMera button
01 is
pressed, the following views will display in order:
Start from any control Panel screen
Rear view & bird’s-eye view Front view & front-side view
Press
Press
Press
Press
Press
Front view & bird’s-eye view
Rear view & front-side view
For information regarding how to access additional viewing cycles, please\
see your
Owner’s Manual.
The colored guide lines on the display screen indicate vehicle width and \
approximate distances
to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft (3 m).
New system features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi.
