2014 NISSAN QUEST mirror

TABLE OF cONTENTS
New SYSTe M FeaTureS

Around View® Monitor (if so equipped) ............................. 2
Blind Spot Warning (BSW) System (if so equipped) ................. 3
Advanced climate control System (if so equipped) .................. 4
e SS eNTIaL INFOr MaTION
Tire Pressure Monitoring System (TPMS) with Easy Fill Tire Alert ...... 5
Loose Fuel cap ................................................ 6
Fuel-Filler Door ................................................ 6
FI rST D rIVe Fea TureS
NISSAN Intelligent k ey
® System ................................. 7
Power Sliding Door Release (if so equipped) ....................... 8
Power Liftgate Release (if so equipped) ............................9
Front Power Seat Adjustments (if so equipped) ......................9
2
nd Row Seat Adjustments ...................................... 10
Folding the 2nd Row Seats ...................................... 10
Enter/Exit the 3rd Row Seats .................................... 10
3rd Row Seat Adjustments ...................................... 11
Automatic Drive Positioner (if so equipped) ........................ 11
Outside Mirror control Switch ................................... 12
Starting/Stopping the Engine .................................... 12
Headlight control Switch ....................................... 13
Windshield Wiper and Washer Switch ............................14
Automatic climate controls (if so equipped) ....................... 15
FM/AM/SiriusXM Satellite Radio with c D/DVD Player (if so equipped) ..17
USB/iPod
® Interface (if so equipped) ............................. 18
cruise control ................................................ 18
Power Outlets ................................................ 19
SYST eM GuIDe
Trip computer ................................................ 20
Bluetooth
® Hands-free Phone System (if so equipped) .............. 20
System Operating Tips ...................................... 20
Bluetooth
® System with Navigation (if so equipped) ..............21
Bluetooth® System without Navigation (if so equipped) ...........23
Navigation System (if so equipped) ............................... 24
NISSAN Mobile Entertainment System (MES) (if so equipped) ....... 26
HomeLink
® Universal Transceiver (if so equipped) .................. 27
Please see your Owner’s Manual for important safety
information, and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• children 12 and under should always ride in the rear seat properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, heater, air
conditioner, audio, phone and voice recognition systems (section
4)” and the “Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in
your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2014/quest or snap this barcode with an appropriate barcode reader.
1490690_14_Quest_QRG_072513.indd 57/25/13 9:23 AM

3

Predictive course lines
02 indicate the predictive
course when operating the vehicle. The lines will
be displayed when the steering wheel is turned.


The course lines will move depending on how
much the steering wheel is turned and will not
be displayed while the steering wheel is in the
neutral position.


There are some areas where the system will not
show objects.
•
When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed
03.
•
When in the bird’s-eye view, a tall object near the
seam of the camera viewing areas
04 will not
appear in the monitor.


The distance between objects viewed on the
Around View® Monitor differs from the actual distance.


Objects in the bird’s-eye view will appear further
than the actual distance.
For more information, refer to the “Monitor, heater, air conditioner, audio,
phone and voice recognition systems (section 4)” of your Owner’s Manual.
03
04
BLIND SPOT warNING (BSw) S YST eM (if so equipped)
The control switch
01 is located on the left side of
the instrument panel.

The system automatically turns on when the engine
is started and the BSW ON indicator light
on the
switch illuminates.

The indicator light
02, located in the outside mirror,
will activate when the BSW system detects a vehicle
in the detection zone.

If a turn signal is activated in the direction of a
detected vehicle, a chime sounds twice and the
BSW indicator light will flash.

To cancel the system, push the control switch and
the BSW ON indicator light will turn off.
For more information, refer to the “Starting and driving (section 5)” of
your Owner’s Manual.
01
02
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
02
1490690_14_Quest_QRG_072513.indd 37/25/13 9:23 AM

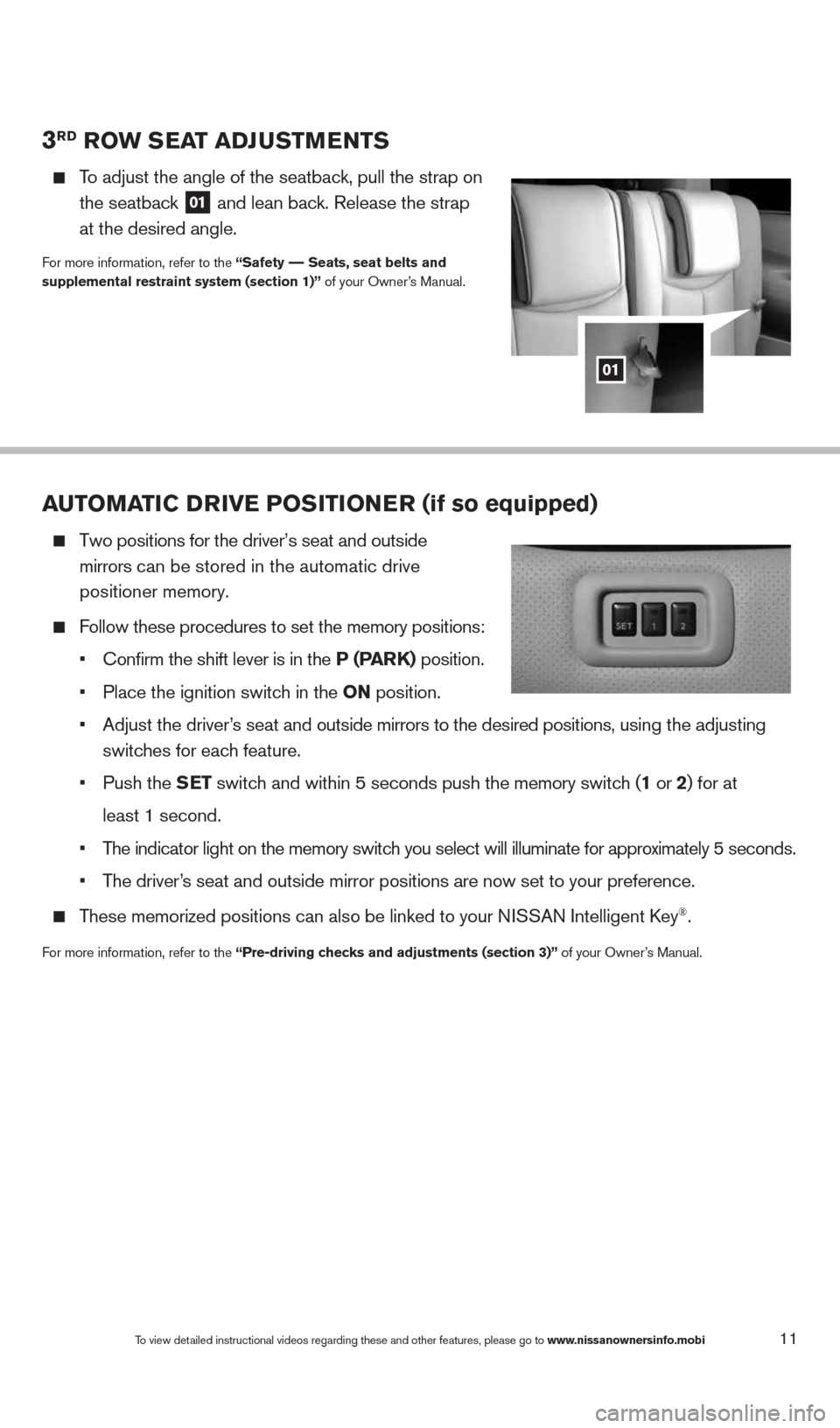

11
3rD rOw S eaT aDJ uSTM eNTS

To adjust the angle of the seatback, pull the strap on
the seatback
01 and lean back. Release the strap

at the desired angle.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
01
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
auTOMa TIC DrIVe POSITION er (if so equipped)
Two positions for the driver’s seat and outside
mirrors can be stored in the automatic drive
positioner memory.

Follow these procedures to set the memory positions:
• confirm the shift lever is in the P (P arK) position.
• Place the ignition switch in the ON position.
• Adjust the driver’s seat and outside mirrors to the desired positions, using the adjusting
switches for each feature.
• Push the S eT switch and within 5 seconds push the memory switch (1 or 2) for at
least 1 second.
• The indicator light on the memory switch you select will illuminate for approximately 5 seconds.
• The driver’s seat and outside mirror positions are now set to your preference.

These memorized positions can also be linked to your NISSAN Intelligent k ey®.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1490690_14_Quest_QRG_072513.indd 117/25/13 9:24 AM

12
OuTSIDe MIrrOr CONTr OL SwITCH
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch

01 up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle (neutral) position.
REVERSE TILT-DOWN FEATURE (if so equipped)

When backing up the vehicle, the right or left outside mirror can be selected to\
automatically
turn downward to provide better rear visibility.
1. Push the ignition switch to the ON position.
2. Move the shift lever to the r (reVer Se) position.
3. choose the right or left outside mirror by operating the outside mirror c\
ontrol switch

01.
4. The outside mirror surfaces move downward.

When one of the following conditions has occurred, the outside mirror sur\
faces will return to
their original positions.
• The shift lever is moved to any position other than r (reVer Se).
• The outside mirror control switch

01 is set to the center (neutral) position.
• The ignition switch is pushed to the OFF position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
01
STarTING/STOPPING TH e eNGIN e
It is important to make sure the NISSAN Intelligent key®
is with you (that is, in your pocket or purse).

Depress the brake pedal.
• If the brake pedal is not depressed, pushing the
ignition switch once enters the aCC mode.
• If the ignition switch is pushed a second time, the
vehicle will enter the ON mode.


Press the ignition switch ST arT/STOP button to start the engine.

TURNING THE ENGINE OFF

Move the shift lever to the P (P arK) position and apply the parking brake.

Press the ignition switch ST arT/STOP button to turn the engine off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
first drive features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
1490690_14_Quest_QRG_072513.indd 127/25/13 9:24 AM

16
07 aI
r re CIrCu LaTION B uTTON

Press the air recirculation button to recirculate interior air inside the vehicle. The
indicator light on the button will illuminate. This system is used to avoid certain outside
odors and helps to adjust the inside vehicle temperature more effectivel\
y.

The air recirculation mode cannot be activated when the air conditioner i\
s in the front
defroster mode
Fr
ONT or in the front defroster and foot vent mode .
08 auTO-re
CIrCu LaTION B uTTON

Press the auto-recirculation button
au
TO
to switch to the automatic air intake

control mode. The indicator light on the button will illuminate.

In this mode, the sensor detects certain odors and gasses to automatically switch
between the air recirculation mode and the outside air circulation mode.\

The auto-recirculation mode cannot be activated when the air flow contr\
ol mode is in
the front defroster mode
Fr
ONT or in the front defroster and foot vent mode .
09 D
eFr OSTING/D eFOGGING Fr ONT aND SID e wINDOwS

Press the front defroster control button
Fr
ONT to turn the system on. The A/c
automatically turns on when the defroster mode is selected. This feature removes humidity
from the air.

Press the temperature control buttons
or
to set the desired temperature.


To defrost the front and side windows quickly, set the temperature controls and fan speed
controls to their maximum settings.
10 D
eFr OSTING rear wINDO w aND OuTSIDe MIrrOr S (if so equipped)

Push the rear window defroster switch
rear
to turn the system on or off.

This function automatically turns off after approximately 15 minutes.
11 a/C B
uTTON

Press the a/C button to turn the air conditioner system on or off. This system helps cool
and dehumidify the air inside the cabin and defog the windows.
12 rear CONTr
OL BuTTON

To control the rear automatic air conditioning
system with the front air conditioner control panel,
press the rear button.

When the rear automatic air conditioning system
is on, the indicator light on the rear button will
illuminate and the front display will switch to the
rear air conditioner screen.

To adjust the front air conditioning system, press the rear button again or wait 10 seconds.

The rear passenger controls are unavailable when rear is shown on the front display.
13 ON•OFF B
uTTON

Press the ON•OFF button to turn the climate control system on or off.
For more information, refer to the “Instruments and controls (section 2)” and the “Monitor, heater, air conditioner, audio,
phone and voice recognition systems (section 4)” of your Owner’s Manual.
first drive features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
1490690_14_Quest_QRG_072513.indd 167/25/13 9:24 AM
