2014 NISSAN QUEST alarm

7
01
03
04
05
06
02
NISSaN INTeLLIGeNT K eY® SYST eM
The NISSAN Intelligent k ey® System allows you to lock or
unlock your vehicle, open your liftgate and start the engine.
It is important to make sure the Intelligent k ey is with you
(that is, in your pocket or purse).

The operating range of the Intelligent k ey is within
31.5 in (80 cm) from each request switch.


To lock the vehicle, push either door handle request
switch
01 or the liftgate request switch 02 or press

the
button 03 on the key fob.


To unlock the vehicle, perform one of the
following procedures:
•
Push either door handle request switch
01 or the

liftgate request switch 02; the corresponding door
will unlock. Push the request switch again within 1
minute; all other doors will unlock, or
•
Press the

button 04 on the key fob to unlock the

driver’s side door. Press the button 04 again

within 1 minute; all other doors will unlock.


To open the power liftgate (if so equipped), press the
button 05 for more than 1 second.


The Intelligent k ey can also be used to activate the
panic alarm by pressing and holding the
button 06

for more than 1 second. Once activated, the panic
alarm and headlights will stay on for a period of time.
INTELLIGENT k EY BATTERY DIS cHARGE


If the battery of the Intelligent k ey is discharged, or
environmental conditions interfere with the Intelligent
k ey operation, start the engine according to the
following procedure:
1. Move the shift lever to the P (ParK) position.
2. Firmly apply the foot brake.
3.
Touch the ignition switch with the Intelligent k ey and
a chime will sound.
4.
Within 10 seconds after the chime sounds, push the
ignition switch while depressing the brake pedal and
the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section 5)”
and the “Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
f irst drive features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
1490690_14_Quest_QRG_072513.indd 77/25/13 9:23 AM

27

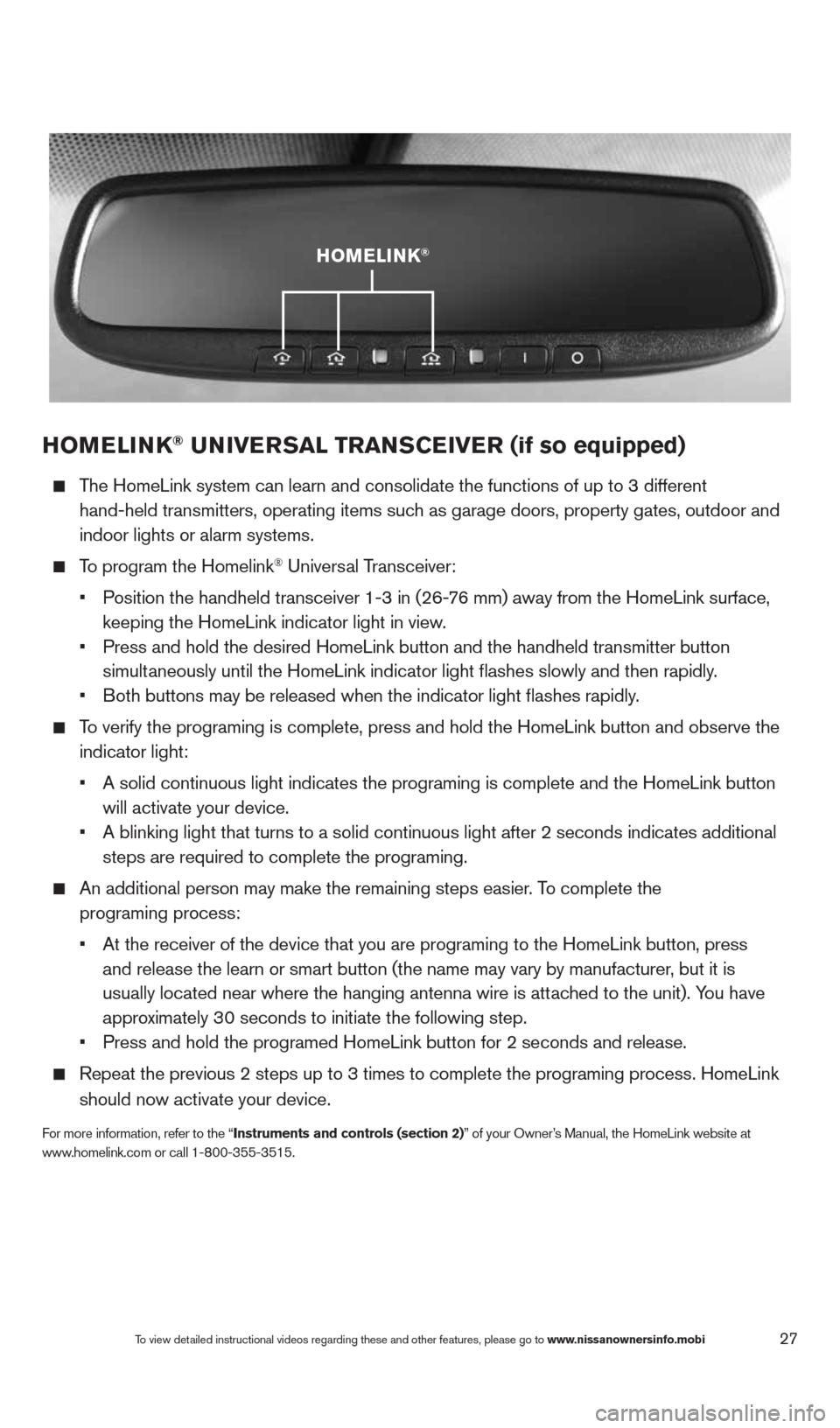

HOMeLINK® uNIVer SaL TraNSCe IVer (if so equipped)
The HomeLink system can learn and consolidate the functions of up to 3 di\
fferent
hand-held transmitters, operating items such as garage doors, property gates, outdoor and
indoor lights or alarm systems.

To program the Homelink® Universal Transceiver:
• Position the handheld transceiver 1-3 in (26-76 mm) away from the HomeLink surface,
keeping the HomeLink indicator light in view.
• Press and hold the desired HomeLink button and the handheld transmitter \
button
simultaneously until the HomeLink indicator light flashes slowly and then ra\
pidly.
• Both buttons may be released when the indicator light flashes rapidly.

To verify the programing is complete, press and hold the HomeLink button \
and observe the
indicator light:
• A solid continuous light indicates the programing is complete and the Ho\
meLink button
will activate your device.
• A blinking light that turns to a solid continuous light after 2 seconds \
indicates additional
steps are required to complete the programing.

An additional person may make the remaining steps easier. To complete the
programing process:
• At the receiver of the device that you are programing to the HomeLink bu\
tton, press
and release the learn or smart button (the name may vary by manufacture\
r, but it is
usually located near where the hanging antenna wire is attached to the unit). You have
approximately 30 seconds to initiate the following step.
• Press and hold the programed HomeLink button for 2 seconds and release.

Repeat the previous 2 steps up to 3 times to complete the programing pro\
cess. HomeLink
should now activate your device.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual, the HomeLink website at
www.homelink.com or call 1-800-355-3515.
HOMeLINK®
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
1490690_14_Quest_QRG_072513.indd 277/25/13 9:24 AM
