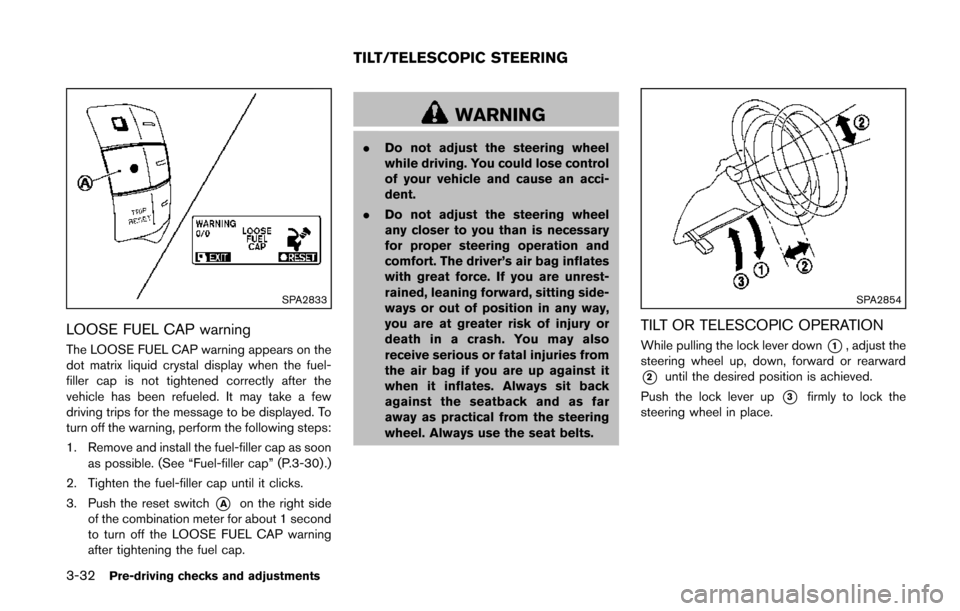

3-32Pre-driving checks and adjustments
SPA2833
LOOSE FUEL CAP warning
The LOOSE FUEL CAP warning appears on the
dot matrix liquid crystal display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be displayed. To
turn off the warning, perform the following steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “Fuel-filler cap” (P.3-30) .)
2. Tighten the fuel-filler cap until it clicks.
3. Push the reset switch
*Aon the right side
of the combination meter for about 1 second
to turn off the LOOSE FUEL CAP warning
after tightening the fuel cap.
WARNING
. Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
SPA2854
TILT OR TELESCOPIC OPERATION
While pulling the lock lever down*1, adjust the
steering wheel up, down, forward or rearward
*2until the desired position is achieved.
Push the lock lever up
*3firmly to lock the
steering wheel in place.
TILT/TELESCOPIC STEERING

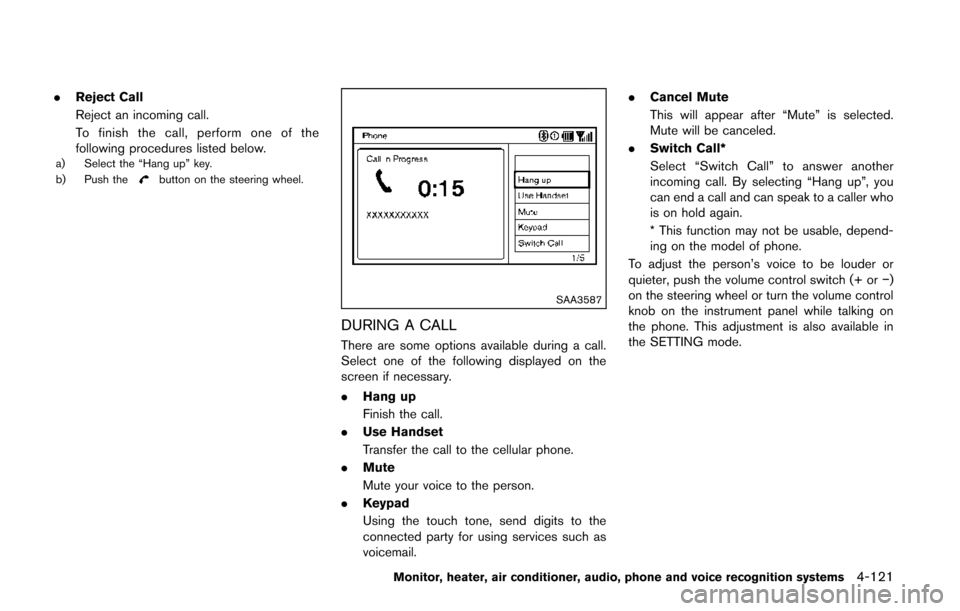

.Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
a) Select the “Hang up” key.
b) Push thebutton on the steering wheel.
SAA3587
DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
.Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail. .
Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
. Switch Call*
Select “Switch Call” to answer another
incoming call. By selecting “Hang up”, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or −)
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121

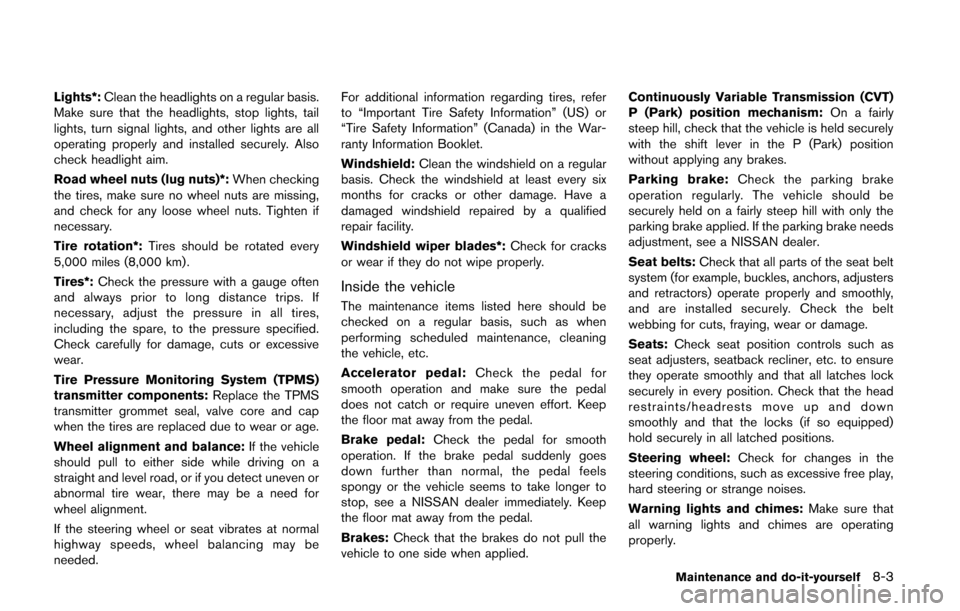

Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km) .
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed. For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the War-
ranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, see a NISSAN dealer immediately. Keep
the floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied. Continuously Variable Transmission (CVT)
P (Park) position mechanism:
On a fairly
steep hill, check that the vehicle is held securely
with the shift lever in the P (Park) position
without applying any brakes.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
adjustment, see a NISSAN dealer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints/headrests move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Maintenance and do-it-yourself8-3

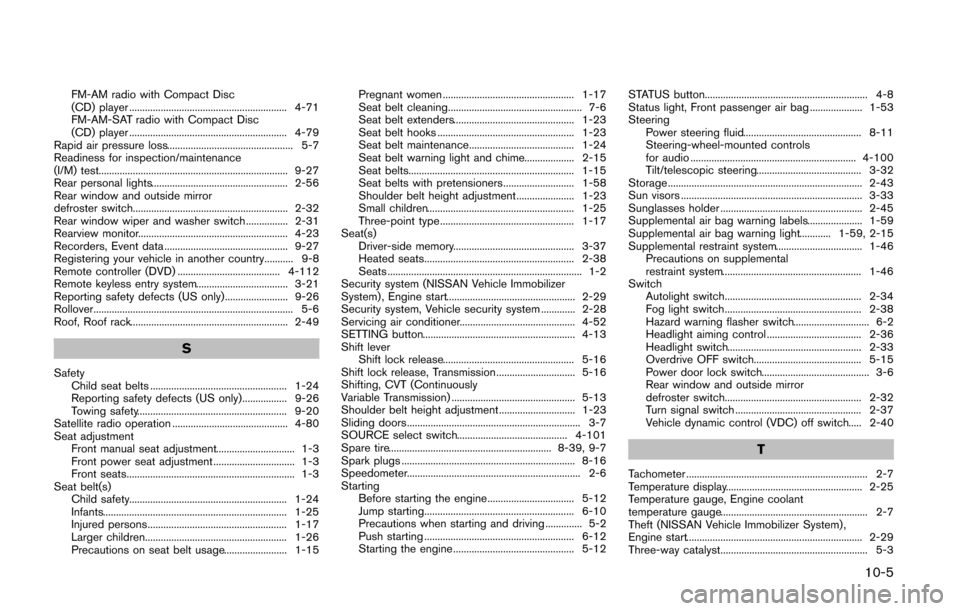

FM-AM radio with Compact Disc
(CD) player ............................................................ 4-71
FM-AM-SAT radio with Compact Disc
(CD) player ............................................................ 4-79
Rapid air pressure loss................................................ 5-7
Readiness for inspection/maintenance
(I/M) test........................................................................ 9-27
Rear personal lights.................................................... 2-56
Rear window and outside mirror
defroster switch........................................................... 2-32
Rear window wiper and washer switch ................ 2-31
Rearview monitor......................................................... 4-23
Recorders, Event data ............................................... 9-27
Registering your vehicle in another country........... 9-8
Remote controller (DVD) ....................................... 4-112
Remote keyless entry system................................... 3-21
Reporting safety defects (US only)........................ 9-26
Rollover............................................................................ 5-6
Roof, Roof rack............................................................ 2-49
S
Safety Child seat belts .................................................... 1-24
Reporting safety defects (US only)................. 9-26
Towing safety......................................................... 9-20
Satellite radio operation ............................................ 4-80
Seat adjustment Front manual seat adjustment.............................. 1-3
Front power seat adjustment ............................... 1-3
Front seats................................................................ 1-3
Seat belt(s) Child safety............................................................ 1-24
Infants...................................................................... 1-25
Injured persons..................................................... 1-17
Larger children...................................................... 1-26
Precautions on seat belt usage........................ 1-15 Pregnant women .................................................. 1-17
Seat belt cleaning................................................... 7-6
Seat belt extenders.............................................. 1-23
Seat belt hooks .................................................... 1-23
Seat belt maintenance........................................ 1-24
Seat belt warning light and chime................... 2-15
Seat belts............................................................... 1-15
Seat belts with pretensioners........................... 1-58
Shoulder belt height adjustment...................... 1-23
Small children........................................................ 1-25
Three-point type................................................... 1-17
Seat(s) Driver-side memory.............................................. 3-37
Heated seats......................................................... 2-38
Seats .......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start................................................. 2-29
Security system, Vehicle security system ............. 2-28
Servicing air conditioner............................................ 4-52
SETTING button.......................................................... 4-13
Shift lever Shift lock release.................................................. 5-16
Shift lock release, Transmission .............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ............................................... 5-13
Shoulder belt height adjustment............................. 1-23
Sliding doors.................................................................. 3-7
SOURCE select switch.......................................... 4-101
Spare tire.............................................................. 8-39, 9-7
Spark plugs .................................................................. 8-16
Speedometer.................................................................. 2-6
Starting Before starting the engine................................. 5-12
Jump starting......................................................... 6-10
Precautions when starting and driving .............. 5-2
Push starting ......................................................... 6-12
Starting the engine .............................................. 5-12 STATUS button.............................................................. 4-8
Status light, Front passenger air bag .................... 1-53
Steering
Power steering fluid............................................. 8-11
Steering-wheel-mounted controls
for audio ............................................................... 4-100
Tilt/telescopic steering........................................ 3-32
Storage .......................................................................... 2-43
Sun visors ..................................................................... 3-33
Sunglasses holder ...................................................... 2-45
Supplemental air bag warning labels..................... 1-59
Supplemental air bag warning light............ 1-59, 2-15
Supplemental restraint system................................. 1-46 Precautions on supplemental
restraint system..................................................... 1-46
Switch Autolight switch.................................................... 2-34
Fog light switch.................................................... 2-38
Hazard warning flasher switch............................. 6-2
Headlight aiming control .................................... 2-36
Headlight switch................................................... 2-33
Overdrive OFF switch......................................... 5-15
Power door lock switch......................................... 3-6
Rear window and outside mirror
defroster switch.................................................... 2-32
Turn signal switch ................................................ 2-37
Vehicle dynamic control (VDC) off switch..... 2-40
T
Tachometer ..................................................................... 2-7
Temperature display.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start................................................................... 2-29
Three-way catalyst........................................................ 5-3
10-5
