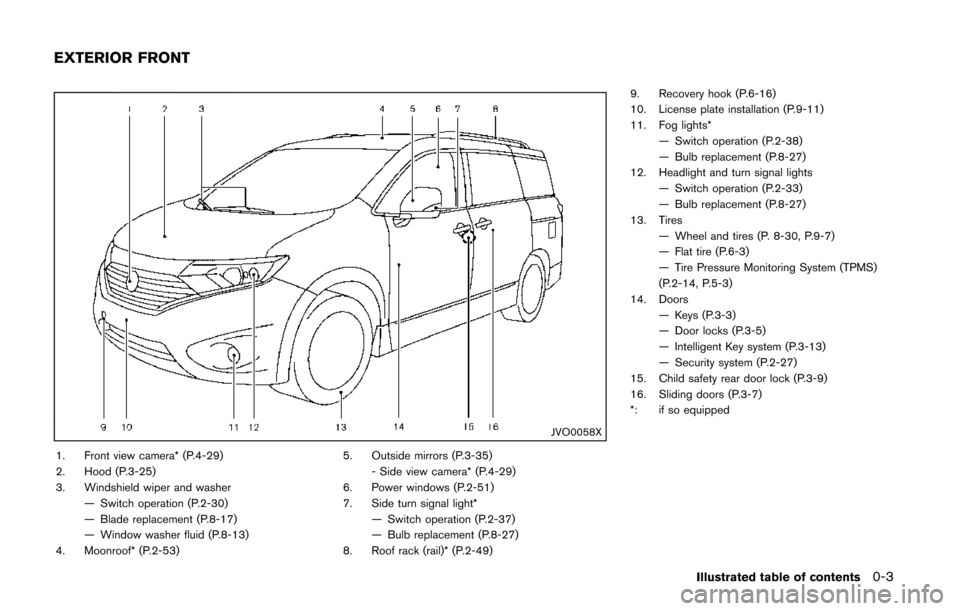

1. Front view camera* (P.4-29)
2. Hood (P.3-25)
3. Windshield wiper and washer— Switch operation (P.2-30)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-13)
4. Moonroof* (P.2-53) 5. Outside mirrors (P.3-35)
- Side view camera* (P.4-29)
6. Power windows (P.2-51)
7. Side turn signal light* — Switch operation (P.2-37)
— Bulb replacement (P.8-27)
8. Roof rack (rail)* (P.2-49) 9. Recovery hook (P.6-16)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-38)
— Bulb replacement (P.8-27)
12. Headlight and turn signal lights — Switch operation (P.2-33)
— Bulb replacement (P.8-27)
13. Tires — Wheel and tires (P. 8-30, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
14. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-13)
— Security system (P.2-27)
15. Child safety rear door lock (P.3-9)
16. Sliding doors (P.3-7)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

0-6Illustrated table of contents
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch(P.2-40)
2. Blind Spot Warning (BSW) switch* (P.2-40) — Blind Spot Warning (BSW)* (P.5-17)
3. Sliding door switch* (driver’s side) (P.3-9)
4. Sliding door switch* (passenger’s side) (P.3-9)
5. Instrument brightness control switch (P.2-37) 6. Power lift gate switch* (P.3-26)
7. Headlight, fog light and turn signal switch
— Headlight (P.2-33)
— Turn signal (P.2-37)
— Fog light* (P.2-38)
8. Trip computer switch (P.2-23) 9. TRIP/RESET switch for twin trip odometer
(P.2-6)
10. Wiper and washer switch (P.2-30)
11. Fuse box cover (P.8-21)
12. Fuel-filler door opener handle (P.3-30)
13. Hood release handle (P.3-25)
14. Headlight aiming control* (P.2-36)
15. Power door main switch* (P.3-9, P.3-27)
16. Steering-wheel-mounted controls (left side) — Audio control steering switch* (P.4-100)
— Hands-Free Phone System switch* (P.4-114,
P.4-124)
17. Horn (P.2-38)
18. Steering-wheel-mounted controls (right side) — Cruise control system (P.5-24)
*: if so equipped
COCKPIT

0-10Illustrated table of contents

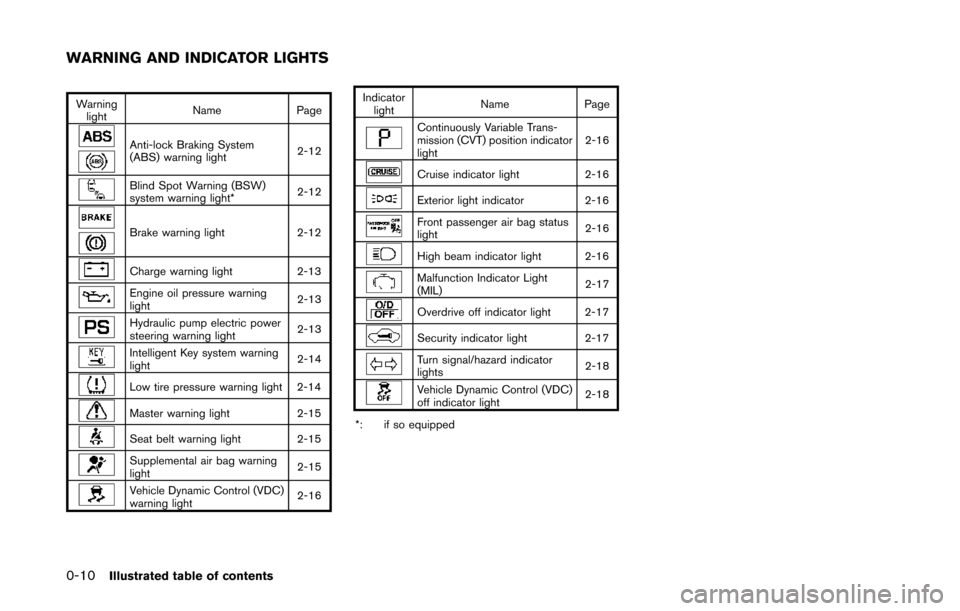

Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-12
Blind Spot Warning (BSW)
system warning light*2-12
Brake warning light
2-12
Charge warning light2-13
Engine oil pressure warning
light 2-13
Hydraulic pump electric power
steering warning light2-13
Intelligent Key system warning
light2-14
Low tire pressure warning light 2-14
Master warning light
2-15
Seat belt warning light 2-15
Supplemental air bag warning
light 2-15
Vehicle Dynamic Control (VDC)
warning light2-16Indicator
light Name Page
Continuously Variable Trans-
mission (CVT) position indicator
light 2-16
Cruise indicator light
2-16
Exterior light indicator2-16
Front passenger air bag status
light 2-16
High beam indicator light 2-16
Malfunction Indicator Light
(MIL)2-17
Overdrive off indicator light 2-17
Security indicator light
2-17
Turn signal/hazard indicator
lights 2-18
Vehicle Dynamic Control (VDC)
off indicator light2-18
*: if so equipped
WARNING AND INDICATOR LIGHTS

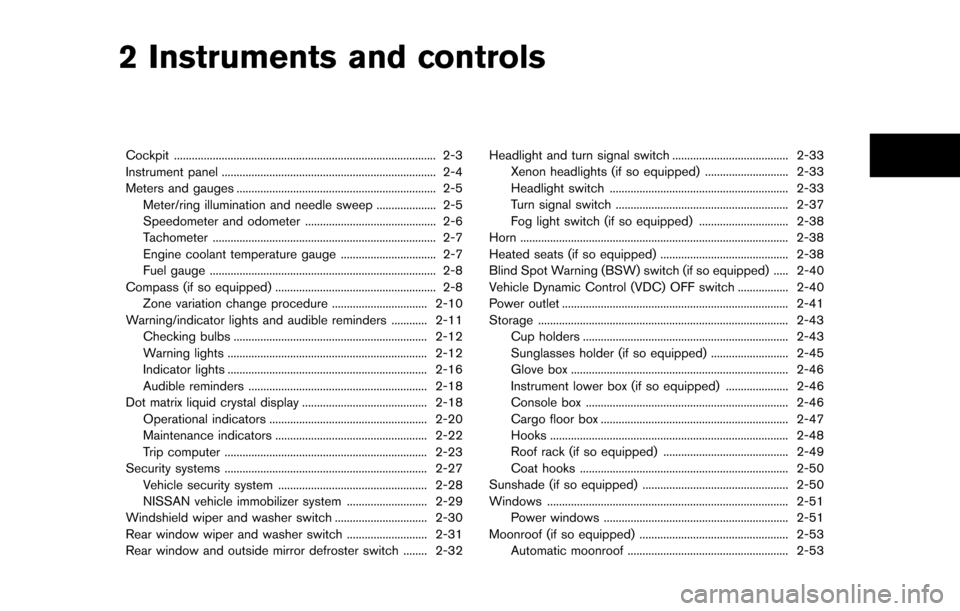

2 Instruments and controls
Cockpit ........................................................................\
................ 2-3
Instrument panel ........................................................................\
2-4
Meters and gauges ................................................................... 2-5Meter/ring illumination and needle sweep .................... 2-5
Speedometer and odometer ............................................ 2-6
Tachometer ........................................................................\
... 2-7
Engine coolant temperature gauge ................................ 2-7
Fuel gauge ........................................................................\
.... 2-8
Compass (if so equipped) ...................................................... 2-8 Zone variation change procedure ................................ 2-10
Warning/indicator lights and audible reminders ............ 2-11 Checking bulbs ................................................................. 2-12
Warning lights ................................................................... 2-12
Indicator lights ................................................................... 2-16
Audible reminders ............................................................ 2-18
Dot matrix liquid crystal display .......................................... 2-18
Operational indicators ..................................................... 2-20
Maintenance indicators ................................................... 2-22
Trip computer .................................................................... 2-23
Security systems .................................................................... 2-27
Vehicle security system .................................................. 2-28
NISSAN vehicle immobilizer system ........................... 2-29
Windshield wiper and washer switch ............................... 2-30
Rear window wiper and washer switch ........................... 2-31
Rear window and outside mirror defroster switch ........ 2-32 Headlight and turn signal switch ....................................... 2-33
Xenon headlights (if so equipped) ............................ 2-33
Headlight switch ............................................................ 2-33
Turn signal switch .......................................................... 2-37
Fog light switch (if so equipped) .............................. 2-38
Horn ........................................................................\
.................. 2-38
Heated seats (if so equipped) ........................................... 2-38
Blind Spot Warning (BSW) switch (if so equipped) ..... 2-40
Vehicle Dynamic Control (VDC) OFF switch ................. 2-40
Power outlet ........................................................................\
.... 2-41
Storage ........................................................................\
............ 2-43 Cup holders ..................................................................... 2-43
Sunglasses holder (if so equipped) .......................... 2-45
Glove box ........................................................................\
. 2-46
Instrument lower box (if so equipped) ..................... 2-46
Console box .................................................................... 2-46
Cargo floor box ............................................................... 2-47
Hooks ........................................................................\
........ 2-48
Roof rack (if so equipped) .......................................... 2-49
Coat hooks ...................................................................... 2-50
Sunshade (if so equipped) ................................................. 2-50
Windows ........................................................................\
......... 2-51 Power windows .............................................................. 2-51
Moonroof (if so equipped) .................................................. 2-53 Automatic moonroof ...................................................... 2-53>

SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch
2. Blind Spot Warning (BSW) switch*— Blind Spot Warning (BSW)*
3. Sliding door switch* (driver’s side)
4. Sliding door switch* (passenger’s side)
5. Instrument brightness control switch
6. Power lift gate switch* 7. Headlight, fog light and turn signal switch
— Headlight
— Turn signal
— Fog light*
8. Trip computer switch
9. TRIP/RESET switch for twin trip odometer
10. Wiper and washer switch 11. Fuse box cover
12. Fuel-filler door opener handle
13. Hood release handle
14. Headlight aiming control*
15. Power door main switch*
16. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*
17. Horn
18. Steering-wheel-mounted controls (right side) — Cruise control system
*: if so equipped
Instruments and controls2-3
COCKPIT

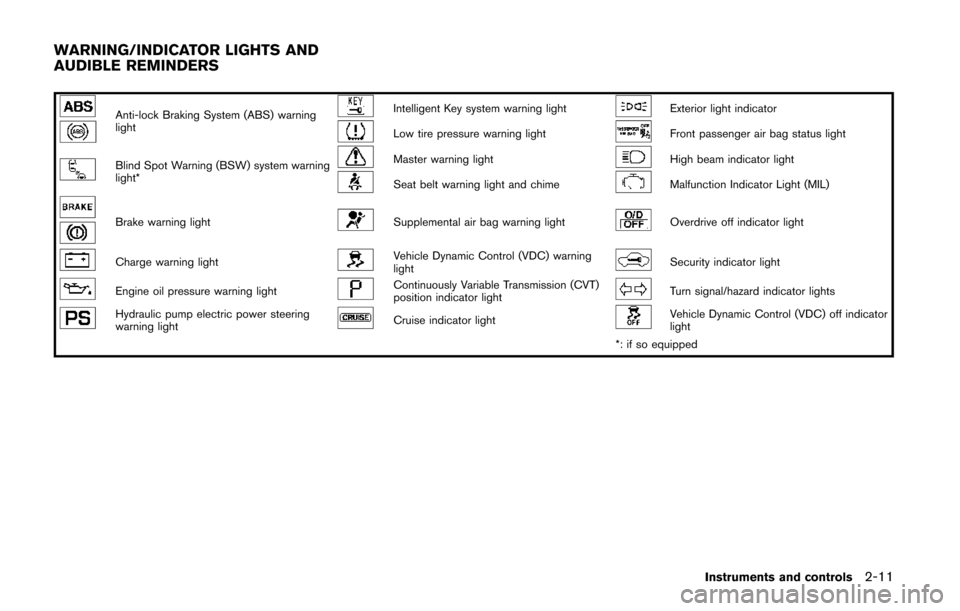

Anti-lock Braking System (ABS) warning
lightIntelligent Key system warning lightExterior light indicator
Low tire pressure warning lightFront passenger air bag status light
Blind Spot Warning (BSW) system warning
light*Master warning lightHigh beam indicator light
Seat belt warning light and chimeMalfunction Indicator Light (MIL)
Brake warning lightSupplemental air bag warning lightOverdrive off indicator light
Charge warning lightVehicle Dynamic Control (VDC) warning
lightSecurity indicator light
Engine oil pressure warning lightContinuously Variable Transmission (CVT)
position indicator lightTurn signal/hazard indicator lights
Hydraulic pump electric power steering
warning lightCruise indicator lightVehicle Dynamic Control (VDC) off indicator
light
*: if so equipped
Instruments and controls2-11
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

2-18Instruments and controls
Turn signal/hazard indicator lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This
indicates that the vehicle dynamic control
system and traction control system are not
operating.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition switch
is pushed to the OFF position, and take the
Intelligent Key with you when leaving the vehicle.
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Models with Autolight system:
The chime will also sound for 2 seconds when the ignition switch is turned to the OFF position
with the fog lights on while the headlight switch
is in the AUTO position.
Parking brake reminder chime
The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
JVI0254X
The dot matrix liquid crystal display*1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key system,
see “Intelligent Key system” (P.3-13) .
DOT MATRIX LIQUID CRYSTAL
DISPLAY

2-28Instruments and controls

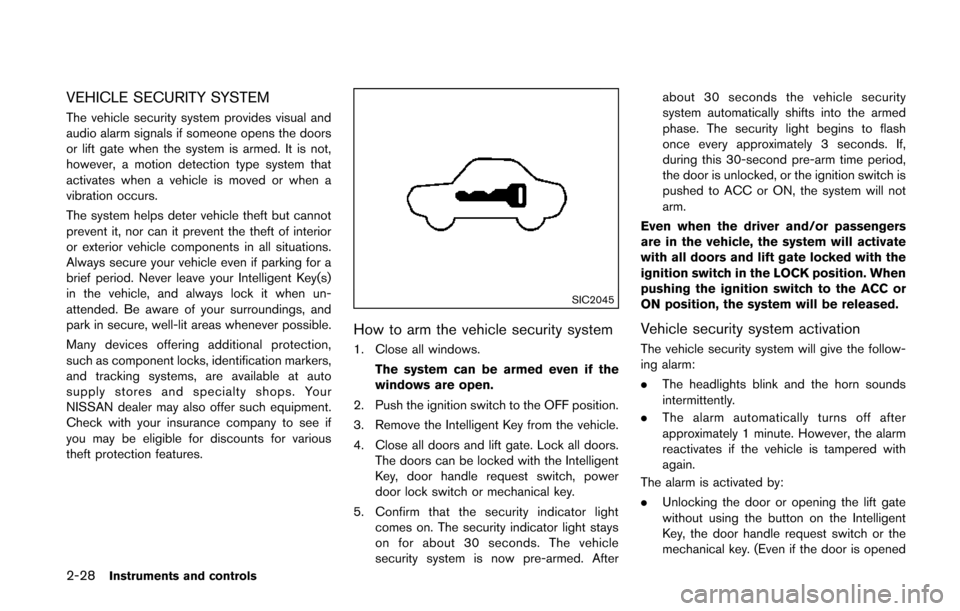

VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security system
1. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors and lift gate. Lock all doors. The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.
5. Confirm that the security indicator light comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate locked with the
ignition switch in the LOCK position. When
pushing the ignition switch to the ACC or
ON position, the system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by:
. Unlocking the door or opening the lift gate
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
