2014 NISSAN MAXIMA Quick Reference Guide

QUICK REFERENCE GUIDE
2014
MAXIMA
1655343_14b_Maxima_QRG_012914.indd 31/29/14 4:00 PM

01
HEADLIGHT AND TURN SIGNAL CONTROL
02
LOW TIRE PRESSURE WARNING LIGHT
03
VEHICLE INFORMATION DISPLAY
04
TRIP ODOMETER*
05
INSTRUMENT BRIGHTNESS CONTROL*
06
WINDSHIELD WIPER / WASHER SWITCH
07
STEERING WHEEL SWITCHES FOR
AUDIO* / BLUETOOTH
® / NAVIGATION
08
CRUISE CONTROL
09
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH*
10
OUTSIDE MIRROR CONTROL SWITCH11 HEATED STEERING WHEEL SWITCH*
12
TRUNK LID RELEASE SWITCH
13
INTELLIGENT KEY PORT
14
TILT / TELESCOPIC STEERING COLUMN*
15
HOOD RELEASE*
16
CONTROL PANEL DISPLAY*
17
FRONT PASSENGER AIR BAG STATUS LIGHT*
18
AU D I O SYSTE M
19
AUTOMATIC CLIMATE CONTROLS
*See your Owner’s Manual for information.
02
03
05
04
01
06
09
10
11
14
12
1315
16
171819
07
08
UNDERNEATH
INSTRUMENT PANEL
1655343_14b_Maxima_QRG_012914.indd 41/29/14 4:00 PM

Please see your Owner’s Manual for important safety
information and system operation limitations.
•
A cellular telephone should not be used for any purpose while

driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in c

hild restraints or seat belts according
to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
TABLE OF CONTENTS
NEW SYSTEM FEATURES
RearV

iew Monitor (if so equipped)
.................................2
E

SSENTIAL INFORMATION
T

ire Pressure Monitoring System (TPMS) ..........................
3

Loose Fuel Cap................................................3


Fuel-filler Door.................................................4
Heated Steering W

heel (if so equipped)
............................4
Cloc

k Set/Adjustment
...........................................4
FI

RST DRIVE FEATURES
N

ISSAN Intelligent Key
® System..................................5

T

runk Lid Release
...............................................6
Seat Adjustments

..............................................
6

Automatic Drive P

ositioner (if so equipped) .........................
7

Outside Mirror Control Switc

h
....................................7

St

arting/Stopping the Engine
..................................... 8

Headlight Control Switc

h ........................................
8

W

indshield Wiper and Washer Switch .............................
9

Automatic Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 9




FM/AM/SiriusXM
® Satellite Radio with CD/DVD Player
(if so equipped)

...............................................
11


USB/iPod
® Interface (if so equipped).............................12
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 12
S

YSTEM GUIDE
V

ehicle Information Display
......................................13



Bluetooth
® Hands-free Phone System ............................13



System Operating T
ips
.......................................13


Bluetooth
® System without Navigation (if so equipped) ..............14


Bluetooth® System with Navigation (if so equipped).................16
Navigation System (if so equipped)...............................18


D

VD Player (if so equipped)
.....................................19


HomeLink
® Universal Transceiver (if so equipped)...................20
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com. To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2014/maxima or snap this barcode with an appropriate barcode reader.
1655343_14b_Maxima_QRG_012914.indd 51/29/14 4:00 PM

2To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
NEW SYSTEM FEATURES
REARVIEW MONITOR (if so equipped)
When the shift lever is shifted into the R (REVERSE)
position, the monitor display shows a rearward view
from the vehicle.
The colored guide lines on the display screen indicate vehicle width and approximate distances to objects
with reference to the vehicle body line:



•

Red 1.5 ft (0.5 m); Y
ellow 3 ft (1 m); Green 7 ft
(2 m) and 10 ft (3 m).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of your
Owner’s Manual.
1655343_14b_Maxima_QRG_012914.indd 21/29/14 4:00 PM

3
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A CHECK TIRE PRESSURE warning message will
appear in the vehicle information display
01 and the
low tire pressure warning light 02 will

illuminate when one or more tires are
low on pressure and air is needed.



•


T

he tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or driven less than
1 mi (1.6 km) at moderate speeds.
After tire pressures are adjusted, drive the vehicle at speeds above 16 \
M PH (25 km/h). The
CHECK TIRE PRESSURE warning message and low tire pressure warning light will disappear.
When the low tire pressure warning light flashes for 1 minute and then \
remains on, the
TPMS is not functioning properly. Have the system checked by a NISSAN dealer.
Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the outside temperature. Low outside temperature can lower the temperature o\
f the air inside
the tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates, check the tire pressure in your tires.
•


Chec
k the tire pressure (including the spare tire) often and always prior \
to long distance trips.
The Tire and Loading Information label contains valuable information. Please refer to section 9, “Technical and consumer information”, in your Owner’s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)” , the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
ESSE NTIAL I N FOR MATION
01
02
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will appear
in the vehicle information display
01 when the fuel-
filler cap is not tightened correctly.
To tighten, turn the cap clockwise until a single click is heard.
The warning message will disappear when the vehicle detects the fuel-filler cap is properly
tightened and the reset button
02 is pressed for
about 1 second.
If the cap is not properly tightened, the Malfunction Indicator Light may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
02
01
1655343_14b_Maxima_QRG_012914.indd 31/29/14 4:00 PM
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi.

4
ESSE NTIAL I N FOR MATION
HEATED STEERING WHEEL (if so equipped)
Once activated, your heated steering wheel
will automatically turn on and off to maintain a
temperature above 68°F (20°C).
If the surface temperature of the steering wheel
is above 6 8°F (20°C) and the control switch
01
is turned on, the system will not heat the steering
wheel. This does not indicate a malfunction.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
CLOCK SET/ADJUSTMENT
To adjust the time and the appearance of the clock
on the display:
1. Press the SETTING button on the control panel.
2. Touch the Clock key.
The following settings can be adjusted:
•

On-screen Clock: The clock in the upper right
corner of the display can be turned ON or OFF.


•

Clock Format (24h): The clock can be set to
12 hours or 24 hours.
•

Offset (hour): The time can be adjusted by increasing or decreasing per hour.
•

Offset (min): The time can be adjusted by increasing or decreasing per minute.
•

Daylight Savings Time: The application of daylight savings time can be turned
ON or OFF.
•

Time Zone: Adjust the time zone. Choose a time zone from the available list.
Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.
FUEL-FILLER DOOR
The fuel-filler door is located on the driver’s side of
the vehicle.
When the doors of the vehicle are locked or
unlocked, the fuel-filler door is automatically locked
or unlocked at the same time.
To open the fuel-filler door, once unlocked, push the right side of the door.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1655343_14b_Maxima_QRG_012914.indd 41/29/14 4:00 PM
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi.

5

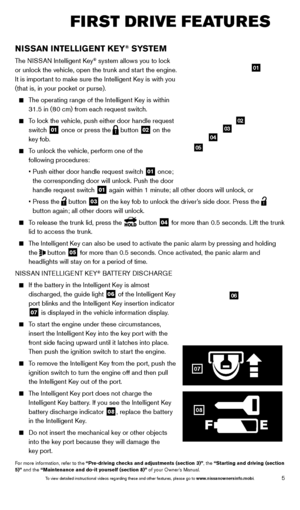

NISSAN INTELLIGENT KEY® SYSTE M
The NISSAN Intelligent Key® system allows you to lock
or unlock the vehicle, open the trunk and start the engine.
It is important to make sure the Intelligent Key is with you
(that is, in your pocket or purse).
The operating range of the Intelligent Key is within 31.5 in (80 cm) from each request switch.
To lock the vehicle, push either door handle request switch
01 once or press the
button
02 on the
key fob.
To unlock the vehicle, perform one of the following procedures:



•

Push either door handle request switc
h
01 once;
the corresponding door will unlock. Push the door
handle request switch
01 again within 1 minute; all other doors will unlock, or



•


Press the button
03 on the key fob to unlock the driver’s side door. Press the

button again; all other doors will unlock.
To release the trunk lid, press the button
04 for more than 0.5 seconds. Lift the trunk
lid to access the trunk.
The Intelligent Key can also be used to activate the panic alarm by pressing and holding \
the
button
05 for more than 0.5 seconds. Once activated, the panic alarm and
headlights will stay on for a period of time.
NISSAN INTELLIGENT KEY
® BATTERY DISCHARGE
If the battery in the Intelligent K ey is almost
discharged, the guide light
06 of the Intelligent Key
port blinks and the Intelligent Key insertion indicator
07 is displayed in the vehicle information display.
To start the engine under these circumstances,
insert the Intelligent Key into the key port with the
front side facing upward until it latches into place.
Then push the ignition switch to start the engine.
To remove the Intelligent Key from the port, push the ignition switch to turn the engine off and then pull
the Intelligent Key out of the port.
The Intelligent Key port does not charge the Intelligent Key battery. If you see the Intelligent Key
battery discharge indicator
08, replace the battery
in the Intelligent Key.
Do not insert the mec hanical key or other objects
into the key port because they will damage the
key port.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section
5)” and the “Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
01
0203
04
05
06
07
FIRST DRIVE FEATURES
08
1655343_14b_Maxima_QRG_012914.indd 51/29/14 4:00 PM
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi.

6

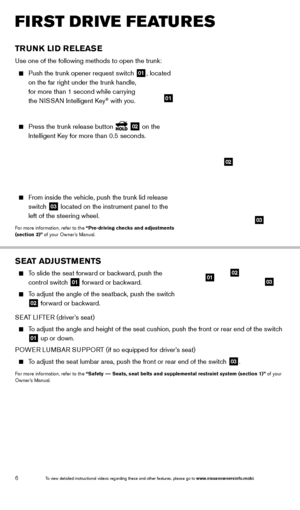

FIRST DRIVE FEATURES

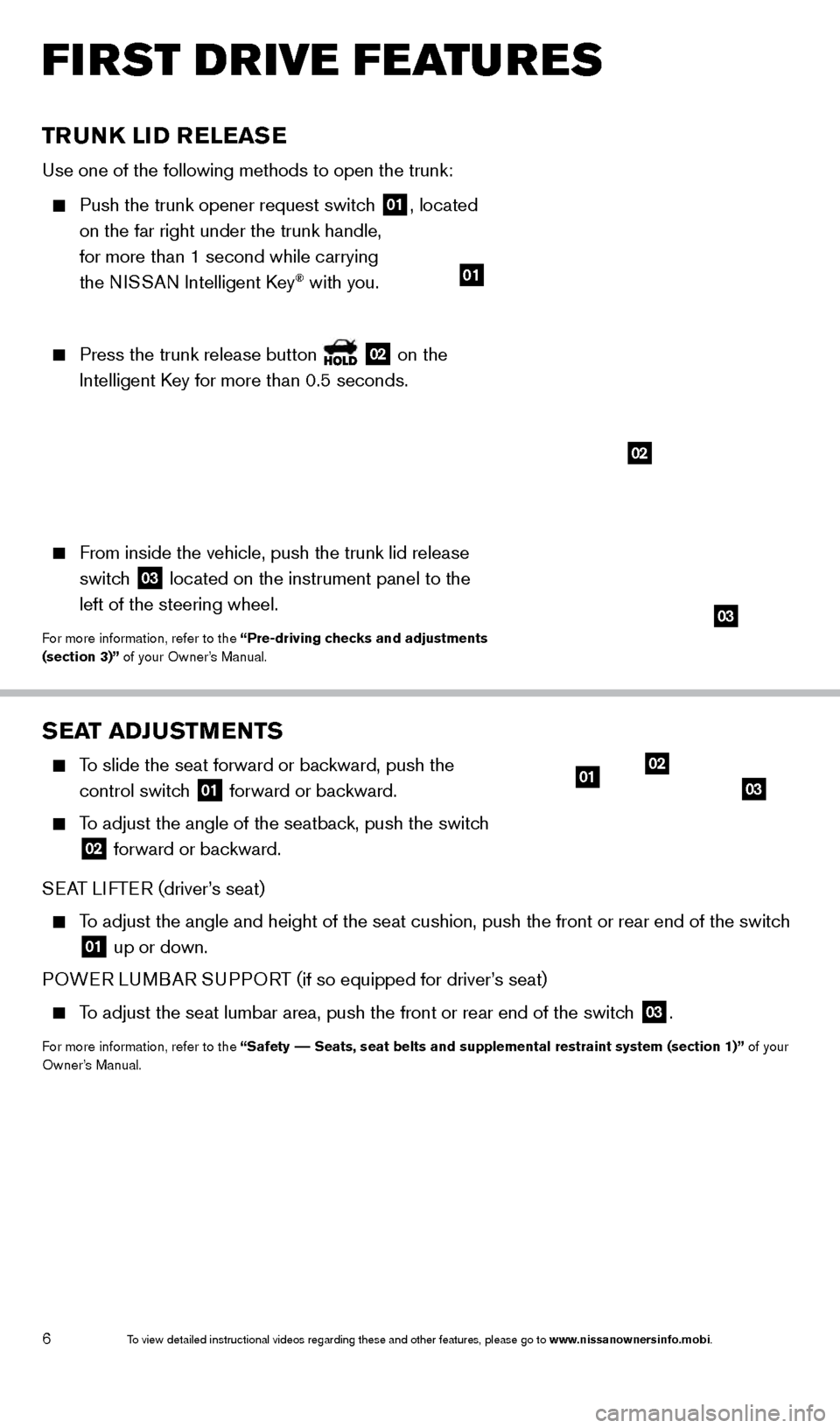

SEAT ADJUSTMENTS
To slide the seat forward or backward, push the control switch
01 forward or backward.
To adjust the angle of the seatback, push the switch

02 forward or backward.
SEAT LIFTER (driver’s seat)
To adjust the angle and height of the seat cushion, push the front or rea\
r end of the switch

01 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)
To adjust the seat lumbar area, push the front or rear end of the switch
03.
For more information, refer to the “Safety –– Seats, seat belts and supplemental restraint system (section 1)”\
of your
Owner’s Manual.
0102
03
TRUNK LID RELEASE
Use one of the following methods to open the trunk:
Push the trunk opener request switch
01, located
on the far right under the trunk handle,
for more than 1 second while carrying
the NISSAN Intelligent Key
® with you.
Press the trunk release button 02 on the
Intelligent Key for more than 0.5 seconds.




From inside the vehicle, push the trunk lid release
switc h
03 located on the instrument panel to the
left of the steering wheel.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
02
01
03
1655343_14b_Maxima_QRG_012914.indd 61/29/14 4:00 PM
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi.
