2014 NISSAN JUKE Quick Reference Guide

7To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
STARTING/STOPPING THE EN GINE (NISSAN Intelligent Key®
models only - if so equipped)
CONTINUOUSLY VARIABLE TRANSMISSION
(if so equipped)

It is important to make sure the NISSAN Intelligent
Key® is with you (that is, in your pocket or purse).

Depress the brake pedal.

Move the shift lever to the P (PARK) position.

Push the ignition switch to start the engine.

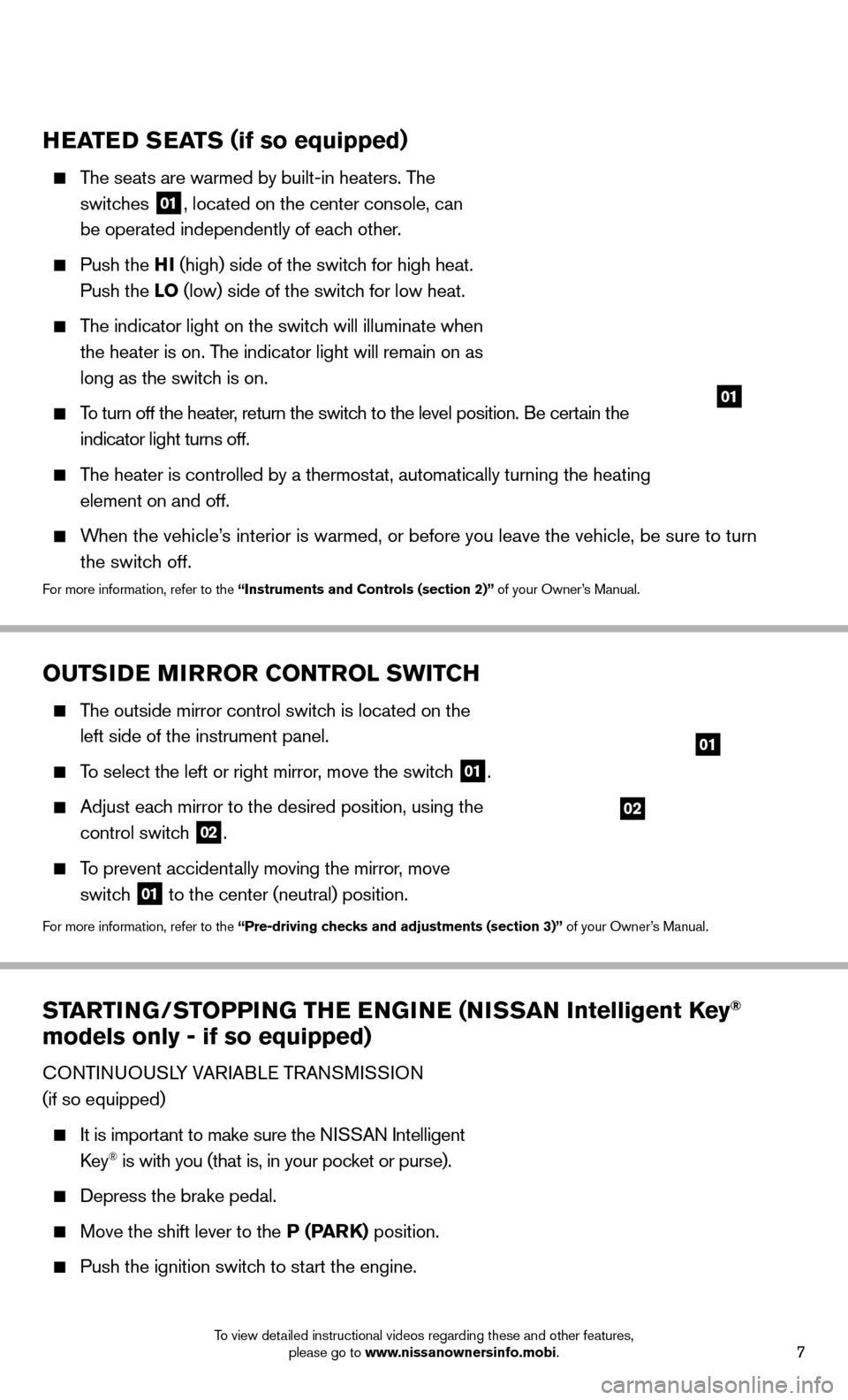

H EATE D S EATS (if so equipped)
The seats are warmed by built-in heaters. The
switches
01, located on the center console, can
be operated independently of each other.

Push the HI (high) side of the switch for high heat.
Push the LO (low) side of the switch for low heat.

The indicator light on the switch will illuminate when
the heater is on. The indicator light will remain on as
long as the switch is on.

To turn off the heater, return the switch to the level position. Be certain the
indicator light turns off.

The heater is controlled by a thermostat, automatically turning the heating
element on and off.

When the vehicle’s interior is warmed, or before you leave the vehicle, be sure to turn
the switch off.
For more information, refer to the “Instruments and Controls (section 2)” of your Owner’s Manual.
02
01
OUTSIDE MIRROR CONTROL SWITCH
The outside mirror control switch is located on the
left side of the instrument panel.

To select the left or right mirror, move the switch 01.

Adjust each mirror to the desired position, using the
control switch

02.

To prevent accidentally moving the mirror, move
switch

01 to the center (neutral) position.For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01

8To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
FIRST DRIVE FEATURES

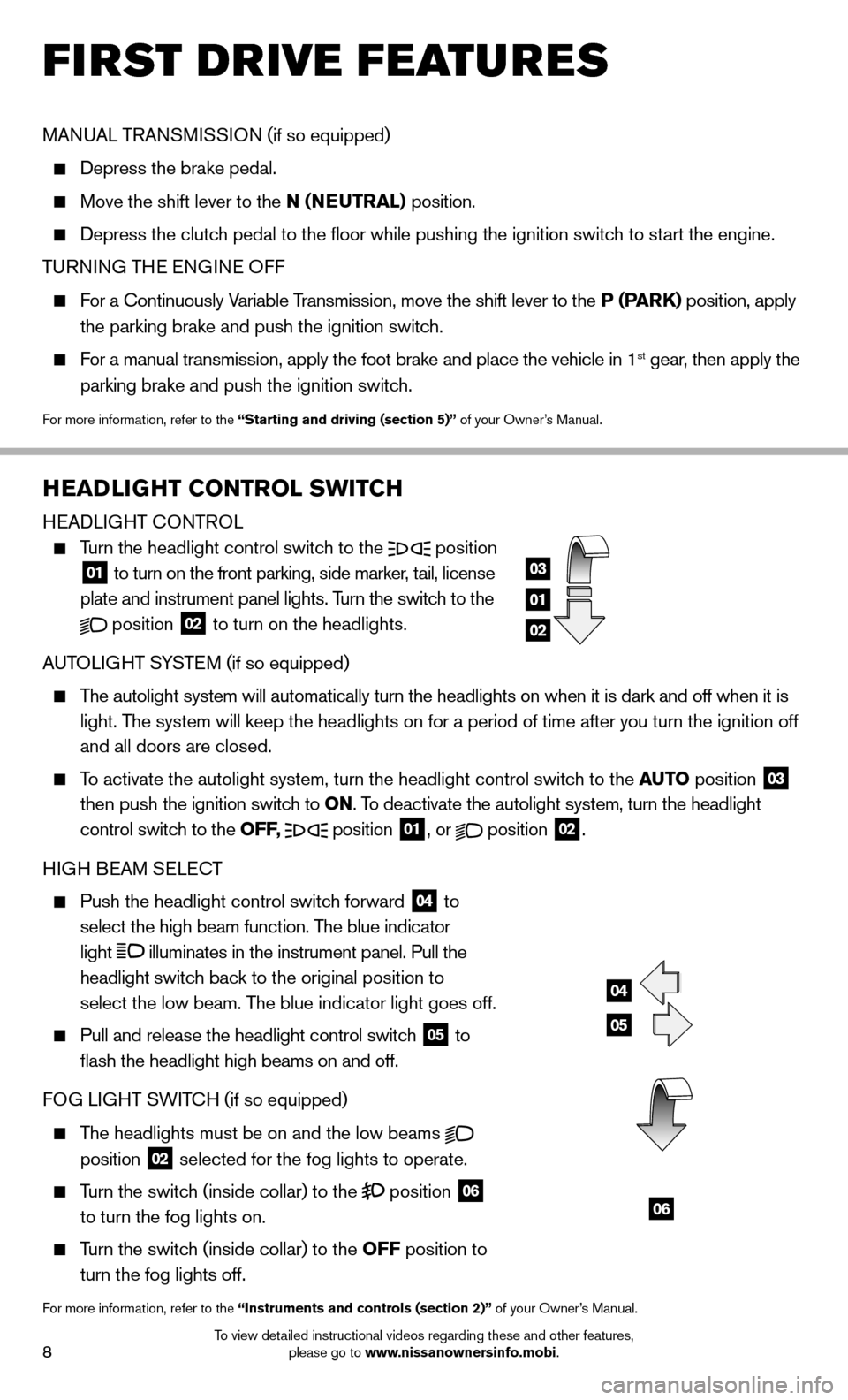

HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL

Turn the headlight control switch to the
position
01 to turn on the front parking, side marker, tail, license
plate and instrument panel lights. Turn the switch to the
position
02 to turn on the headlights.
AUTOLIGHT SYSTEM (if so equipped)

The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.

To activate the autolight system, turn the headlight control switch to the AUTO position
03
then push the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF,
position
01, or
position
02.
HIGH BEAM SELECT

Push the headlight control switch forward
04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull the
headlight switch back to the original position to
select the low beam. The blue indicator light goes off.

Pull and release the headlight control switch
05 to
fl ash the headlight high beams on and off.
FOG LIGHT SWITCH (if so equipped)

The headlights must be on and the low beams

position 02 selected for the fog lights to operate.

Turn the switch (inside collar) to the position
06
to turn the fog lights on.

Turn the switch (inside collar)
to the OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
03
01
02
04
05
MANUAL TRANSMISSION (if so equipped)

Depress the brake pedal.

Move the shift lever to the N (NEUTRAL) position.

Depress the clutch pedal to the fl oor while pushing the ignition switch to start the engine.
TURNING THE ENGINE OFF

For a Continuously Variable Transmission, move the shift lever to the P (PARK) position, apply
the parking brake and push the ignition switch.

For a manual transmission, apply the foot brake and place the vehicle in \
1st gear, then apply the
parking brake and push the ignition switch.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
06

9To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

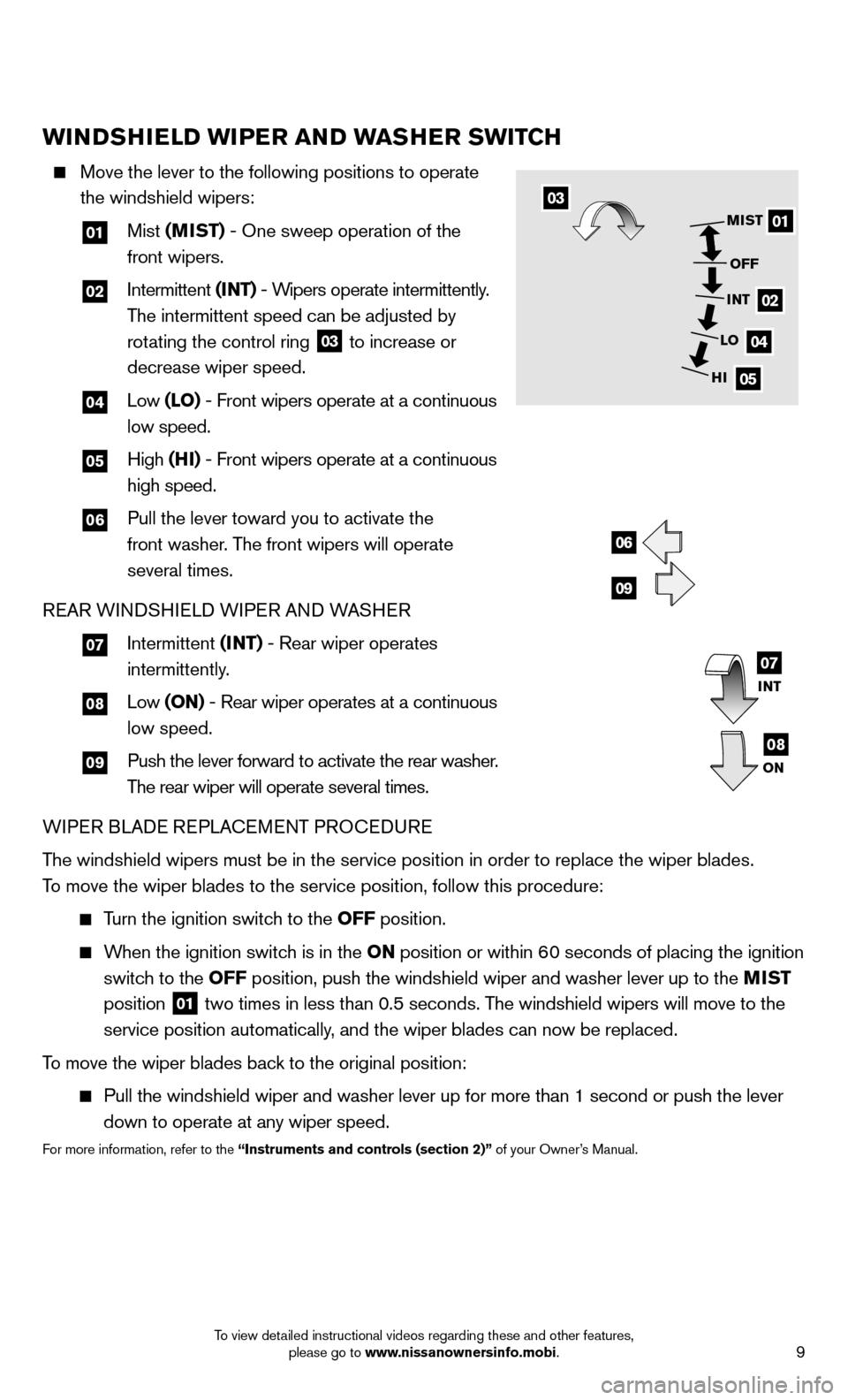

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate
the windshield wipers:
01 Mist (MIST) - One sweep operation of the
front wipers.
02 Intermittent (INT) - Wipers operate intermittently.
The intermittent speed can be adjusted by
rotating the control ring
03 to increase or
decrease wiper speed.

04 Low (LO) - Front wipers operate at a continuous
low speed.

05 High (HI) - Front wipers operate at a continuous
high speed.

06 Pull the lever toward you to activate the
front washer. The front wipers will operate
several times.
REAR WINDSHIELD WIPER AND WASHER

07 Intermittent (INT) - Rear wiper operates
intermittently.

08 Low (ON) - Rear wiper operates at a continuous
low speed.

09 Push the lever forward to activate the rear washer.
The rear wiper will operate several times.
WIPER BLADE REPLACEMENT PROCEDURE
The windshield wipers must be in the service position in order to replace\
the wiper blades.
To move the wiper blades to the service position, follow this procedure:

Turn the ignition switch to the OFF position.

When the ignition switch is in the ON position or within 60 seconds of placing the ignition
switch to the OFF position, push the windshield wiper and washer lever up to the MIST
position
01 two times in less than 0.5 seconds. The windshield wipers will move to the
service position automatically, and the wiper blades can now be replaced.
To move the wiper blades back to the original position:

Pull the windshield wiper and washer lever up for more than 1 second or \
push the lever
down to operate at any wiper speed.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
04
05
MIST
OFF
INT
LO
HI
06
09
03
INT
ON07
08

10To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
FIRST DRIVE FEATURES
AUTOMATIC CLIMATE CONTROLS (with Integrated Control System)
(if so equipped)
01 CLIMATE B UTTON
Press the CLIMATE button to access the Climate Control Mode.

When in Climate Control Mode, the selected temperature, airfl ow, and automatic mode or
manual mode are indicated on the display.
02 AUTO BUTTON/TEMPERATURE CONTROL DIAL

The auto mode can be used year round. Press the AUTO button to turn the system on,
and the fan speed, air fl ow distribution and temperature will be automatically maintained.
Turn the temperature control dial left for cooler air or right for warmer\
air.
03 FAN SPEED CONTROL DIAL

Turn the fan speed control dial to the left to decrease fan speed or to the right to
increase fan speed.
04 AIR FLOW CONTROL BUTTONS
Press the preferred air fl ow control button to select the following air fl ow outlets:

Air fl ows from the center and side vents.

Air fl ows from the center, side and foot vents.

Air fl ows mainly from the foot vents.

Air fl ows from the defroster and foot vents.
05 DEFROSTIN
G/DEFOGGING FR ONT AND SIDE WINDOWS

Press the front window defroster button
to turn the system on. The A/C automatically
turns on when the defroster mode is selected. This feature removes humidity from the air.

Use the temperature control dial
02 to set the desired temperature.

To set the defroster on high, turn the fan speed control dial 03 to increase the fan speed
to the maximum setting.
06 REAR WINDOW DEFROSTER SWITCH

Push the rear window defroster switch to turn the system on or off.

The rear window defroster automatically turns off after approximately 15 minutes.
0302
01
08
09
070506
04

11To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
07 AIR INTAKE BUTTON
Press the air intake button to change the air circulation from the air recirculation mode to
the outside air circulation mode.

When the air recirculation indicator light illuminates, the fl owing air is recirculated
inside the vehicle. This system is used to avoid outside odors and helps to adjust the
inside vehicle temperature more effectively.

The air recirculation mode cannot be activated when the climate control s\
ystem is in
the front defroster mode
or the front defroster and foot outlet mode .

When the outside air circulation indicator light
illuminates, the fl owing air is
drawn from outside the vehicle.
08 A/C BUTTON
Press the A/C button to manually turn the A/C on or off.
09 OFF BUTTON
Press the OFF button to turn the climate control system off.
For more information, refer to the “Instruments and controls (section 2)” , the “Heater, air conditioner, audio and phone
systems (section 4)” and the “Starting and driving (section 5)” of your Owner’s Manual.
02
01
03
04
DRIVE MODE (with Integrated Control System) (if so equipped)
01 DRIVE MODE SELECT BUTTON

Press the D-MODE select button 01 to switch the display to the Drive mode. While
in the Drive mode, setup functions, drive information and ECO information can be
displayed and adjusted.

Your vehicle’s Integrated Control System allows vehicle performance to be adjusted
by selecting from three drive modes: NORMAL, SPORT or ECO .

NORMAL
02 drive mode is recommended for normal, everyday driving.

SPORT
03 drive mode is recommended for an enhanced performance feel. Fuel
economy may be reduced.

ECO
04 drive mode is recommended for maximum fuel economy. Performance may
be reduced.
For more information, refer to the “Instruments and controls (section 2)” , the “Heater, air conditioner, audio and phone
systems (section 4)” and the “Starting and driving (section 5)” of your Owner’s Manual.

12To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
FIRST DRIVE FEATURES
0201
0605
03
FM/AM/SiriusXM* SATELLITE RADIO WITH CD PLAYER
(if so equipped)
01 VOL/ON•OFF CONTROL KNOB

Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the VOL/ON•OFF control knob to the right or left to increase or decrease the volume.
02 TUNE/SCR
OLL/AUDIO KNOB
To manually tune the radio, turn the TUNE/SCROLL/AUDIO knob left or right.
03
SEEK/CATEGORY BUTTONS

To scan through each broadcasting station, press the SEEK/CATEGORY buttons.

To skip from one track to another on a CD, press the SEEK/CATEGORY buttons.

When the SEEK/CATEGORY buttons are pressed and held while a CD is playing, the CD
will rewind or fast forward. When the button is released, the CD will play at normal speed.
04 STATION SELECT BUTTONS

Twelve stations can be set for the FM band, six for the AM band and eighteen for
SiriusXM Satellite Radio.

To store a station in a preset, you must fi rst select a radio band by pressing the
FM•AM button
05 or XM button
06 then tune to the desired FM, AM or XM
Satellite Radio station.

Next, press and hold the desired station select button ( 1-6 ) until a beep is heard and
the sound is briefl y muted. The channel indicator will appear on the display and the sound
will resume. Programming is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button ( 1-6 ).
*SiriusXM Satellite Radio is only available on vehicles equipped with optional Siri\
usXM Satellite Radio subscription service.
For more information, refer to the “Heater, air conditioner, audio and phone systems (section 4)” of your Owner’s Manual.
04

13To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
CRUISE CONTROL
The cruise control system enables you to set a
constant cruising speed once the vehicle has
reached 25 MPH (40 km/h).

The system will automatically maintain the set
speed until you tap the brake pedal, accelerate,
cancel or turn the system off.

To activate the cruise control, push the CRUISE
ON/OFF switch

01. The CRUISE indicator light
in the instrument panel will illuminate.

To set cruising speed, accelerate the vehicle to the desired speed, push \
the COAST/SET switch


02 and release. Take your foot off the accelerator pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the ACCEL/RES switch
03.
When the vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the COAST/SET switch
02.
Release the switch when the vehicle slows to the desired speed.

To cancel the preset speed, push the CAN CE L switch
04.

To turn off cruise control, push the CRUISE ON/OFF switch
01. The CRUISE indicator
light in the instrument panel will turn off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
0403
02
01
USB/AUX JACK AND iPOD® INTERFACE (if so equipped)
The USB/Aux jack
01 is located underneath the
climate control.

When a compatible USB memory device, iPod® or
auxiliary device is plugged into the USB/Aux jack,
compatible audio fi les stored on the device can be
played through the vehicle’s audio system.
For more information, refer to the “Heater, air conditioner,
audio and phone systems (section 4)” of your
Owner’s Manual.01

14To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

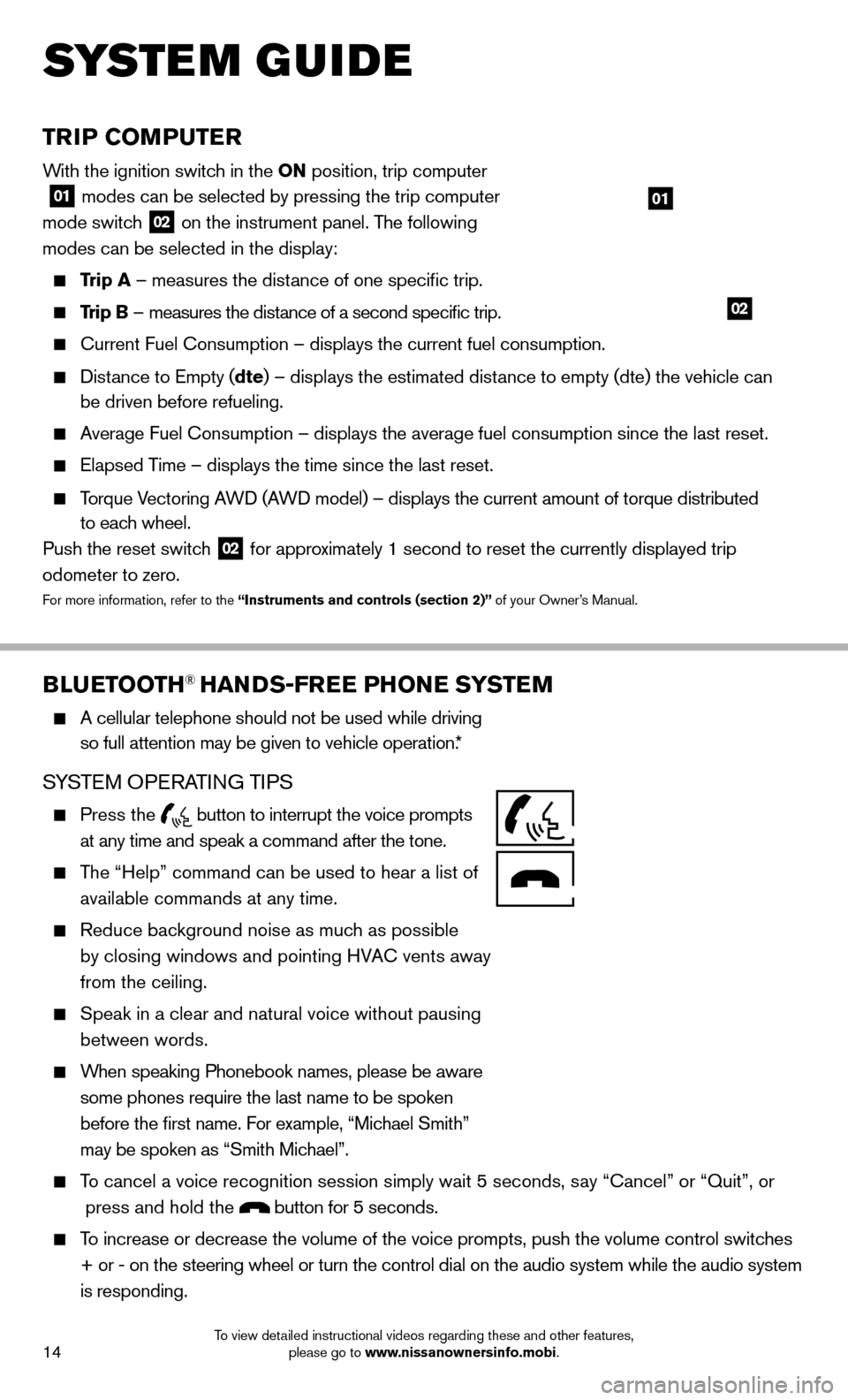

TRIP COMPUTER
With the ignition switch in the ON position, trip computer

01 modes can be selected by pressing the trip computer
mode switch 02 on the instrument panel. The following
modes can be selected in the display:

Trip A – measures the distance of one specifi c trip.

Trip B – measures the distance of a second specifi c trip.

Current Fuel Consumption – displays the current fuel consumption.

Distance to Empty (dte) – displays the estimated distance to empty (dte) the vehicle can
be driven before refueling.

Average Fuel Consumption – displays the average fuel consumption since\
the last reset.

Elapsed Time – displays the time since the last reset.

Torque Vectoring AWD (AWD model) – displays the current amount of torque distributed
to each wheel.
Push the reset switch
02 for approximately 1 second to reset the currently displayed trip
odometer to zero.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
BLUETOOTH® HANDS-FREE PHONE SYSTEM
A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS
Press the button to interrupt the voice prompts
at any time and speak a command after the tone.

The “Help” command can be used to hear a list of
available commands at any time.

Reduce background noise as much as possible
by closing windows and pointing HVAC vents away
from the ceiling.

Speak in a clear and natural voice without pausing
between words.

When speaking Phonebook names, please be aware
some phones require the last name to be spoken
before the fi rst name. For example, “Michael Smith”
may be spoken as “Smith Michael”.

To cancel a voice recognition session simply wait 5 seconds, say “Cancel” or “Quit”, or
press and hold the
button for 5 seconds.

To increase or decrease the volume of the voice prompts, push the volume \
control switches
+ or - on the steering wheel or turn the control dial on the audio syste\
m while the audio system
is responding.
02
01
SYSTEM GUIDE
