2014 NISSAN FRONTIER Owners Manual

QR25DE engine
1. Windshield-washer fluid reservoir(P. 8-15)
2. Fuse/fusible link box (P. 8-24)
3. Fuse and relay box (P. 8-24)
4. Air cleaner (P. 8-20)
5. Engine oil filler cap (P. 8-10)
6. Engine oil dipstick (P. 8-10)
7. Brake fluid reservoir/Clutch fluid
reservoir (M/T model) (P. 8-14)
8. Drive belt location (P.8-18)
9. Radiator cap (P. 8-8)
10. Power steering fluid reservoir (P. 8-14)
11. Battery (P. 8-16)
12. Engine coolant reservoir (P. 8-8)
See the page number indicated in paren-
theses for operating details.
WDI0643
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

VQ40DE engine
1. Windshield-washer fluid reservoir(P. 8-15)
2. Fuse/fusible link box (P. 8-24)
3. Fuse and relay box (P. 8-24)
4. Engine oil filler cap (P. 8-10)
5. Engine oil dipstick (P. 8-10)
6. Brake fluid reservoir/Clutch fluid
reservoir (M/T model) (P. 8-14)
7. Air cleaner (P. 8-20)
8. Drive belt location (P.8-18)
9. Radiator cap (P. 8-8)
10. Power steering fluid reservoir (P. 8-14)
11. Battery (P. 8-16)
12. Engine coolant reservoir (P. 8-8)
*Engine cover removed for clarity.
See the page number indicated in paren-
theses for operating details.
LII0167
Illustrated table of contents0-9

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-15
Automatic transmis-
sion check warning
light2-15
Automatic transmis-
sion oil temperature
warning light (if so
equipped)2-15
Automatic transmis-
sion park warning
light
(
model)2-15
or
Brake warning light 2-16
Warning
light Name Page
Charge warning
light 2-16
Door open warning
light2-16
Engine oil pressure
warning light2-17
4WD warning light
(
model)2-17
Low fuel warning
light 2-17
Low tire pressure
warning light2-17
Low windshield-
washer fluid warning
light (if so equipped)2-19
Seat belt warning
light and chime
2-19
Warning
light Name Page
Supplemental air
bag warning light 2-19
Indicator
light Name Page
Automatic transmis-
sion position indica-
tor light (if so
equipped) 2-20
Cruise main switch
indicator light (if so
equipped)
2-20
Cruise set switch
indicator light (if so
equipped)2-20
Electronic locking
rear differential
(E-Lock) system on
indicator light (if so
equipped)2-20
WARNING/INDICATOR LIGHTS
0-10Illustrated table of contents

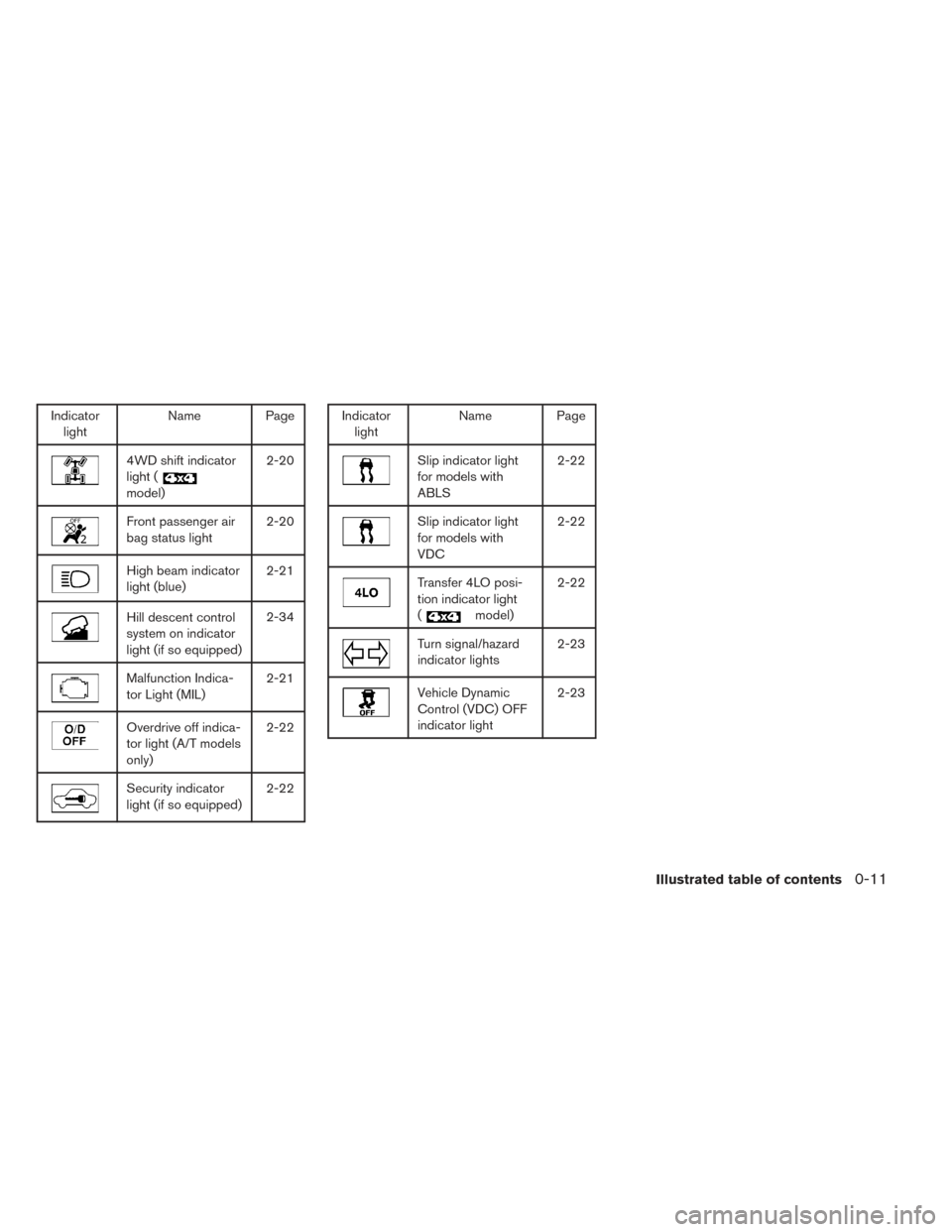

Indicatorlight Name Page
4WD shift indicator
light (
model) 2-20
Front passenger air
bag status light
2-20
High beam indicator
light (blue)2-21
Hill descent control
system on indicator
light (if so equipped)2-34
Malfunction Indica-
tor Light (MIL)
2-21
Overdrive off indica-
tor light (A/T models
only)2-22
Security indicator
light (if so equipped)
2-22
Indicator
light Name Page
Slip indicator light
for models with
ABLS 2-22
Slip indicator light
for models with
VDC2-22
Transfer 4LO posi-
tion indicator light
(
model)2-22
Turn signal/hazard
indicator lights
2-23
Vehicle Dynamic
Control (VDC) OFF
indicator light2-23
Illustrated table of contents0-11

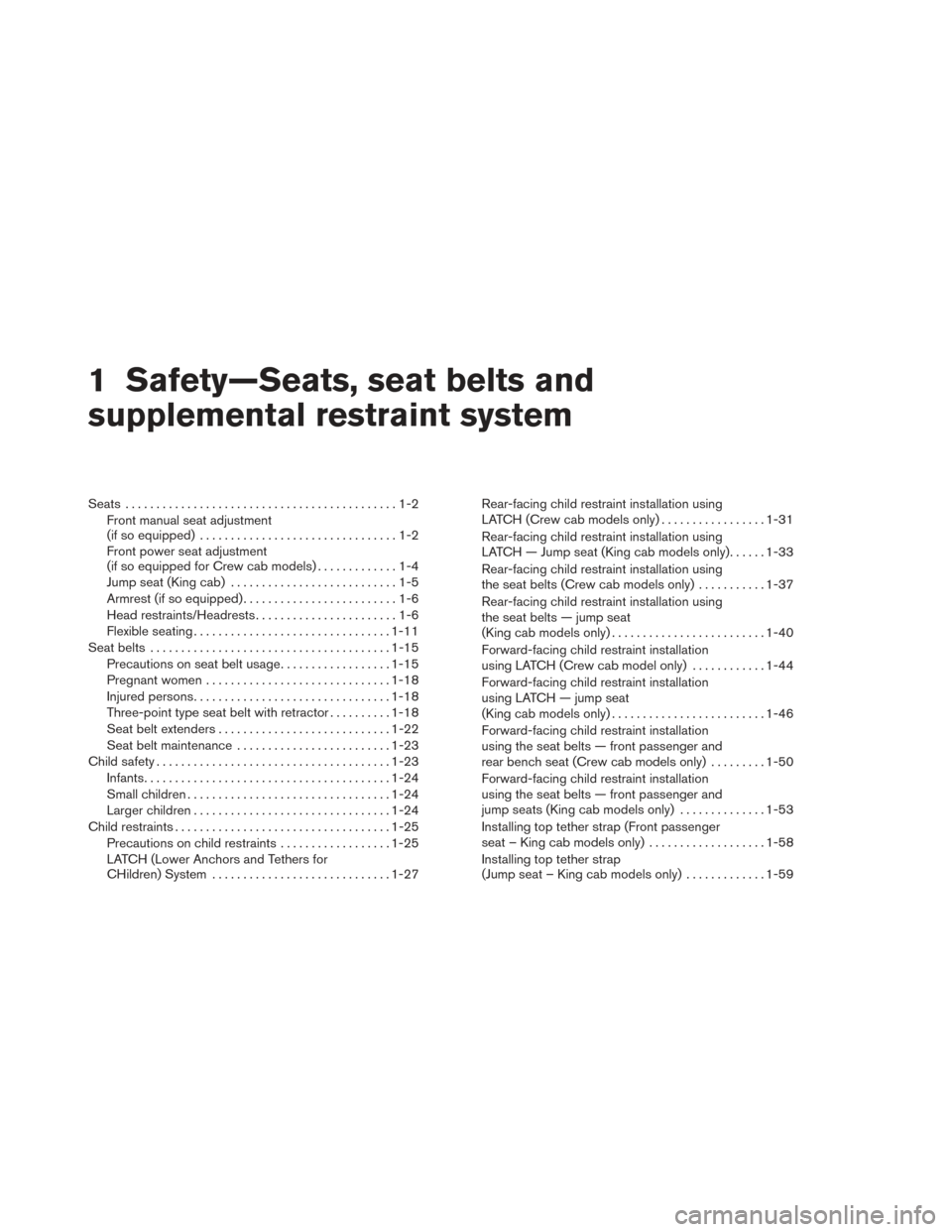

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment
(if so equipped) ................................1-2
Front power seat adjustment
(if so equipped for Crew cab models) .............1-4
Jump seat (King cab) ...........................1-5
Armrest (if so equipped) .........................1-6
Head restraints/Headrests .......................1-6
Flexible seating ................................ 1-11
Seat belts ....................................... 1-15
Precautions on seat belt usage ..................1-15
Pregnant women .............................. 1-18
Injured persons ................................ 1-18
Three-point type seat belt with retractor ..........1-18
Seat belt extenders ............................ 1-22
Seat belt maintenance ......................... 1-23
Child safety ...................................... 1-23
Infants ........................................ 1-24
Small children ................................. 1-24
Larger children ................................ 1-24
Child restraints ................................... 1-25
Precautions on child restraints ..................1-25
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-27Rear-facing child restraint installation using
LATCH (Crew cab models only)
.................1-31
Rear-facing child restraint installation using
LATCH — Jump seat (King cab models only) ......1-33
Rear-facing child restraint installation using
the seat belts (Crew cab models only) ...........1-37
Rear-facing child restraint installation using
the seat belts — jump seat
(King cab models only) ......................... 1-40
Forward-facing child restraint installation
using LATCH (Crew cab model only) ............1-44
Forward-facing child restraint installation
using LATCH — jump seat
(King cab models only) ......................... 1-46
Forward-facing child restraint installation
using the seat belts — front passenger and
rear bench seat (Crew cab models only) . . . ......1-50
Forward-facing child restraint installation
using the seat belts — front passenger and
jump seats (King cab models only) ..............1-53
Installing top tether strap (Front passenger
seat – King cab models only) ...................1-58

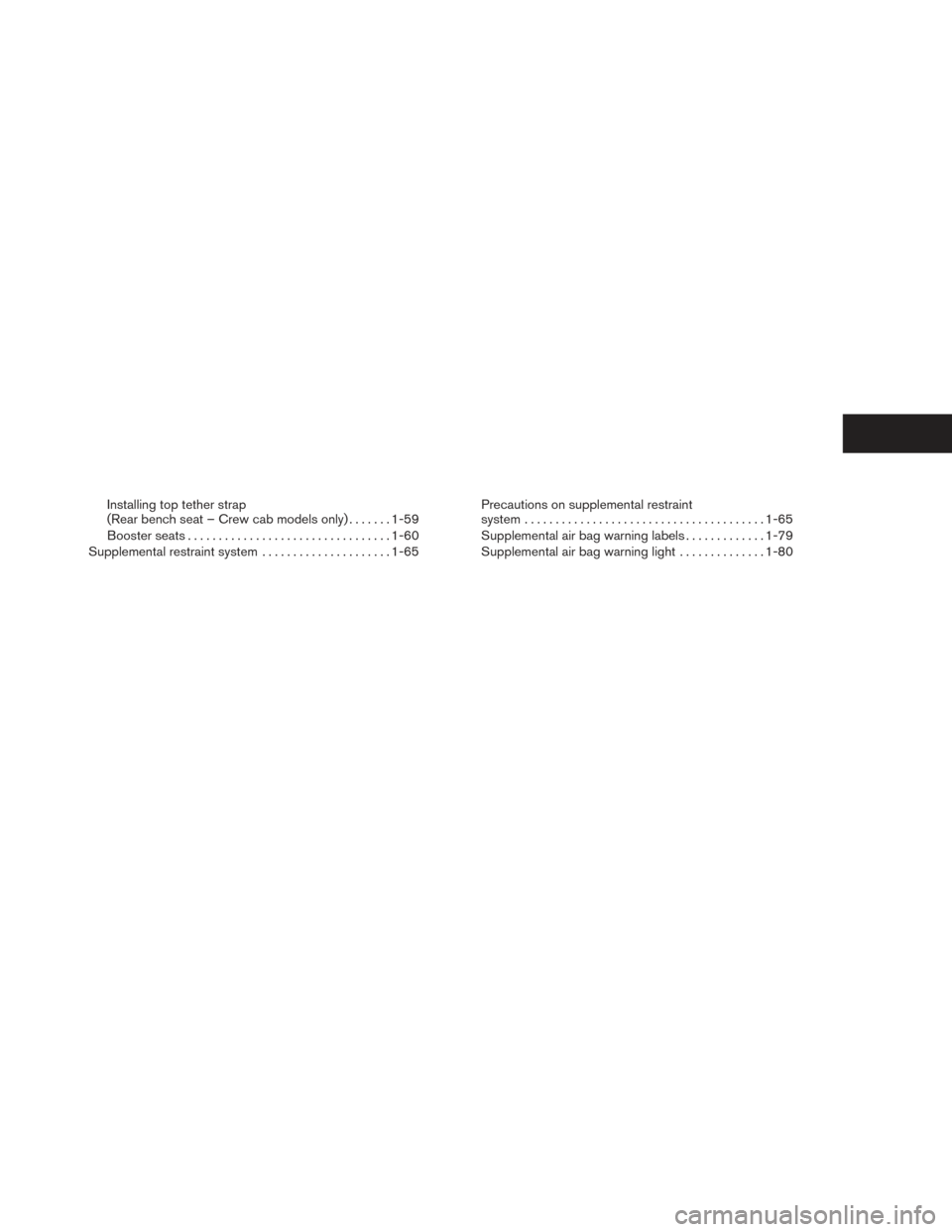

Installing top tether strap
(Jump seat – King cab models only) .............1-59

Installing top tether strap
(Rear bench seat – Crew cab models only).......1-59
Booster seats ................................. 1-60
Supplemental restraint system .....................1-65Precautions on supplemental restraint
system
....................................... 1-65
Supplemental air bag warning labels .............1-79
Supplemental air bag warning light ..............1-80

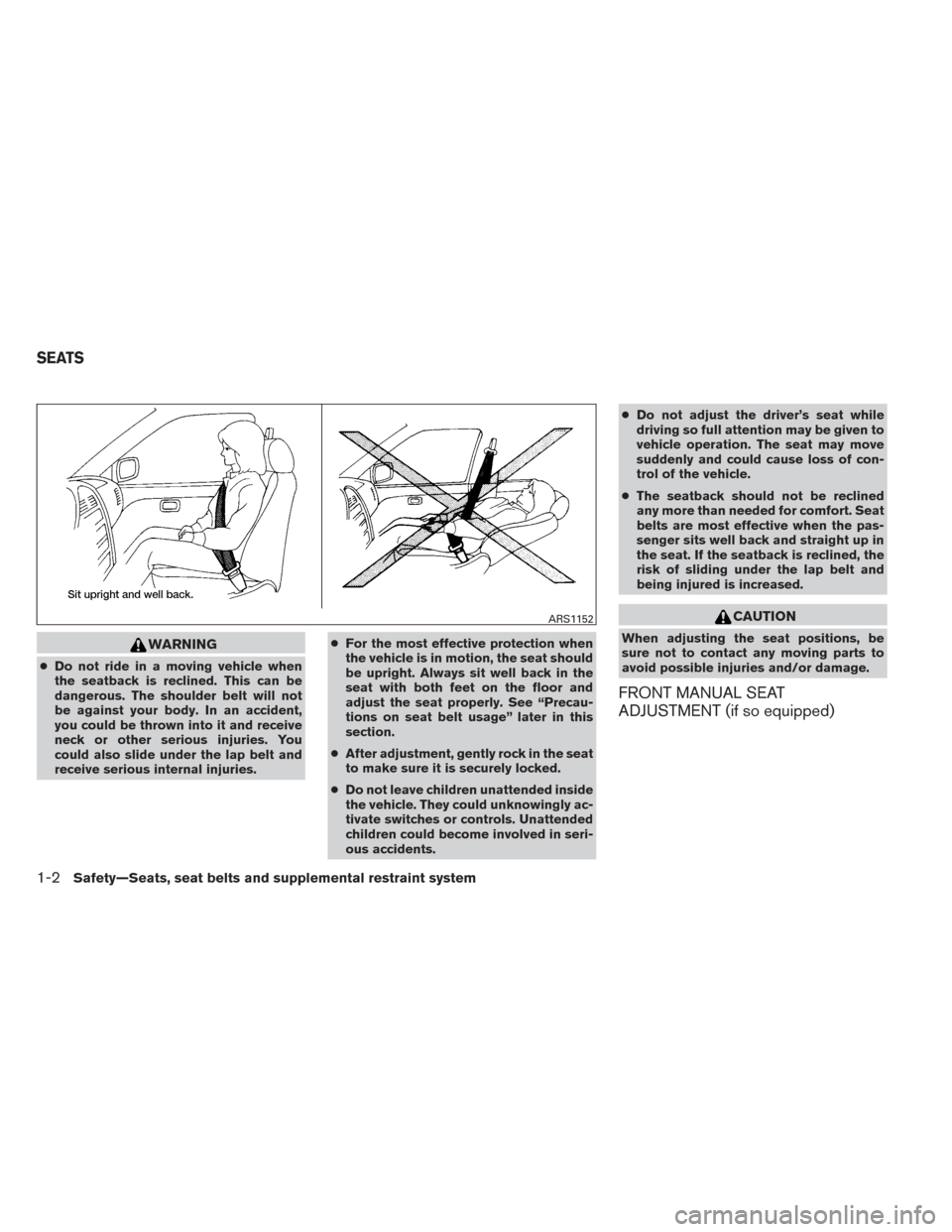

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

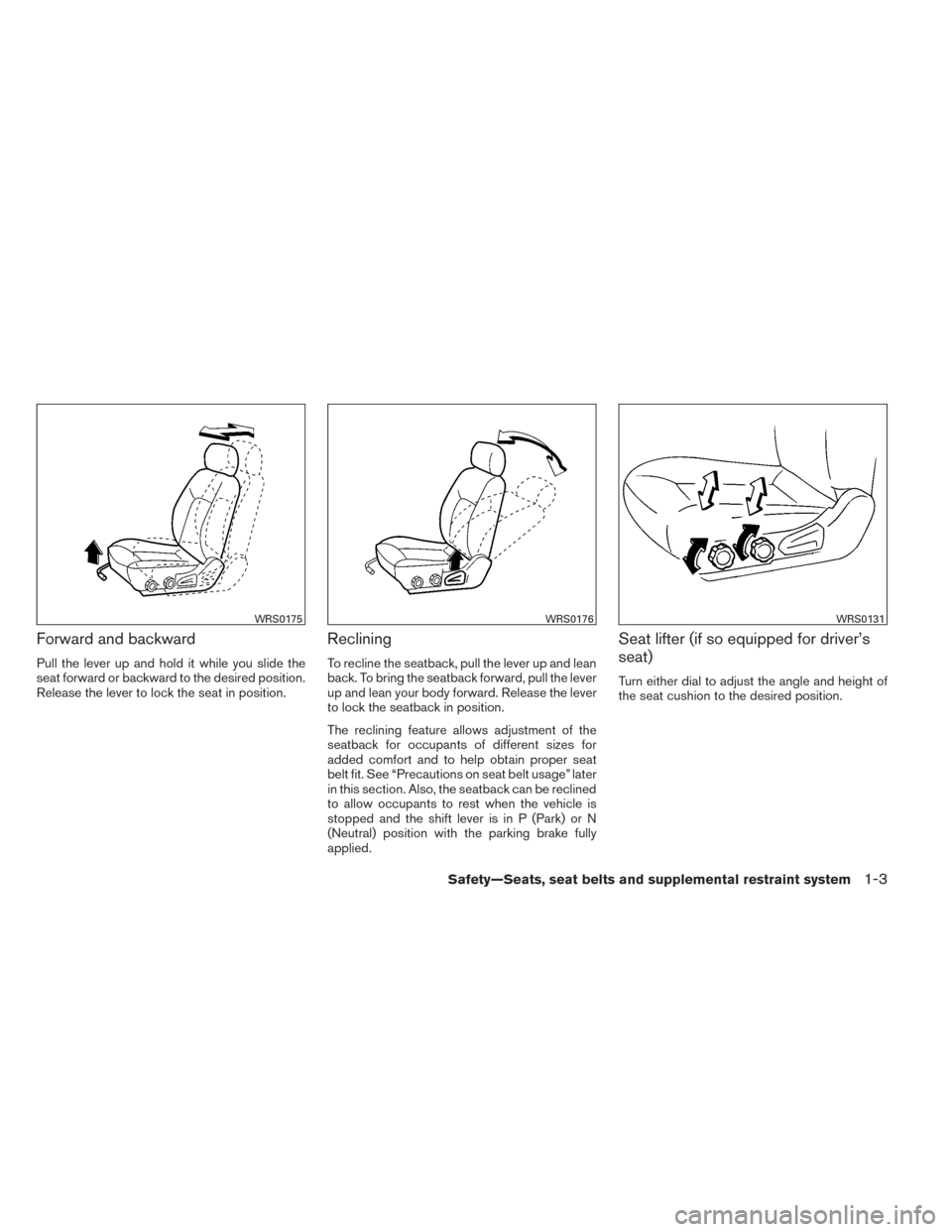

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
WRS0175WRS0176WRS0131
Safety—Seats, seat belts and supplemental restraint system1-3
