7
OUTSIDE MIRROR CONTROL SWITCH
To select the right or left side mirror, turn the control
switch
01 right or left.
To adjust the mirror angle, move the control switch
01 up, down, right or left.
To prevent accidentally moving the mirror, turn and
set the switch to the middle (neutral) position.
POWER FOLDING OUTSIDE MIRRORS
(if so equipped)
To open or close the mirrors, push the switch
02.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
02
01
STARTING/STOPPING THE ENGINE (NISSAN Intelligent Key®
models only - if so equipped)
Depress the brake pedal.
Push the ignition switc h in.
Turn the ignition switch to the START position.
TURNING THE ENGINE OFF
Move the shift lever to the P (PARK) position, apply
the parking brake and turn the ignition switch to the
LOCK position.
For more information, refer to the “Starting and driving (section 5)” of
your Owner’s Manual.
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the position
01 to turn on the front parking, tail, license plate and
instrument panel lights. Turn the switch to the
position 02 to turn on the headlights.
AUTOLIGHT SYSTEM
The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.
To activate the autolight system, turn the headlight control switch to the AUTO position
03
then turn the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF,
position 01 or
position
02.
01
03
02
1590747_14b_Armada_QRG_011614.indd 71/16/14 10:41 AM
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
8

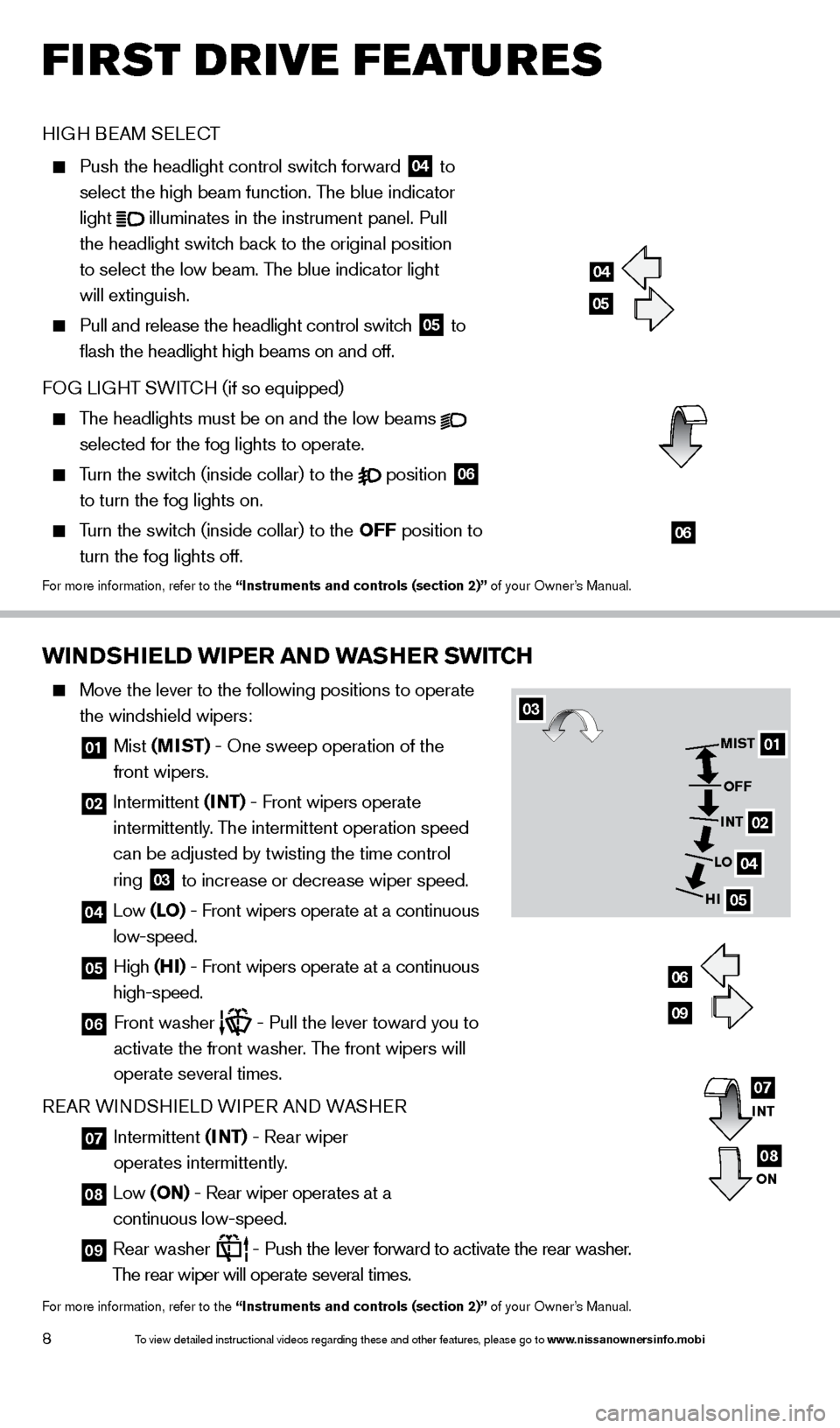

FIRST DRIVE FEATURES
WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate
the windshield wipers:
01 Mist (MIST) - One sweep operation of the
front wipers.
02 Intermittent (INT) - Front wipers operate
intermittently. The intermittent operation speed
can be adjusted by twisting the time control
ring
03 to increase or decrease wiper speed.
04 Low (LO) - Front wipers operate at a continuous
low-speed.
05 High (HI) - Front wipers operate at a continuous
high-speed.
06 Front washer - Pull the lever toward you to
activate the front washer. The front wipers will
operate several times.
REAR WINDSHIELD WIPER AND WASHER
07 Intermittent (INT) - Rear wiper
operates intermittently.
08 Low (ON) - Rear wiper operates at a
continuous low-speed.
09 Rear washer
- Push the lever forward to activate the rear washer.
The rear wiper will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
HIGH BEAM SELECT
Push the headlight control switc h forward
04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight switch back to the original position
to select the low beam. The blue indicator light
will extinguish.
Pull and release the headlight control switc h
05 to
flash the headlight high beams on and off.
FOG LIGHT SWITCH (if so equipped)
The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position
06
to turn the fog lights on.
Turn the switch (inside collar) to the OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
04
05
06
03
01
02
04
05
MIST
OFF
INT
LO
HI
06
09
INT
ON07
08
1590747_14b_Armada_QRG_011614.indd 81/16/14 10:41 AM
