2014 NISSAN ALTIMA SEDAN Owners Manual

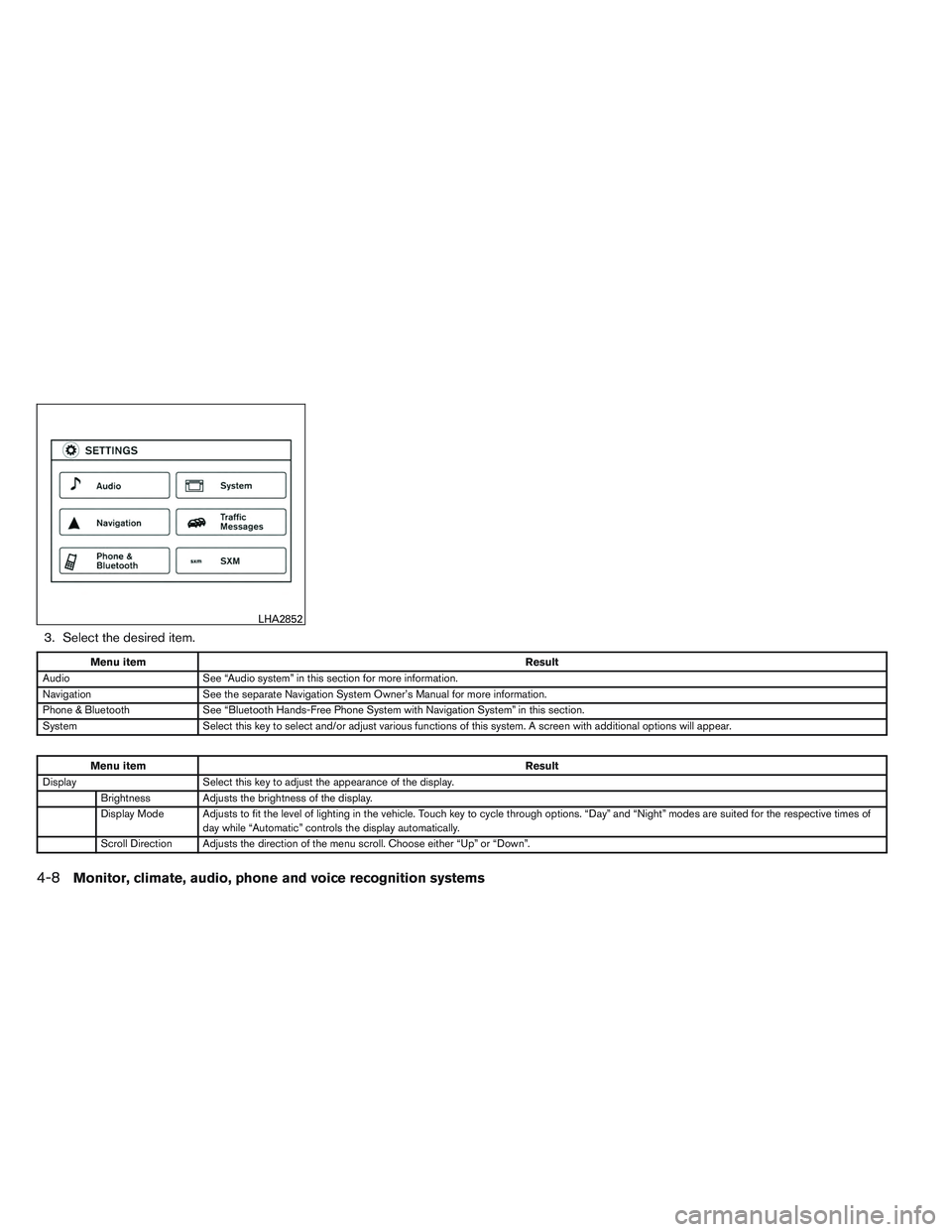

3. Select the desired item.
Menu itemResult
Audio See “Audio system” in this section for more information.
Navigation See the separate Navigation System Owner’s Manual for more information.
Phone & Bluetooth See “Bluetooth Hands-Free Phone System with Navigation System” in this section.
System Select this key to select and/or adjust various functions of this system. A screen with additional options will appear.
Menu item Result
Display Select this key to adjust the appearance of the display.
Brightness Adjusts the brightness of the display.
Display Mode Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for the respective times of day while “Automatic” controls the display automatically.
Scroll Direction Adjusts the direction of the menu scroll. Choose either “Up” or “Down”.
LHA2852
4-8Monitor, climate, audio, phone and voice recognition systems

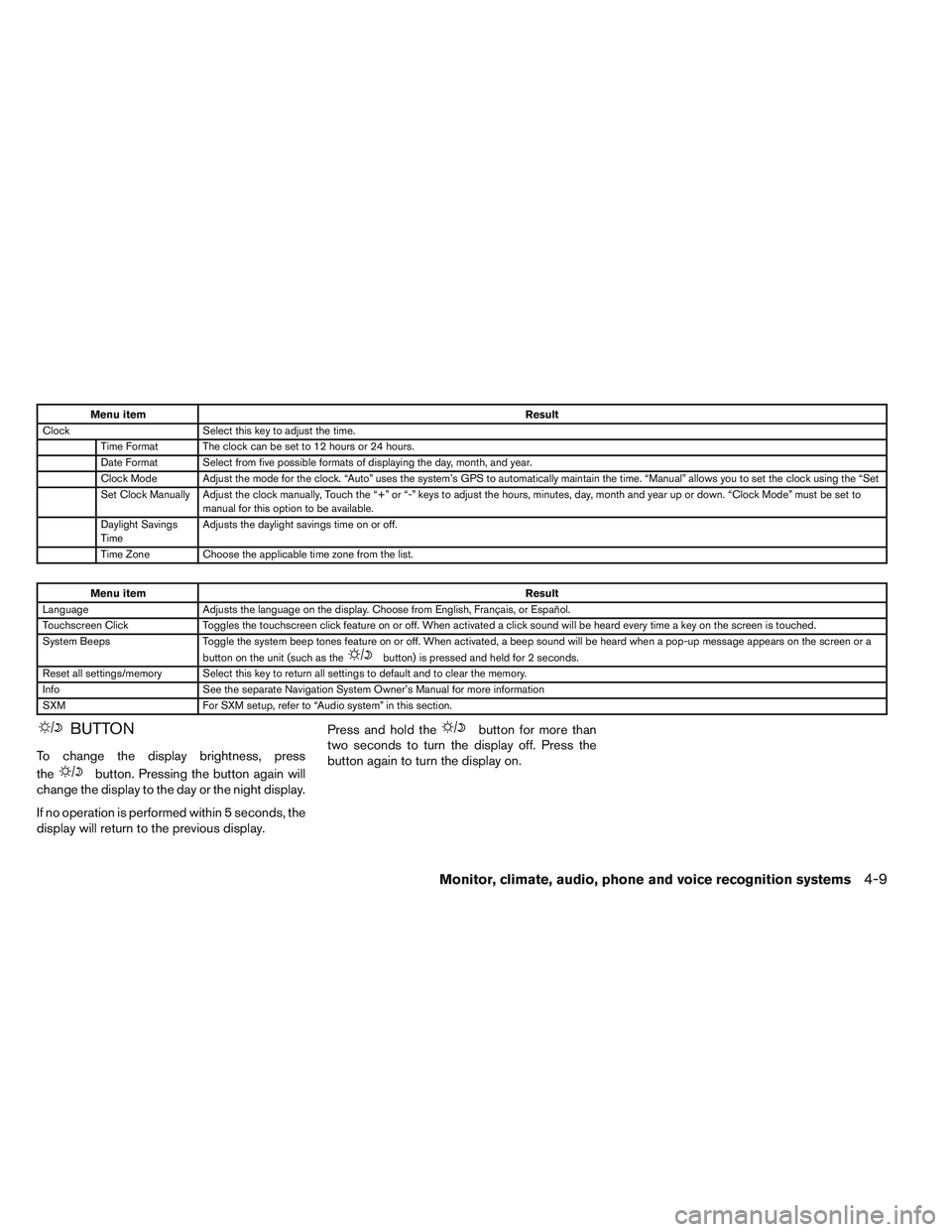

Menu itemResult
Clock Select this key to adjust the time.
Time Format The clock can be set to 12 hours or 24 hours.
Date Format Select from five possible formats of displaying the day, month, and year.
Clock Mode Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows you to set the clock using the “Set
Set Clock Manually Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down. “Clock Mode” must be set to manual for this option to be available.
Daylight Savings
Time Adjusts the daylight savings time on or off.
Time Zone Choose the applicable time zone from the list.
Menu item Result
Language Adjusts the language on the display. Choose from English, Français, or Español.
Touchscreen Click Toggles the touchscreen click feature on or off. When activated a click sound will be heard every time a key on the screen is touched.
System Beeps Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up message appears on the screen or a
button on the unit (such as the
button) is pressed and held for 2 seconds.
Reset all settings/memory Select this key to return all settings to default and to clear the memory.
Info See the separate Navigation System Owner’s Manual for more information
SXM For SXM setup, refer to “Audio system” in this section.
BUTTON
To change the display brightness, press
the
button. Pressing the button again will
change the display to the day or the night display.
If no operation is performed within 5 seconds, the
display will return to the previous display. Press and hold the
button for more than
two seconds to turn the display off. Press the
button again to turn the display on.
Monitor, climate, audio, phone and voice recognition systems4-9

When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows the
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumper and may not
detect objects close to the bumper or on the
ground.
WARNING
●The rear view camera is a convenience
but it is not a substitute for proper back-
ing up. Always turn and check that it is
safe to do so before backing up. Always
back up slowly.
● Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used. Objects in the
RearView Monitor will appear visually
opposite than when viewed in the rear
view and outside mirrors.
● Make sure that the trunk is securely
closed when backing up.
● Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation. ●
Do not put anything on the rear view
camera.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the camera. It is a preci-
sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width and
distances to objects with reference to the vehicle
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
LHA2745
REARVIEW MONITOR (if so
equipped)
4-10Monitor, climate, audio, phone and voice recognition systems

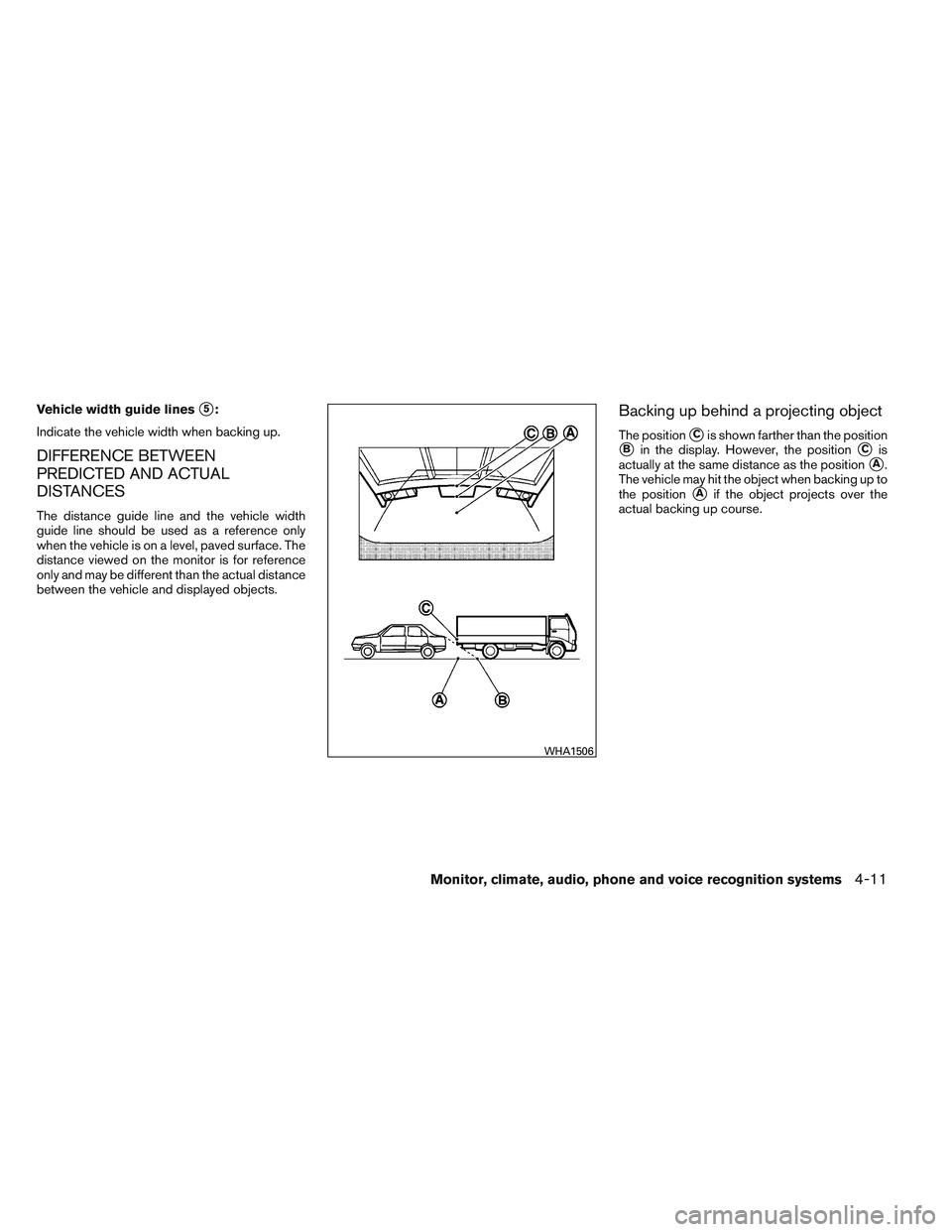

Vehicle width guide lines5:
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to
the position
Aif the object projects over the
actual backing up course.
WHA1506
Monitor, climate, audio, phone and voice recognition systems4-11

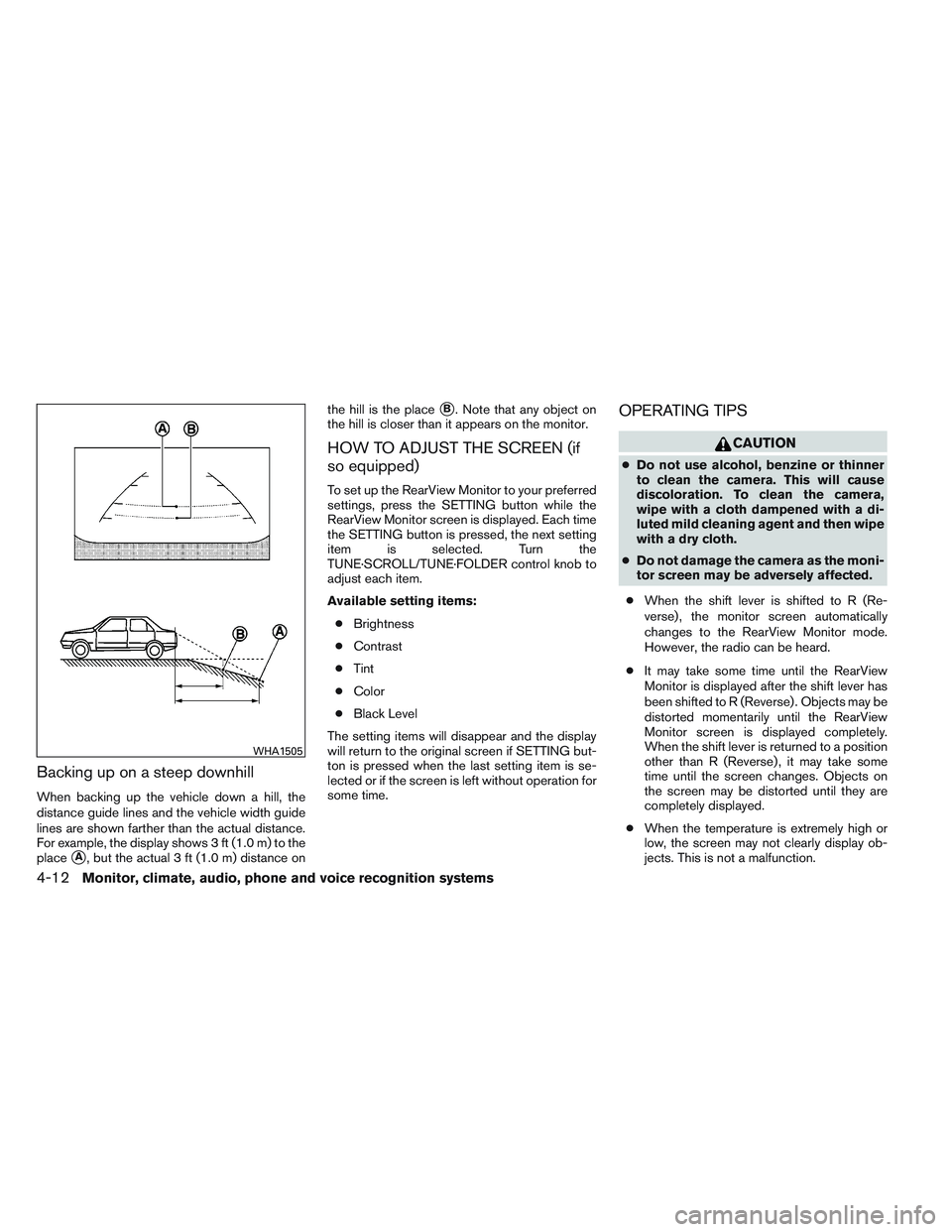

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance onthe hill is the place
B. Note that any object on
the hill is closer than it appears on the monitor.
HOW TO ADJUST THE SCREEN (if
so equipped)
To set up the RearView Monitor to your preferred
settings, press the SETTING button while the
RearView Monitor screen is displayed. Each time
the SETTING button is pressed, the next setting
item is selected. Turn the
TUNE·SCROLL/TUNE·FOLDER control knob to
adjust each item.
Available setting items:
● Brightness
● Contrast
● Tint
● Color
● Black Level
The setting items will disappear and the display
will return to the original screen if SETTING but-
ton is pressed when the last setting item is se-
lected or if the screen is left without operation for
some time.
OPERATING TIPS
CAUTION
● Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with a di-
luted mild cleaning agent and then wipe
with a dry cloth.
● Do not damage the camera as the moni-
tor screen may be adversely affected.
● When the shift lever is shifted to R (Re-
verse) , the monitor screen automatically
changes to the RearView Monitor mode.
However, the radio can be heard.
● It may take some time until the RearView
Monitor is displayed after the shift lever has
been shifted to R (Reverse) . Objects may be
distorted momentarily until the RearView
Monitor screen is displayed completely.
When the shift lever is returned to a position
other than R (Reverse) , it may take some
time until the screen changes. Objects on
the screen may be distorted until they are
completely displayed.
● When the temperature is extremely high or
low, the screen may not clearly display ob-
jects. This is not a malfunction.
WHA1505
4-12Monitor, climate, audio, phone and voice recognition systems

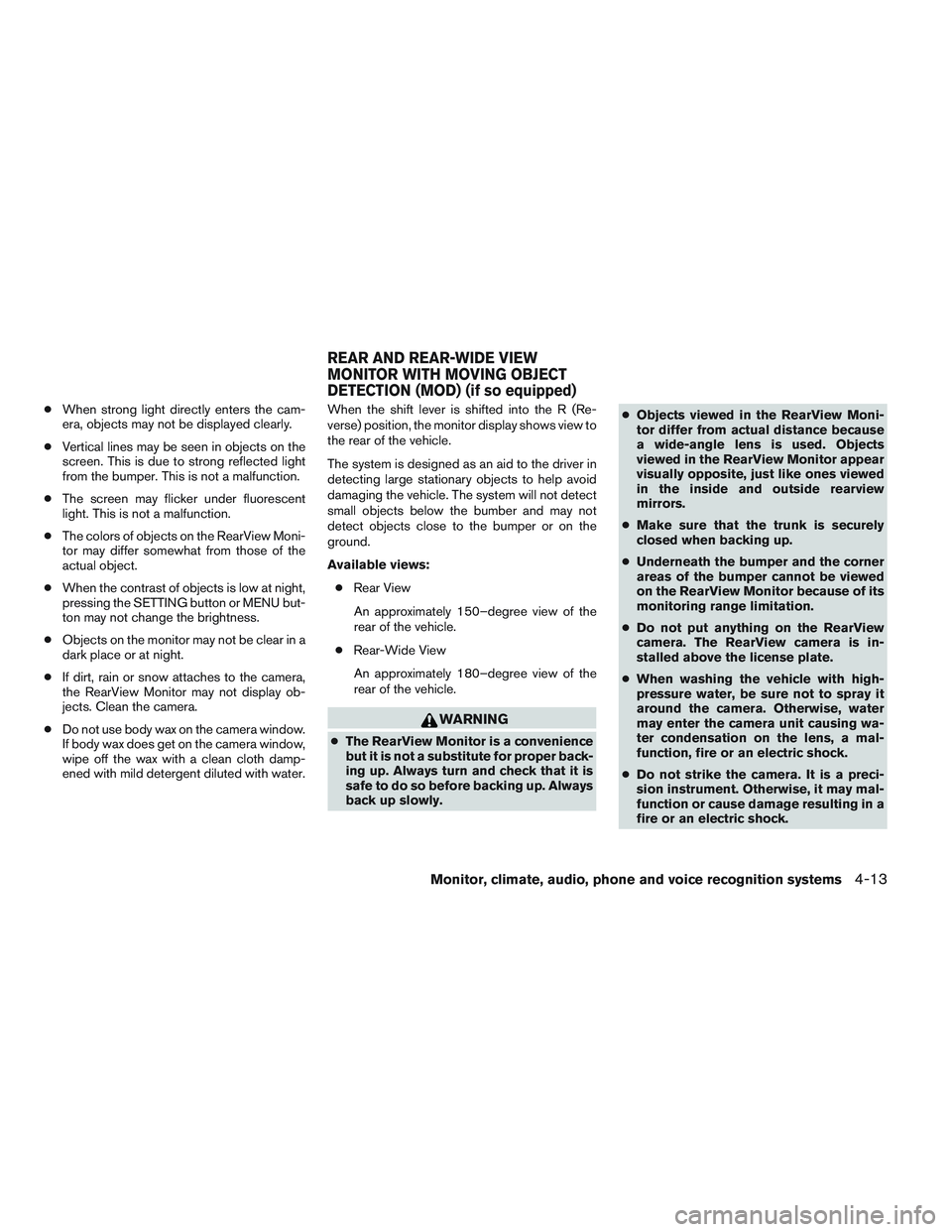

●When strong light directly enters the cam-
era, objects may not be displayed clearly.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the RearView Moni-
tor may differ somewhat from those of the
actual object.
● When the contrast of objects is low at night,
pressing the SETTING button or MENU but-
ton may not change the brightness.
● Objects on the monitor may not be clear in a
dark place or at night.
● If dirt, rain or snow attaches to the camera,
the RearView Monitor may not display ob-
jects. Clean the camera.
● Do not use body wax on the camera window.
If body wax does get on the camera window,
wipe off the wax with a clean cloth damp-
ened with mild detergent diluted with water. When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows view to
the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumber and may not
detect objects close to the bumper or on the
ground.
Available views:
● Rear View
An approximately 150–degree view of the
rear of the vehicle.
● Rear-Wide View
An approximately 180–degree view of the
rear of the vehicle.
WARNING
● The RearView Monitor is a convenience
but it is not a substitute for proper back-
ing up. Always turn and check that it is
safe to do so before backing up. Always
back up slowly. ●
Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used. Objects
viewed in the RearView Monitor appear
visually opposite, just like ones viewed
in the inside and outside rearview
mirrors.
● Make sure that the trunk is securely
closed when backing up.
● Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation.
● Do not put anything on the RearView
camera. The RearView camera is in-
stalled above the license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the camera. It is a preci-
sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.
REAR AND REAR-WIDE VIEW
MONITOR WITH MOVING OBJECT
DETECTION (MOD) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-13

CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the camera
lens.

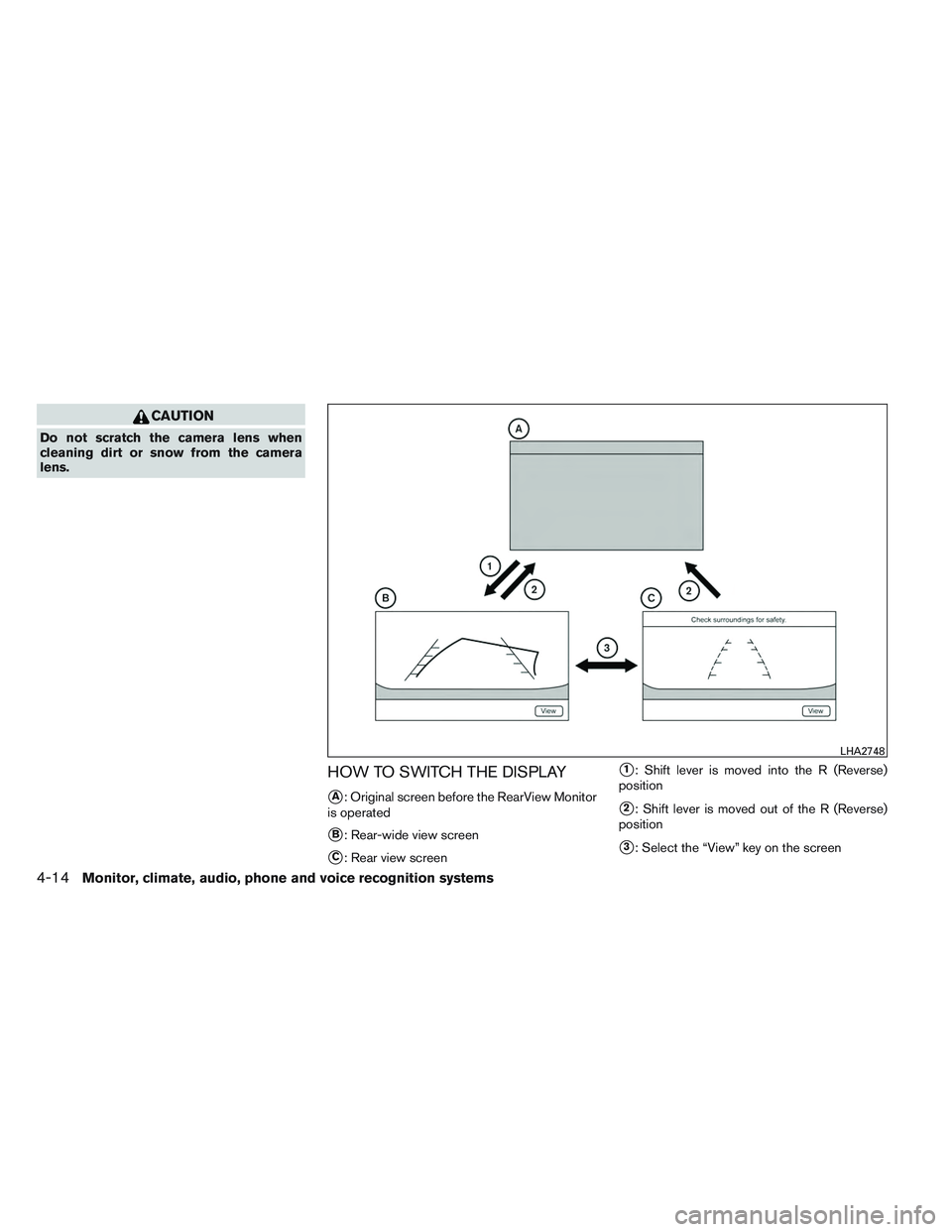

HOW TO SWITCH THE DISPLAY
A: Original screen before the RearView Monitor
is operated
B: Rear-wide view screen
C: Rear view screen
1: Shift lever is moved into the R (Reverse)
position
2: Shift lever is moved out of the R (Reverse)
position
3: Select the “View” key on the screen
LHA2748
4-14Monitor, climate, audio, phone and voice recognition systems

●When the shift lever is moved into the R
(Reverse position
1while another screen
Ais displayed, RearView Monitor operates
and the rear-wide view
Bis displayed.
● When selecting the “View” key on the
screen using the multi-function controller
and pressing the ENTER button
3, the view
on the screen will change to the rearview
screen
C. When the “View” key is pressed
again
3, the rear-wide viewBis dis-
played.
● The rear-wide view screen and/or rear view
screen switches to another screen
Awhen
the shift lever is moved out of the R (Re-
verse) position

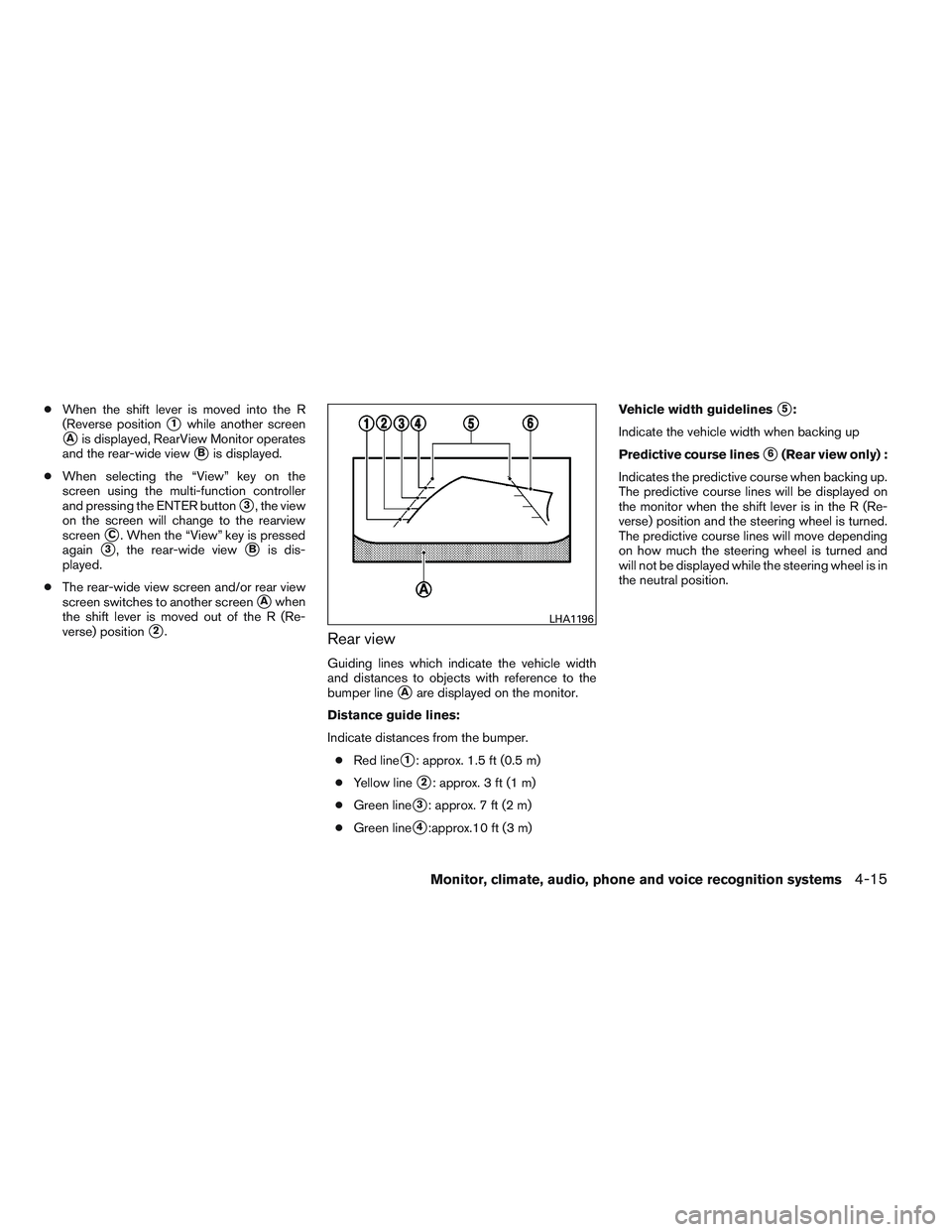

2.Rear view
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper. ● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4:approx.10 ft (3 m) Vehicle width guidelines
5:
Indicate the vehicle width when backing up
Predictive course lines
6(Rear view only) :
Indicates the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the R (Re-
verse) position and the steering wheel is turned.
The predictive course lines will move depending
on how much the steering wheel is turned and
will not be displayed while the steering wheel is in
the neutral position.
LHA1196
Monitor, climate, audio, phone and voice recognition systems4-15
