2014 NISSAN ALTIMA SEDAN Owners Manual

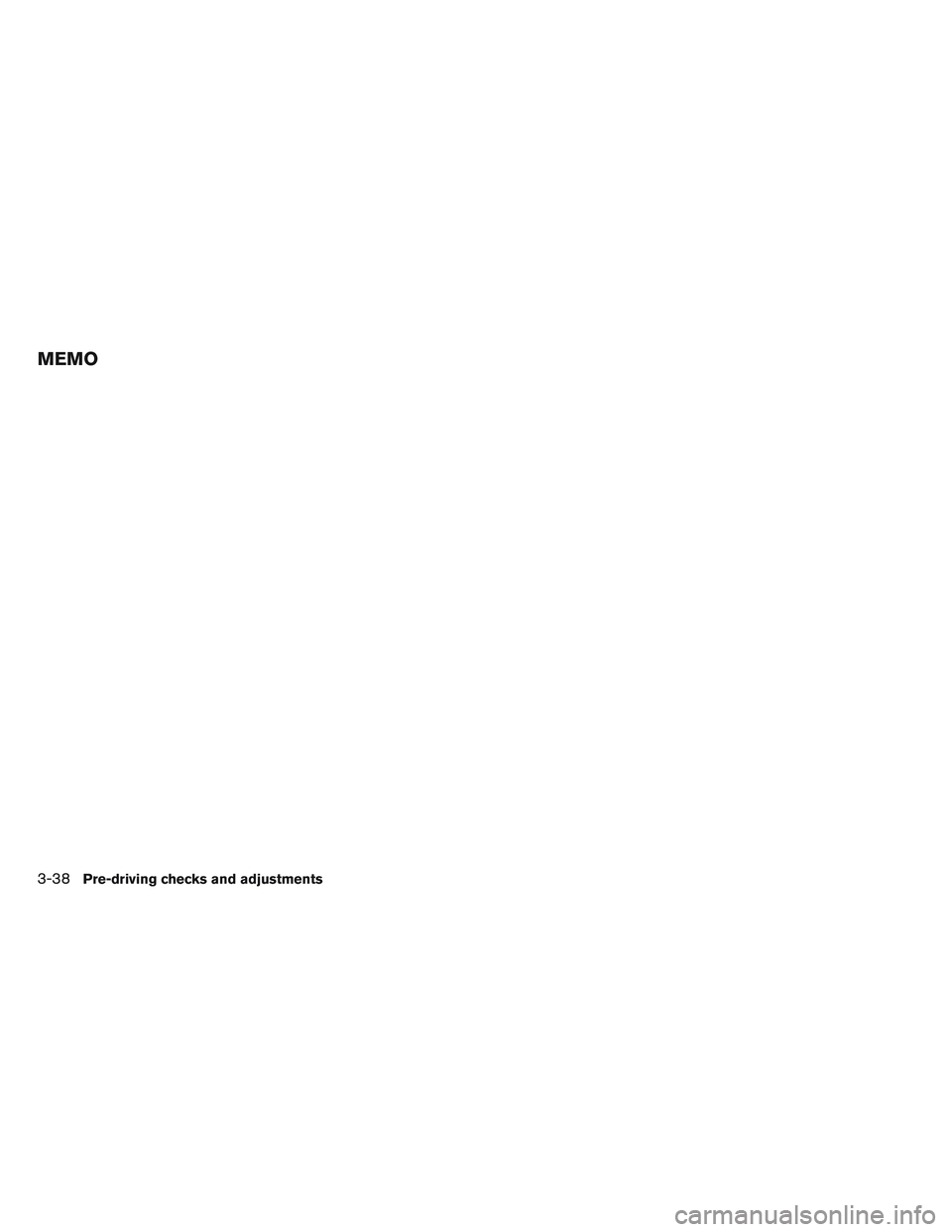

MEMO
3-38Pre-driving checks and adjustments

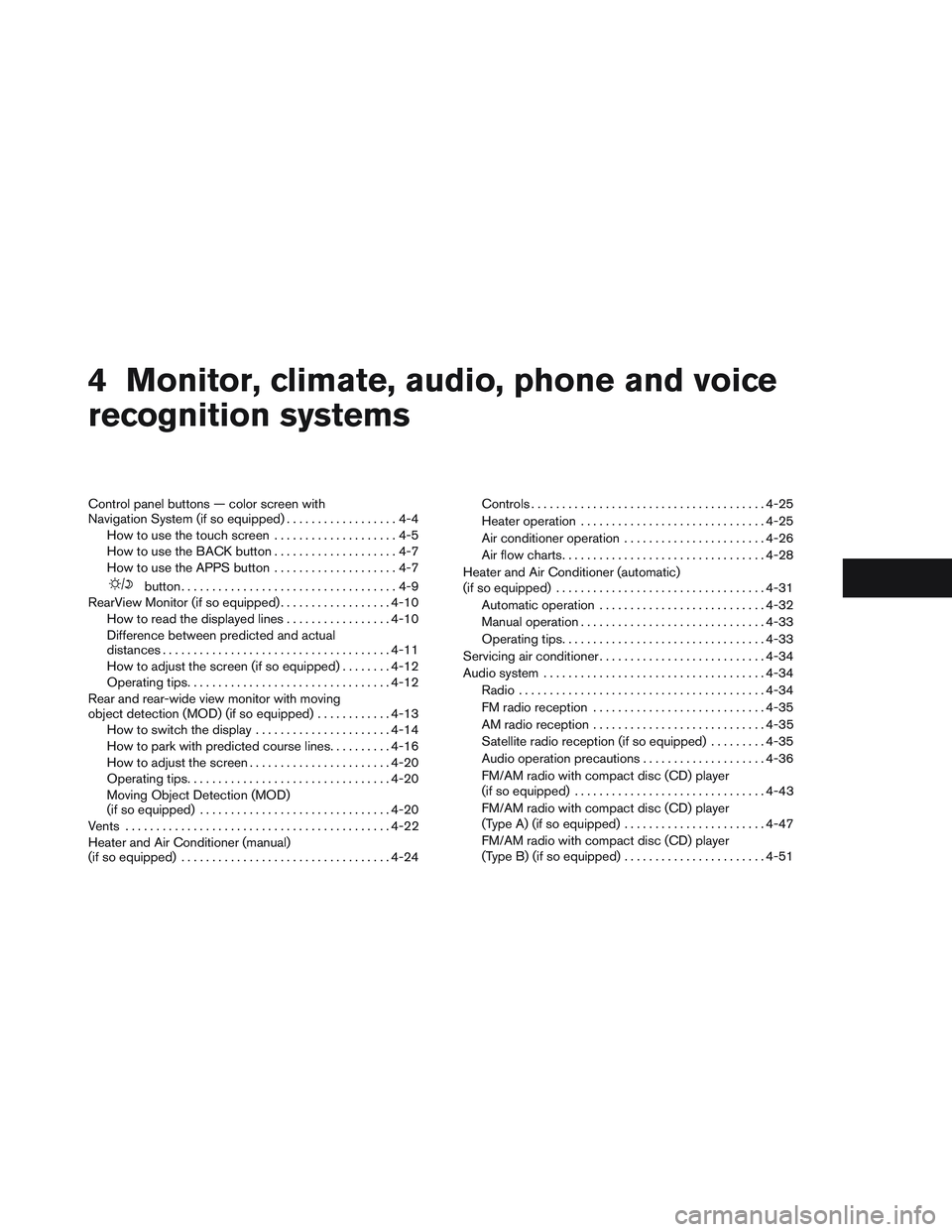

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-4
How to use the touch screen ....................4-5
How to use the BACK button ....................4-7
How to use the APPS button ....................4-7
button...................................4-9
RearView Monitor (if so equipped) ..................4-10
How to read the displayed lines .................4-10
Difference between predicted and actual
distances ..................................... 4-11
How to adjust the screen (if so equipped) ........4-12
Operating tips ................................. 4-12
Rear and rear-wide view monitor with moving
object detection (MOD) (if so equipped) ............4-13
How to switch the display ......................4-14
How to park with predicted course lines ..........4-16
How to adjust the screen .......................4-20
Operating tips ................................. 4-20
Moving Object Detection (MOD)
(if so equipped) ............................... 4-20
Vents . .......................................... 4-22
Heater and Air Conditioner (manual)
(if so equipped) .................................. 4-24Controls
...................................... 4-25
Heater operation .............................. 4-25
Air conditioner operation .......................4-26
Air flow charts ................................. 4-28
Heater and Air Conditioner (automatic)
(if so equipped) .................................. 4-31
Automatic operation ........................... 4-32
Manual operation .............................. 4-33
Operating tips ................................. 4-33
Servicing air conditioner ........................... 4-34
Audio system .................................... 4-34
Radio ........................................ 4-34
FM radio reception ............................ 4-35
AM radio reception ............................ 4-35
Satellite radio reception (if so equipped) . . . ......4-35
Audio operation precautions ....................4-36
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-43
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-47
FM/AM radio with compact disc (CD) player
(Type B) (if so equipped) .......................4-51

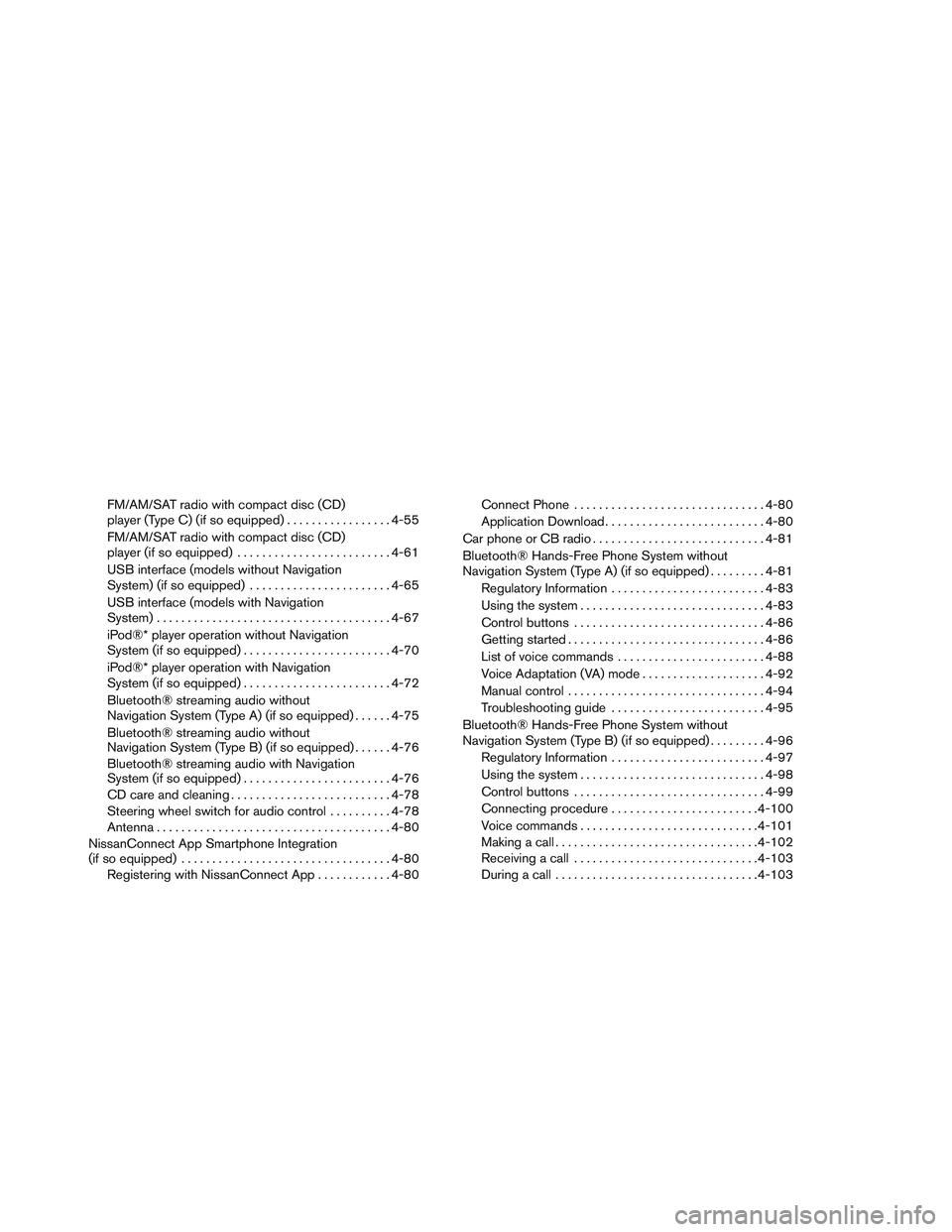

FM/AM/SAT radio with compact disc (CD)
player (Type C) (if so equipped).................4-55
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-61
USB interface (models without Navigation
System) (if so equipped) .......................4-65
USB interface (models with Navigation
System) ...................................... 4-67
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-70
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-72
Bluetooth® streaming audio without
Navigation System (Type A) (if so equipped) ......4-75
Bluetooth® streaming audio without
Navigation System (Type B) (if so equipped) ......4-76
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-76
CD care and cleaning .......................... 4-78
Steering wheel switch for audio control ..........4-78
Antenna ...................................... 4-80
NissanConnect App Smartphone Integration
(if so equipped) .................................. 4-80
Registering with NissanConnect App ............4-80 Connect Phone
............................... 4-80
Application Download .......................... 4-80
Car phone or CB radio ............................ 4-81
Bluetooth® Hands-Free Phone System without
Navigation System (Type A) (if so equipped) .........4-81
Regulatory Information ......................... 4-83
Using the system .............................. 4-83
Control buttons ............................... 4-86
Getting started ................................ 4-86
List of voice commands ........................ 4-88
Voice Adaptation (VA) mode ....................4-92
Manual control ................................ 4-94
Troubleshooting guide ......................... 4-95
Bluetooth® Hands-Free Phone System without
Navigation System (Type B) (if so equipped) . . . ......4-96
Regulatory Information ......................... 4-97
Using the system .............................. 4-98
Control buttons ............................... 4-99
Connecting

procedure ........................ 4-100
Voice commands ............................. 4-101
Making a call ................................. 4-102
Receiving a call .............................. 4-103
During a call ................................. 4-103

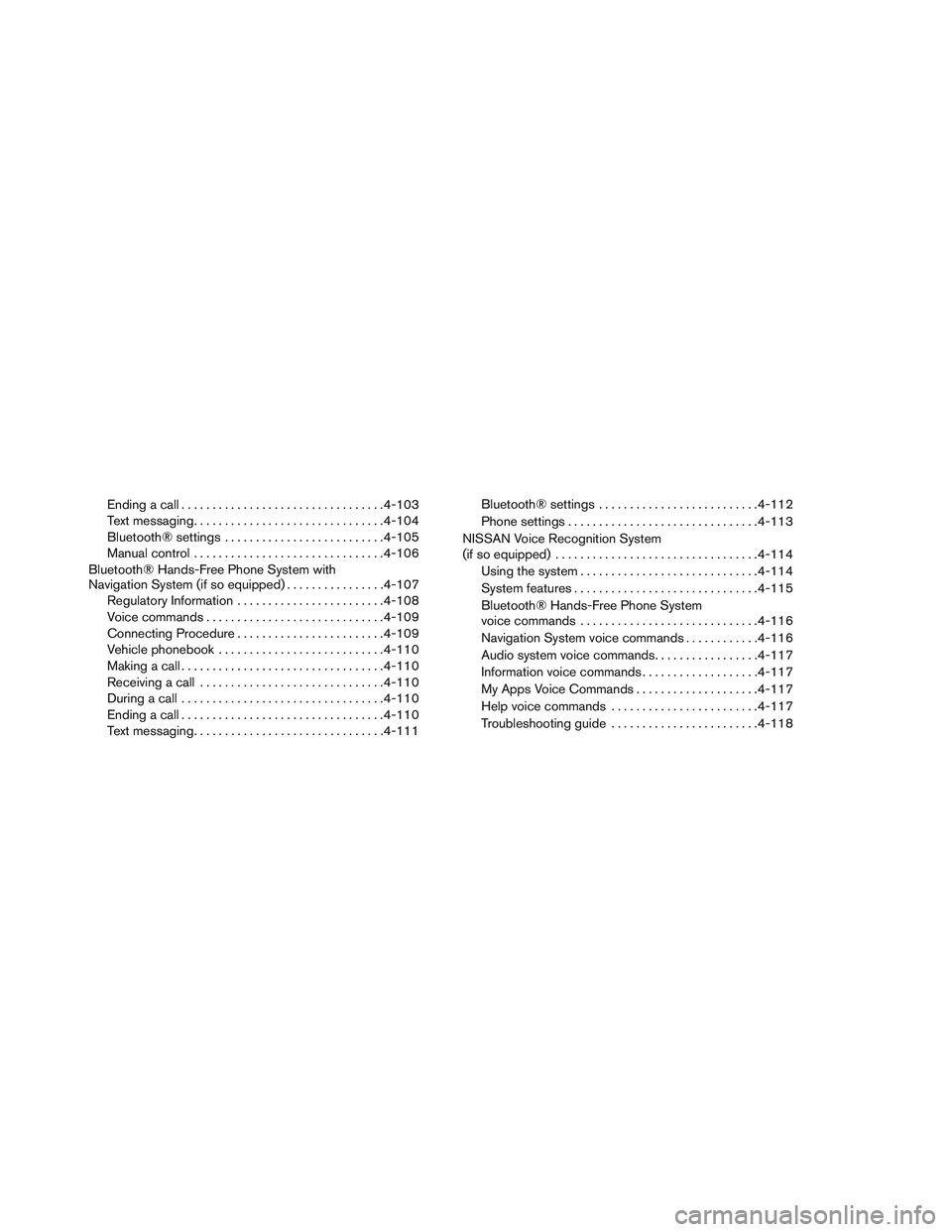

Ending a call................................. 4-103
Text messaging ............................... 4-104
Bluetooth® settings .......................... 4-105
Manual control ............................... 4-106
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-107
Regulatory Information ........................ 4-108
Voice commands ............................. 4-109
Connecting Procedure ........................ 4-109
Vehicle phonebook ........................... 4-110
Making a call ................................. 4-110
Receiving a call .............................. 4-110
During a call ................................. 4-110
Ending a call ................................. 4-110
Text messaging ............................... 4-111Bluetooth® settings
.......................... 4-112
Phone settings ............................... 4-113
NISSAN Voice Recognition System
(if so equipped) . . . .............................. 4-114
Using the system ............................. 4-114
System features .............................. 4-115
Bluetooth® Hands-Free Phone System
voice commands ............................. 4-116
Navigation System voice commands ............4-116
Audio system voice commands .................4-117
Information voice commands ...................4-117
My Apps Voice Commands ....................4-117
Help voice commands ........................ 4-117
Troubleshooting guide ........................ 4-118

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest NISSAN dealer. Ig-
noring such conditions may lead to ac-
cidents, fire or electrical shock.
1. PWR button/VOL (volume) control knob
2. Display screen
3. ENTER / AUDIO button / TUNE / SCROLLknob
4.
BACK button 5. MAP button*
6. NAV button*
7.
button
8.
(brightness control) button
LHA2850

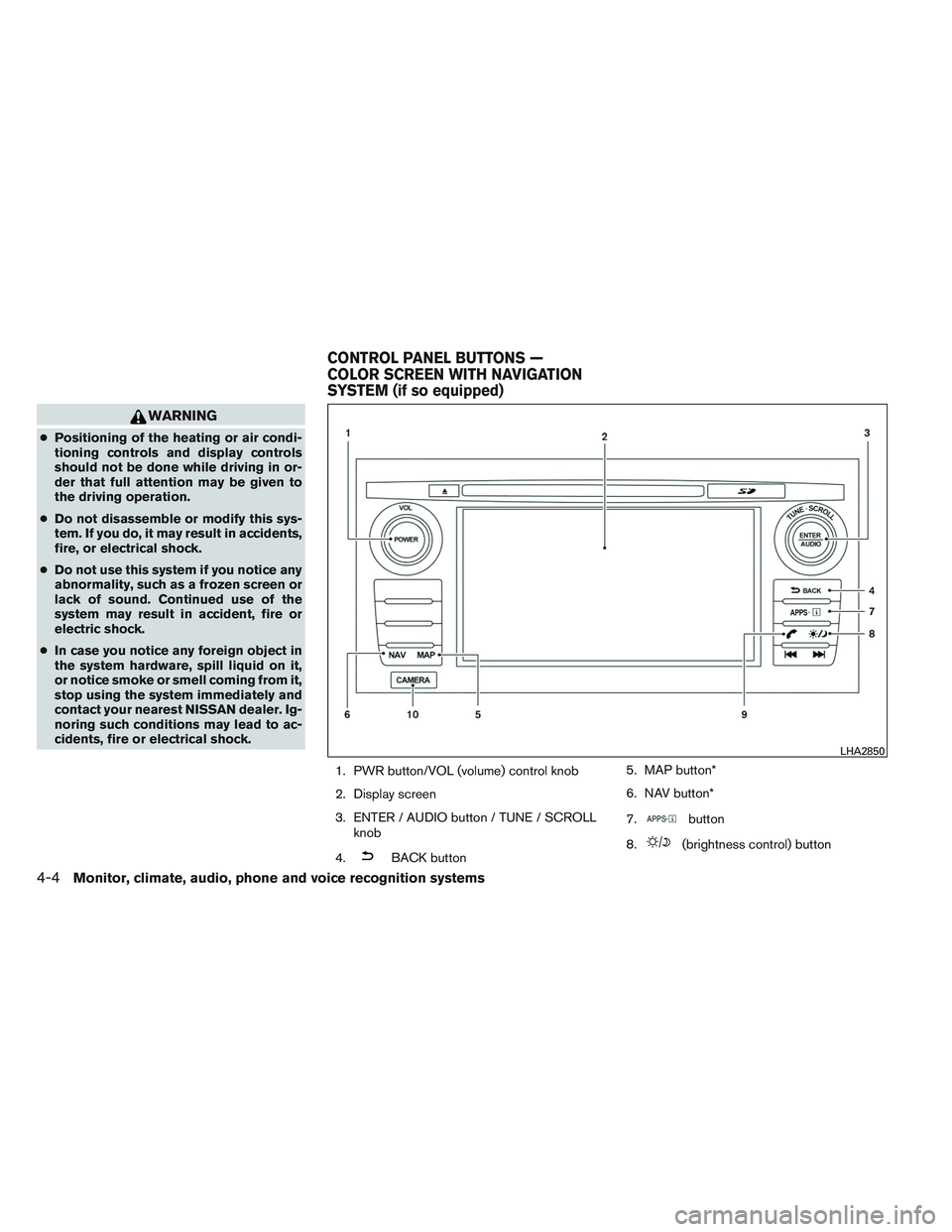

CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

9.button**
10. CAMERA button
* For information regarding the Navigation system
control buttons, refer to the separate Navigation
System Owner’s Manual.
** For information regarding the Bluetooth®
Hands-Free Phone System control button, see
“Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped)” in this sec-
tion.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be

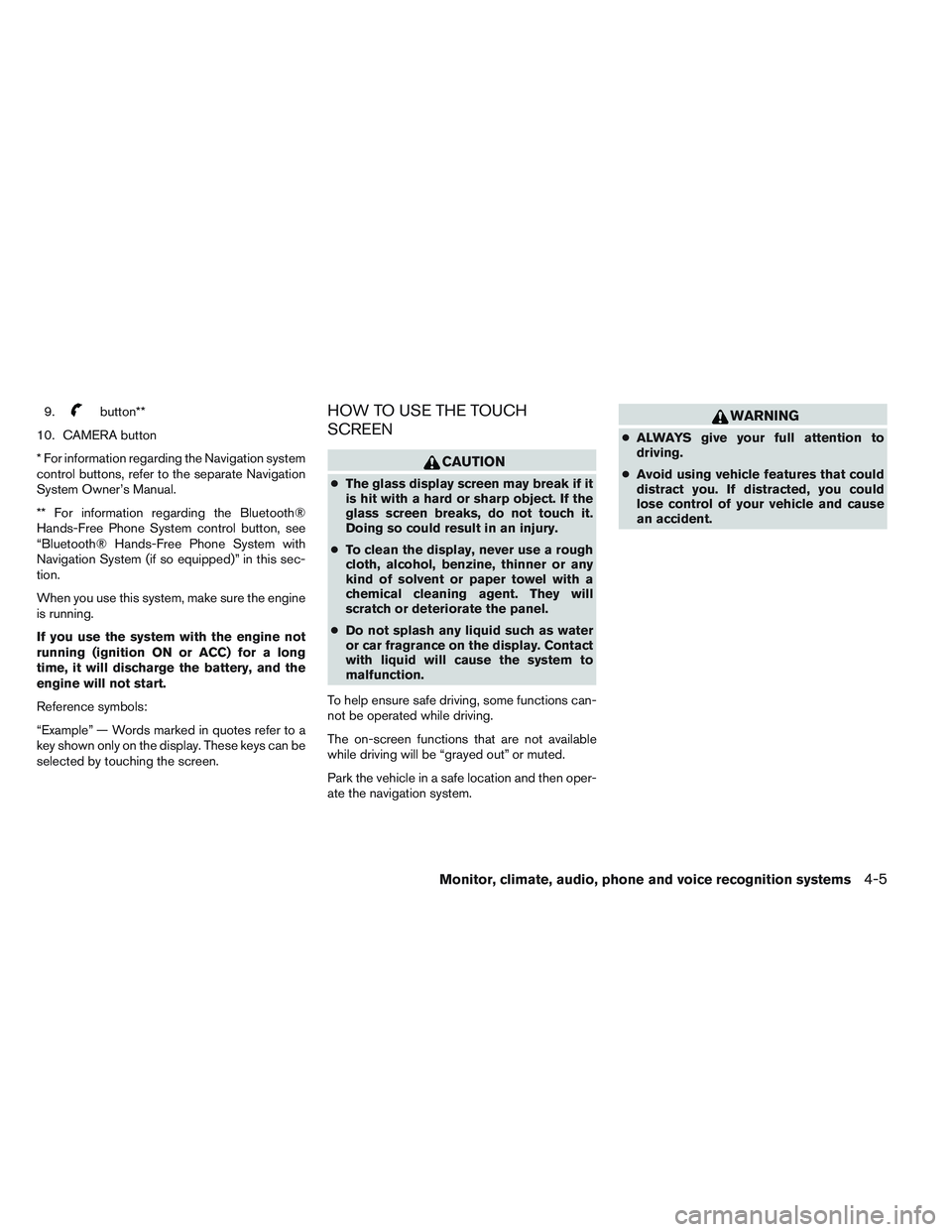

selected by touching the screen.HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Monitor, climate, audio, phone and voice recognition systems4-5

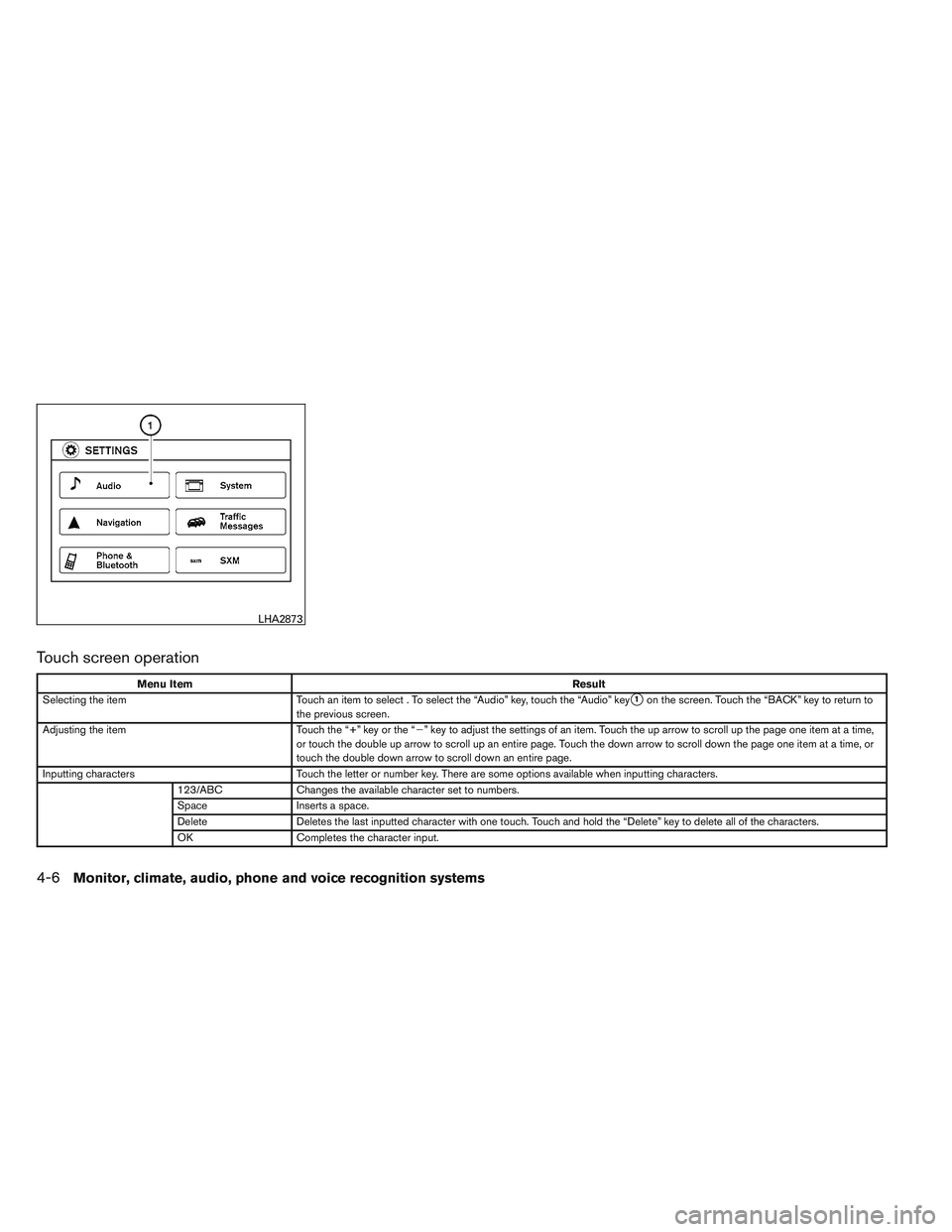

Touch screen operation
Menu ItemResult
Selecting the item Touch an item to select . To select the “Audio” key, touch the “Audio” key
1on the screen. Touch the “BACK” key to return to
the previous screen.
Adjusting the item Touch the “+” key or the “” key to adjust the settings of an item. Touch the up arrow to scroll up the page one item at a time,
or touch the double up arrow to scroll up an entire page. Touch the down arrow to scroll down the page one item at a time, or
touch the double down arrow to scroll down an entire page.
Inputting characters Touch the letter or number key. There are some options available when inputting characters.
123/ABC Changes the available character set to numbers.
Space Inserts a space.
Delete Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the characters.
OK Completes the character input.
LHA2873
4-6Monitor, climate, audio, phone and voice recognition systems

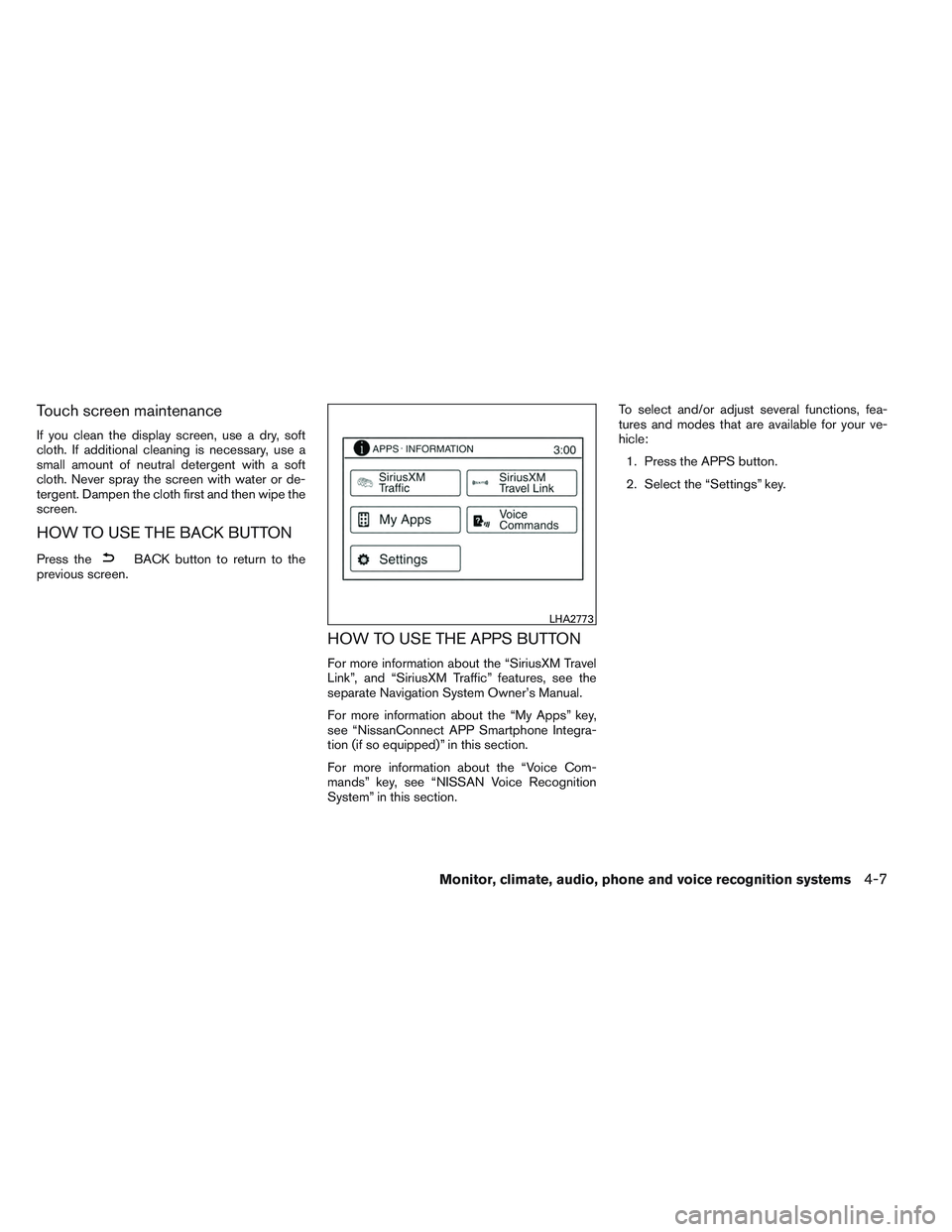

Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first and then wipe the
screen.
HOW TO USE THE BACK BUTTON
Press theBACK button to return to the
previous screen.
HOW TO USE THE APPS BUTTON
For more information about the “SiriusXM Travel
Link”, and “SiriusXM Traffic” features, see the
separate Navigation System Owner’s Manual.
For more information about the “My Apps” key,
see “NissanConnect APP Smartphone Integra-
tion (if so equipped)” in this section.
For more information about the “Voice Com-
mands” key, see “NISSAN Voice Recognition
System” in this section. To select and/or adjust several functions, fea-
tures and modes that are available for your ve-
hicle:
1. Press the APPS button.
2. Select the “Settings” key.
LHA2773
Monitor, climate, audio, phone and voice recognition systems4-7
