2014 MITSUBISHI OUTLANDER PHEV display

NOTElIt may take several seconds to stabilise the
display after refilling the tank.
l If fuel is added with the operation mode of
the power switch is in ON, the fuel gauge may incorrectly indicate the fuel level.
l The arrow (A) indicates that the fuel tank
filler is located on the left side of the body.Fuel remaining warning display
E00522401788
When the fuel is reduced to about 7 litres, the
information screen switches to the interruptdisplay of the fuel remaining warning dis-
play, and the “
” mark (B) on the fuel re-
maining display flashes slowly (about once
per second). After a few seconds, the infor- mation screen returns from the fuel remain-
ing warning display to the previous screen.
When the fuel is reduced further to about 5 li-
tres, the information screen switches to the
fuel remaining warning display and the “
”
mark (B) on the fuel remaining display flash-
es quickly (about twice per second).
CAUTIONl If the warning display appears, refuel as
soon as possible.
If the vehicle runs out of fuel, the engine will not start even in a situation need to be
generated electricity, the following condi- tions will occur.
• The driving performance falls (since only
the electrical power stored in the drive
battery can be used for the driving).
• The heating performance cannot be avail-
able (except vehicles with electric heater).
• The effectiveness of the heater is insuffi-
cient (vehicles with electric heater).CAUTION• The catalytic converter may be damaged
due to excessive high temperature.NOTEl On inclines or curves, the display may be in-
correct due to the movement of fuel in the
tank.
l Battery save or battery charge may not be
activated even if the battery save switch or
the battery charge switch is pressed, depend-
ing on the remaining quantity of the drive
battery or the control condition of the sys- tem.Outside temperature display
screen
E00522101509
This shows the temperature outside the vehicle.
NOTEl The display setting can be changed to the
preferred units (°C or °F).
Refer to “Changing the function settings” on page 6-16.
Multi information display
6-11OGGE14E5Instruments and controls6

NOTElDepending on factors such as the driving
conditions, the displayed temperature may vary from the actual outside temperature.Odometer
E00527800083
The odometer indicates the distance travel-
led.
Tripmeter
E00527901078
The tripmeter indicates the distance travelled between two points.

Example usage of tripmeter
and tripmeter
It is possible to measure two currently
travelled distances, from home using
tripmeter
and from a particular point
on the way using tripmeter
.
To reset the tripmeter
To return the display to 0, hold down the
multi-information display switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example
If tripmeter
is displayed, only tripmeter
will be reset.
NOTEl When disconnecting the auxiliary battery
terminal, the memory of tripmeter and
are cleared, and the display returns to
“0”.
Service reminder
E00522502021
Displays the approximate time until the next
periodic inspection recommended by MITSUBISHI MOTORS . “---” is displayed
when the inspection time has arrived.
NOTEl Depending on the vehicle specifications, the
displayed time may differ from the next pe-
riodic inspection time recommended by
MITSUBISHI MOTORS.
In addition, the display settings for the next periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized Service Point.
For more details, consult a MITSUBISHI
MOTORS Authorized Service Point.
1. Displays the time until the next periodic
inspection.
NOTEl The distance is shown in units of 100 km
(100 miles). The time is shown in units of months.
Multi information display
6-12OGGE14E5Instruments and controls6

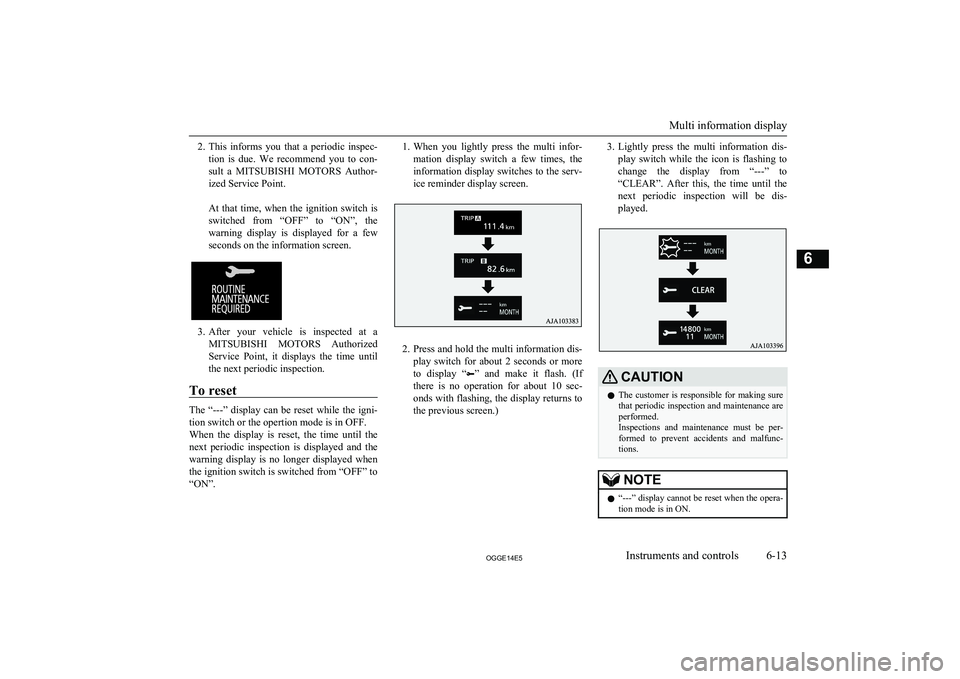

2.This informs you that a periodic inspec-
tion is due. We recommend you to con-
sult a MITSUBISHI MOTORS Author-
ized Service Point.

At that time, when the ignition switch is switched from “OFF” to “ON”, the
warning display is displayed for a few seconds on the information screen.
3. After your vehicle is inspected at a
MITSUBISHI MOTORS Authorized
Service Point, it displays the time until
the next periodic inspection.
To reset
The “---” display can be reset while the igni-
tion switch or the opertion mode is in OFF.
When the display is reset, the time until the
next periodic inspection is displayed and the warning display is no longer displayed when
the ignition switch is switched from “OFF” to
“ON”.
1. When you lightly press the multi infor-
mation display switch a few times, the information display switches to the serv-
ice reminder display screen.
2. Press and hold the multi information dis-
play switch for about 2 seconds or more to display “
” and make it flash. (If
there is no operation for about 10 sec- onds with flashing, the display returns tothe previous screen.)
3. Lightly press the multi information dis-
play switch while the icon is flashing to
change the display from “---” to
“CLEAR”. After this, the time until the
next periodic inspection will be dis- played.CAUTIONl The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections and maintenance must be per- formed to prevent accidents and malfunc- tions.NOTEl “---” display cannot be reset when the opera-
tion mode is in ON.
Multi information display
6-13OGGE14E5Instruments and controls6

NOTElWhen “---” is displayed, after a certain dis-
tance and a certain period of time, the dis-
play is reset and the time until the next peri- odic inspection is displayed.
l If you accidentally reset the display, we rec-
ommend you to consult a MITSUBISHI
MOTORS Authorized Service Point.System check screen
E00531001038
When the operation mode is put in ON, the
system check screen is displayed for about 4
seconds. If there is no fault, information screen (when the operation mode is ON) is
displayed.
If there is a fault, the screen changes to warn-
ing display.
Refer to “Warning display list” on page
6-24.
NOTEl The system check screen display varies de-
pending on the customer’s equipment.EV cruising range display/
Total cruising range display
E00537600026
This displays the approximate driving range
(how many more kilometres or miles you can
drive).
EV cruising range display (A)
This displays the distance that can be traveled
with the remaining power in the drive bat- tery.
Total cruising range display (B)
This displays the distance that can be traveled
with the remaining power in the drive battery and the remaining amount of fuel.
NOTEl The driving range may vary depending on
the driving conditions and habits. Treat the
distance displayed as just a rough guideline.NOTEl When the drive battery is charged or the ve-
hicle is refueled, the cruising range display is updated. However, if the charge level is
low or the refueling amount is small, it can-
not be updated correctly. Fully charge the
battery or refill to full tank whenever possi- ble.
l On rare occasions, the value displayed for
the driving range may change if you are
parked on an extremely steep incline. This is due to the movement of fuel in the tank and
does not indicate a malfunction.
l The display setting can be changed to the
preferred units (km or miles).
Refer to “Changing the function settings” on page 6-16.
l When the EV cruising range falls below ap-
proximately 1 km (1 mile), the EV cruising range display shows “---”.
l When the total cruising range falls below ap-
proximately 50 km (30 miles), the total cruising range display shows “---”.Average fuel consumption dis-
play
E00531201072
This displays the average fuel consumption from the last reset to the present time.
There are the following 2 mode settings.
Refer to “Changing the reset mode for aver-
age fuel consumption” on page 6-17.
Multi information display
6-14OGGE14E5Instruments and controls6

For information on how to change the aver-age fuel consumption display setting, refer to
“Changing the function settings” on page 6-16.NOTEl The average fuel consumption display can
be reset separately for the auto reset mode and for the manual reset mode.
l “---” is displayed when the average fuel con-
sumption cannot be measured or when it is
99.9 L/100 km (99.9 miles) or more.
l The initial (default) setting is “Auto reset
mode”.
l The average fuel consumption depends on
the driving condition (road condition, driv- ing behavior, etc.). The displayed fuel con- sumption may vary from the actual fuel con-
sumption. Treat the fuel consumption dis- played as just a rough guideline.
l The memory of the auto reset mode or man-
ual reset mode for the average fuel con- sumption display is erased if the auxiliarybattery is disconnected.NOTEl The display setting can be changed to the
preferred units {km/L, mpg (US), mpg (UK)
or L/100 km}.
Refer to “Changing the function settings” on page 6-16.EVHV driving rate display
E00537500025
This displays the ratios of the distance trav-
eled with electric power and the distance traveled with both electric power and engine
power.
The ratio of the distance traveled with elec- tric power is displayed with a bar graph (blue) and in a percentage.
Energy flow display
E00537400024
This displays the flow of energy.
A- Engine
B- Drive battery
C- Tyre
Blue arrow-Flow of electric energyAmber ar-
row-Flow of other energy
Multi information display
6-15OGGE14E5Instruments and controls6

Display of energy flow (exam-
ple)
When driving with electric energy
When driving with fuel (petrol) energy
When driving with both electric energy
and fuel (petrol) energy
When charging the drive battery
When there is no energy flow
ECO Score
E00531601050
ECO score indicates the points you have scored on fuel-efficient driving by the num-
ber of leaves as follows:

[When the operation mode is ON]
The display shows the score you achieved in the last several minutes.

[When the operation mode is put in OFF]
The display shows the overall ECO score the
function has counted from the time when the operation mode is set to “ON” to the time when it is set to “OFF”.Changing the function settings
E00522701879
The “Display language”, “Temperature unit”,
“Fuel consumption unit”, and “Average fuel
consumption and speed reset method” etc. setting can be modified as desired. 1. Stop the vehicle in a safe place. Firmly apply the parking brake, andpress the electrical parking switch andshift to “P” (PARK) position.
2. Lightly press the multi information dis-
play switch a few times to switch the in-
formation screen to the function setting screen.
Refer to “Information screen” on page
6-08.
Multi information display
6-16OGGE14E5Instruments and controls6 ECO drive levelLow High

CAUTIONlFor safety, stop the vehicle before operating.
While driving, even if you operate the multi information display switch, the function set- ting screen is not displayed.
3. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
NOTEl To return the menu screen to the function
setting screen, press and hold the multi in-formation display switch for about 2 seconds or more.
l If no operations are made within about 30
seconds of the menu screen being displayed, the display returns to the function setting
screen.
4. Select the item to change on the menu
screen and change to the desired setting. Refer to the following items for further
details on the operation methods.

Refer to “Changing the reset mode for
average fuel consumption” on page
6-17.
Refer to “Changing the fuel consump- tion display unit” on page 6-18.
Refer to “Changing the temperature
unit” on page 6-19.
Refer to “Changing the display lan- guage” on page 6-19.
Refer to “Changing the language cooper-
ative control” on page 6-20.
Refer to “Operating sound under charg-
ing or remote climate control” on page
2-05.
Refer to “Changing the time until “REST REMINDER” is displayed” on
page 6-21.
Refer to “Changing the turn-signal
sound” on page 6-21.
Refer to “Reset of low tyre pressure warning threshold” on page 7-67.
Refer to “Tyre ID set change” on page 7-68.
Refer to “Returning to the factory set-
tings” on page 6-21.NOTEl If the auxiliary battery is disconnected, these
function settings are reset from memory and
return automatically to the factory settings (except the low tyre pressure warning threshold and tyre ID set).Changing the reset mode for
average fuel consumption
E00522902054
The mode conditions for the average fuel consumption display can be switched be- tween “Auto reset” and “Manual reset”. 1. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set-
tings” on page 6-08.
Multi information display
6-17OGGE14E5Instruments and controls6

2.Lightly press the multi information dis-
play switch to select “AVG (average
fuel consumption)”.
3. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from A/1 (Auto reset mode) to M/2/P (Manual reset mode), or fromM/2/P to A/1.
The setting is changed to the selected
mode condition.
Manual reset mode
l When the average fuel consumption is
being displayed, if you hold down the multi-information meter switch, the
average fuel consumption displayed at that time is reset.
l When the operation mode is changed
from ACC or OFF to ON, the mode set- ting is automatically switched from man-
ual to auto.

Switching to auto occurs automatically.
If switching to manual mode is done, however, the data from the last reset is
displayed.
Auto reset mode
l When the average fuel consumption is
being displayed, if you hold down the multi-information meter switch, the
average fuel consumption displayed at that time is reset.
l When the operation mode is in ACC or
OFF for about 4 hours or longer, the average fuel consumption display is au-
tomatically reset.
NOTEl The average fuel consumption display can
be reset separately for the auto reset mode and for the manual reset mode.
l The memory of the auto reset mode or man-
ual reset mode for the average fuel con- sumption display is erased if the auxiliarybattery is disconnected.Changing the fuel consumption
display unit
E00523001778
The display unit for fuel consumption can be
switched. The distance and amount units are also switched to match the selected fuel con- sumption unit. 1. Press and hold the multi information dis-
play switch for about 2 seconds or moreto switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set-
tings” on page 6-16.
2. Lightly press the multi information dis-
play switch to select “AVG UNIT (fuel
consumption display setting)”.
3. Press and hold the multi information dis-
play switch for about 2 seconds or more to display “AVG UNIT”.
Multi information display
6-18OGGE14E5Instruments and controls6
