2014 MITSUBISHI LANCER SPORTBACK seats

Instruments and controls
Overview 1-2
1
N00100201390

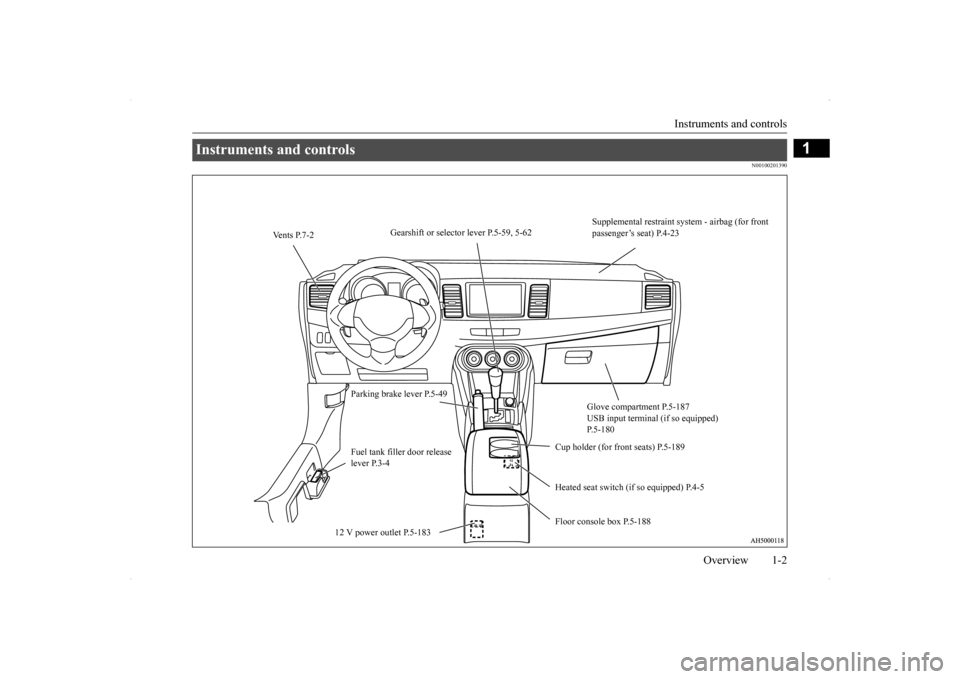

Instruments and controls
Supplemental restraint syst
em - airbag (for front
passenger’s seat) P.4-23
Gearshift or selector lever P.5-59, 5-62
Vents P.7-2
Parking brake lever P.5-49
Glove compartment P.5-187 USB input terminal (if so equipped) P.5-180
Cup holder (for front seats) P.5-189
Fuel tank filler door release lever P.3-4
Heated seat switch (if so equipped) P.4-5 Floor console box P.5-188
12 V power outlet P.5-183
BK0200700US.bo
ok 2 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Interior 1-5 Overview
1
N00100302268
Interior
Sunroof switch (if so equipped) P.5-46
Electric remote-controlled outside mirror switch P. 5 - 5 2
Dome light (Front)/Reading lights P.5-184, 9-35, 9-46
Window lock switch P.5-46
Power window switches P.5-44
Power door lock switch P.5-38
Bluetooth
® 2.0 interface microphone (if so equipped) P.5-158
Adjustable seat belt shoulde
r anchor (for front seats)
P.4-13 Seat belts P.4-9
Inside rearview mirror P.5-50 Sun visors P.5-182 Vanity mirror P.5-182 Card holder P.5-182
Rear shelf panel P.5-190
Bottle holder (for front seats) P.5-190 Front seats P.4-3
Supplemental restraint
system - side airbag
(for front seats) P.4-34
Head restraints (except for RECARO seat) P.4-6
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Interior
Overview 1-6
1
Supplemental restraint system
- curtain airbag P.4-34
Coat hook P.5-192
Dome light (Rear) (if so equipped) P.5-185, 9-35, 9-47
Assist grips P.5-192
Luggage compartment levers P. 4 - 9
Tether anchors for child restraint system P.4-18
Rear seats P.4-5
Cargo floor boxes (if so equipped) P.5-189
Cup holder (for rear seat) P.5-190
Dual height adjustable cargo floor board (if so equipped) P.5-191
Arm rest P.4-5
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

4
Seat and restraint systemsSeats ...........................................
.......................................................4-2
Seats and restraint syst
ems ...............................................................4-2
Front seats ........................
.................................................................4-3
Rear seats .........................
.................................................................4-5
Head restraints .................
.................................................................4-6
Extending a luggage comp
artment ..................................................4-8
Seat belts ..........................
.................................................................4-9
Seat belt use during preg
nancy .......................................................4-14
Seat belt pre-tensioner and fo
rce limiter systems ...........................4-14
Child restraint system
s............................................
........................4-15
Maintenance and inspection of seat belts .......................................4-22 Supplemental Restraint System (SRS) - airbag ..............................4-23
BK0200700US.bo
ok 1 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Seats 4-2 Seat and restraint systems
4
N00408400408
 To adjust the seat forward or backward

P.4-3 To adjust the seatback
 P.4-4
 To adjust the seat height (except for RECARO seat, driver’s side only)

P.4-4  Heated seats (if so equipped)
 P.4-5
 Arm rest
P.4-5
N00401600182
Your vehicle has seat belts and other features that help protect you and your passengers in an accident. Seat belts are the most important safetydevice. When worn properly, seat belts can reduce the chance of serious injury or death in various types of crashes. For added protec-tion during a severe frontal collision, your vehicle has a Supplemental Restraint System (SRS) with airbags for the driver and passen-gers. The seats, head restraints, and door
locks also are safety equipment, which must be used correctly. Always check the following before you drive: That everyone in your vehicle is properly wearing their seat belt.  That infants and small children are prop- erly secured in appropriate child restraint systems in the rear seat.  That all doors are full
y closed and locked.
 That seatbacks are upright, with head restraints properly adjusted.
Seats 1 - Front seats 2 - Rear seats
Seats and restraint systems
BK0200700US.bo
ok 2 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Front seats
Seat and restraint systems 4-3
4
Safety equipment cannot prevent injury or death in all motor vehicle accidents. You can help reduce the risk of injury or death, how- ever, by following the
instructions in this
manual.
N00401800328
Position the driver’s seat
as far back as possi-
ble while maintaining a position that stillenables you to fully apply the pedals, easily control the steering wheel and safely operate the vehicle.
N00401900257
Pull the seat adjusting lever up and slide theseat forward or backward to the desired posi- tion. Release the adjusting lever to lock the seat in place.
Front seats
WA R N I N G Do not attempt to adjust the seat while driving. This can cause loss of vehicle con-trol and result in an accident. After adjusting the seat, make sure that the seat is securely locked into position.
Except for RECARO seat
RECARO seat
 To reduce the risk to the driver of serious injury or death during deployment of the driver’s airbag, always properly wear the seat belt and adjust th
e driver’s seat as far
back as possible while maintaining a posi-tion that still enables
you to fully apply the
pedals, easily control the steering wheel, and safely operate the vehicle. To reduce the risk to the front passenger of serious injury or death during deploy-ment of the passenger’s airbag, always properly wear the seat belt and adjust the front passenger’s seat as far back as possi-ble. Always place children 12 years old and under in the rear seat and use appropriate child restraint systems.CAUTION Make sure that the seat is adjusted by an adult. If it is adjusted by a child, an unex-pected accident might occur. Do not place a cushion or the like between your back and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of an accident. When sliding the seats, be careful not to catch your hand or leg. When sliding or reclining the seat rearward, pay careful attention to the rear seat passen- gers.WA R N I N G
To adjust the seat forward or backward
WA R N I N G To make sure that the seat is securely locked, try to move it forward or back- ward without using the adjusting lever. Except for RECARO seat RECARO seat
BK0200700US.bo
ok 3 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Front seats 4-4 Seat and restraint systems
4
N00402000343
To adjust the seatback,
lean forward slightly,
gently pull the seatb
ack lock lever up, then
lean backward to a comfortable position and release the lever. The seatback will lock in place.
Adjust the seatback angle by turning the dial.
N00402100201
Operate the lever repeatedly to raise or lower the seat.
To adjust the seatback Except for RECARO seat
CAUTION The reclining mechanism used in the seat- back is spring loaded, and will cause the seatback to return quickly to the vertical position when the lock lever is operated. When pulling the lever, sit close to the seat- back or hold the seatback with your hand to control its return motion.
RECARO seat 1- To move to forward direction 2- To recline backwardç
WA R N I N G To reduce the risk of serious injury or death in the event of an accident or sud- den stop, all seatbacks should be kept in the upright position while the vehicle is in motion.Seat belt performance during an accident can be adversely affected if the seatbacks are reclined. The more a seatback isreclined, the more likely seat belt perfor- mance will be adversely affected. If the seat belt is not properly positioned againstthe body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.
To adjust the seat height (except for RECARO seat, driver’s side only)
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Rear seats
Seat and restraint systems 4-5
4
N00435600349
The heated seats can be operated when the ignition switch is in the “ON” position.
The indicator light (A) will illuminate while the heater is on.
N00402500162 N00403000265
Tilt the arm rest down for use as shown. The arm rest includes a cup holder. (Refer to“Cup holder” on page 5-189.)
1- Raise 2- Lower Heated seats
(if so equipped)
1 (HI) - Heater high (for quick heating) 2 - Heater off
3 (LO) - Heater low (to keep the seat warm)
WA R N I N G Persons who are unable to feel tempera- ture change or skin pain due to age, ill- ness, injury, medication, alcohol use,fatigue or other physical conditions or who have sensitive skin may suffer burns when using the heated seat even at lowtemperatures. To reduce the risk of burns, people with such conditions must use care when using the heated seat.CAUTION Switch off the seat heaters when not in use. Operate the heaters at the “HI” position for quick heating. After the seat has becomewarm, set the heater switch to the “LO” posi- tion to keep it warm. Slight variations in the seat temperature may be felt while using theheated seats. This is caused by the operation of the heater’s internal thermostat and does not indicate a malfunction. Do not place heavy objects on the seat or stick pins, needles, or other pointed objects into the seat. Do not place a blanket,
cushion, or other
insulating material on the seat while using the heater; doing so can cause the heater ele-ment to overheat.
 When cleaning the seat, do not use benzine, kerosene, gasoline, alcohol, or other organic solvents; doing so can cause damage not only to the surface of the seat, but also to the heater. If water or any other
liquid is spilled on the
seat, allow it to dry thoroughly beforeattempting to use the heater. Turn the heater off immediately if it appears to be malfunc- tioning during use.
Rear seats Arm rest
CAUTION
