Theft-alarm system 5-42 Features and controls
5
N00510301196
Park the vehicle and stop the engine. Arm the system as described below. 1. Turn the ignition switch to the “LOCK” position. Also, if a key was used to start the engine, remove the key from the ignition switch.2. Make sure that the engine hood is closed.
3. Lock all doors and the rear hatch by using the keyless entry system or the F.A.S.T.- key operation. At this time, the theft-alarm indicator (A) on the audio panel flashes for confirma- tion.
4. The system has entered the armed stage after about 20 seconds, when the theft- alarm indicator (A) flashing becomes slower.The theft-alarm indicator (A) continues to flash while the system is in the armed stage.
CAUTION Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage

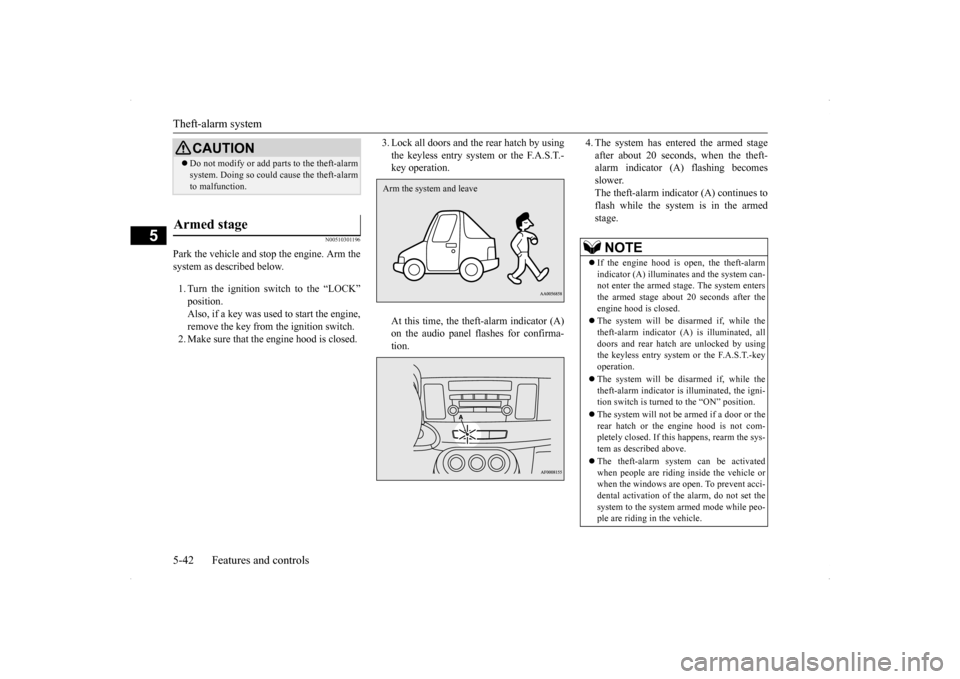

Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can-not enter the armed stage. The system enters the armed stage about 20 seconds after the engine hood is closed.  The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, alldoors and rear hatch are unlocked by using the keyless entry system or the F.A.S.T.-key operation.  The system will be disarmed if, while the theft-alarm indicator is illuminated, the igni-tion switch is turned to the “ON” position.  The system will not be
armed if a door or the
rear hatch or the engine hood is not com- pletely closed. If this happens, rearm the sys- tem as described above.  The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent acci- dental activation of the alarm, do not set thesystem to the system armed mode while peo- ple are riding in the vehicle.
BK0200700US.bo
ok 42 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Theft-alarm system
Features and controls 5-43
5
N00510401201
The alarm will be activated if any of the fol- lowing occur while the vehicle is parked andthe system is armed.  One of the doors and the rear hatch is opened without using the keyless entry system or the F.A.S.T.-key operation. The engine hood is opened.

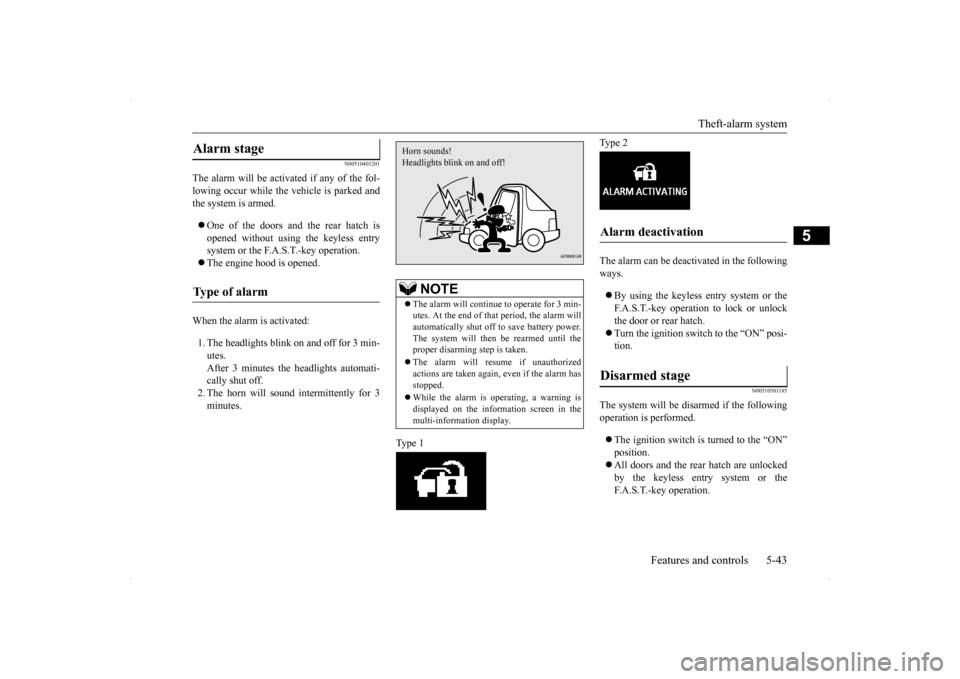

When the alarm is activated: 1. The headlights blink on and off for 3 min- utes.After 3 minutes the headlights automati- cally shut off. 2. The horn will sound intermittently for 3minutes.
Type 1
Type 2 The alarm can be deactivated in the following ways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the door or rear hatch. Turn the ignition switch to the “ON” posi- tion.
N00510501185
The system will be disarmed if the followingoperation is performed.  The ignition switch is turned to the “ON” position. All doors and the rear hatch are unlocked by the keyless entry system or the F.A.S.T.-key operation.
Alarm stage Type of alarm
NOTE
 The alarm will continue to operate for 3 min- utes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then
be rearmed until the
proper disarming step is taken.  The alarm will resume if unauthorized actions are taken again, even if the alarm has stopped.  While the alarm is operating, a warning is displayed on the information screen in the multi-information display.Horn sounds! Headlights blink on and off!
Alarm deactivation Disarmed stage
BK0200700US.bo
ok 43 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Continuously variable transmission (CVT) (if so equipped)
Features and controls 5-65
5
N00514000240
Type 1
or
Type 2
or
When the warning display or the warn- ing display appears on the information screen in the multi-information display while youare driving, there could be a malfunction in the CVT.
N00514200372
This position locks the transmission to pre- vent the vehicle from moving. The engine canbe started from the “PARK” position. Move the lever to this position only after the vehicle has come to a complete stop.
Warning display

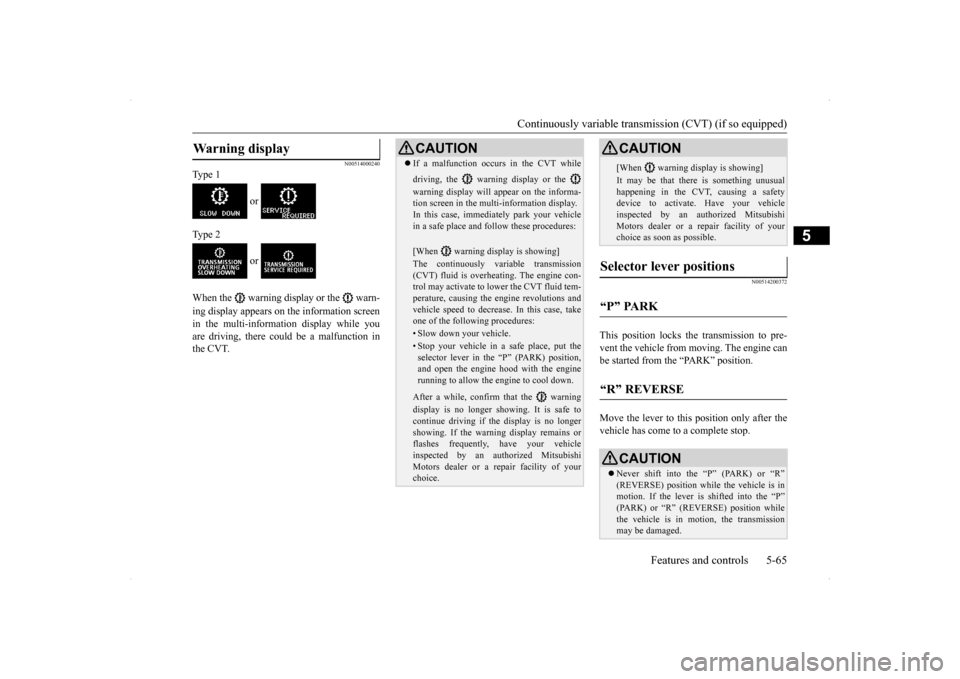

CAUTION If a malfunction occurs in the CVT while driving, the warning display or the warning display will appear on the informa- tion screen in the multi-information display. In this case, immediately park your vehicle in a safe place and follow these procedures: [When warning display is showing] The continuously variable transmission (CVT) fluid is overheating. The engine con- trol may activate to lower the CVT fluid tem-perature, causing the engine revolutions and vehicle speed to decrease. In this case, take one of the following procedures:• Slow down your vehicle.• Stop your vehicle in a safe place, put the selector lever in the “P” (PARK) position, and open the engine hood with the enginerunning to allow the engine to cool down.After a while, confirm that the warning display is no longer showing. It is safe to continue driving if the display is no longer showing. If the warning display remains or flashes frequently, have your vehicleinspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
[When warning display is showing] It may be that there is something unusual happening in the CVT, causing a safety device to activate. Have your vehicleinspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
Selector lever positions

“P” PARK

“R” REVERSE

CAUTION Never shift into the “P” (PARK) or “R” (REVERSE) position while the vehicle is in motion. If the lever is shifted into the “P”(PARK) or “R” (REVERSE) position while the vehicle is in motion, the transmission may be damaged. CAUTION
BK0200700US.bo
ok 65 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Twin Clutch SST (Sportronic Shif
t Transmission) (if so equipped) Features and controls 5-73
5
N00540000049
or

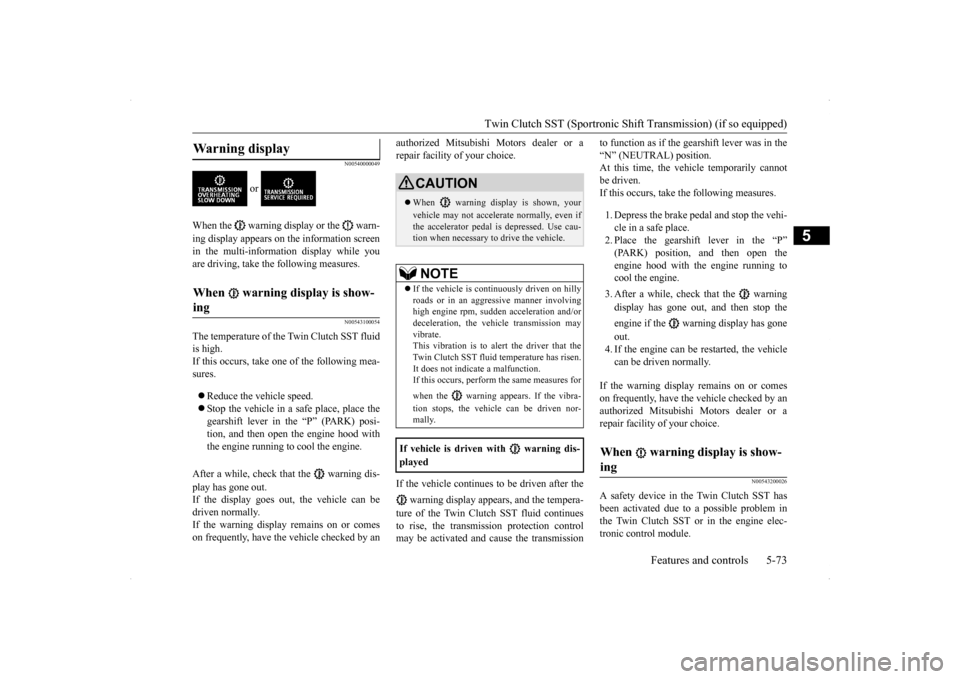

When the warning display or the warn- ing display appears on the information screen in the multi-information display while you are driving, take the following measures.
N00543100054
The temperature of the Twin Clutch SST fluid is high. If this occurs, take one of the following mea- sures.  Reduce the vehicle speed.  Stop the vehicle in a safe place, place the gearshift lever in the “P” (PARK) posi- tion, and then open the engine hood with the engine running to cool the engine.
After a while, check that the warning dis- play has gone out. If the display goes out, the vehicle can be driven normally.If the warning display remains on or comeson frequently, have the vehicle checked by an
authorized Mitsubishi Motors dealer or a repair facility of your choice. If the vehicle continues to be driven after the warning display appears, and the tempera- ture of the Twin Clutch SST fluid continues to rise, the transmission protection control may be activated and cause the transmission
to function as if the gearshift lever was in the “N” (NEUTRAL) position. At this time, the vehicle temporarily cannot be driven.If this occurs, take the following measures. 1. Depress the brake pedal and stop the vehi- cle in a safe place. 2. Place the gearshift lever in the “P”(PARK) position, and then open the engine hood with the engine running to cool the engine. 3. After a while, check that the warning display has gone out, and then stop the engine if the warning display has gone out. 4. If the engine can be restarted, the vehiclecan be driven normally.
If the warning display remains on or comes on frequently, have the vehicle checked by an authorized Mitsubishi Motors dealer or arepair facility of your choice.
N00543200026
A safety device in the Twin Clutch SST hasbeen activated due to a possible problem inthe Twin Clutch SST or in the engine elec- tronic control module.
Warning display

When warning display is show- ing

CAUTION  When warning display is shown, your vehicle may not accelerate normally, even if the accelerator pedal is depressed. Use cau- tion when necessary to drive the vehicle.NOTE
 If the vehicle is continuously driven on hilly roads or in an aggressive manner involving high engine rpm, sudden acceleration and/ordeceleration, the vehicle transmission may vibrate. This vibration is to al
ert the driver that the
Twin Clutch SST fluid temperature has risen. It does not indicate a malfunction. If this occurs, perform the same measures for when the warning appears. If the vibra- tion stops, the vehicle can be driven nor- mally.
If vehicle is driven with warning dis- played
When warning display is show- ing

BK0200700US.bo
ok 73 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Indicator light, warning light, an
d information screen display list Features and controls 5-137
5
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The continuously variable transmission (CVT) fluid or Twin Clutch SST fluid tem-perature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmis- sion (CVT)” on page 5-61. Refer to “Twin Clutch SST” on page 5-70.
 The seat belt is not fastened when the igni- tion switch is in
the “ON” position.
 Fasten your seat belt properly. Refer to “Driver’s seat belt reminder/warn- ing light and display” on page 4-12.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the park- ing brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-143.
Screen type 1
Screen type 2

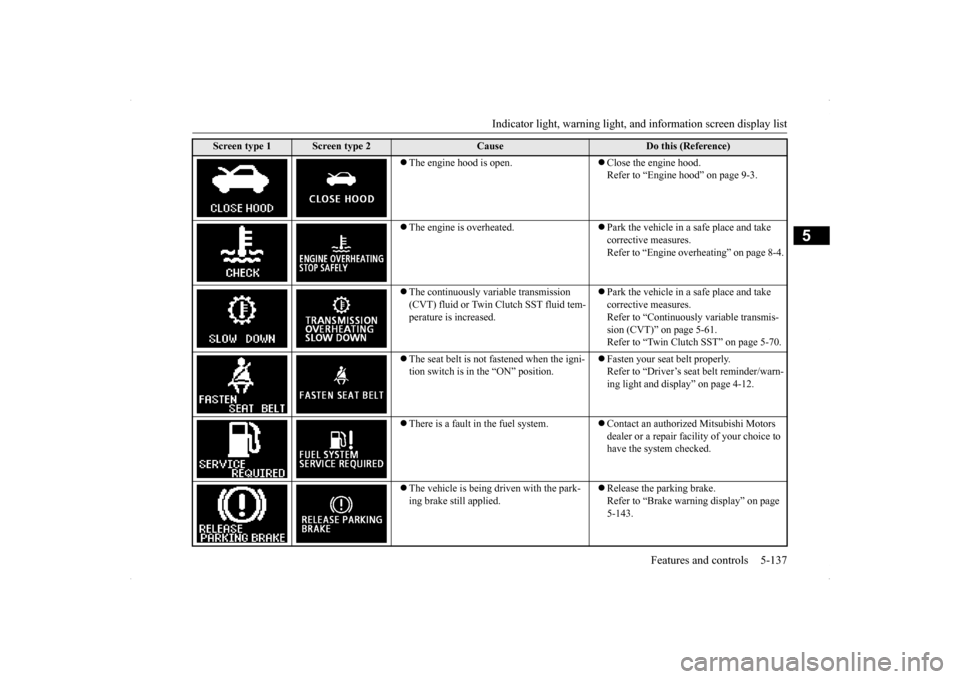

Cause
Do this (Reference)
BK0200700US.book
137 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Tools and jack
For emergencies 8-5
8
5. If you do not see steam or spray coming from under the hood, leave the engine on until the bar graph for the engine coolant temperature warning display on the multi-information display goes down. When it is in the middle of the normal zone, you can start driving again. If the bar graphstays in the red zone, turn off the engine. 6. When you do not see any more steam or spray, open the hood. Look for obvious leaks, such as a split radiator hose. Be careful as components will be hot. Anyleak source must be repaired. 7. If there is no obvious leak source, check the coolant level in the reserve tank. Ifthere is none, or if it is too low, slowly add coolant.
8. If the reserve tank needs coolant, you will probably also need to add coolant to the radiator. Do not loosen or remove the radiator cap until the engine has cooleddown. 9. Start the engine, and slowly add coolant, up to the bottom of the filler neck. Useplain water if you have to (and replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it
fully. Check the engine coolant tempera- ture display on the multi-information dis- play. You can start driving again when thebar graph for the engine coolant tempera- ture display returns to the normal zone.
11. Have your vehicle checked by your autho-
rized Mitsubishi Motors dealer or a repair facility of your choice.
N00836600324
The tools and jack are stowed in the luggage compartment.
WA R N I N G Before raising the engine hood, check to see if there is steam or spray coming fromunder the hood. Steam or spray coming from an overheated engine could seriously scald you.Do not open the hood until there is no steam or spray.
WA R N I N G Removing the radiator cap could scald you with escaping hot water or steam.When checking the radiator level, cover the cap with a cloth before trying to remove it. Turn it slowly counterclock-wise, without pressing down, to the first notch. The pressure in the system will then be let out. When the pressure is COM-PLETELY LET OUT, press down and keep turning the cap counterclockwise until it will come off.

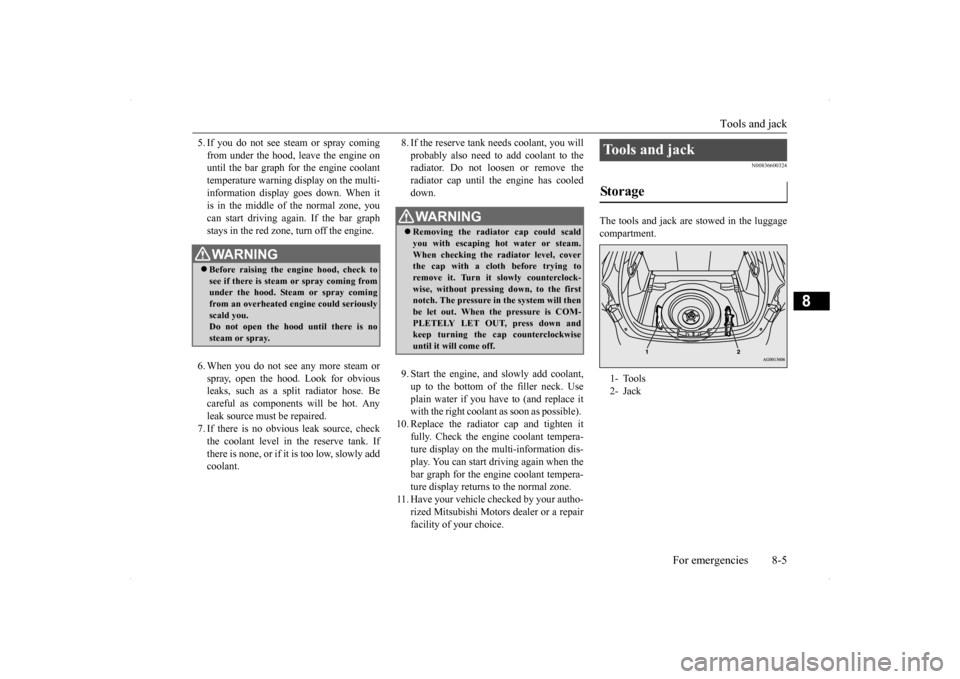

Tools and jack Storage 1- Tools 2- Jack
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine hood
Vehicle care and maintenance 9-3
9
To reduce the possibility of catalytic con- verter damage:  Use UNLEADED GASOLINE ONLY of the type of recommended in “Fuel selec- tion”.  Do not drive with an extremely low fuel level. Running out of gas could damage the catalytic converter.  Do not try to start the engine by pushing or towing the vehicle. If the battery is weak or run down, use jumper cables to properly start the engine.
 Do not idle the engine with any spark plug wires disconnected or removed, such as when performing diagnostic tests.  Do not idle the engine for a long time if it is idling roughly or otherwise obviously malfunctioning.  To prevent the catalytic converter from being damaged from unburned gas, do not race the engine when turning off the igni- tion switch.  Stop driving the vehicle if you think the performance is noticeably low, or the engine has a malfunction. If you are not able to stop driving immediately, slowdown and drive for only a short time. Have an inspection made by an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice as soon as possible.  In unusual situations involving major engine problems, a burning odor mayindicate severe and abnormal catalytic converter overheating. If this occurs, stop in a safe place, shut the engine off and letthe vehicle cool. Once the engine is cool, immediately take your vehicle to an authorized Mitsubishi Motors dealer or arepair facility of your choice for service.
N00937500523
Use the engine hood release lever (locatedunder the instrument panel near the driver’sdoor) to unlock the engine hood.
CAUTION Damage to the catalytic converter can result if your vehicle is not kept in proper operating condition. If the engine malfunctions or mis- fires, or if your vehicle performance suffers, have it serviced promptly. Running yourvehicle when it is overheated may result in damage to the converter and vehicle.WA R N I N G Do not park or run your vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust, since a fire could occur. Do not put undercoat paint on the cata- lytic converter.
Engine hood
CAUTION For vehicles equipped with turbocharger, to avoid the risk of being burned, do not touch the air outlets (A) and air scoop (B) on the engine hood when the engine compartment ishot (when the engine is running or immedi- ately after the vehicle has been driven).
To open
BK0200700US.bo
ok 3 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine hood 9-4 Vehicle care and maintenance
9

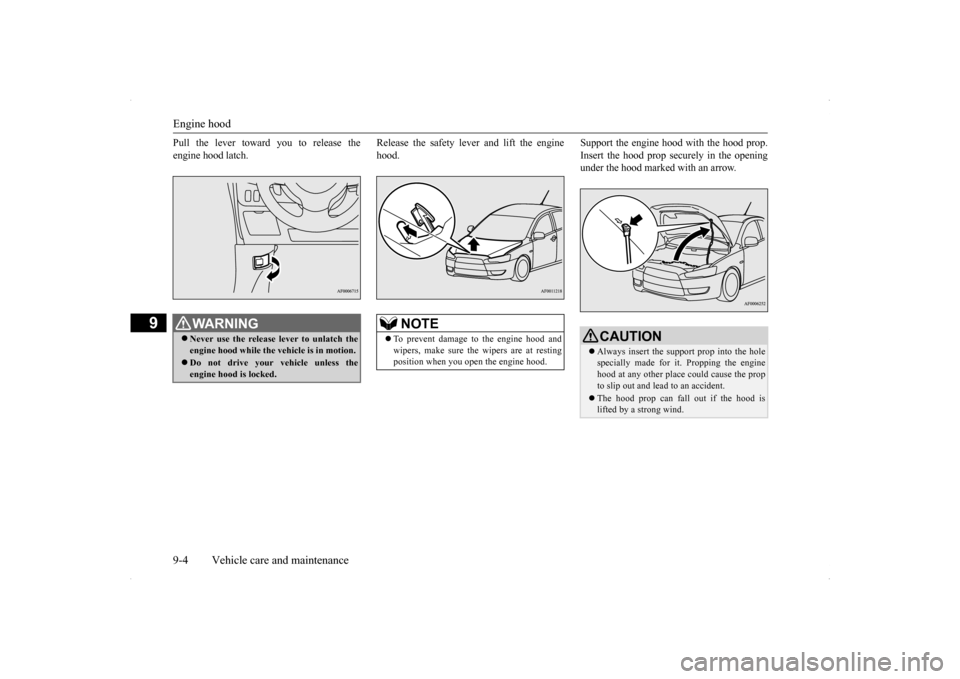

Pull the lever toward you to release the engine hood latch.
Release the safety lever and lift the engine hood.
Support the engine hood with the hood prop. Insert the hood prop securely in the opening under the hood marked with an arrow.
WA R N I N G Never use the release lever to unlatch the engine hood while the vehicle is in motion.  Do not drive your vehicle unless the engine hood is locked.
NOTE
 To prevent damage to the engine hood and wipers, make sure the wipers are at restingposition when you open the engine hood.
CAUTION Always insert the support prop into the hole specially made for it. Propping the engine hood at any other place could cause the propto slip out and lead to an accident.  The hood prop can fall out if the hood is lifted by a strong wind.
BK0200700US.bo
