2014 MERCEDES-BENZ GL-Class Owner's Manual

Dashboard
........................................... 32
Instrument cluster ..............................33
Multifunction steering wheel .............35
Center console .................................... 36
Overhead control panel ......................39
Door control panel .............................. 40 31At a glance

Dashboard
Function Page
:
Steering wheel paddle
shifters
177
;
Combination switch 131
=
Instrument cluster 33
?
Horn
A
DIRECT SELECT lever 173
B
PARKTRONIC warning
display
222
C
Overhead control panel 39
D
Climate control systems 146
E
Ignition lock 167
Start/Stop button
167 Function Page
F
Adjusts the steering wheel
manually
119
G
Adjusts the steering wheel
electrically
119
Steering wheel heating 120
H
Cruise control lever 201
I
Opens the hood 370
J
Diagnostics connection 27
K
Electric parking brake 189
L
Light switch 128
M
Night View Assist Plus 24132
Dashboa
rdAt a glance

Instrument cluster
Displays and controls
Function Page
:
Speedometer with
segments
273
;
Fuel gauge
=
Tachometer
273 Function Page
?
Coolant temperature 272
A
Multifunction display 274
B
Instrument cluster lighting 272Instrument cluster
33At a glance

Warning and indicator lamps
Function Page
:
L
Low-beam
headlamps 129
;
T
Parking lamps 130
=
÷
ESP® 329
?
K
High-beam
headlamps 132
A
Electric parking brake (red) 332
F
(USA only) !
(Canada only) B
!
Electric parking brake
(yellow) 332
C
·
Distance warning 336
D
#!
Turn signals 131
E
h
Tire pressure monitor 337 Function Page
F
6
SRS 332
G
ü
Seat belt 324
H
%
Diesel engine:
preglow 169
I
?
Coolant 334
J
R
Rear fog lamp 130
K
;
Check Engine 333
L
8
Reserve fuel M
å
ESP®
OFF 329
N
!
ABS 327
O
Brakes: 326
$
(USA only) J
(Canada only) 34
Instrument clusterAt a glance

Multifunction steering wheel
Function Page
:
Multifunction display 274
;
COMAND display; see the
separate operating
instructions
=
?
Switches on the Voice
Control System; see the
separate operating
instructions ?
~
Rejects or ends a call 279
Exits phone book/redial
memory
6
Makes or accepts a call
Switches to the redial
memory
WX
Adjusts the volume
8
Mute Function Page
A
=;
Selects a menu 273
9:
Selects a submenu or
scrolls through lists
273
a
To confirm your selection 273
Hiding display messages 290
B
%
Back 273
Switches off the Voice
Control System; see the
separate operating
instructionsMultifunction steering wheel
35At a glance

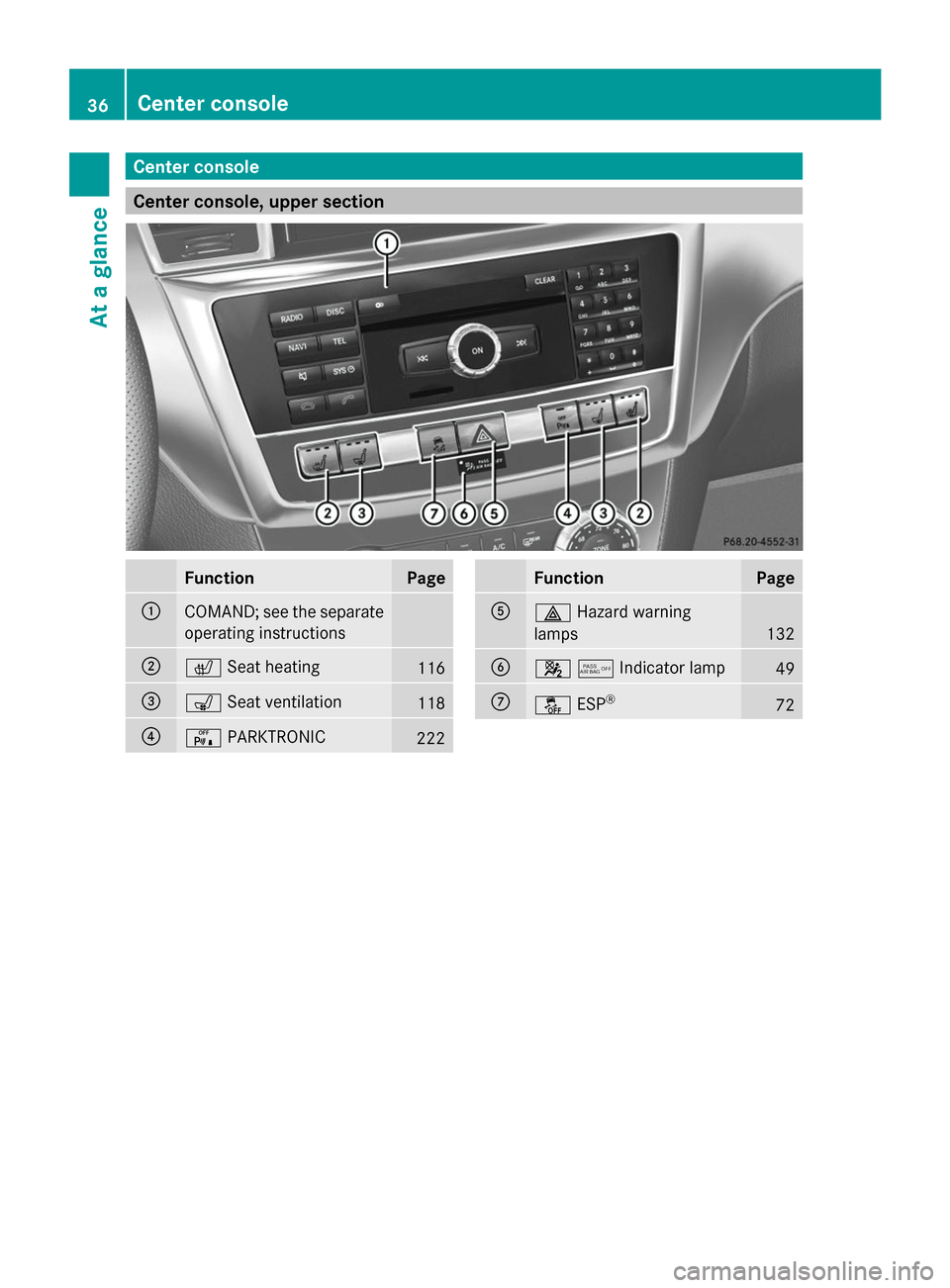

Center console
Center console, upper section
Function Page
:
COMAND; see the separate
operating instructions
;
c
Seat heating 116
=
s
Seat ventilation 118
?
c
PARKTRONIC 222 Function Page
A
£
Hazard warning
lamps 132
B
45Indicator lamp
49
C
å
ESP® 7236
Center consoleAt a glance

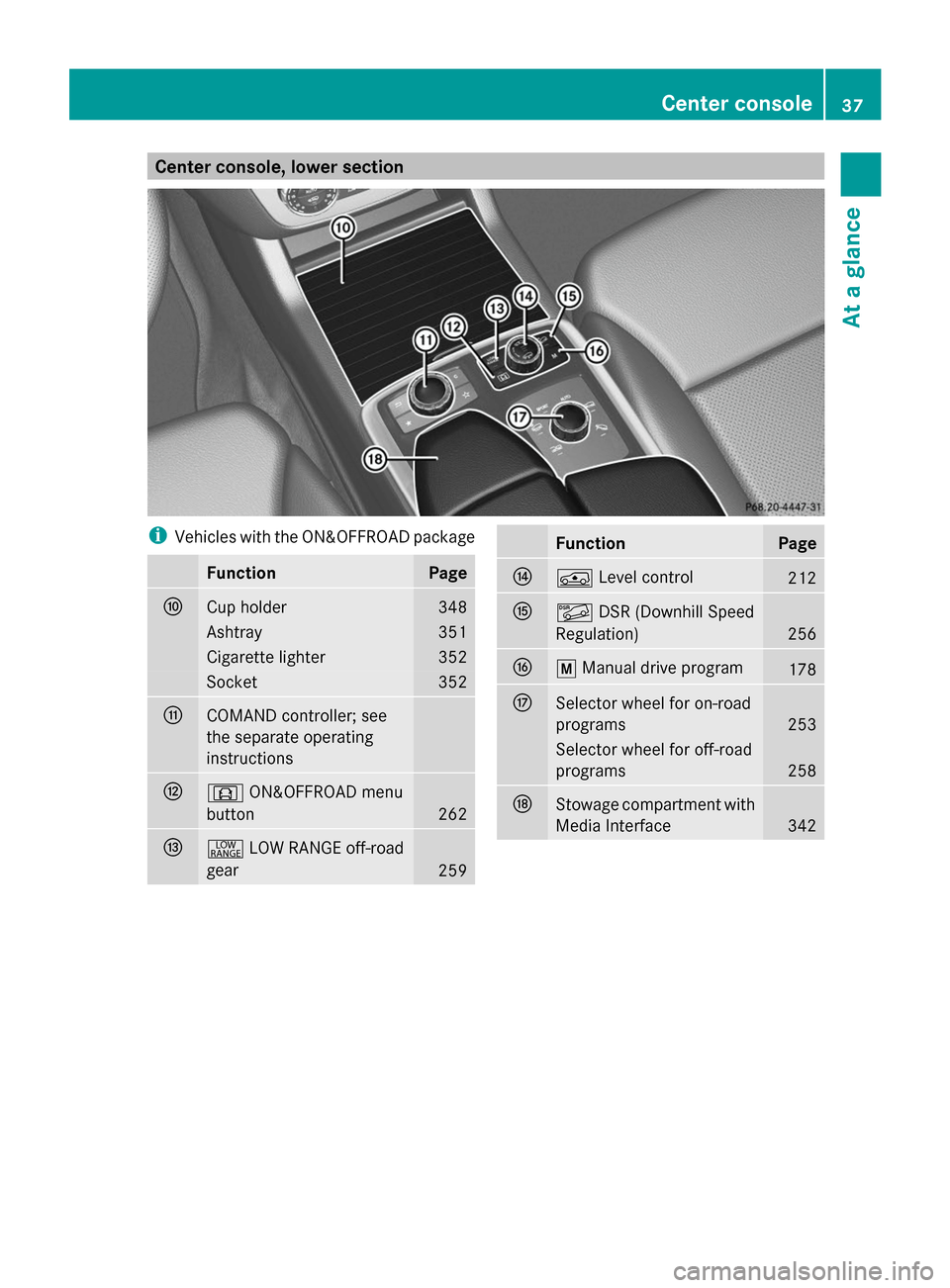

Center console, lower section
i
Vehicles with the ON&OFFROAD package Function Page
F
Cup holder 348
Ashtray 351
Cigarette lighter 352
Socket 352
G
COMAND controller; see
the separate operating
instructions
H
d
ON&OFFROAD menu
button 262
I
+
LOW RANGE off-road
gear 259 Function Page
J
Á
Level control 212
K
Ã
DSR (Downhill Speed
Regulation) 256
L
p
Manual drive program 178
M
Selector wheel for on-road
programs
253
Selector wheel for off-road
programs
258
N
Stowage compartment with
Media Interface
342Center console
37At a glance

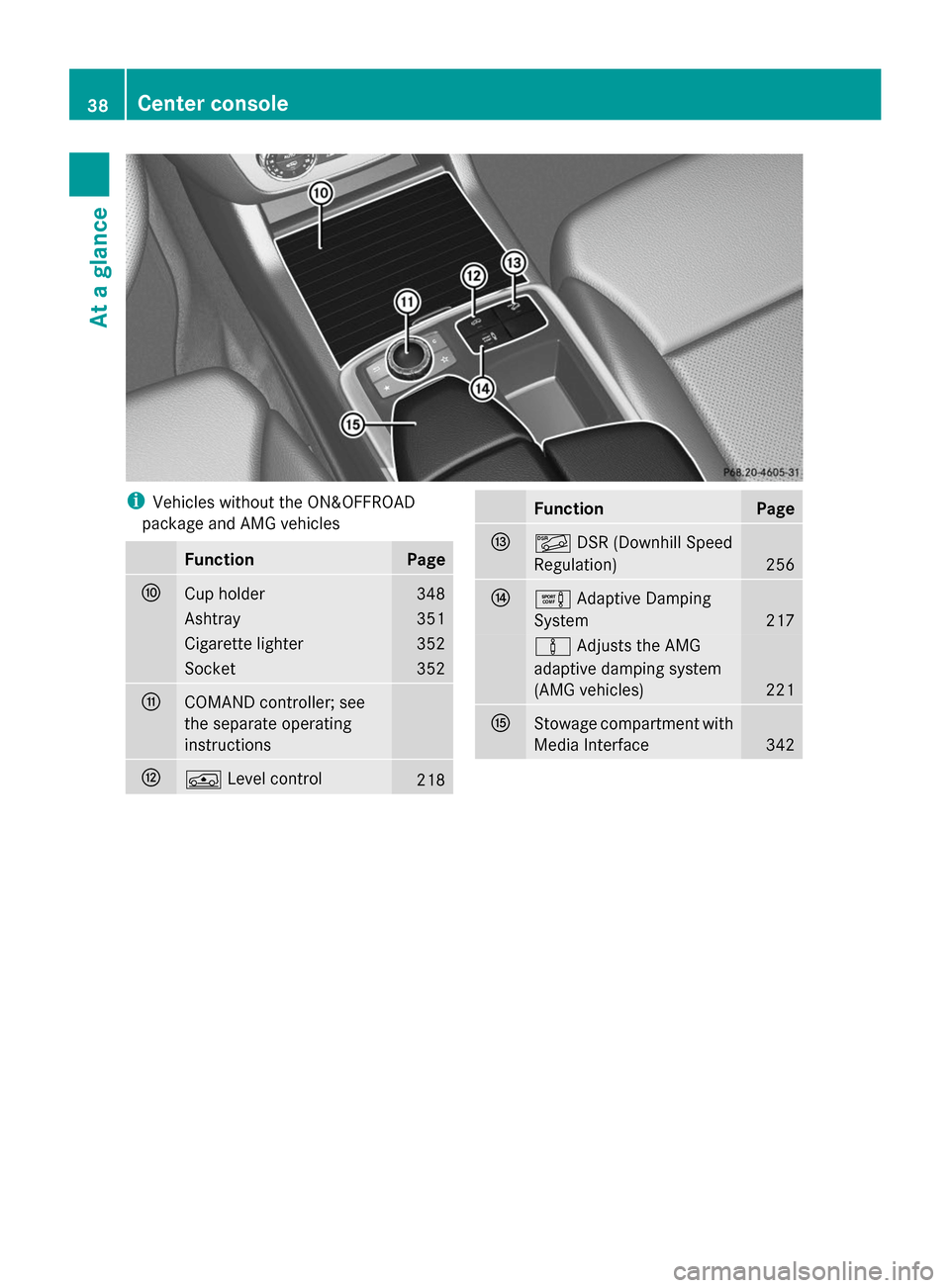

i
Vehicles without the ON&OFFROAD
package and AMG vehicles Function Page
F
Cup holder 348
Ashtray 351
Cigarette lighter 352
Socket 352
G
COMAND controller; see
the separate operating
instructions
H
Á
Level control 218 Function Page
I
Ã
DSR (Downhill Speed
Regulation) 256
J
e
Adaptive Damping
System 217
à
Adjusts the AMG
adaptive damping system
(AMG vehicles) 221
K
Stowage compartment with
Media Interface
34238
Center consoleAt a glance
