2014 MERCEDES-BENZ E400 HYBRID warning

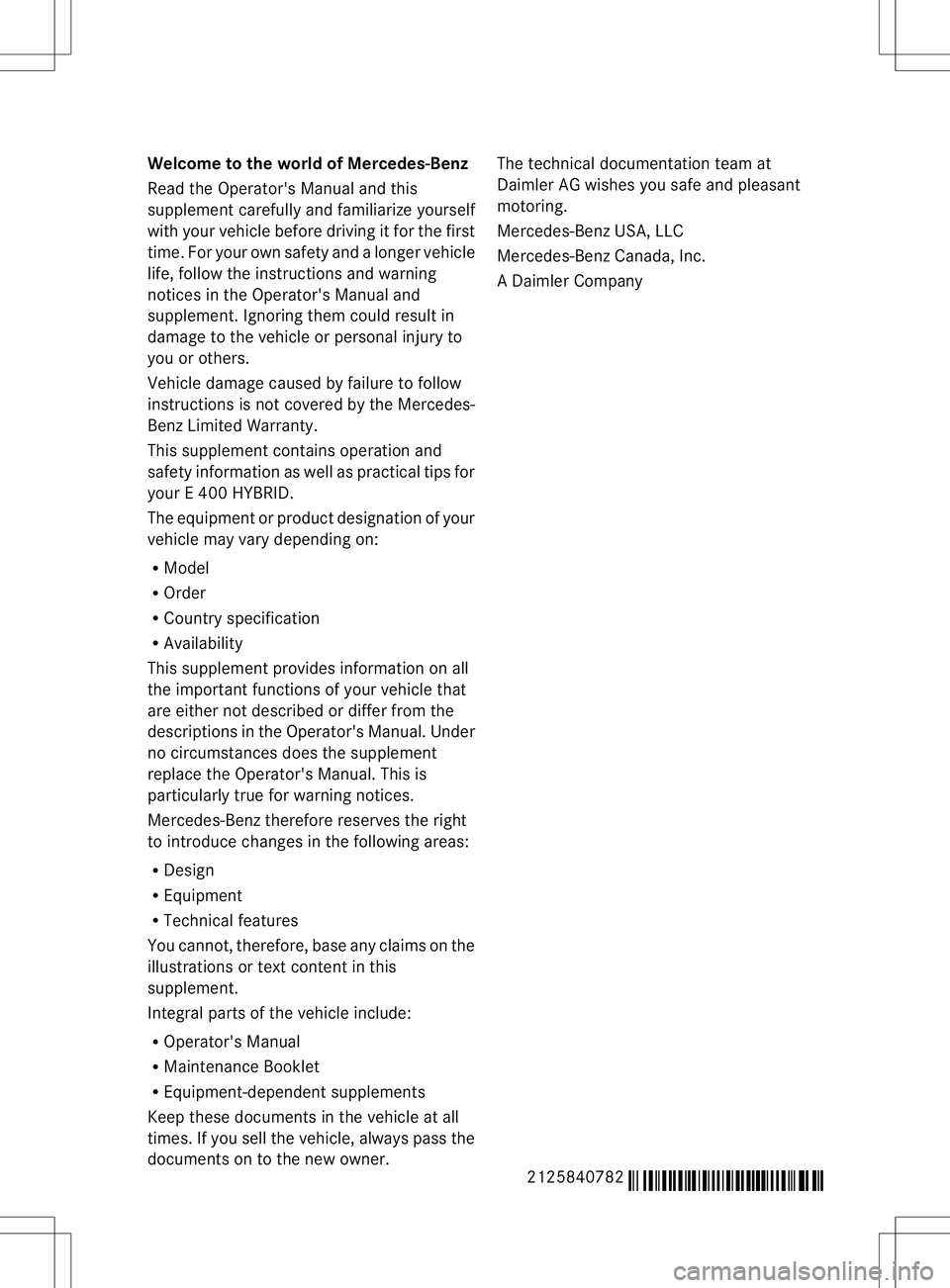

Welcome to the world of Mercedes-Benz
Read the Operator's Manual and this
supplement carefully and familiarize yourself
with yourv ehicle before driving it for the first
time. For your own safety and a longer vehicle
life, follow the instructions and warning
notices in the Operator's Manual and
supplement .Ignoring them could result in
damage to the vehicle or personal injury to
you or others.
Vehicle damage caused by failure to follow
instructions is not covered by the Mercedes-
Benz Limited Warranty.
This supplement contains operation and
safety information as well as practical tips for
your E 400 HYBRID.
The equipment or product designation of your
vehicle may vary depending on:
R Model
R Order
R Country specification
R Availability
This supplement provides information on all
the important functions of your vehicle that
are either not described or differ from the
descriptions in the Operator's Manual. Under
no circumstances does the supplement
replace the Operator's Manual. This is
particularly true for warning notices.
Mercedes-Benz therefore reserves the right
to introduce changes in the following areas:
R Design
R Equipment
R Technical features
You cannot, therefore, base any claims on the
illustrations or text content in this
supplement.
Integral parts of the vehicle include:
R Operator's Manual
R Maintenance Booklet
R Equipment-dependent supplements
Keep these documents in the vehicle at all
times. If you sell the vehicle, always pass the
documents on to the new owner. The technical documentation team at
Daimler AG wishes you safe and pleasant
motoring.
Mercedes-Benz USA, LLC
Mercedes-Benz Canada, Inc.
AD
aimler Company
2125840782 É2125840782}ËÍ

A
ABS (Anti-lock Braking System) Function/notes ................................ 15
Anti-lock Brake System
see ABS
Authorized Mercedes-Benz Center
see Qualified specialist workshop
Automatic climate control ..................18
Automatic engine start (ECO start/
stop function) ...................................... 23
Automatic engine switch-off (ECO
start/stop function) ............................22
Automatic transmission Progra mselecto rbutton .................. 21 B
Battery Charging .......................................... 38
High-voltage battery charg elevel
(COMAND )....................................... 29
Jump-starting ................................... 39
Notes ............................................... 38
see High-voltag ebattery
Battery (vehicle)
Display message .............................. 33
Brakes
Warning lamp ................................... 34
Brake system
see RBS C
Climate control Refrigerant ....................................... 46
Refrigerant filling capacity ...............47
COMAND
Fuel consumption ............................ 31
Generated electricity .......................31
High-voltage battery charg elevel .... 29
Overview .......................................... 28
Consumption statistics
(COMAND)
see Fuel consumption
Cruise control ...................................... 16 D
Data see Technical data
Display messages
Calling up (on-board computer) .......32
General notes .................................. 31
Hiding (on-board computer) .............31
DISTRONIC PLUS
Function/notes ................................ 16
Driving safety systems
see ABS
see RBS
Driving systems
Cruise control .................................. 16
DISTRONI CPLUS ............................. 16
Driving tips
Brakes ............................................. 26
General ............................................ 25
Points to remember .........................20 E
ECO start/stop function .....................22
Electric motor Power displa y.................................. 28
Electric motor power display .............28
Engine see Internal combustion engine
Engine oil ............................................. 46
ESP ®
(Electronic Stability
Program) Warning lamp ................................... 35
Exhaustive discharging (high-
voltage battery) ................................... 38
Extended overrun mode .....................23 G
Generated electricity (COMAND) .......31
Gliding see Extended overru nmode
see Overrun mode 4
Index

H
High voltage see Safety notes
High-voltage battery
Charge level (COMAND) ................... 29
Charging .......................................... 38
Charging (on-board computer) .........29
Exhaustive discharging ....................38
General safety notes ........................15
High-voltage battery charge level
(COMAND) ............................................ 29
Hybrid system Deactivated automatically ...............15
Overview .......................................... 10
READY indicator ............................... 21 I
Indicator COMAND displa y............................. 29
High-voltage battery charg elevel
(COMAND )....................................... 29
Multifunctio ndisplay ....................... 29
Indicator lamps
see Warning and indicator lamps
Instrument cluster
Overview .......................................... 11
Power displa y.................................. 28
Internal combustion engine
Malfunction ...................................... 24
Starting ............................................ 21J
Jump-starting ....................................... 39L
Lamps see Warning and indicator lamps M
Message memory (on-board
computer) ............................................ 32
Messages see Warning and indicator lamps
Modifications to the vehicle ................. 7 O
On-board computer Message memory ............................ 32
Overview .......................................... 28
Operating mode
Boost function ................................. 26
Extended overru nmode ................... 23
Overru nmode .................................. 23
Stationary vehicle ............................ 26
Operating safety .................................... 7
Overrun mode ...................................... 23 P
Parking ................................................. 25
Program selector button ....................21
Protection of the environment ............. 7
Pulling away ......................................... 22 Q
Qualified specialist workshop .............. 7 R
RBS (Recuperative Brake System) Function/notes ................................ 15
Malfunction ...................................... 24
Warning lamp ................................... 34
READY indicator .................................. 21
Recharging statistics (COMAND) see Generated electricity
Refrigerant (air-conditioning
system)
Important safety notes ....................46
Risk of fire
see Safety notes
Roof load (maximum) ..........................47 S
Safety see Operating safety
Safety notes ......................................... 14
Service products Refrigerant (air-conditioning
system) ............................................ 46
Specialist workshop .............................. 7 Index
5

SRS (Supplemental Restraint
System)
Warning lamp ................................... 25
Start/stop function
see ECO start/stop function
Starting
see Internal combustion engine, starting
Stationary vehicle ............................... 26
Stop-start traffic .................................. 22
Submenu COMAND displa y............................. 28
Multifunctio ndisplay ....................... 28
Resetting values (COMAND) ............31
Switching off the engine
see ECO start/stop function T
Tailgate Opening dimensions ........................47
Technical data
Information ...................................... 46
Vehicle data ..................................... 47
Tires ...................................................... 43
Towing .................................................. 39
Trunk lid Opening dimensions ........................47
Trunk load (maximum) ........................47 V
Vehicle Correct use ........................................ 8
Parking for a long period .................. 38
Towing ............................................. 39
Vehicle data ..................................... 47
Vehicle data ......................................... 47
Vehicle dimensions .............................47
Vehicle fire see Safety notes W
Warning Stickers ........................................... 14
Warning and indicator lamps
Brakes ............................................. 34
ESC ®
(yellow) ................................... 35 RBS
.................................................. 34
SRS .................................................. 25
Warning lamps
see Warning and indicator lamps
Wheels ................................................. .436
Index

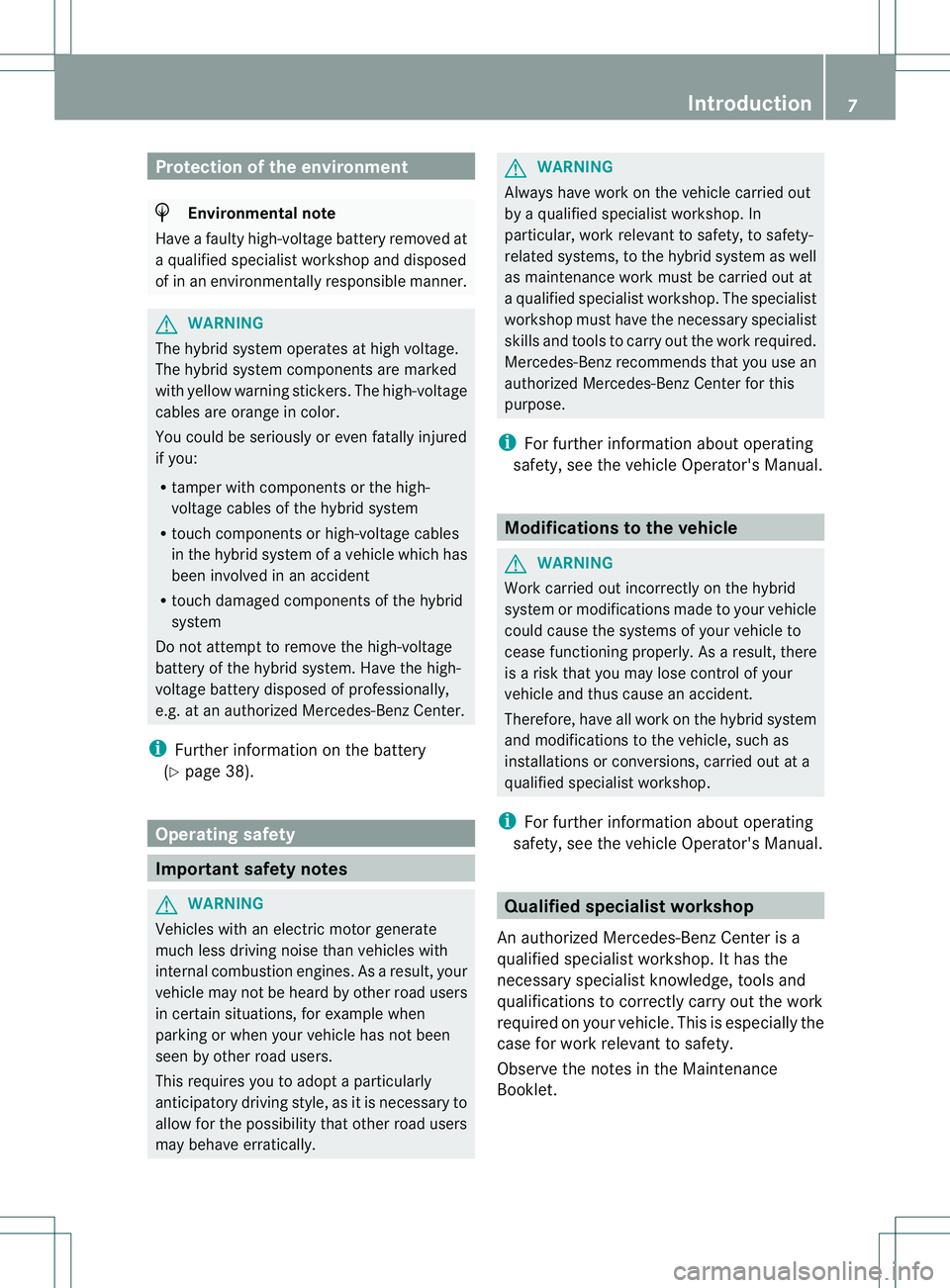

Protection of the environment
H
Environmental note
Have a faulty high-voltage battery removed at
a qualified specialist workshop and disposed
of in an environmentally responsible manner. G
WARNING
The hybrid system operates at high voltage.
The hybrid system components are marked
with yellow warning stickers. The high-voltage
cables are orange in color.
You could be seriously or even fatally injured
if you:
R tamper with components or the high-
voltage cables of the hybrid system
R touch components or high-voltage cables
in the hybrid system of a vehicle which has
been involved in an accident
R touch damaged components of the hybrid
system
Do not attempt to remove the high-voltage
battery of the hybrid system. Have the high-
voltage battery disposed of professionally,
e.g. at an authorized Mercedes-Benz Center.
i Further information on the battery
(Y page 38). Operating safety
Important safety notes
G
WARNING
Vehicles with an electric motor generate
much less driving noise than vehicles with
internal combustion engines. As a result, your
vehicle may not be heard by other road users
in certain situations, for example when
parking or when your vehicle has not been
seen by other road users.
This requires you to adopt aparticularly
anticipatory driving style, as it is necessary to
allow for the possibility that other road users
may behave erratically. G
WARNING
Always have work on the vehicle carried out
by a qualified specialist workshop .In
particular, work relevant to safety, to safety-
related systems, to the hybrid system as well
as maintenance work must be carried out at
a qualified specialist workshop. The specialist
workshop must have the necessary specialist
skills and tools to carry out the work required.
Mercedes-Benz recommends that you use an
authorized Mercedes-Benz Center for this
purpose.
i For further information about operating
safety, see the vehicle Operator's Manual. Modifications to the vehicle
G
WARNING
Work carried out incorrectly on the hybrid
system or modifications made to your vehicle
could cause the systems of your vehicle to
cease functioning properly. As a result, there
is a risk that you may lose control of your
vehicle and thus cause an accident.
Therefore, have all work on the hybrid system
and modifications to the vehicle, such as
installations or conversions, carried out at a
qualified specialist workshop.
i For further information about operating
safety, see the vehicle Operator's Manual. Qualified specialist workshop
An authorized Mercedes-Benz Center is a
qualified specialist workshop. It has the
necessary specialist knowledge, tools and
qualifications to correctly carry out the work
required on your vehicle. This is especially the
case for work relevant to safety.
Observe the notes in the Maintenance
Booklet. Introduction
7 Z

Instrumen
tcluster Function Page
:
ESP
®
warning lamp 35
;
Multifunction display 28
=
Brake syste
mwarning lamp 34
?
RBS warning lamp 34
A
High-voltage battery
charge indicator
29 Function Page
B
READY indicator 21
C
Electric motor performance
display
28Instrumen
tcluster
11At a glance

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 7).Important safety notes
Warning sticker
G
WARNING
Various warning labels are attached to your
vehicle. These warning labels are intended to
make you and others aware of various risks.
Do not remove any of these warning labels
unless explicitly instructed to do so by
information on the label itself.
Removing warning labels may cause you and
others to be unaware of certain risks which
may result in an accident and/or personal
injury.
Danger of electric shock The components of the hybrid system are
marked with yellow warning stickers that
warn you of high voltage. The electrical wires
for the vehicle's high-voltage electrical
system are orange in color. G
WARNING
The hybrid system operates at high voltage.
You could be seriously or even fatally injured
if you:
R tamper with components or the high-
voltage cables of the hybrid system
R touch components or high-voltage cables
in the hybrid system of a vehicle which has
been involved in an accident
R touch damaged components of the hybrid
system
Do not remove the hybrid system component
covers that are marked with warning stickers.
Do not tamper with components or the orange
high-voltage cables of the hybrid system. Engine compartment
Before opening the hood:
X Apply the parking brake and use the
DIRECT SELECT lever to shift the
transmission to P.
X Switch the ignition off.
The green or yellow READ Yindicator
(Y page 21) in the instrument cluster
goes out.
X Remove the SmartKey from the ignition or
remove the KEYLESS GO key from the
vehicle.
X Observe the warning notes in this
supplement on the ris kofelectric shock.
X Observe the warning notices about the
hood (see vehicle Operator's Manual). 14
Important safety notesSafety

Automatic deactivation of the hybrid
system
The hybrid system is deactivated
automatically if:
R SRS (Supplemental Restrain tSystem)
activates the restraint system in an
accident
R a short circui tis detected in the hybrid
system.
R one of the hybrid system’s electrical
connections is disconnected.
This ensures that you do not come into
contact with high voltage. High-voltage battery
G
WARNING
The high-voltage battery in the hybrid system
is located on the front bulkhead in the engine
compartment on the right-hand side when
viewed in the direction of travel. If, e. g. in the
event of a vehicle fire, the internal pressure of
the high-voltage battery exceeds a certain
value, flammable gas escapes through a line
in the area of the right front wheel. This
prevents the high-voltage battery from
exploding.
Leave the danger area. If necessary, set up
the warning triangle at asuitable distance.
Observe legal requirements. Driving safety systems
ABS (Anti-lock Braking System)
Braking If ABS intervenes when braking, the yellow
÷ ESP®
indicator lamp flashes in the
instrument cluster (Y page 35). You only
feel the brake pedal pulsating in certain
situations, e.g .onslippery roads.
i Further information about ABS; (see
vehicle Operator's Manual). RBS (Recuperative Brake System)
RBS supports you when braking with an
electronically-controlled brake boost mode
and enables the recovery of kinetic energy. G
WARNING
Always have work on the RBS system, e.g.
replacemen tofbrake pads, carried out at a
qualified specialist workshop.
Certain points must be taken into account
when carrying out work on the RBS system,
e.g. for system restart.
Mercedes-Benz recommends that you use an
authorized Mercedes-Benz Center for this
purpose. In particular, work relevant to safety
or on safety-related systems must be carried
out at a qualified specialist workshop. G
WARNING
If RBS malfunctions, braking resistance may
be reduced and brake pedal travel may be
longer than usual. The brake system is still
fully functional .Ifnecessary, depress the
brake pedal further. Adjust your driving style
and vehicle speed accordingly.
i The first time the brake pedal is
depressed after switching on the engine,
braking resistance may be reduced and
brake pedal travel may be greater than
usual. When you release the brake pedal,
pedal travel then returns to normal.
Remember the following points about RBS
(Y page 20).
The yellow éRBS warning lamp and/or
the red $brake warning lamp light up in
the instrument cluster if RBS is
malfunctioning. Follow the instructions in the
multifunction display (Y page 31).
i Further information about the brake
system and about driving tips; (see vehicle
Operator's Manual). Driving safet
ysystems
15Safety Z
