2014 MERCEDES-BENZ E400 HYBRID display

X
Switch on the ignition.
X Start the vehicle.
READY indicator :lights up in the
multifunction display .The vehicle is ready
to drive.
X Depress the brake pedal and select a gear.
i The first time the brake pedal is
depressed, braking resistance is reduced
and brake pedal travel is greater than usual.
Noiseless start
When you start the vehicle, electric operation
mode can be used. The engine starts up when
the power required by the driver exceeds the
power currently available from the electric
motor.
Noiseless start is dependent on the outside
temperature and the operating temperature
of the hybrid system.
If the hybrid system has been started using
noiseless start, green READY indicator :
lights up in the multifunction display.
Pulling away If you are depressing the brake pedal when
shifting the transmission from
Pto Dor Rand
still see the Apply Brake to Shift from 'P' display message in the multifunction
display:
X Depress the brake pedal more firmly and
select the desired transmission position.
i For further information about pulling
away, see the vehicle Operator's Manual. ECO start/stop function Important safety notes
G
WARNING
When the vehicle is stationary and the green
READY indicator in the instrument cluster is
lit, this means that the engine has been
switched off automatically. All of the vehicle's
systems remain active.
If you remove your foot from the brake pedal
while in transmission position DorR, the
vehicle may pull away automatically.
There is a risk of an accident.
Exit the vehicle only if:
R both the green and yellow READY
indicators in the instrument cluster are off
R you have secured the vehicle to preven tit
from rolling away.
General notes
The ECO start/stop function automatically
switches off the engine at higher speeds
(Y page 23) and whe nthe vehicle comes to
a stop.
The ECO start/stop function is only available
in drive program E.
The system is operational when READY
indicator :turns green in the multifunction
display.
All vehicle systems remain active, e.g. the
automatic climate control.
Automatic engine switch-off
The engine is switched off automatically,
including when:
R the driver releases the accelerator pedal
and does not exceed a speed of 90 km/h
(140 km/h) (Y page 23) or
R the engine has reached its operating
temperature
R the driver’s seat belt is fastened and the
driver’s door is closed
R the driver only slightly depresses the
accelerator pedal
R the hood is closed and engaged properly 22
DrivingDriving and parking

R
the high-voltage battery is charged
sufficiently
R there are no malfunctions in the hybrid
system
i Yellow READY indicator :may still
appear in the multifunctio ndisplay, even if
all conditions for automatic engine switch-
off are met. Continue to maintain a speed
above 15 mph (20 km/h) until READY
indicator :turns green in the
multifunction display.
If all the conditions for automatic engine
switch-off have not been fulfilled, yellow
READY indicator :lights up. The internal
combustio nengine will not be switched off
automatically, if:
R the self-diagnosis functio nofthe engine
control unit is still active
R the temperature of the coolant or catalytic
converter is too low
R there is a malfunction in the hybrid system
R the climate control of the vehicle requires
it
R the high-voltage battery is being charged
(Y page 29)
R the vehicle has rolled back shortly
beforehand
R automatic emissions tests are running
Automatic engine start
The automatically switched-off internal
combustion engine starts automatically in
certain situations, if:
R you demand more power than the electric
motor can provide by depressing the
accelerator pedal
R the condition of charge of the high-voltage
battery has reached the lower limit
R the settings of the automatic climate
control require it, e.g. at high outside
temperatures above 86‡ (30 †) Overrun mode
The engine is switched off and disconnected
from the drive train. The electric motor
operates as a generator to produce the power
required for the auxiliary consumers and
charges the high-voltage battery.
Overrun mode is available in the speed range
below 90 mph (140 km/h).
Extended overrun mode
Overrun mode allows you to increase the
vehicle range.
When the vehicle is in overrun mode:
X
Pull the right-hand steering wheel paddle
shifter.
Recuperation is reduced so that only the
power supply for the auxiliary consumers
currently operating is covered. The high-
voltage battery is not being charged.
You can tell that recuperation is no longer
operating at full capacity by looking at the
power display for the electric motor
(Y page 28).
In this operating mode, the vehicle
decelerates less rapidly than a conventional
vehicle.
This function is deactivated again if:
R the engine starts up
R you depress the brake pedal
R you pull the left-hand steering wheel paddle
shifter Driving
23Driving and parking Z

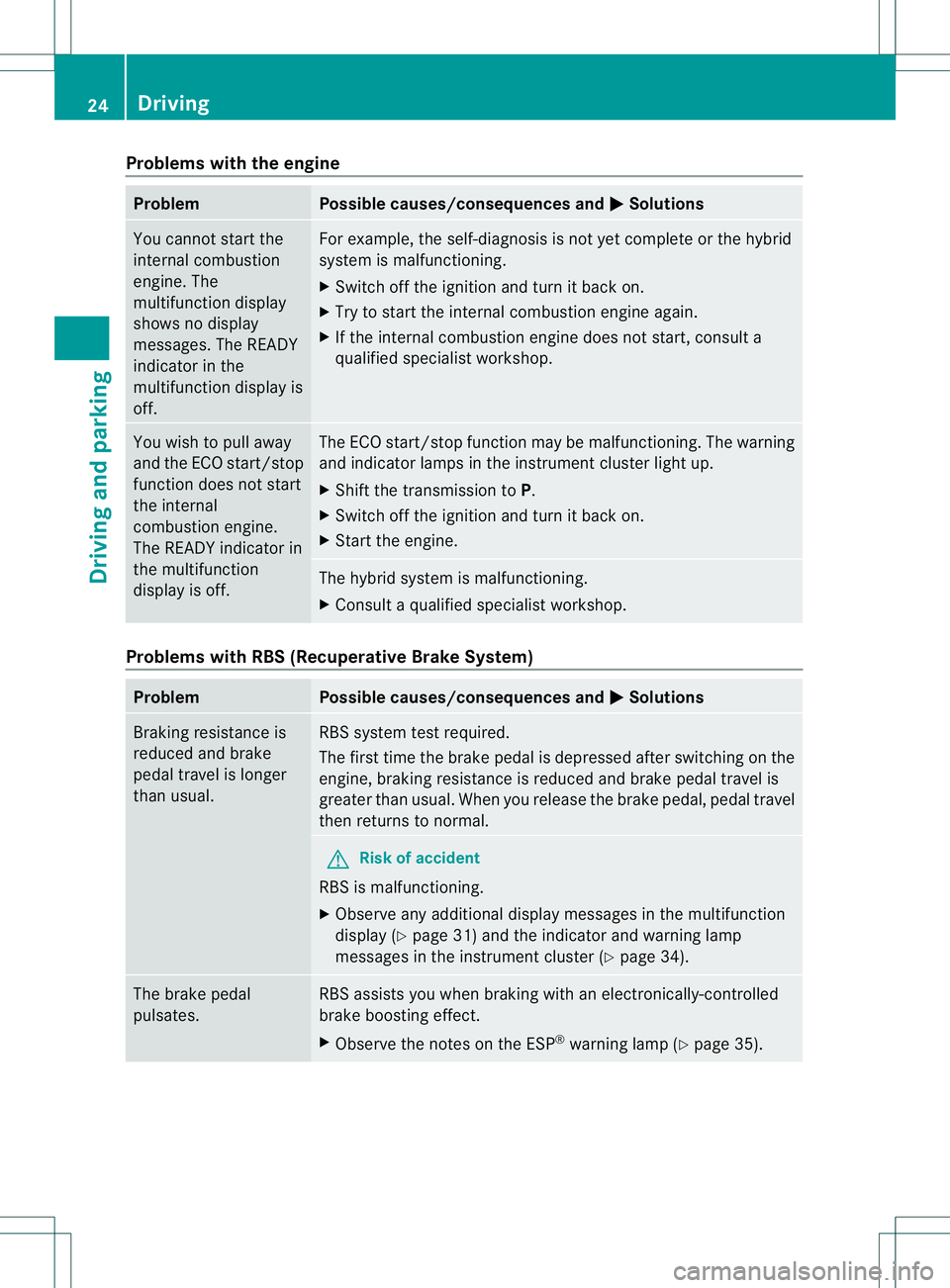

Problems with the engine
Problem Possible causes/consequences and
M Solutions
You cannot start the
internal combustion
engine. The
multifunction display
shows no display
messages. The READY
indicator in the
multifunction display is
off. For example, the self-diagnosis is not yet complete or the hybrid
system is malfunctioning.
X
Switch off the ignition and turn it back on.
X Try to start the internal combustion engine again.
X If the internal combustion engine does not start, consult a
qualified specialist workshop. You wish to pull away
and the ECO start/stop
function does not start
the internal
combustion engine.
The READY indicator in
the multifunction
display is off. The ECO start/stop function may be malfunctioning. The warning
and indicator lamps in the instrumen
tcluster light up.
X Shift the transmission to P.
X Switch off the ignition and turn it back on.
X Start the engine. The hybrid system is malfunctioning.
X
Consult a qualified specialist workshop. Problems with RBS (Recuperative Brake System)
Problem Possible causes/consequences and
M Solutions
Braking resistance is
reduced and brake
pedal travel is longer
than usual. RBS system tes
trequired.
The first time the brake pedal is depressed after switching on the
engine, braking resistance is reduced and brake pedal travel is
greater than usual. When you release the brake pedal, pedal travel
then returns to normal. G
Risk of accident
RBS is malfunctioning.
X Observe any additional display messages in the multifunction
display ( Ypage 31) and the indicator and warning lamp
messages in the instrument cluster (Y page 34).The brake pedal
pulsates. RBS assists you when braking with an electronically-controlled
brake boosting effect.
X
Observe the notes on the ESP ®
warning lamp ( Ypage 35). 24
DrivingDriving and parking

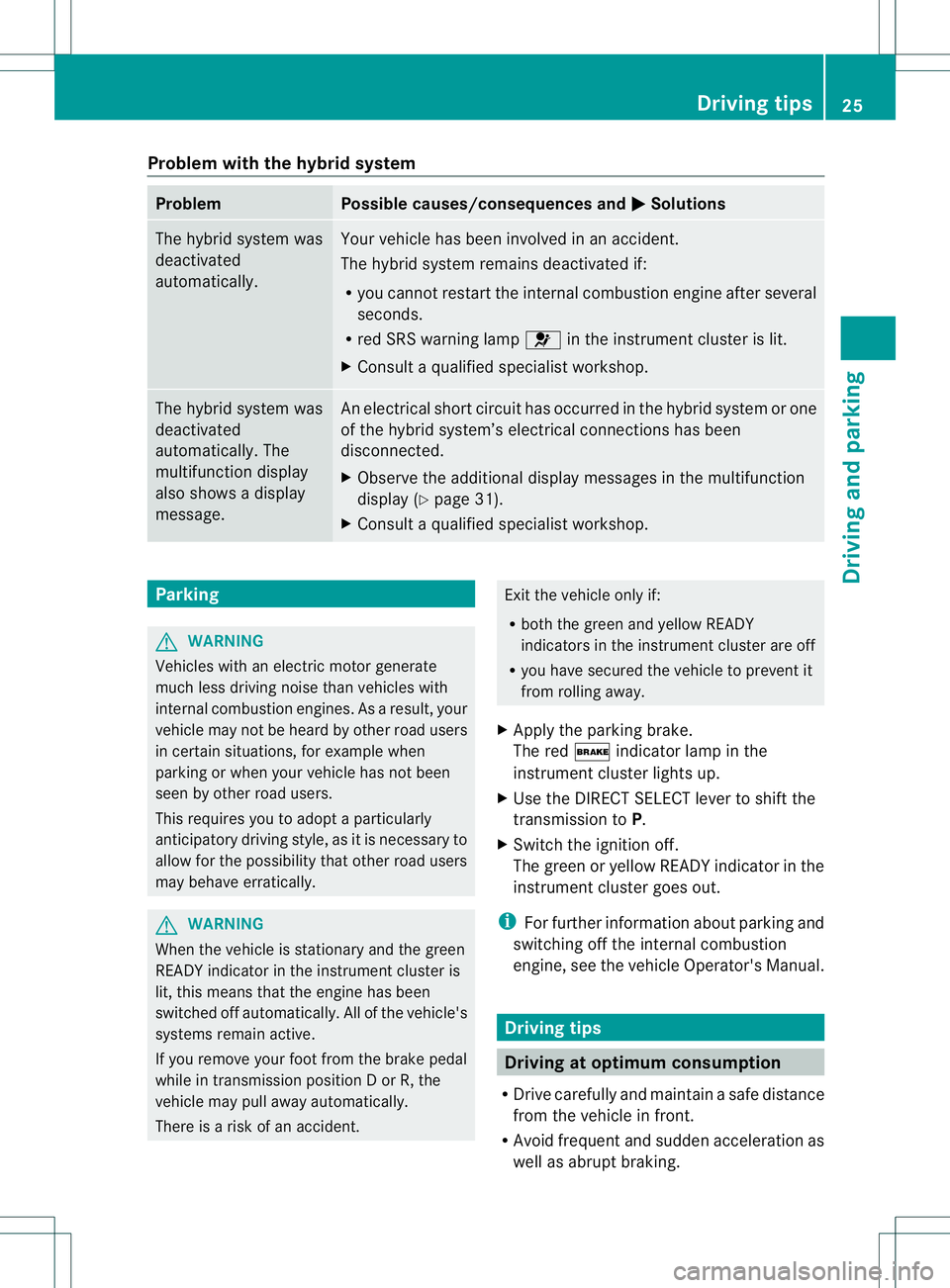

Problem with the hybrid system
Problem Possible causes/consequences and
M Solutions
The hybrid system was
deactivated
automatically. Your vehicle has been involved in an accident.
The hybrid system remains deactivated if:
R
you cannot restart the internal combustion engine after several
seconds.
R red SRS warning lamp 6in the instrument cluster is lit.
X Consult a qualified specialist workshop. The hybrid system was
deactivated
automatically. The
multifunction display
also shows a display
message. An electrical short circuit has occurred in the hybrid system or one
of the hybrid system’s electrical connections has been
disconnected.
X Observe the additional display messages in the multifunction
display (Y page 31).
X Consult a qualified specialist workshop. Parking
G
WARNING
Vehicles with an electric motor generate
much less driving noise than vehicles with
internal combustion engines. As a result, your
vehicle may not be heard by other road users
in certain situations, for example when
parking or when your vehicle has not been
seen by other road users.
This requires you to adopt aparticularly
anticipatory driving style, as it is necessary to
allow for the possibility that other road users
may behave erratically. G
WARNING
When the vehicle is stationary and the green
READY indicator in the instrument cluster is
lit, this means that th eengine has been
switched off automatically. All of the vehicle's
systems remai nactive.
If you remove your foot from the brake pedal
while in transmission position DorR, the
vehicle may pull away automatically.
There is a risk of an accident. Exit the vehicle only if:
R
both the green and yellow READY
indicators in the instrument cluster are off
R you have secured the vehicle to preven tit
from rolling away.
X Apply the parking brake.
The red $indicator lamp in the
instrument cluster lights up.
X Use the DIRECT SELECT lever to shift the
transmission to P.
X Switch the ignition off.
The green or yellow READY indicator in the
instrument cluster goes out.
i For further information about parking and
switching off the internal combustion
engine, see the vehicle Operator's Manual. Driving tips
Driving at optimum consumption
R Drive carefully and maintain a safe distance
from the vehicle in front.
R Avoid frequent and sudden acceleration as
well as abrupt braking. Driving tips
25Driving and parking Z

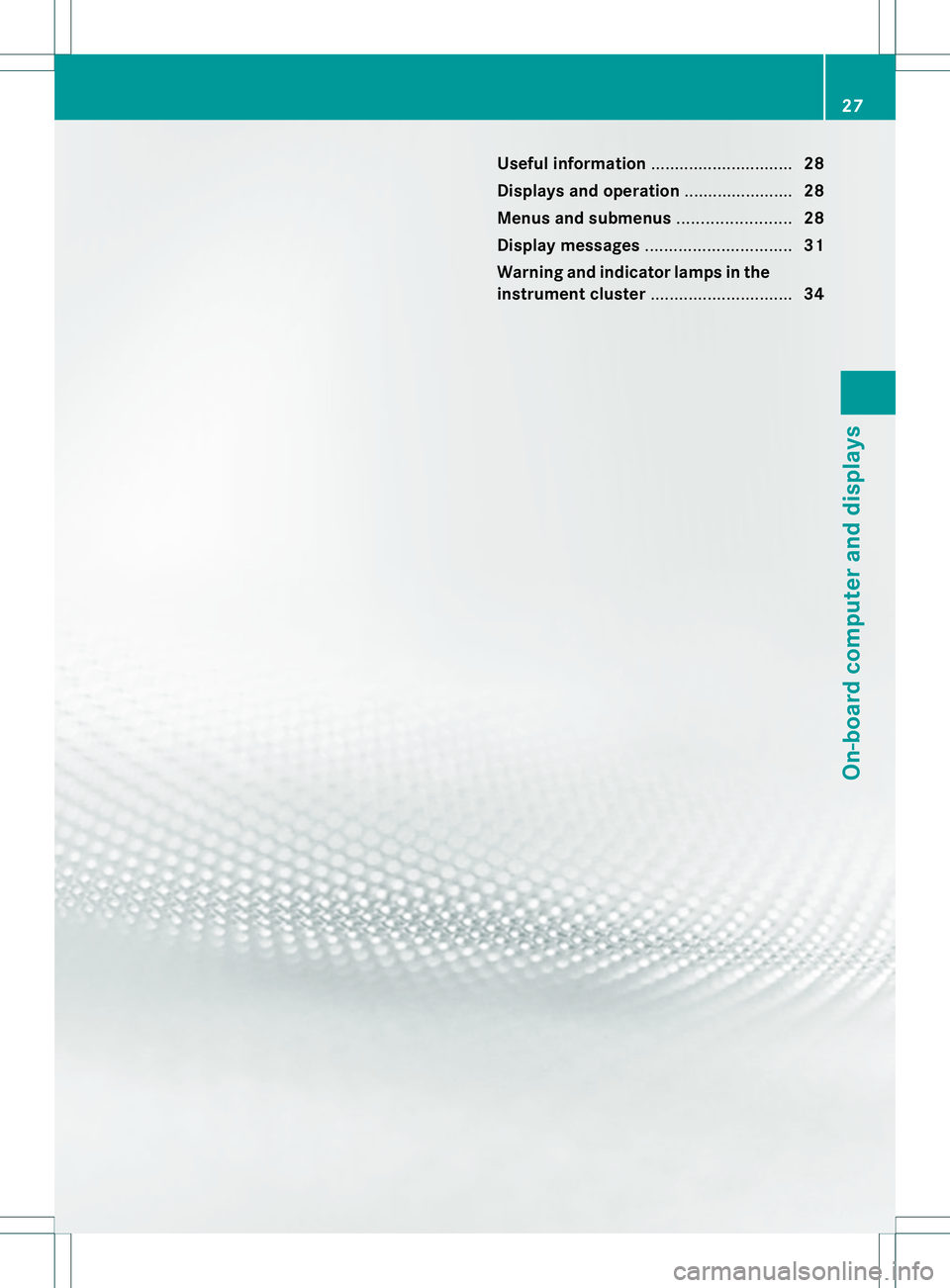

Useful information
..............................28
Displays and operation .......................28
Menus and submenus ........................28
Display messages ............................... 31
Warning and indicator lamps in the
instrument cluster ..............................34 27On-board computer and displays

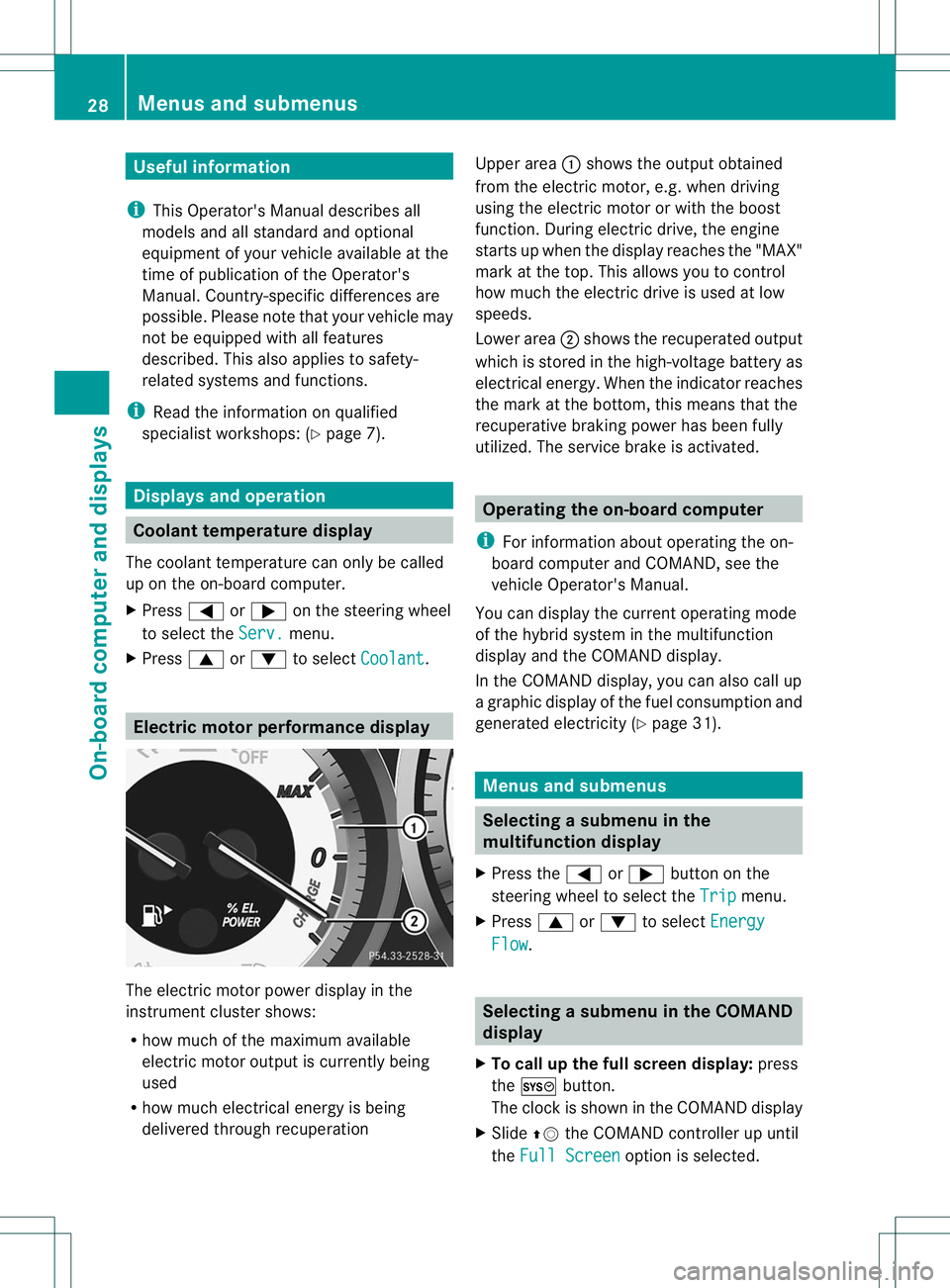

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 7).Displays and operation
Coolant temperature display
The coolan ttemperature can only be called
up on the on-board computer.
X Press =or; on the steering wheel
to select the Serv. menu.
X Press 9or: to select Coolant .
Electric motor performance display
The electric moto
rpower display in the
instrument cluster shows:
R how much of the maximum available
electric motor output is currently being
used
R how much electrical energy is being
delivered through recuperation Upper area
:shows the output obtained
from the electric motor, e.g. when driving
using the electric motor or with the boost
function. During electric drive, the engine
starts up when the display reaches the "MAX"
mark at the top. This allows you to control
how much the electric drive is used at low
speeds.
Lower area ;shows the recuperated output
which is stored in the high-voltage battery as
electrical energy. When the indicator reaches
the mark at the bottom, this means that the
recuperative braking power has been fully
utilized. The service brake is activated. Operating the on-board computer
i For information about operating the on-
board computer and COMAND, see the
vehicle Operator's Manual.
You can display the current operating mode
of the hybrid system in the multifunction
display and the COMAND display.
In the COMAND display, you can also call up
a graphic display of the fuel consumption and
generated electricity (Y page 31). Menus and submenus
Selecting
asubmenu in the
multifunction display
X Press the =or; button on the
steering wheel to select the Trip menu.
X Press 9or: to select Energy Flow .
Selecting
asubmenu in the COMAND
display
X To call up the full screen display: press
the W button.
The clock is show ninthe COMAND display
X Slide ZVthe COMAND controller up until
the Full Screen option is selected.28

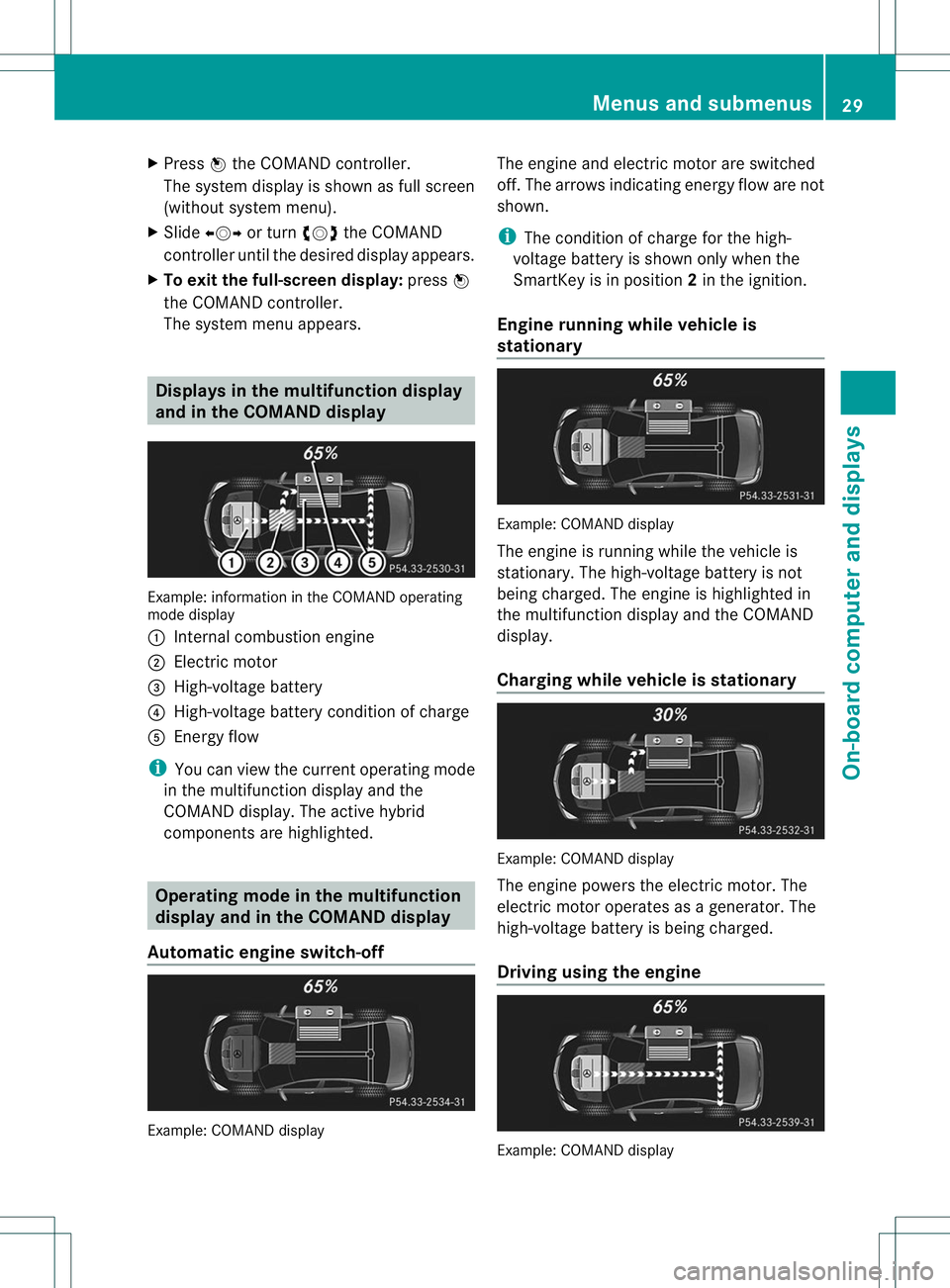

Menus and submenusOn-board computer and displays

X
Press Wthe COMAND controller.
The system display is shown as full screen
(without system menu).
X Slide XVY or turn cVdthe COMAND
controller until the desired display appears.
X To exit the full-screen display: pressW
the COMAND controller.
The system menu appears. Displays in the multifunction display
and in the COMAND display Example: information in the COMAND operating
mode display
1 Internal combustion engine
2 Electric motor
3 High-voltage battery
4 High-voltage battery condition of charge
5 Energy flow
i You can view the curren toperating mode
in the multifunction display and the
COMAND display. The active hybrid
components are highlighted. Operating mode in the multifunction
display and in the COMAND display
Automatic engine switch-off Example: COMAND display The engine and electric motor are switched
off. The arrows indicating energy flow are not
shown.
i
The condition of charge for the high-
voltage battery is shown only when the
SmartKey is in position 2in the ignition.
Engine running while vehicle is
stationary Example: COMAND display
The engine is running while the vehicle is
stationary. The high-voltage battery is not
being charged. The engine is highlighted in
the multifunction display and the COMAND
display.
Charging while vehicle is stationary
Example: COMAND display
The engine powers the electric motor. The
electric motor operates as a generator. The
high-voltage battery is being charged.
Driving using the engine
Example: COMAND display Menus and submenus
29On-board computer and displays

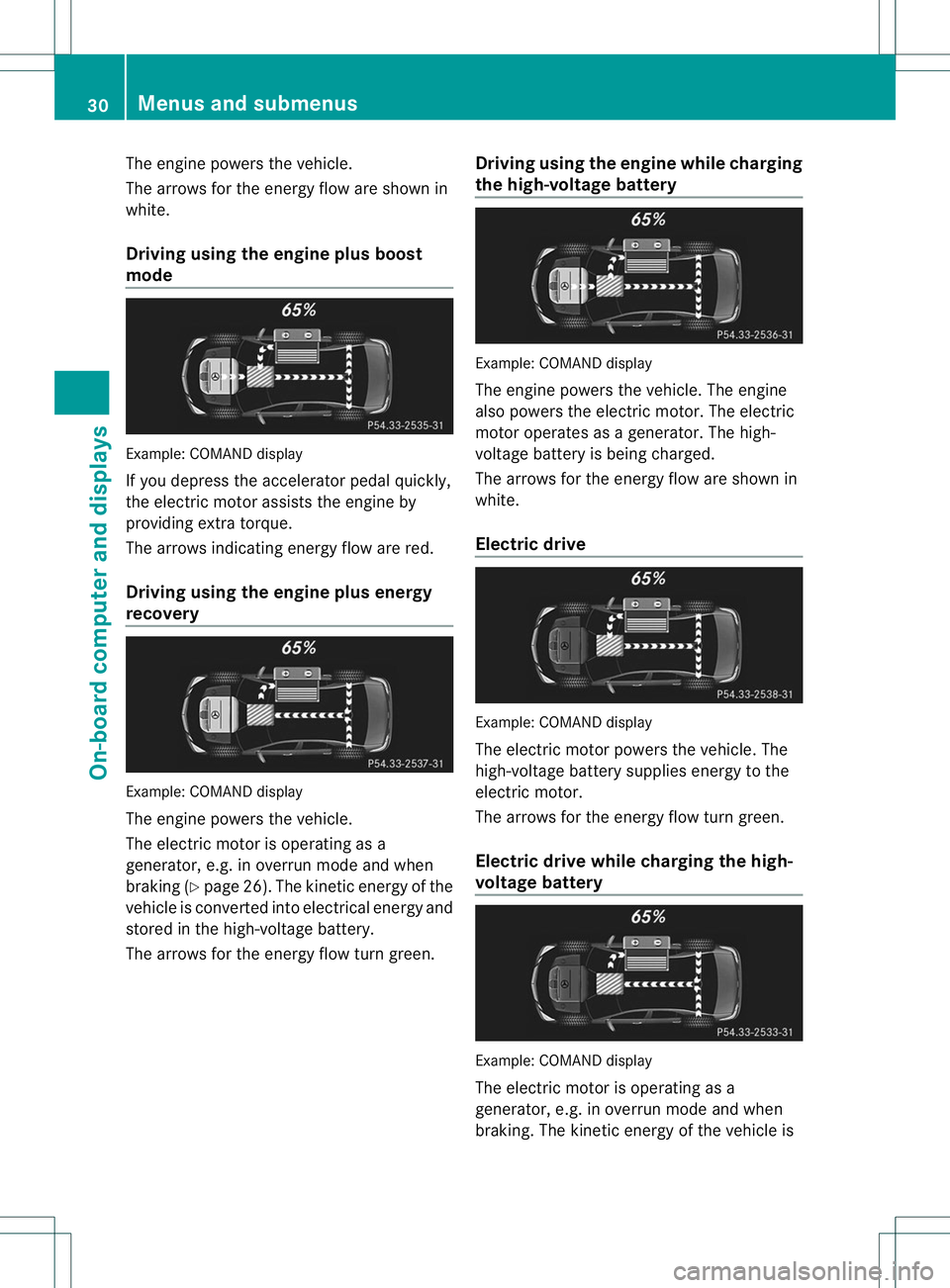

The engine powers the vehicle.
The arrows for the energy flow are shown in
white.
Driving using the engine plus boost
mode
Example: COMAND display
If you depress the accelerator pedal quickly,
the electric motor assists the engine by
providing extra torque.
The arrows indicating energy flow are red.
Driving using the engine plus energy
recovery Example: COMAND display
The engine powers the vehicle.
The electric motor is operating as a
generator, e.g. in overrun mode and when
braking (Y page 26). The kinetic energy of the
vehicle is converted into electrical energy and
stored in the high-voltage battery.
The arrows for the energy flow turn green. Driving using the engine while charging
the high-voltage battery Example: COMAND display
The engine powers the vehicle. The engine
also powers the electric motor
.The electric
motor operates as a generator. The high-
voltage battery is being charged.
The arrows for the energy flow are shown in
white.
Electric drive Example: COMAND display
The electric motor powers the vehicle. The
high-voltage battery supplies energy to the
electric motor.
The arrows for the energy flow turn green.
Electric drive while charging the high-
voltage battery
Example: COMAND display
The electric motor is operating as a
generator, e.g. in overrun mode and when
braking. The kinetic energy of the vehicle is30
Menus and submenusOn-board computer and displays
