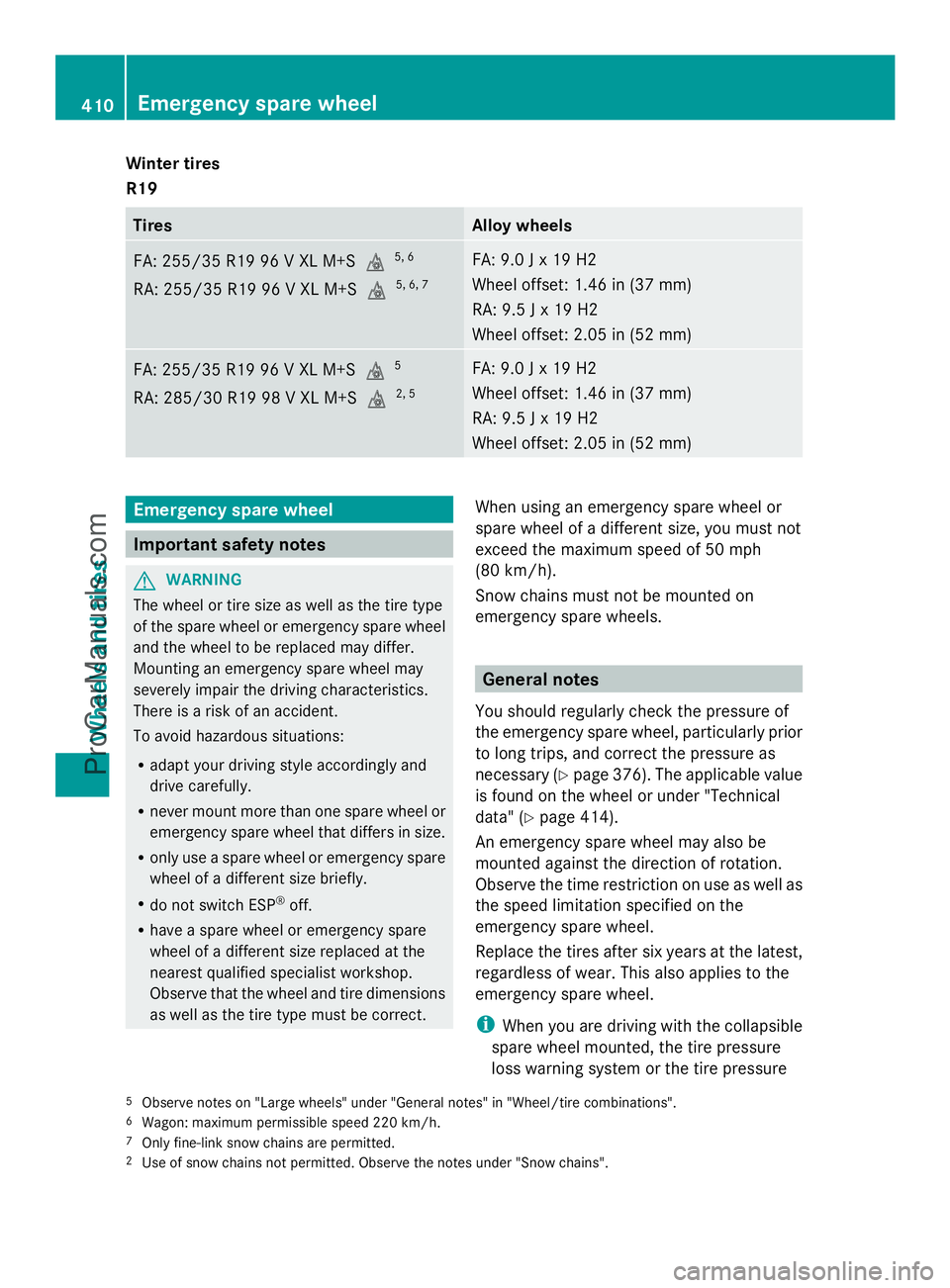

2014 MERCEDES-BENZ E-SEDAN dimensions

Winter tires
R19
Tires Alloy wheels
FA: 255/35 R19 96 V XL M+S
i5, 6
RA: 255/35 R19 96 V XL M+S i5, 6, 7 FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm) FA: 255/35 R19 96 V XL M+S
i5
RA: 285/30 R19 98 V XL M+S i2, 5 FA: 9.0 J x 19 H2
Wheel offset: 1.46 in (37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm) Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
R adapt your driving style accordingly and
drive carefully.
R never mount more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct. When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels. General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 376). The applicable value
is found on the wheel or under "Technical
data" (Y page 414).
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
i When you are driving with the collapsible
spare wheel mounted, the tire pressure
loss warning system or the tire pressure
5 Observe notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
6 Wagon: maximum permissible speed 220 km/h.
7 Only fine-link snow chains are permitted.
2 Use of snow chains not permitted. Observe the notes under "Snow chains". 410
Emergency spare wheelWheels and tires
ProCarManuals.com

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 26).Information regarding technical data
General information
G
WARNING
HYBRID vehicles: It is imperative that you read
the HYBRID Supplemental Operating
Instructions included in your vehicle literature
portfolio. You may otherwise not receive all
necessary safety information and warning for
the operation of your vehicle.
i The data stated here specifically refers to
a vehicle with standard equipment. Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Information in the printed Operator's
Manual
In the printed Operator's Manual you can find
information about:
R Vehicle data
R Trunk lid/tailgate opening dimensions
R Tank capacity
R Coolant (engine)
R Engine oil approval and capacity
R DEF filling capacity
R Refrigerant filling capacity and PAG oil
R Towing a trailer Warranty
Your vehicle is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
replace and repair all factory-installed parts
in accordance with the following warranty
terms and conditions:
R New Vehicle Limited Warranty
R Emission Systems Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control System Warranty
R State warranty enforcement laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties. These are available
at any authorized Mercedes-Benz Center.
i If you lose the Service and Warranty
Information booklet, contact an authorized
Mercedes-Benz Center to arrange a
replacement. It will be mailed to you. Identification plates
Vehicle identification plate with
vehicle identification number (VIN)
X
Open the front left-hand door.
You will see vehicle identification plate :.416
Identification platesTechnical data
ProCarManuals.com

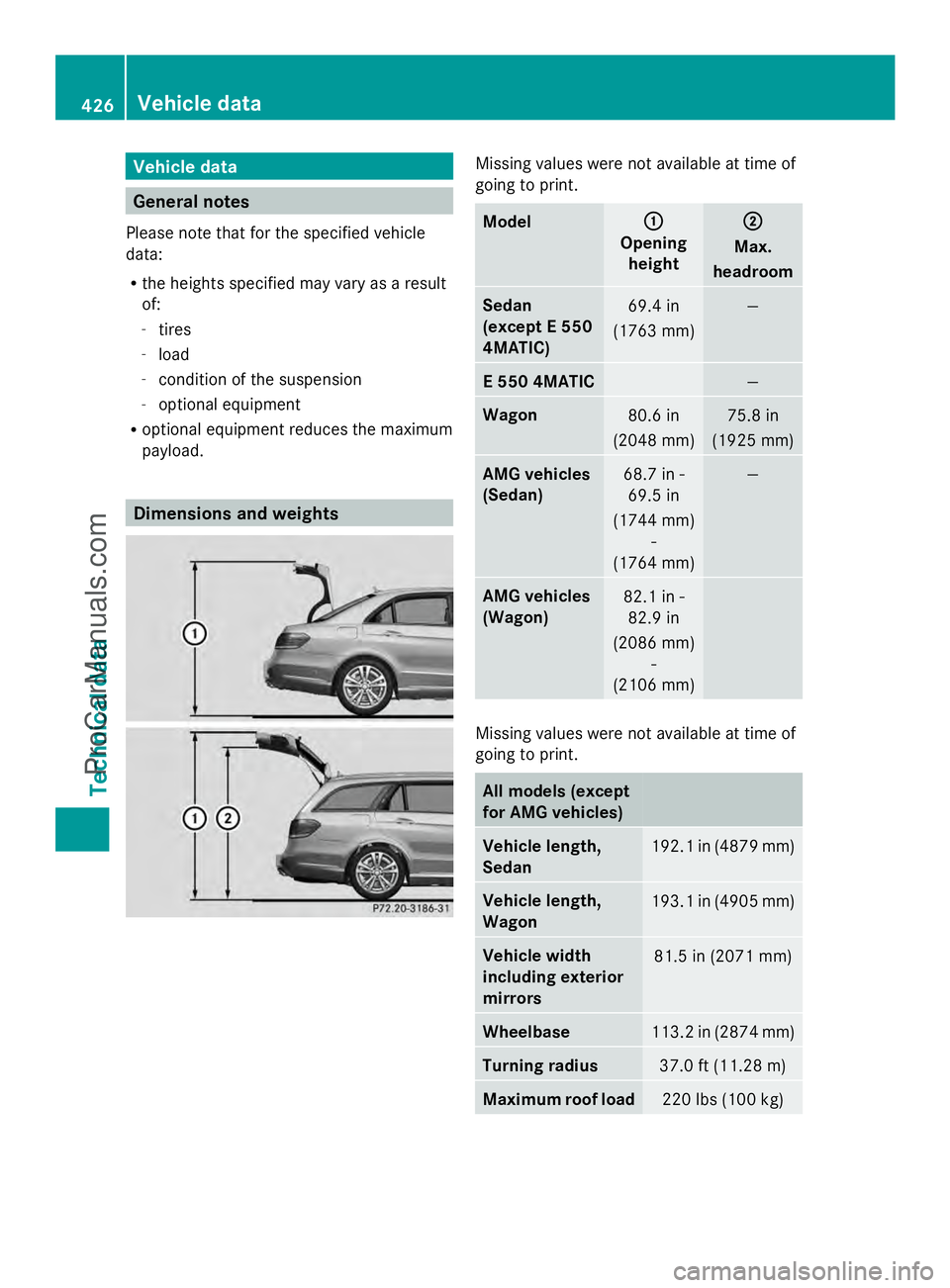

Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
- tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload. Dimensions and weights Missing values were not available at time of
going to print.
Model : :
Opening height ;
;
Max.
headroom Sedan
(except E 550
4MATIC)
69.4 in
(1763 mm) —
E 550 4MATIC
—
Wagon
80.6 in
(2048 mm) 75.8 in
(1925 mm) AMG vehicles
(Sedan)
68.7 in -
69.5 in
(1744 mm) -
(1764 mm) —
AMG vehicles
(Wagon)
82.1 in -
82.9 in
(2086 mm) -
(2106 mm) Missing values were not available at time of
going to print.
All models (except
for AMG vehicles)
Vehicle length,
Sedan
192.1 in (4879 mm)
Vehicle length,
Wagon
193.1 in (4905 mm)
Vehicle width
including exterior
mirrors
81.5 in (2071 mm)
Wheelbase
113.2 in (2874 mm)
Turning radius
37.0 ft (11.28
m) Maxi
mum roof load 220 lbs (100 kg)426
Vehicle dataTechnical data
