2014 MERCEDES-BENZ CLS engine oil capacity

Driving tips
AMGceramic brakes.....................173
Automatic transmission.................158
Brakes...........................................172
Break-in period..............................146
Downhill gradient...........................172
Drinking and driving.......................170
Driving abroad...............................116
Driving in winter .............................174
Driving on flooded roads................174
Driving on wet roads......................174
Exhaustcheck...............................170
Fuel ................................................ 170
General..........................................169
Hydroplaning.................................174
Icy road surfaces...........................174
Limited braking efficiency on
salted roads...................................172
Snow chains..................................337
Symmetrical low beam..................116
Wet road surface...........................172
DVD audio
Operating (on-board computer).....225
DVD video
Operating (on-board computer).....226
E
EASY-ENTRY feature
Activating/deactivating.................233
Function/notes.............................108
EASY-EXIT feature
Crash-responsive...........................109
Function/notes.............................108
Switching on/off...........................233
EBD (electronic brake force
distribution)
Display message............................240
Function/notes ................................ 71
ECOdisplay
Function/notes.............................170
On-board computer.......................223
ECOstart/stop function
Automatic engine switch-off..........151
Deactivating/activating.................152
General information.......................151
Important safety notes..................151
Introduction...................................150
Emergency release
Driver's door....................................84
Fuel filler flap.................................166
Trunk...............................................88
Vehicle.............................................84
Emergency spare wheel
Important safety notes..................367
Points to remember.......................367
Removing.......................................368
Storage location............................368
Stowing .......................................... 368
Technical data...............................370
Emergency Tensioning Devices
Function ...........................................59
Safety guidelines.............................41
Emissions control
Service and warranty information....23
Engine
Check Engine warning lamp ........... 273
Display message............................248
ECO start/stop function................150
Engine number............................... 373
Irregularrunning............................154
Jump-starting.................................326
Starting problems..........................154
Starting the engine with the
SmartKey.......................................149
Starting with KEYLESS-GO.............149
Switching off..................................168
Tow-starting (vehicle)..................... 331
Engine electronics
Problem (malfunction)...................154
Engine oil
Adding...........................................308
Additives........................................376
Checking the oil level..................... 307
Checking the oil levelusing the
dipstick..........................................307
Display message............................250
Filling capacity...............................376
Notes about oil grades ................... 375
Notes on oil level/consumption....307
Temperature (on-board computer).234
Viscosity........................................376
Index9

The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
Foralist of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle.
ModelEngine
model
MB
Approval
CLS 550
CLS 550 4MATIC
278229.5
CLS 63 AMG
CLS 63 AMG
4MATIC
157229.5
Use only SAE 0W-40orSAE 5W-40 engine oils
for AMG vehicles.
iMB approval is indicated on the oil
containers.
Fillingcapacities
The following values refer to an oil change
including the oil filter.
ModelCapacity
All models (except
for AMG vehicles)
8.5 US qt (8.0 l)
All models (AMG
vehicles)
With external oil
cooler: 9.0 US qt
(8.5 l)
Additives
!Do not use any additives in the engine oil.
This coulddamage the engine.
Engine oil viscosity
Viscosity describes the flow characteristics
ofafluid. If an engine oil hasahigh viscosity,
this means that it is thick;alow viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table showsyou which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. asaresult
of aging, soot and fuel deposits. It is therefore
strongly recommendedthat you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification.
Brake fluid
GWARNING
The brake fluidconstantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
fluidistoo low,vaporpocketsmay form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There isarisk of an accident.
You should have the brake fluid renewed at
the specified intervals.
Comply with the important safety notes for
service products when handling brake fluid
(Ypage 373).
The brake fluid change intervals can be found
in the Maintenance Booklet.
376Service products and filling capacities
Technical data

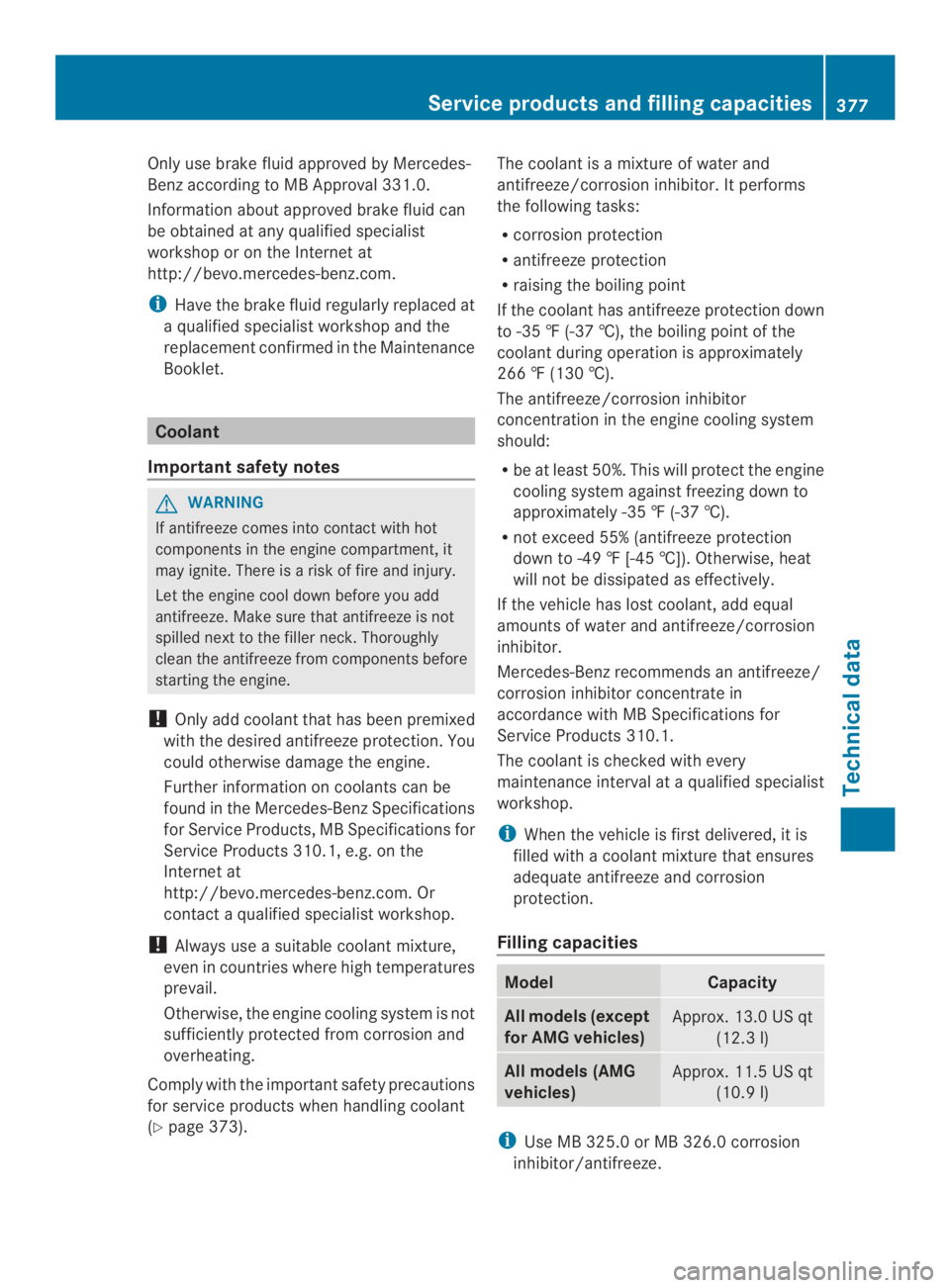

Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information aboutapproved brake fluid can
be obtainedatany qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
iHave the brake fluid regularly replaced at
aqualified specialist workshop and the
replacementconfirmed in the Maintenance
Booklet.
Coolant
Important safety notes
GWARNING
If antifreezecomes into contact with hot
components in the engine compartment, it
may ignite. There isarisk of fire and injury.
Let the engine cool down before you add
antifreeze. Make sure that antifreezeisnot
spilled next to the filler neck.Thoroughly
clean the antifreeze from components before
startingthe engine.
!Only add coolant that has been premixed
with the desired antifreezeprotection. You
couldotherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com.Or
contactaqualified specialist workshop.
!Always useasuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosionand
overheating.
Comply with the important safety precautions
for service products when handling coolant
(Ypage373).
The coolant isamixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
Rcorrosionprotection
Rantifreeze protection
Rraising the boiling point
If the coolant has antifreeze protection down
to -35‡(-37†),the boiling point of the
coolant during operationisapproximately
266‡(130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
Rbe at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35‡(-37 †).
Rnot exceed 55% (antifreeze protection
down to -49‡[-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval ataqualified specialist
workshop.
iWhen the vehicle is first delivered, it is
filled withacoolant mixture that ensures
adequate antifreeze and corrosion
protection.
Filling capacities
ModelCapacity
All models (except
for AMG vehicles)
Approx. 13.0 US qt
(12.3 l)
All models (AMG
vehicles)
Approx. 11.5 US qt
(10.9 l)
iUse MB 325.0 or MB 326.0 corrosion
inhibitor/antifreeze.
Service products and filling capacities377
Technical data
Z
