2014 MERCEDES-BENZ CLS ESP

properly secured in an appropriately sized
child restraint system or booster seat
recommended for the size and weight of the
child. For additional information,see the
"Children in the vehicle" section.
Achild's risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint.
!To avoid damage to the seats and the seat
heating, observe the following information:
Rkeep liquids from spilling on the seats. If
liquidisspilled on the seats, dry them as
soon as possible.
Rif the seat covers are damp or wet, do not
switch on the seat heating. The seat
heating should also not be used to dry
the seats.
Rclean the seat covers as recommended;
see "Interior care".
Rdo not transport heavy loads on the
seats. Do not place sharp objectsonthe
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
Rwhen the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
!Make sure that there are no objectsinthe
footwell or behind the seats when resetting
the seats. There isarisk that the seats
and/or the objectscould be damaged.
iThe head restraintsinthe front seats are
installed with the NECK-PRO system
(Ypage 53). For this reason, it is not
possible to remove the head restraints
from the front seats.
For more information,contactaqualified
specialist workshop.
iFurther related subjects:
Adjusting the seats
Head restraint height
Seat cushion angle
$Seat height
!Seat fore-and-aft adjustment
Backrest angle
iIf PRE-SAFE®is triggered, the front-
passenger seat will be moved toabetter
position if it was previously in an
unfavorable position.
iYou can store the seat settings using the
memory function (Ypage 112).
iVehicles with the through-loading
feature: if you fold downarear seat
backrest, the respective front seat is
moved forwards slightly in order to avoid
contact.
Adjusting the head restraints
Important safety notes
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There isarisk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before startingthe engine.
100Seats
Seats, steering whee la nd mirrors

Position of the steering wheel for
driving
The steering wheel is moved to the last
selected position when:
Rthe driver's door is closed
Rwith KEYLESS-GO:you press the Start/
Stop button once on vehicles with
KEYLESS-GO
or
Rwith the SmartKey:you insert the
SmartKey into the ignition lock.
When you close the driver's door with the
ignition switched on, the steering wheel is
also automatically moved to the previously
set position.
The last position of the steering wheel is
stored when you switch off the ignition or
when you store the settingwith the memory
function (Ypage 112).
Crash-responsive EASY-EXIT feature
If the crash-responsiveEASY-EXITfeature is
triggeredinanaccident,the steeringcolumn
will moveupwards when the driver's door is
opened. This occurs irrespective of the
position of the SmartKey in the ignition lock.
This makes it easier to exit the vehicle and
rescue the occupants.
The crash-responsiveEASY-EXITfeature is
only operational if the EASY-EXIT/ENTRY
feature is activated in the on-board computer.
(Ypage 233)
Mirrors
Exterior mirrors
Adjusting theexterior mirrors
GWARNING
You could lose control of your vehicle if you
do the followingwhile driving:
Radjust the driver's seat,head restraint,
steeringwheel or mirrors
Rfasten the seat belt
There isarisk of an accident.
Adjust the driver's seat, head restraint,
steeringwheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
The exterior mirror on the front-passenger
side reduces the size of the image. Visible
objects are actually closer than they appear.
This means that you could misjudge the
distancefrom road users travelingbehind,
e.g. when changinglane. There isarisk of an
accident.
For this reason, alwaysmake sure of the
actual distancefrom the road users traveling
behind by glancingover your shoulder.
XTurn the SmartKey to position1or2in the
ignition (Ypage 147).
XPress buttonfor the left-hand exterior
mirror or buttonfor the right-hand
exterior mirror.
The indicator lamp in the corresponding
button lights up in red.
Mirrors109
Seats, steering wheel and mirrors
Z

The exterior lighting (except the parking/
standinglamps) switches off automatically if
you:
Rremove the SmartKey from the ignition lock
Ropen the driver's door with the SmartKey
in position0.
Automatic headlampmode
GWARNING
When the light switch is set to\r,the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There isarisk of an
accident.
In such situations, turn the light switch to
.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.

Left-hand standinglamps
\nRight-hand standinglamps
Parking lamps, license plate and
instrument cluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
\ris the favored light switch setting. The
light setting is automatically selected
accordingtothe brightness of the ambient
light (exception: poor visibility due to weather
conditions such as fog, snow or spray):
RSmartKey in position1in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
RWith the engine running: if you have
activated the daytime runninglamps
function via the on-board computer,the
daytime runninglamps or the low-beam
headlamps and parking lamps are switched
on or off automatically depending on the
brightness of the ambient light.
XTo switch on automatic headlamp
mode:turn the light switch to\r.
Only for Canada:
The daytime runninglamps improve the
visibility of your vehicle during the day. The
daytime runninglamps function is required by
law in Canada. It cannot therefore be
deactivated.
When the engine is runningand the vehicle is
stationary: if you move the selector lever from
adrive position toP,the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in high ambient light: if you
turn the light switch to,the daytime
runninglamps and parking lamps switch on.
If the engine is runningand you turn the light
switch to,the manual settings take
precedenceover the daytime runninglamps.
USA only:
The daytime runninglamps improve the
visibility of your vehicle during the day. To do
this, the daytime runninglamps function must
be switched on using the on-board computer
(Ypage 230).
If the engine is runningand you turn the light
switch toor,the manual settings
Exterior lighting117
Lights and windshield wipers
Z

Standing lamps

Left-hand standing lamps
\nRight-hand standing lamps
Parking lamps, license plate and
instrumentcluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
Switchingonthe standinglamps ensuresthe
corresponding side of thevehicle is
illuminated.
XTo switch on thestanding lamps:the
SmartKey is notintheignition lockoritis
in position0.
XTurn thelight switch to(left-handside
of thevehicle)or\n(right-hand side of
thevehicle).
Combination switch
Turn signal
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo indicatebriefly:pressthecombination
switch briefly to thepressure pointinthe
direction of arrowor!.
The corresponding turn signal flashes three
times.
XTo indicate:press the combination switch
beyond the pressure point in the direction
of arrowor!.
High-beam headlamps
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position2or start the engine.
XTurn the light switch toor\r.
XPress the combination switch beyond the
pressure point in the direction of
arrow.
In the\rposition, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
Exterior lighting119
Lights and windshield wipers
Z

The blueindicator lamp in the
instrument cluster lights up when the high-
beam headlamps are switched on.
XTo switch off the high-beam
headlamps:move the combination switch
back to its normal position.
The blueindicator lamp in the
instrument cluster goes out.
iVehicles with Adaptive Highbeam Assist:
when Adaptive Highbeam Assist is active,
it controls activation of the high-beam
headlamps (Ypage 121).
High-beam flasher
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo switch on:turn the SmartKey in the
ignition lock to position1or2,orstart the
engine.
XPull the combination switch in the direction
of arrow$.
Hazard warning lamps
XTo switch on the hazard warning lamps:
press button.
All turn signals flash. If you now switch on
aturn signal using the combination switch,
only the turn signal lamp on the
corresponding side of the vehicle will flash.
XTo switch off the hazard warning
lamps:press button.
The hazard warning lamps automatically
switch on if:
Ran air bag is deployed
Rthe vehicle decelerates rapidly from a
speed of more than 45 mph (70 km/h) and
comes toastandstill
The hazard warning lamps switch off
automatically if the vehicle reachesaspeed
of over6mph (10 km/h) again afterafull
brake application.
iThe hazard warning lamps still operate if
the ignition is switched off.
Headlampcleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is
operated five times (Ypage 125)while the
lightsare on and the engineisrunning. When
you switchoff the ignition, the automatic
headlamp cleaning systemisreset and
counting is resumed from 0.
120Exterior lighting
Lights and windshield wipers

The interior lighting automatically switches
on if you:
Runlock the vehicle
Ropenadoor
Rremove the SmartKey from the ignition lock
The interior light is activated forashort while
when the SmartKey is removed from the
ignition lock. You can activatethis delayed
switch-off using the on-board computer
(Ypage 232).
Manualinterior lighting control
Frontoverhead control panel
To switch the rear interior lighting
on/off.
To switch the automatic interior
lighting control on/off
$To switch the right-hand reading
lamp on/off
!\rTo switch the frontinterior lighting
on/off
To switch the left-hand reading lamp
on/off
XTo switch the front interior lighting on/
off:press the\rbutton.
XTo switch the rear interior lighting on/
off:press thebutton.
XTo switch the reading lampson/off:
press thebutton.
Crash-responsive emergency lighting
The interior lighting is activated automatically
if the vehicle is involved in an accident.
XTo switch off the crash-responsive
emergency lighting:press the hazard
warning lamp button.
or
XLock and then unlock the vehicle using the
SmartKey.
Replacing bulbs
Important safety notes
Xenon bulbs
GDANGER
Xenon bulbs carryahigh voltage. You can get
an electric shock if you remove the cover of
the Xenon bulb and touch the electrical
contacts. There isarisk of fatal injury.
Never touch the parts or the electrical
contacts of the Xenon bulb. Always have work
on the Xenon bulbs carried out ataqualified
specialist workshop.
Bulbs and lamps are an importantaspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.
LED lamps
You can neither replace Xenon bulbsnor LED
bulbs. Have LED bulbschanged ataqualified
specialist workshop.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure
that these function correctly at all times.
Have the headlamp setting checked regularly.
Other bulbs
GWARNING
Bulbs, lamps and connectors can get very hot
when operating. If you changeabulb, you
124Replacing bulbs
Lights and windshield wipers

thathas collectedonthewindshield can
scratch theglass if wipingtakes placewhen
thewindshield is dry.
If it is necessary to switch on thewindshield
wipersindry weather conditions, always
use washerfluid when operating the
windshield wipers.
!If the windshield wipers leave smearson
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washingthe vehicle in an automatic
car wash.
!Intermittentwiping with rain sensor: due
to optical influences and the windshield
becomingdirtyindry weatherconditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratchthe
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Combination switch

Windshield wiper off
Intermittent wipe, low (rain sensor
set to low sensitivity)
Intermittent wipe, high (rain sensor
set to high sensitivity)
Continuous wipe, slow
Continuous wipe, fast
%Single wipe/
To wipe the
windshield using washer fluid
XSwitch on the ignition.
XTurn the combination switch to the
corresponding position.
In theorposition, the appropriate
wiping frequency is set automatically
according to the intensity of the rain. In
theposition, the rain sensor is more
sensitive than in theposition, causing
the windshield wipers to wipe more
frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic
conditions. Replace the wiper blades twice a
year, ideallyinspring and fall.
Replacing the wiper blades
Important safety notes
GWARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could
be trapped by the wiper arm. There isarisk
of injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
!To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
!Never open the hood ifawindshield wiper
arm has been folded away from the
windshield.
Never foldawindshield wiper arm without
awiper blade back ontothe windshield.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the windshield wiper arm withoutawiper
blade and it falls ontothe windshield, the
windshield may be damaged by the force of
the impact.
Mercedes-Benz recommends that you have
the wiper blades changed ataqualified
specialist workshop.
126Windshieldwipers
Light sa nd windshield wipers

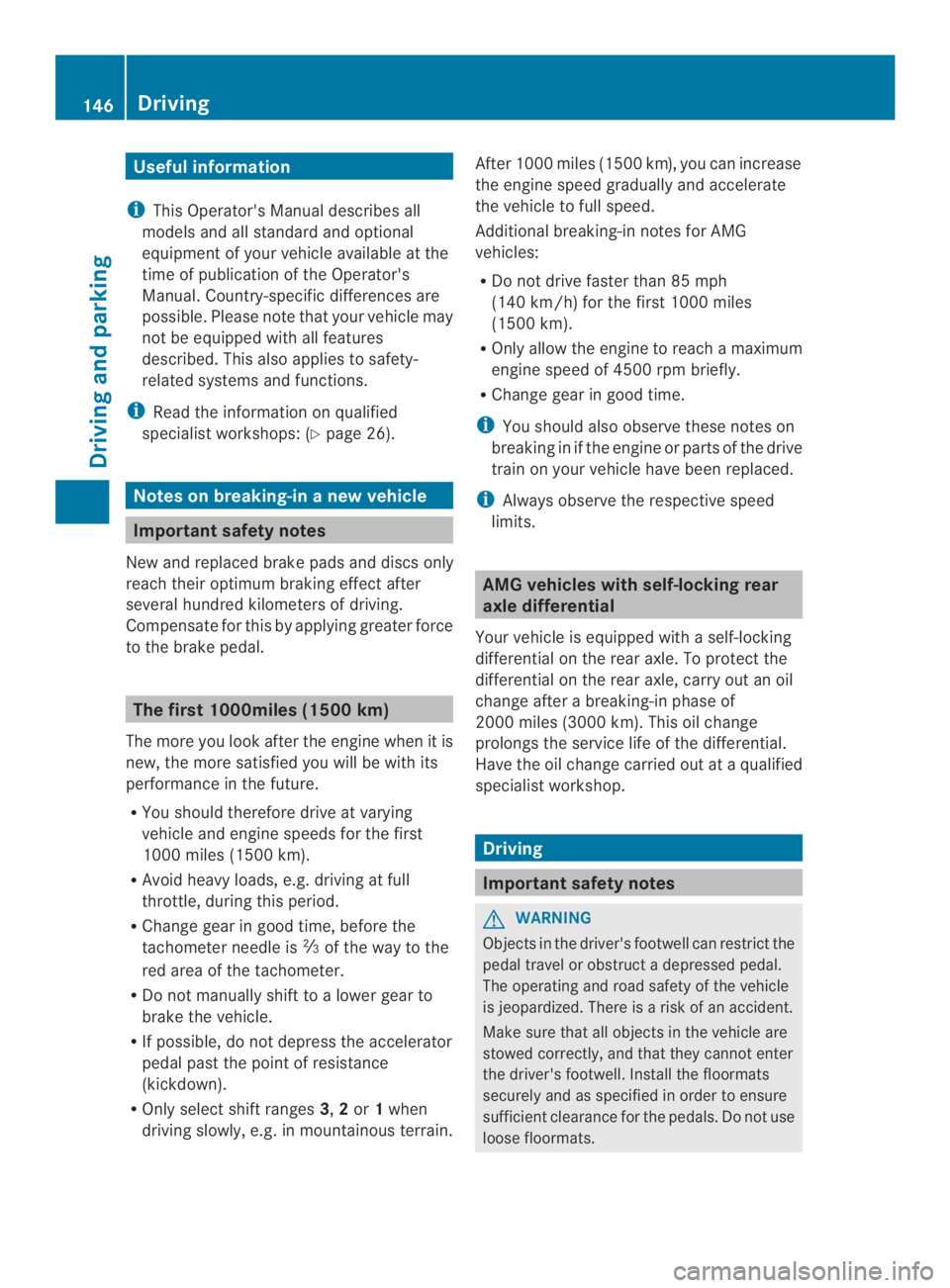

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Notes on breaking-inanew vehicle
Important safety notes
New and replaced brakepads and discsonly
reachtheir optimum braking effect after
several hundred kilometers of driving.
Compensate for this by applyinggreater force
to thebrakepedal.
Thefirst 1000miles (1500 km)
The moreyou look after theengine when it is
new, themoresatisfied you will be with its
performanceinthefuture.
RYou should therefore driveatvarying
vehicle and engine speedsfor thefirst
1000 miles (1500 km).
RAvoid heavy loads, e.g.driving at full
throttle, during this period.
RChange gearingood time, before the
tachometer needle isof the way to the
red area of the tachometer.
RDo not manually shift toalower gear to
brake the vehicle.
RIf possible, do not depress the accelerator
pedal past the point of resistance
(kickdown).
ROnly select shift ranges3,2or1when
driving slowly, e.g. in mountainous terrain.
After 1000 miles (1500 km), you can increase
the engine speed graduallyand accelerate
the vehicle to full speed.
Additional breaking-in notes for AMG
vehicles:
RDo not drive faster than 85 mph
(140 km/h) for the first 1000 miles
(1500 km).
ROnly allow the engine to reachamaximum
engine speed of 4500 rpm briefly.
RChange gear in good time.
iYou should also observe these notes on
breaking in if the engine or parts of the drive
train on your vehicle have been replaced.
iAlways observe the respective speed
limits.
AMG vehicles with self-locking rear
axle differential
Your vehicle is equipped withaself-locking
differential on the rear axle. To protectthe
differential on the rear axle, carry out an oil
change afterabreaking-in phase of
2000miles (3000 km). This oil change
prolongs the servicelife of the differential.
Have the oil change carried out ataqualified
specialist workshop.
Driving
Important safetynotes
GWARNING
Objects in the driver's footwell can restrict the
pedal travel or obstructadepressed pedal.
The operatingand road safety of the vehicle
is jeopardized. There isarisk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficientclearancefor the pedals. Do not use
loose floormats.
146Driving
Driving and parking
