2014 MERCEDES-BENZ CLS tire type

Bar indicatorfor treadwearisintegrated
into the tire tread.
Treadwear indicators(TWI) are required by
law. Six indicatorsare positioned on the tire
tread. Theyare visible once the treaddepth
is approximatelyin (1.6 mm). If this is the
case,the tire is so worn that it mustbe
replaced.
Selecting, mounting and replacing
tires
ROnly mount tires and wheels of the same
type and make.
Exception: it is permissible to install a
different type or make in the event ofaflat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section
(Ypage321).
ROnly mount tires of the correct size onto
the wheels.
RBreak in new tires at moderate speeds for
the first 60 miles(100 km).They only reach
their full performance after this distance.
RDo not drive with tires which have too little
tread depth, as this significantly reduces
the traction on wet roads (hydroplaning).
RReplace the tires after six years at the
latest, regardless of wear.
Observe the notes on the emergency spare
wheel (Ypage 367).
MOExtended tires (tires with run-flat
properties)
With MOExtended tires (tires with run flat
characteristics), you can continue to drive
your vehicle even if there isatotal loss of
pressure in one or more tires.
MOExtended tires may only be used in
conjunction with an active tire pressure loss
warning system or with an active tire pressure
monitor and on wheels specifically tested by
Mercedes-Benz.
Notes on driving with MOExtended tires with
aflat tire (Ypage 321).
iVehicles equipped with MOExtended tires
are not equipped withaTIREFIT kit at the
factory. It is therefore recommended that
you additionallyequip your vehicle with a
TIREFIT kit if you mount tires that do not
feature run-flat properties, e.g. winter tires.
ATIREFIT kit can be obtained from a
qualified specialist workshop.
Winter operation
General notes
Have your vehicle winterproofed ataqualified
specialist workshop at the onset of winter.
Observe the notes in the "Changingawheel"
section (Ypage 357).
Driving with summer tires
At temperatures below 45‡(+7 †), summer
tires lose elasticity significantly,and
therefore traction and braking power as well.
Change the tires on yourvehicle to
M+S tires. Using summer tires at very cold
temperatures could cause crackstoform,
thereby damaging the tires permanently.
Mercedes-Benz cannot accept responsibility
for this type of damage.
M+S tires
GWARNING
M+S tires withatiretread depthofless than
in (4 mm)are notsuitable for use in winter
and do notprovide sufficient traction.There
isariskofanaccident.
M+S tires withatread depthofless than
in (4 mm)must be replacedimmediately.
At temperatures below 45‡(+7 †), use
winter tires or all-weather tires. Both typesof
tireare identified by theM+S marking.
336Winteroperation
Wheels and tires

Tire labeling
Overview
UniformTire QualityGrading Standard
(Ypage 355)
DOT, Tire Identification Number
(Ypage 354)
$Maximum tireload (Ypage 353)
!Maximum tirepressure (Ypage 340)
Manufacturer
%Tire material (Ypage 354)
Tire size designation,load-bearing
capacity and speed index (Ypage 351)
Load index (Ypage 353)
Tire name
The markings described above are on the tire
in additiontothe tire name (sales
designation) and the manufacturer's name.
iTire data is vehicle-specific and may
deviate from the data in the example.
Tire size designation, load-bearing
capacity and speed rating
GWARNING
Exceeding the stated tire load-bearing
capacity and the approved maximum speed
could lead to tire damage or the tire bursting.
There isarisk of accident.
Therefore, only use tire types and sizes
approved for your vehicle model. Observe the
tire load rating and speed rating required for
your vehicle.
Tire width
Nominal aspect ratio in %
$Tire code
!Rim diameter
Load bearing index
%Speed rating
General:depending on the manufacturer's
standards, the size imprinted in the tire wall
may not contain any letters or may contain
one letter that precedes the size description.
If there is no letter preceding the size
description (as shown above): these are
passenger vehicle tires according to
European manufacturingstandards.
If "P" precedes the size description:these are
passenger vehicle tires according to U.S.
manufacturing standards.
If "LT" precedes the size description: these
are light truck tires according to U.S.
manufacturing standards.
If "T" precedes the size description: these are
compact emergency spare wheels at high tire
pressure, to be used only temporarily in an
emergency.
Tire width:tire widthshows the nominal
tire width in millimeters.
Aspect ratio:aspect ratiois the size ratio
between the tire height and tire width and is
shown in percent.The aspect ratio is
All about wheels and tires351
Wheels and tires
Z

calculatedbydividing the tire width by the tire
height.
Tire code:tire code$specifies the tire type.
"R"represents radialtires; "D" represents
diagonaltires; "B" represents diagonalradial
tires.
Optionally, tireswithamaximum speed of
over149 mph (240 km/h)may have "ZR" in
the size description, depending on the
manufacturer (e.g. 245/40 ZR 18).
Rim diameter:rim diameter!is the
diameter of the beadseat, not the diameter
of the rim flange. The rim diameter is
specified in inches(in).
Load-bearingindex:load-bearing index
isanumericalcode that specifies the
maximum load-bearing capacity ofatire.
Do not overload the tiresbyexceedingthe
specified load limit. The maximum
permissibleload can be found on the
vehicle's Tireand LoadingInformation
placard on theB-pillar on thedriver's side
(Ypage 345).
Example:
Load-bearingindex 91 indicatesamaximum
load of 1356 lb (615kg)that thetires can
bear.Forfurther information on themaximum
tireload in kilograms and lbs, see
(Ypage 353).
For further informationontheload bearing
index,see "Load index"(Ypage 353).
Speed rating:speedrating%specifiesthe
approved maximum speedofthetire.
iTire dataisvehicle-specific and may
deviate from thedataintheexample.
Regardless of thespeedrating,always
observethespeedlimits. Drive carefullyand
adapt your driving style to thetraffic
conditions.
Summer tires
IndexSpeed rating
Qup to 100mph (160km/h)
Rup to 106mph (170km/h)
IndexSpeed rating
Sup to 112mph (180km/h)
Tup to 118mph (190km/h)
Hup to 130mph (210km/h)
Vup to 149mph (240km/h)
Wup to 168mph (270km/h)
Yup to 186mph (300km/h)
ZR...Yup to 186mph (300km/h)
ZR...(..Y)over186mph (300km/h)
ZRover149mph (240km/h)
ROptionally, tires withamaximum speedof
over149mph (240km/h) may have "ZR"
in thesizedescription,dependingonthe
manufacturer (e.g. 245/40 ZR18).
The servicespecificationismade up of
load-bearing indexand speed rating
%.
RIf the size description of your tire includes
"ZR"and there are no service
specifications, ask the tire manufacturer in
order to find out the maximum speed.
Ifaservice specification is available, the
maximum speed is limited according to the
speed rating in the service specification.
Example: 245/40ZR18 97Y.In this
example, "97 Y" is the service specification.
The letter "Y" represents the speed rating.
The maximum speed of the tire is limited to
186 mph (300 km/h).
RThe size descriptionfor all tires with
maximum speeds of over 186 mph
(300 km/h) must include "ZR",andthe
service specification must be given in
parentheses. Example:
275/40 ZR 18 (99 Y). Speed rating "(Y)"
indicates that the maximum speed of the
tire is over 186 mph (300 km/h).Ask the
tire manufacturer about the maximum
speed.
352All about wheelsand tires
Wheels and tires

Do not overloadthe tires by exceeding the
specifiedloadlimit.Themaximum
permissibleloadcan be found on the
vehicle'sTireand Loading Information
placard on the B-pillar on the driver's side
(Ypage 345).
iTheactual values for tires arevehicle-
specific and maydeviate fromthe values in
the illustration.

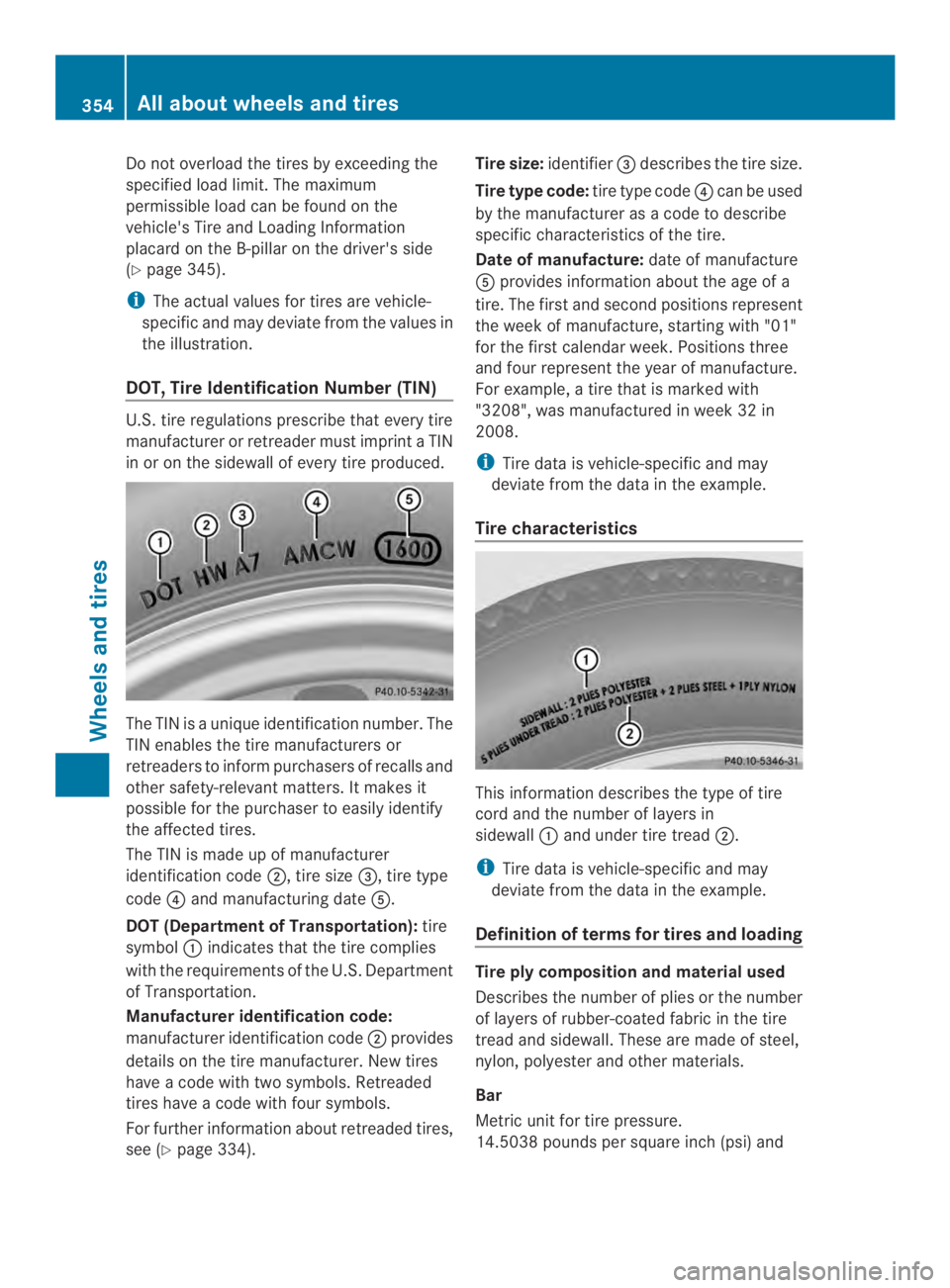

DOT, Tire Identification Number (TIN)
U.S. tire regulations prescribe that every tire
manufacturer or retreader must imprintaTIN
in or on the sidewall of every tire produced.
The TIN isauniqueidentification number. The
TIN enables the tire manufacturers or
retreaders to inform purchasers of recallsand
other safety-relevant matters. It makes it
possible for the purchaser to easily identify
the affected tires.
The TIN is made up of manufacturer
identification code,tire size$,tire type
code!and manufacturing date.
DOT (Department of Transportation):tire
symbolindicates that the tire complies
with the requirements of the U.S. Department
of Transportation.
Manufacturer identification code:
manufacturer identification codeprovides
detailsonthe tire manufacturer. New tires
haveacode with two symbols. Retreaded
tires haveacode with four symbols.
For further information aboutretreaded tires,
see (Ypage 334).
Tiresize:identifier$describes the tire size.
Tiretypecode:tire type code!can be used
by the manufacturer asacode to describe
specific characteristics of the tire.
Date of manufacture:date of manufacture
provides information about the age of a
tire. The first and second positions represent
the week of manufacture, starting with "01"
for the first calendar week. Positions three
and four represent the year of manufacture.
For example,atire that is marked with
"3208", was manufactured in week 32 in
2008.
iTire data is vehicle-specific and may
deviate from the data in the example.
Tire characteristics
This information describes the type of tire
cord and the number of layers in
sidewalland under tire tread.
iTire data is vehicle-specific and may
deviate from the data in the example.
Definition of termsfor tires and loading
Tire ply composition and material used
Describes the number of plies or the number
of layers of rubber-coated fabric in the tire
tread and sidewall. These are made of steel,
nylon, polyester and other materials.
Bar
Metric unit for tire pressure.
14.5038 pounds per square inch (psi) and
354All about wheelsand tires
Wheels and tires

Curbweight
The weight ofavehicle with standard
equipment includingthemaximum capacity
of fuel, oil and coolant.Italso includes the air-
conditioningsystem and optional equipment
if these are installed in the vehicle, but does
not include passengers or luggage.
Maximumload rating
The maximum tireload is the maximum
permissible weight in kilograms or lbs for
whichatireisapproved.
Maximumpermissible tirepressure
Maximum permissible tirepressure for one
tire.
Maximumload on one tire
Maximum load on one tire. This is calculated
by dividingthe maximum axle load of one axle
by two.
PSI (pounds per squareinch)
Astandardunitofmeasure for tire pressure.
Aspect ratio
Relationship between tire height and tire
width in percent.
Tirepressure
This is pressure inside the tire applying an
outward forcetoeach square inch of the tire's
surface. The tire pressure is specified in
pounds per square inch (psi), in kilopascal
(kPa) or in bar. The tire pressure should only
be corrected when the tires are cold.
Cold tirepressure
The tires are cold:
Rif the vehicle has been parked without
direct sunlight on the tires for at least three
hours and
Rif the vehicle has been driven for less than
1mile (1.6 km).
Tread
The part of the tire that comes intocontact
with the road.
Bead
The tire bead ensures that the tire sits
securely on the wheel. There are several steel
wires in the bead to preventthe tire from
comingloose from the wheel rim.
Sidewall
The part of the tire between the tread and the
bead.
Weight of optional extras
The combined weight of those optional extras
that weigh more than the replaced standard
parts and more than 2.3 kilograms (5 lbs).
These optional extras, such as high-
performance brakes, level control,aroof rack
orahigh-performancebattery, are not
included in the curb weight and the weight of
the accessories.
TIN (Tire Identification Number)
This isaunique identifier which can be used
byatire manufacturer to identify tires, for
example foraproduct recall, and thus identify
the purchasers. The TIN is made up of the
manufacturer's identity code, tire size, tire
type code and the manufacturing date.
Load bearing index
The load bearing index (also load index) is a
code that contains the maximum load bearing
capacity ofatire.
Traction
Traction is the result of friction between the
tires and the road surface.
Treadwear indicators
Narrow bars (tread wear bars) that are
distributed over the tire tread. If the tire tread
is level with the bars, the wear limit ofin
(1.6 mm) has been reached.
356All about wheels and tires
Wheels and tires

XStow the jack and the restofthe vehicle
toolsinthe trunk again.
XCheck the tire pressure of the newly
mounted wheel and adjustitifnecessary.
Observe the recommended tire pressure
(Ypage 338).
iVehicles with tire pressure monitor: all
wheels mounted must be equipped with
functioning sensors.
Wheel and tirecombinations
General notes
!For safety reasons, Mercedes-Benz
recommends that you only use tires and
wheels which have been approved by
Mercedes-Benz specifically for your
vehicle.
These tires have been specially adapted for
use with the control systems, such as ABS
or ESP®,and are marked as follows:
RMO=Mercedes-BenzOriginal
RMOE=Mercedes-BenzOriginal Extended
(tires featuring run-flat characteristics)
RMO1=Mercedes-Benz Original (only
certain AMG tires)
Mercedes-BenzOriginal Extended tires
may only be usedonwheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories
tested and approved by Mercedes-Benz.
Certain characteristics, e.g. handling,
vehiclenoise emissions or fuel
consumption, may otherwise be adversely
affected. In addition, when driving with a
load, tire dimension variations couldcause
the tires to come into contact with the
bodywork and axle components. This could
result in damage to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those
tested and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overviewofabbreviations usedinthe
following tire tables:
RBA: both axles
RFA: front axle
RRA: rear axle
The recommended pressures for various
operating conditionscan be found:
Ron the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
Rin the tire pressure table on the inside of
the fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions
(Ypage 338).
Check tire pressures regularly,and only when
the tires are cold. Comply with the
maintenancerecommendations of the tire
manufacturer in the vehicle document wallet.
Notes on the vehicle equipment–always
equip the vehicle with:
Rtires of the same size onagiven axle (left/
right)
Rthe same type of tires atagiven time
(summer tires, winter tires, MOExtended
tires)
Vehicles with MOExtendedtires are not
equipped withaTIREFIT kit at the factory. It
is therefore recommendedthat you
additionally equip your vehicle withaTIREFIT
kit if you mounttires that do not feature run-
flat properties,e.g. winter tires.ATIREFIT kit
may be obtained fromaqualified specialist
workshop.
iNot all wheeland tire combinations are
available at the factory for all countries.
iOn the following pages, you can find
information on approved wheelrims and
tiresizesfor equipping your vehicle with
winter tires. Winter tires are not available
362Wheel and tirecombinations
Wheels and tires

Winter tires
R19
TiresAlloy wheels
FA: 255/35 R19 96VXLM+S
RA: 255/35 R19 96VXLM+S
FA: 9.0Jx19H2
Wheeloffset: 1.46 in (37 mm)
RA: 9.5Jx19H2
Wheeloffset: 2.05 in (52 mm)
FA: 255/35 R19 96VXLM+S
RA: 285/30 R19 98VXLM+S3
FA: 9.0Jx19H2
Wheeloffset: 1.46 in (37 mm)
RA: 10.0Jx19H2
Wheeloffset: 1.85 in (47 mm)
Emergency spare wheel
Important safety notes
GWARNING
The wheelortire size as wellasthe tire type
of the spare wheeloremergency spare wheel
and the wheeltobereplaced may differ.
Mounting an emergency spare wheelmay
severely impair the driving characteristics.
There isarisk of an accident.
To avoidhazardoussituations:
Radapt yourdriving style accordingly and
drive carefully.
Rnever mount more than one spare wheelor
emergency spare wheelthat differs in size.
Ronly useaspare wheeloremergency spare
wheelofadifferent size briefly.
Rdo not switch ESP®off.
Rhaveaspare wheeloremergency spare
wheelofadifferent size replaced at the
nearest qualified specialist workshop.
Observe that the wheeland tire dimensions
as wellasthe tire type must be correct.
When using an emergency spare wheelor
spare wheelofadifferent size, you must not
exceed the maximumspeedof50mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels.
General notes
You should regularlycheck the pressure of
the emergency spare wheel, particularlyprior
to long trips, and correct the pressure as
necessary (Ypage338). The applicable value
is found on the wheelorunder "Technical
data"(Ypage370).
An emergency spare wheelmay alsobe
mounted against the direction of rotation.
Observe the time restriction on use as wellas
the speedlimitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This alsoappliestothe
emergency spare wheel.
iWhen you are driving with the collapsible
spare wheelmounted, the tire pressure
loss warning system or the tire pressure
monitor cannot function reliably. Only
restart the tire pressure loss warning
system/the tire pressure monitor when the
damaged wheelhas been replaced with a
new wheel.
Vehicles with tire pressure monitor:
after mounting an emergency spare wheel,
3Use of snow chains is not permitted.Observe the notes under "Snow chains".
Emergency sparewheel367
Wheels and tires
Z

Refrigerantinstruction label
Example:refrigerantinstruction label
Warning symbol
Refrigerant filling capacity
$Applicable SAE standards
!PAG oil part number
Type of refrigerant
Warning symbolsindicate:
Rpossible dangers
Rhaving service work carried out at a
qualifiedspecialistworkshop
Filling capacities
All modelsCapacity
Refrigerant590±10g
(20.8±0.4 oz)
PAG oil120 g
(4.2 oz)
Vehicle data
General notes
Please note that for the specified vehicle
data:
Rthe heights specified may vary asaresult
of:
-tires
-load
-condition of the suspension
-optional equipment
Rthe vehicle length specified includes the
front license plate adapter.
Vehicle data379
Technical data
Z
