2014 MERCEDES-BENZ C-Class SEDAN navigation system

N
Navigation Menu (on-board computer) ............209
see separate operating instructions
NECK-PRO head restraints
Operation ........................................ .52
Resetting after being triggered ........53
NECK-PRO luxury head restraints
Operation ........................................ .52
Resetting after being triggered ........53
Notes on breaking-in anew vehicle 146 O
Occupant Classification System
(OCS) Fault s............................................... 51
Operation ........................................ .47
System self-test ............................... 49
Occupant safety
Childre ninthe vehicle ..................... 59
System overview .............................. 40
OCS
Faults ............................................... 51
Operation ........................................ .47
System self-test ............................... 49
Odometer ........................................... 207
Oil see Engine oil
On-board computer
AMG menu ..................................... 219
Assistance menu ........................... 213
Audi omenu ................................... 210
Convenience submenu ..................218
Displaying a service message ........286
Display messages ..........................222
DISTRONI CPLUS ........................... 179
Factory settings submenu .............219
Important safety notes ..................204
Instrument cluster submenu ..........215
Lighting submenu .......................... 216
Menu overview .............................. 207
Message memory .......................... 222
Navigation menu ............................ 209
Operation ....................................... 205
RACETIMER ................................... 220
Service menu ................................. 215Settings menu
............................... 215
Standard displa y............................ 207
Telephone menu ............................ 211
Trip menu ...................................... 207
Vehicle submenu ........................... 217
Video DVD operatio n..................... 211
Opening and closing the side trim
panels ................................................. 123
Operating safety Declaratio nofconformity ................ 25
Important safety notes ....................24
Operating system
see On-board computer
Operator's Manual
Vehicle equipment ...........................22
Outside temperature display ...........205
Overhead control panel ......................36
Override feature Rea rside windows ........................... 64 P
Pain tcode number ............................ 350
Paintwork (cleaning instructions) ...293
Panic alarm .......................................... 40
Panorama roof with power tilt/
sliding panel
Opening/closing .............................. 93
Opening/closing the roller
sunblind ........................................... 94
Problem (malfunction) .....................94
Resetting ......................................... 94
Panorama sliding sunroof
Important safety notes ....................91
Parking ............................................... 164
Important safety notes ..................164
Parking brake ................................ 165
Position of exterior mirror, front-
passenger side ............................... 109
Rea rview camera .......................... 191
see PARKTRONIC
Parking aid
Parking Guidance ........................... 188
see Exterior mirrors
see PARKTRONIC
Parking brake
Display message ............................ 224
Notes/function .............................. 165 Index
13

Reporting safety defects
....................26
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 236
Warning lamp ................................. 256
see Fuel
Residual heat (climate control) ........141
Restraint system see SRS (Supplemental Restraint
System)
Reverse gear
Engaging (automatic transmission) 154
Reversing feature
Panorama sliding sunroo f................ 91
Roller sunblinds ............................... 93
Side windows ................................... 88
Sliding sunroo f................................. 91
Trunk lid .......................................... .84
Roadside Assistance (breakdown) ....23
Roller blind see Roller sunblind
Roller sunblind
Panorama roof with power tilt/
sliding panel ..................................... 93
Rea rside windows ......................... 269
Rea rwindow .................................. 269
Roof carrier ........................................ 267
Roof lining and carpets (cleaning
guidelines) ......................................... 297
Roof load (maximum) ........................358
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............209 S
Safety Childre ninthe vehicle ..................... 59
Child restraint systems ....................59
Occupant Classification System
(OCS) ............................................... 47
Overview of occupant safety
systems ........................................... 40
Safety system
see Driving safety systems Seat belts
Adjusting the driver's and front-
passenger sea tbelt ......................... 56
Adjusting the height ......................... 56
Belt force limiters ............................ 58
Cleaning ......................................... 297
Correct usage .................................. 55
Emergency Tensioning Devices ....... .58
Fastening ......................................... 56
Important safety guidelines .............54
Releasing ......................................... 57
Safety guidelines ............................. 41
Switching belt adjustment on/off
(on-board computer) ......................218
Warning lamp ................................. 248
Warning lamp (function) ................... 57
Seats
Adaptive sea tbackrests (AMG
vehicles) ........................................ 103
Adjusting (electrically). ..................100
Adjusting (manually and
electrically). ................................... 100
Adjusting lumba rsuppor t.............. 103
Adjusting the 4-way lumbar
support .......................................... 103
Adjusting the head restraint ..........101
Cleaning the cover .........................297
Correct driver's seat position ........... 98
Important safety notes ....................99
Seat heating problem ....................105
Seat ventilation problem ................105
Storing settings (memory function) 110
Switching sea theating on/off .......104
Switching seat ventilation on/off ..105
Sensors (cleaning instructions) .......295
Service menu (on-board computer) .215
Service products Brake fluid ..................................... 355
Coolant (engine) ............................ 356
Engine oil ....................................... 354
Fuel ................................................ 351
Important safety notes ..................351
Refrigerant (air-conditioning
system) .......................................... 357
Washer fluid .................................. .357
Service work
see ASSYST PLUS Index
15

001F
Permanen tdisplay: outside temperature
or speed (Y page 216)
0020 Transmission position
X To show menu bar 0003:press the 0002
or 0005 button on the steering wheel.
Menu bar 0003disappears after a few seconds.
Text field 0002shows the selected menu or
submenu as well as display messages.
i You can set the time using the audio
system or COMAND, see the separate
operating instructions.
The following messages may appear in the
multifunction display:
0009 Shift recommendation
(Y page 159)
000700110008 Parking Guidance (Y page 188)
CRUISE Cruise control (Y
page 171)
0003 Adaptive Highbeam Assist
(Ypage 118)
000C ECO start/stop function
(Ypage 150)
0001 HOLD function (Y page 182) Menus and submenus
Menu overview
Operating the on-board computer
(Y page 205).
Depending on the equipmen tinstalled in the
vehicle, you can call up the following menus:
R Trip menu (Y
page 207)
R Navi menu (navigation instructions)
(Y page 209)
R Audio menu (Y
page 210)
R Tel menu (telephone) (Y
page 211)
R DriveAssist menu (assistance)
(Y page 213)
R Serv menu (Y
page 215)
R Sett. menu (settings) (Y
page 215)
R AMG menu in AMG vehicles (Y
page 219)The
Audio ,
Navi and
Tel menus diffe
rslightly
in vehicles with an audio system and in
vehicles with COMAND .The examples given
in this Operator's Manual apply to vehicles
equipped with COMAND. Trip menu
Standard display X
Press and hold the 0006button on the
steering wheel until the Trip menu with
trip odometer 0002and odometer 0003is
shown.
Trip computer "From Start" or "From
Reset" Example: trip computer "From Start"
0002
Distance
0003 Time
0022 Average speed
0021 Average fuel consumption
X Press the 0002or0005 button on the
steering wheel to select the Trip menu.
X Press the 0003or0004 button to select
From Start or
From Reset .
The values in the From Start submenu are
calculated from the start of a journey,
whereas the values in the From Reset submenu are calculated from the last time the
submenu was reset (Y
page 208). Menus and submenus
207On-board computer and displays Z

You can reset the values of the following
functions:
R Trip odometer
R "From Start" trip computer
R "From Reset" trip computer
R ECO display
i When you reset the values in the "ECO
display", the values in the trip computer
"From Start" are likewise reset .When you
reset the values in the trip computer "From
Start", the values in the "ECO display"are
likewise reset. Navigation system menu
Displaying navigation instructions In the
Navi menu, the multifunction display
shows navigation instructions. For more
information, see the separate operating
instructions.
X Switch on the audio system with Becker ®
MAP PILOT or COMAND; see the separate
operating instructions.
X Press the 0002or0005 button on the
steering wheel to select the Navi menu.
Route guidance not active 0002
Direction of travel
0003 Current road Route guidance active No change of direction announced
0002
Distance to the destination
0003 Distance to the next change of direction
0022 Current road
0021 "Follow the road's course" symbol
Change of direction announced without a
lane recommendation 0002
Road into which the change of direction
leads
0003 Distance to change of direction and visual
distance display
0022 Change-of-direction symbol
When a change of direction is announced, you
will see symbol 0022for the change of direction
and distance graphic 0003.The distance
indicator shortens towards the top of the
display as you approach the point of the
announced change of direction. Menus and submenus
209On-board computer and displays Z

Change of direction announced with a
lane recommendation 0002
Road into which the change of direction
leads
0003 Distance to change of direction and visual
distance display
0022 New lane during a change of direction
0021 Uninterrupted lane
001F Lane recommendation
0020 Change-of-direction symbol
On multilane roads, the system can display
lane recommendation 001Ffor th enext change
of direction. During the change of direction,
additional lanes may be displayed.
Lane recommendations are only displayed if
the relevant data is available on the digital
map.
Other status indicators of the
navigation system R
0001:y ou have reached the destination or an
intermediate destination.
R New Route... or
Calculating Route :
calculating a new route
R Off Map or
Off Mapped Road :t
he vehicle
position is outside the area of the digital
map (off-map position).
R No Route :n
o route could be calculated to
the selected destination. Audio menu
Selecting aradio station 0002
Waveband
0003 Station frequency with memory position
i Station 0003is displayed with the station
frequency or station name. The memory
position is only displayed along with
station 0003if this has bee nstored.
X Switch on the audio syste morCOMAND
and select Radio (see the separate
operating instructions).
X Press the 0002or0005 button on the
steering wheel to select the Audio menu.
X To select astore dstation: briefly press
the 0003 or0004 button.
X To select a station from the station
list: press and briefly hold the 0003
or 0004 button.
If no statio nlist is received:
X To select astation using the station
search: press and briefly hold the 0003
or 0004 button.
i SIRIUS XM satellite radio functions like a
normal radio.
For more informatio nonsatellite radio
operation, see the separate operating
instructions.
i For informatio nonswitching waveband
and storing stations; see the separate
operating instructions. 210
Menus and submenusOn-board computer and displays

X
Press the 0004or0003 button to set Off ,
Standard or
Adaptive .
X Press the 000Bbutton to save the setting.
When Lane Keeping Assist or Active Lane
Keeping Assist is activated, the
multifunction display shows the lane
markings as bright lines in the assistance
graphic.
For further information about Lane Keeping
Assist, see (Y page 194).
For further information about Active Lane
Keeping Assist, see (Y page 199).Maintenance menu
In the
Service menu, you have the following
options:
R Calling up display messages
(Y page 222)
R Restarting the tire pressure loss warning
system (Canada only) (Y page 321)
R Checking the tire pressure electronically
(Y page 322)
R Calling up the service due date
(Y page 286) Settings menu
Introduction In the
Settings menu, you have the following
options:
R Changing the instrument cluster settings
(Y page 215)
R Changing the light settings (Y page 216)
R Changing the vehicle settings
(Y page 217)
R Changing the convenience settings
(Y page 218)
R Restoring the factory settings
(Y page 219)
Instrument cluster Selecting the unit of measurement for
distance
The
Display Unit Speed-/Odometer: function allows you to choose whether
certain displays appear in kilometers or miles
in the multifunction display.
You can determine whether the multifunction
display shows some messages in miles or
kilometers.
X
Press the 0002or0005 button on the
steering wheel to select the Sett. menu.
X Press the 0004or0003 button to select the
Instr. Cluster submenu.
X Press 000Bto confirm.
X Press the 0004or0003 button to select the
Display Unit Speed-/Odometer: function.
You will see the selected setting:
km or
miles .
X Press the 000Bbutton to save the setting.
The selected unit of measurement for
distance applies to:
R the digital speedometer in the Trip menu
R the odometer and the trip odometer
R the trip computer
R current consumption and the range
R the navigation instruction sintheNavi menu
R cruise control Menus and submenus
215On-board computer and displays Z

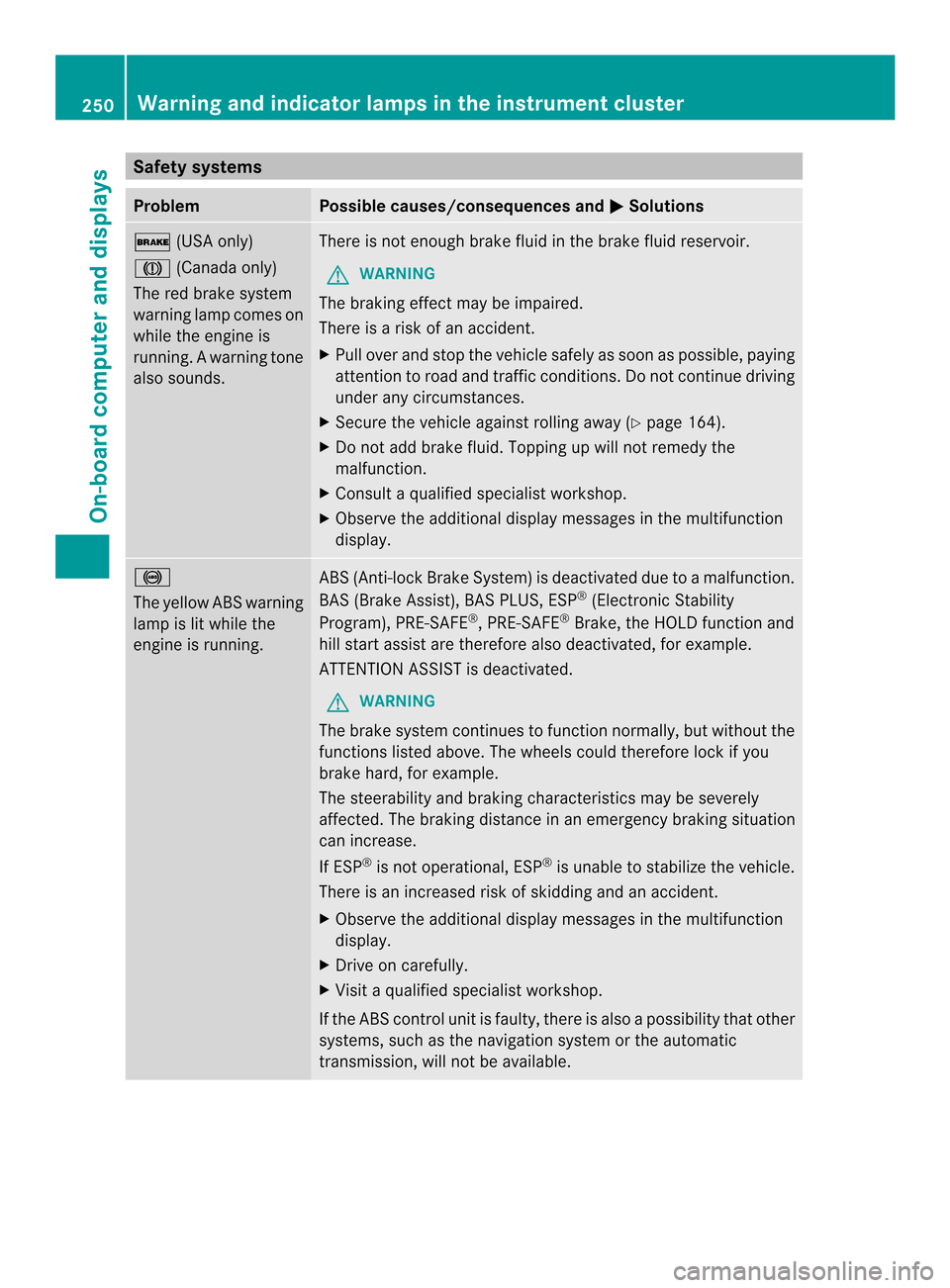

Safety systems
Problem Possible causes/consequences and
0001 Solutions
000B
(USA only)
0005 (Canada only)
The red brake system
warning lamp comes on
while the engine is
running. A warning tone
also sounds. There is not enough brake fluid in the brake fluid reservoir.
G WARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away (Y page 164).
X Do not add brake fluid. Topping up will not remedy the
malfunction.
X Consult a qualified specialist workshop.
X Observe the additional display messages in the multifunction
display. 0018
The yellow ABS warning
lamp is lit while the
engine is running. ABS (Anti-lock Brake System) is deactivated due to a malfunction.
BAS (Brake Assist), BAS PLUS, ESP
®
(Electronic Stability
Program), PRE-SAFE ®
, PRE-SAFE ®
Brake, the HOLD function and
hill start assist are therefore also deactivated, for example.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Observe the additional display messages in the multifunction
display.
X Drive on carefully.
X Visit a qualified specialist workshop.
If the ABS control unit is faulty, there is also a possibility that other
systems, such as the navigation system or the automatic
transmission, will not be available. 250
Warning and indicator lamps in the instrument clusterOn-board computer and displays

Roadside Assistance button
X
Press Roadside Assistance button 0002.
This initiates a call to the Mercedes-Benz
Custome rAssistance Center.
The indicator lamp in Roadside Assistance
button 0002flashes while the call is active.
The multifunction display shows the
Connecting Call message. The audio
output is muted.
If a connection can be made, the CallConnected message appears in the
multifunction display.
If a mobile phone network and GPS reception
are available, the system transfers data to the
Mercedes-Benz Customer Assistance Center,
for example:
R Current location of the vehicle
R Vehicle identification number
i The audio system or COMAND display
indicates that a call is active. During the
call, you can change to the navigation menu
by pressing the NAVI button on COMAND,
for example.
Voice output is not available.
Av oice connection is established between
the Mercedes-Benz Customer Assistance
Center and the vehicle occupants.
From the vehicle remote malfunction
diagnosis, the Mercedes-Benz Customer
Assistance Center can ascertain the nature of
the problem (Y page 279).
The Mercedes-Benz Customer Assistance
Center either sends a qualified Mercedes- Benz technician or makes arrangements for
your vehicle to be transported to the nearest
authorized Mercedes-Benz Center.
You may be charged for services such as
repair work and/or towing.
Further details are available in your mbrace
manual.
i
The system has not been able to initiate
a roadside assistance call, if:
R the indicator lamp for Roadside
Assistance call button 0002is flashing
continuously.
R no voice connection to the Mercedes-
Benz Customer Assistance Center was
established.
This can occur if the relevant mobile phone
network is not available, for example.
The Call Failed message appears in the
multifunction display.
X To end acall: press the 000Abutton on the
multifunctio nsteering wheel.
or
X Press the corresponding button for ending
a phone call on the audio syste moron
COMAND.
MB Info call button X
Press MB Info call button 0002.
This initiates a call to the Mercedes-Benz
Custome rAssistance Center.
The indicator lamp in MB Info call
button 0002flashes while the connection is
being made. The multifunction display 276
FeaturesStowage and features
