qEmission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
ØDo not drive your Mazda with any sign of engine malfunction.
ØDo not coast with the ignition switched off.
ØDo not descend steep grades in gear with the ignition switched off.
ØDo not operate the engine at high idle for more than 2 minutes.
ØDo not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
ØDo not push-start or pull-start your vehicle.
NOTE
lUnder U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
lWhile the engine is off, the sound of a valve opening and closing can be heard at the rear of the
right side of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
3-22
Before Driving
Fuel and Emission
CX-5_8CT5-EA-12K_Edition1 Page96
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (98,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
(U.S.A. and Canada)
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Open
Close
3-24
Before Driving
Fuel and Emission
CX-5_8CT5-EA-12K_Edition1 Page98
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (99,1)
CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
Before Driving
Fuel and Emission
3-25
CX-5_8CT5-EA-12K_Edition1 Page99
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (110,1)
NOTElThe keys carry a unique electronic code.
For this reason, and to assure your safety,
obtaining a replacement key requires some
waiting time. They are only available
through an Authorized Mazda Dealer.
lAlways keep a spare key in case one is lost.
If a key is lost, consult an Authorized
Mazda Dealer as soon as possible.
lIf you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
qOperation
NOTElThe engine may not start and security
indicator light may illuminate or flash if the
key is placed in an area where it is difficult
for the system to detect the signal, such as
on the dashboard or in the glove
compartment. Move the key to a location
within the signal range, switch the ignition
off, and then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or mobile telephone could
interfere with your immobilizer system. If
you are using the proper key and the engine
fails to start, check the security indicator
light.
Arming
The system is armed when the push
button start is pressed from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Refer to Warning/Indicator Lights on page
4-22.
Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart
the engine. If the engine does not start
after 3 or more tries, contact an
Authorized Mazda Dealer.
NOTE
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lBecause the electronic codes are reset when
the immobilizer system is repaired, the keys
are needed. Make sure to bring all the keys
to an Authorized Mazda Dealer so that they
can be programmed.
3-36
Before Driving
Security System
CX-5_8CT5-EA-12K_Edition1 Page110
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (135,1)
2. Verify that the push button start
indicator light (green) flashes.
NOTE
The push button start indicator light (green)
will flash even if the push button start is
pressed before depressing the brake pedal
(automatic transaxle) or the clutch pedal
(manual transaxle). If the clutch pedal is
depressed (manual transaxle) or the brake
pedal is depressed (automatic transaxle) under
this condition, the engine can be started by
resuming the procedure following this.
3. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green) flashes.
Key
Indicator light
Push button start
4. After the push button start indicator
light (green) changes to full
illumination, press the push button start
with your finger.NOTE
lThe engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
lIf there is a malfunction with the push
button start function, the push button start
indicator light (amber) flashes. In this case,
the engine may start, however, have the
vehicle checked at an Authorized Mazda
Dealer as soon as possible.
lIf the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If it
does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.
lIf you just want to change the ignition
position (with a dead key battery), after the
push button start indicator light (green)
changes to illumination, release the brake
pedal (automatic transaxle) or the clutch
pedal (manual transaxle), and press the
push button start. The ignition switches in
the order of ACC, ON, and OFF each time
it is pressed. Once the ignition switches off,
the ignition position can no longer be
switched. Therefore, if the engine starts,
perform the operation from the beginning
again.
When Driving
Start/Stop Engine
4-7
CX-5_8CT5-EA-12K_Edition1 Page135
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (152,1)
Indication and method for taking action list
Signal Warning/Indicator Lights Page
Master Warning Light 4-28
Brake System Warning Light 4-28
ABS Warning Light 4-29
Charging System Warning Indication 4-30
Engine Oil Warning Indication 4-30
Check Engine Light 4-31
High Engine Coolant Temperature Warning Light (Red) 4-31
AWD Warning Indication 4-32
BSM OFF Indicator Light 4-43
Automatic Transaxle Warning Indication 4-33
Power Steering Malfunction Indication 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-34
Check Fuel Cap Warning Indication 4-34
Seat Belt Warning Light 4-35
4-24
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page152
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (154,1)
Signal Warning/Indicator Lights Page
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-42
Lights-On Indicator Light 4-43

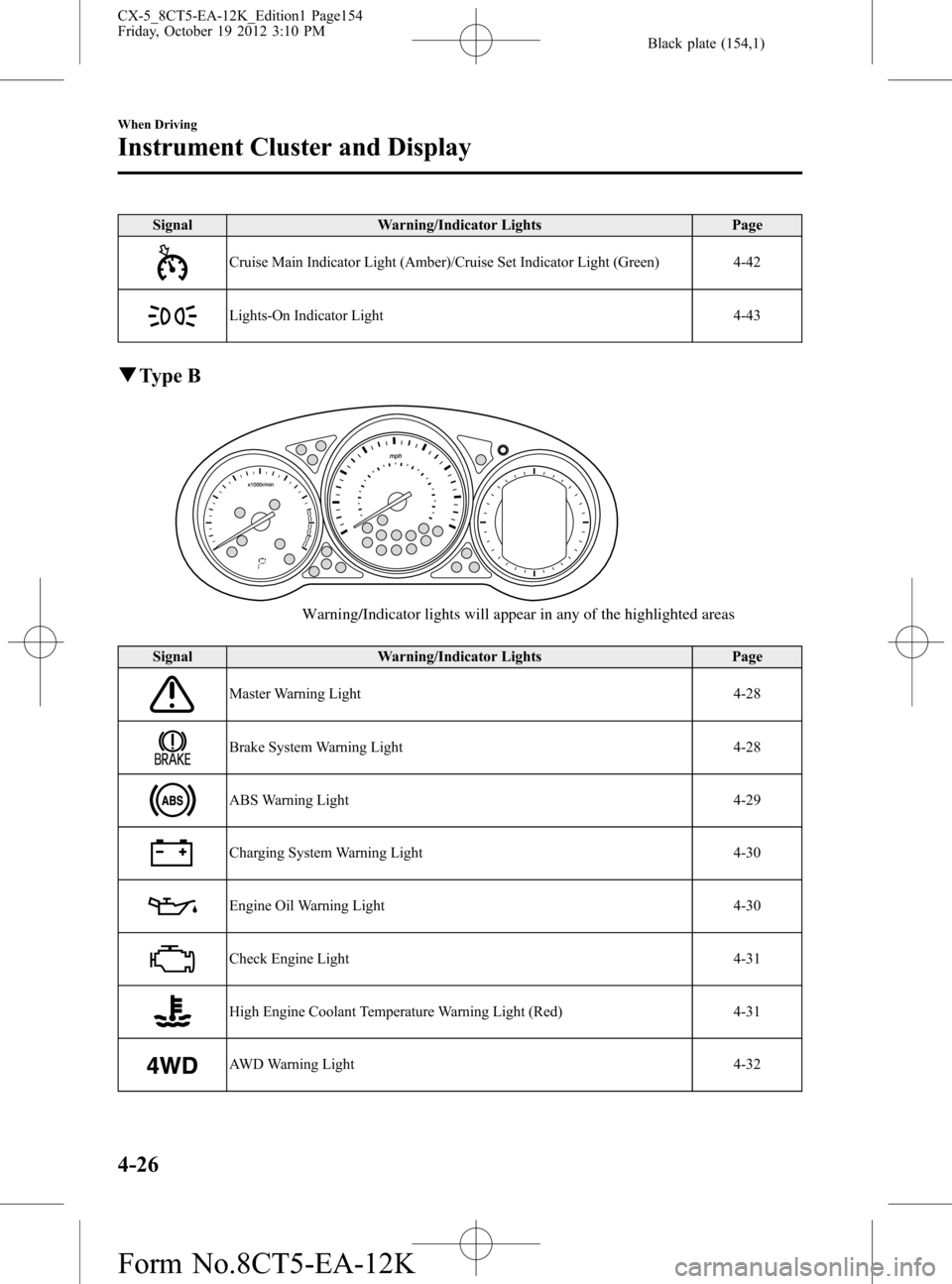

qType B
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Master Warning Light 4-28
Brake System Warning Light 4-28
ABS Warning Light 4-29
Charging System Warning Light 4-30
Engine Oil Warning Light 4-30
Check Engine Light 4-31
High Engine Coolant Temperature Warning Light (Red) 4-31
AWD Warning Light 4-32
4-26
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page154
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (155,1)
Signal Warning/Indicator Lights Page
BSM OFF Indicator Light 4-43
Automatic Transaxle Warning Light 4-33
Power Steering Malfunction Indicator Light 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-34
Check Fuel Cap Warning Light 4-34
Seat Belt Warning Light 4-35
Door-Ajar Warning Light 4-36
Low Washer Fluid Level Warning Light 4-36
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Light 4-38
TCS/DSC Indicator Light 4-40
TCS OFF Indicator Light 4-41
AFS OFF Indicator Light 4-41
Low Engine Coolant Temperature Indicator Light (Blue) 4-41
Shift Position Indication 4-41
When Driving
Instrument Cluster and Display
4-27
