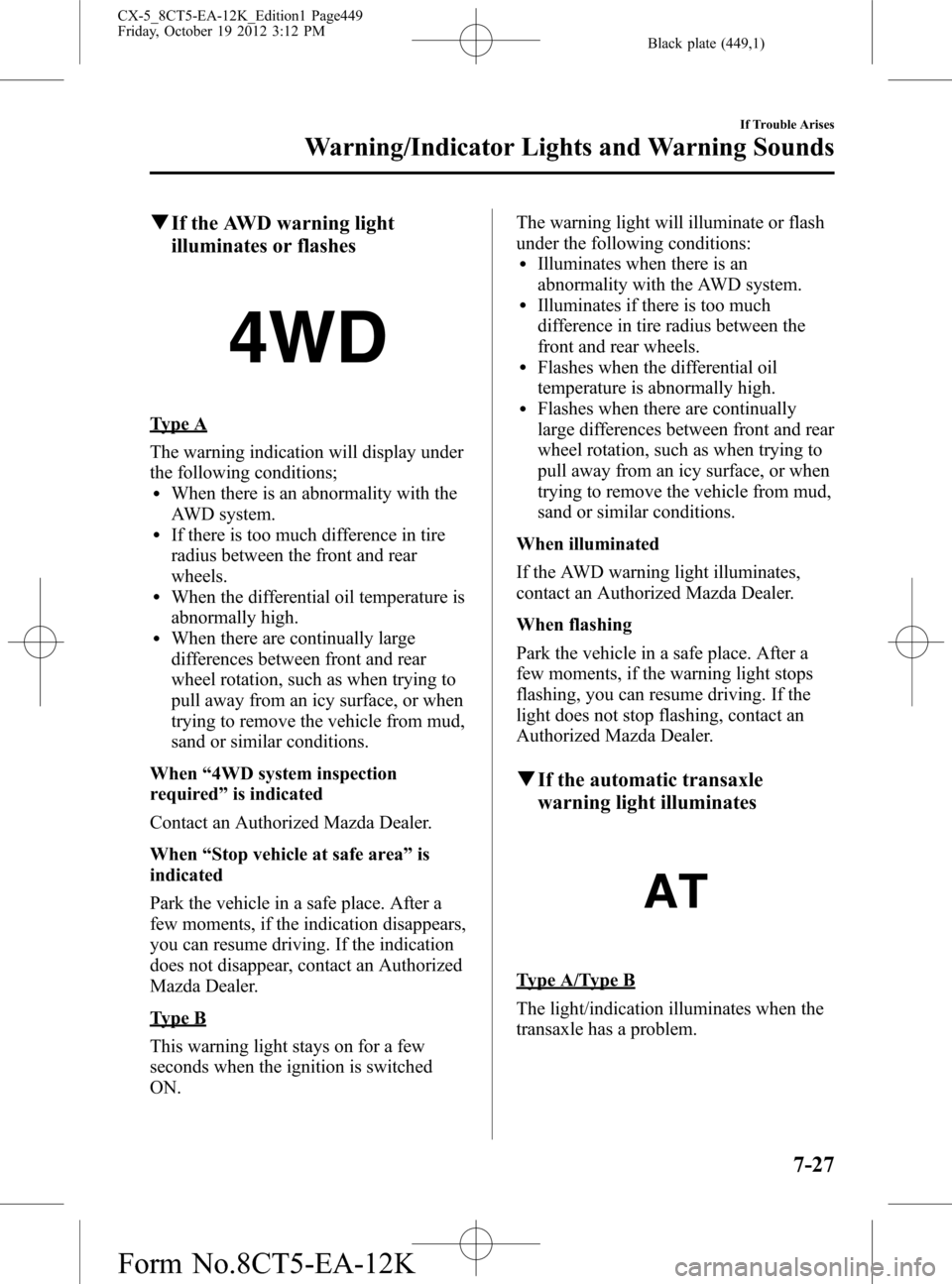

qIf the AWD warning light
illuminates or flashes
Type A
The warning indication will display under
the following conditions;
lWhen there is an abnormality with the
AWD system.
lIf there is too much difference in tire
radius between the front and rear
wheels.
lWhen the differential oil temperature is
abnormally high.
lWhen there are continually large
differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface, or when
trying to remove the vehicle from mud,
sand or similar conditions.
When“4WD system inspection
required”is indicated
Contact an Authorized Mazda Dealer.
When“Stop vehicle at safe area”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there are continually
large differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface, or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
When flashing
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
qIf the automatic transaxle
warning light illuminates
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-27
CX-5_8CT5-EA-12K_Edition1 Page449
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (450,1)
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qIf the power steering malfunction
indicator light illuminates
Type A/Type B
The power steering malfunction indicator
light/warning indication illuminates if
there is a malfunction with the power
steering while the engine is running.
If the indicator light/warning indication
illuminates, park the vehicle in a safe
place immediately and stop the engine.
If the indicator light/warning indication
does not turn off even if the engine is
restarted afterwards, consult an
Authorized Mazda Dealer.NOTE
lIf the indicator light/warning indication
illuminates, the power steering will not
operate normally. If this happens, the
steering wheel can still be operated,
however, the operation may feel heavy
compared to normal, and the steering
wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
qIf the air bag/front seat belt
pretensioner system warning light
illuminates or flashes
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
7-28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8CT5-EA-12K_Edition1 Page450
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (451,1)
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY warning light (red)
illuminates
Type A
“Keyless System Inspection Required”
is displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Set Power to OFF”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-29
CX-5_8CT5-EA-12K_Edition1 Page451
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (452,1)
“Key not found”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlAll doors are closed without switching
the ignition off
Type B
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
qIf the traction control system
(TCS)/dynamic stability control
(DSC) indicator light illuminates
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS/DSC is
operating properly.
lOn slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.
qIf the traction control system (TCS)
OFF indicator light illuminates
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The DSC
may have a malfunction.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8CT5-EA-12K_Edition1 Page452
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (453,1)
qIf the adaptive front lighting system
(AFS) OFF indicator light flashesí
The indicator light flashes continuously if
the system is malfunctioning. Consult an
Authorized Mazda Dealer.
NOTE
lEven if the AFS is not operating due to
some malfunction, the normal headlight
function is still operable.
lIf there is a malfunction with the headlight
auto-leveling function, the indicator light
flashes.
qIf the low engine coolant
temperature indicator light (blue)
does not turn off
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
qIf the turn signal/hazard warning
indicator light illuminates or flashes
at an abnormally high speed
If an indicator light remains illuminated
(does not flash) or if it flashes abnormally,
one of the turn signal bulbs may be
burned out. Consult an Authorized Mazda
Dealer.
qIf the security indicator light
illuminates or flashes
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31íSome models. CX-5_8CT5-EA-12K_Edition1 Page453
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (454,1)
qIf the blind spot monitoring (BSM)
system OFF indicator light flashesí
The indicator light flashes if the BSM
system has a malfunction. Consult an
Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The BSM
OFF indicator light in the instrument panel
flashes). However, it does not indicate a
malfunction.
qIf the lights-on indicator light flashes
The light continues to flash if the lighting
system has a malfunction. Consult an
Authorized Mazda Dealer.
Warning Sound is Activated
qLights-On Reminder
If lights are on and the ignition is
switched to ACC or the ignition is
switched off, a continuous beep sound
will be heard when the driver's door is
opened.
NOTE
lWhen the ignition is switched to ACC, the
“Ignition Not Switched Off (STOP)
Warning Beep”(page 7-33) overrides the
lights-on reminder.
lA personalized function is available to
change the sound volume for the lights-on
reminder.
Refer to Personalization Features on page
9-10.
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
7-32
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
CX-5_8CT5-EA-12K_Edition1 Page454
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (455,1)
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the front passenger's seat
belt is not fastened and the vehicle is
driven at a speed faster than about 20
km/h (12 mph), a beep sound will be
heard again for a specified period of time.
NOTE
lSome models do not have the seat belt
warning function for the front passenger's
seat.
lPlacing heavy items on the front passenger
seat may cause the front passenger seat belt
warning function to operate depending on
the weight of the item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP) (for vehicles with a
type A meter, messages are displayed in
the instrument cluster). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qKey Removed from Vehicle
Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the key has been
removed (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). The KEY warning
light (red) will stop flashing when the key
is back inside the vehicle (for vehicles
with a type A meter, messages are
displayed in the instrument cluster):
The ignition has not been switched off
and all the doors are closed after
removing the key from the vehicle. (A
beep sound will be heard 6 times.)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33
CX-5_8CT5-EA-12K_Edition1 Page455
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (456,1)

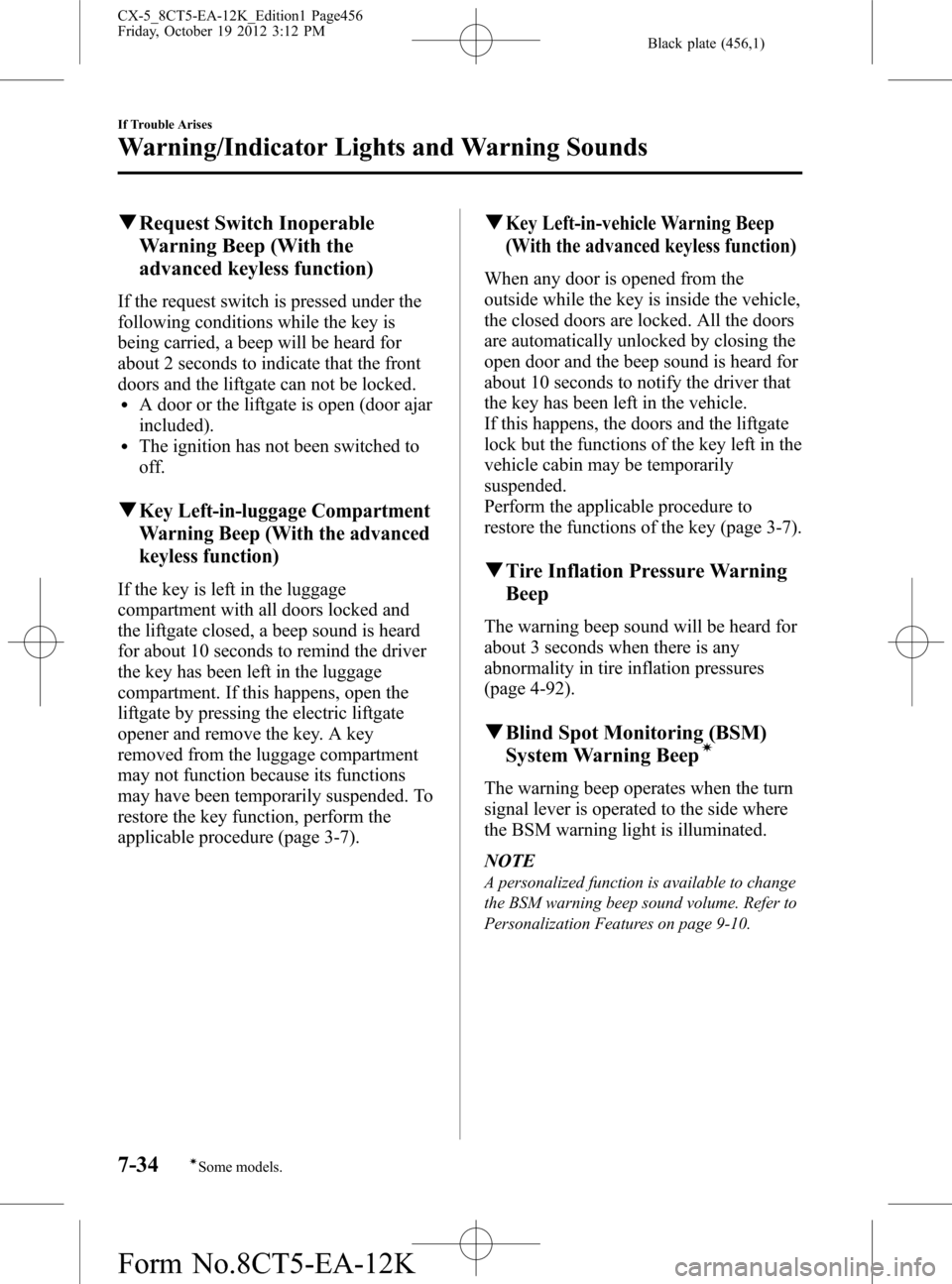

qRequest Switch Inoperable
Warning Beep (With the
advanced keyless function)
If the request switch is pressed under the
following conditions while the key is
being carried, a beep will be heard for
about 2 seconds to indicate that the front
doors and the liftgate can not be locked.
lA door or the liftgate is open (door ajar
included).
lThe ignition has not been switched to
off.
qKey Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all doors locked and
the liftgate closed, a beep sound is heard
for about 10 seconds to remind the driver
the key has been left in the luggage
compartment. If this happens, open the
liftgate by pressing the electric liftgate
opener and remove the key. A key
removed from the luggage compartment
may not function because its functions
may have been temporarily suspended. To
restore the key function, perform the
applicable procedure (page 3-7).
qKey Left-in-vehicle Warning Beep
(With the advanced keyless function)
When any door is opened from the
outside while the key is inside the vehicle,
the closed doors are locked. All the doors
are automatically unlocked by closing the
open door and the beep sound is heard for
about 10 seconds to notify the driver that
the key has been left in the vehicle.
If this happens, the doors and the liftgate
lock but the functions of the key left in the
vehicle cabin may be temporarily
suspended.
Perform the applicable procedure to
restore the functions of the key (page 3-7).
qTire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-92).
qBlind Spot Monitoring (BSM)
System Warning Beepí
The warning beep operates when the turn
signal lever is operated to the side where
the BSM warning light is illuminated.
NOTE
A personalized function is available to change
the BSM warning beep sound volume. Refer to
Personalization Features on page 9-10.
7-34
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
CX-5_8CT5-EA-12K_Edition1 Page456
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K
