2014 MAZDA MODEL CX-5 dashboard

Black plate (8,1)
Interior Equipment (View A)
Door-lock knob .................................................................................................. page 3-17
TCS OFF switch ................................................................................................ page 4-84
Tire pressure monitoring system set switch ....................................................... page 4-94
Turn and lane-change signal .............................................................................. page 4-60
Lighting control ................................................................................................. page 4-55
Instrument cluster .............................................................................................. page 4-10
Dashboard illumination knob ............................................................................ page 4-13
Wiper and washer lever ..................................................................................... page 4-61
Push button start .................................................................................................. page 4-2
AFS OFF switch ................................................................................................ page 4-59
BSM OFF switch ............................................................................................... page 4-99
Outside mirror switch ........................................................................................ page 3-27
Door-lock switch ............................................................................................... page 3-14
Power window lock switch ................................................................................ page 3-32
Power window switches .................................................................................... page 3-30
1-2
Pictorial Index
The equipment and installation position varies by vehicle
Interior Overview
CX-5_8CT5-EA-12K_Edition1 Page8
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (51,1)
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 6 air bags.Please
verify which kinds of air bags are equipped on your vehicle by locating the“SRS
AIRBAG”location indicators.These indicators are visible in the area where the air bags
are installed.
The air bags are installed in the following locations:
lThe steering wheel hub (driver air bag)lThe front passenger dashboard (front passenger air bag)lThe outboard sides of the front seatbacks (side air bags)lThe front and rear window pillars, and the roof edge along both sides (curtain air bags)
Vehicles with the Front Passenger Occupant Classification System have a sensor which
detects an impending roll-over accident.
The air bag supplemental restraint systems are designed to provide supplemental protection
in certain situations so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as rear impact.
lReduce the possibility of injuries in frontal, near frontal or side collisions or roll-over
accidents that are not severe enough to activate the air bags.
lReduce the possibility of being thrown from your vehicle.lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
Essential Safety Equipment
SRS Air Bags
2-39
CX-5_8CT5-EA-12K_Edition1 Page51
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (56,1)
Do not place luggage or other objects under the front seats:
Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of
a side collision, the appropriate air bags may not deploy, which could result in death
or serious injury. To prevent damage to the components essential to the
supplemental restraint system, do not place luggage or other objects under the front
seats.
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully evaluate these systems to see that they
will work in any subsequent accident. Driving with an expended or damaged air bag
or pretensioner unit will not afford you the necessary protection in the event of any
subsequent accident which could result in serious injury or death.
Do not remove interior air bag parts:
Removing any components such as the front seats, front dashboard, the steering
wheel or parts on the front and rear window pillars and along the roof edge,
containing air bag parts or sensors is dangerous. These parts contain essential air
bag components. The air bag could accidentally activate and cause serious injuries.
Always have an Authorized Mazda Dealer remove these parts.
Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury could result. Have an
Authorized Mazda Dealer safely dispose of the air bag system or scrap a an air bag
equipped vehicle.
2-44
Essential Safety Equipment
SRS Air Bags
CX-5_8CT5-EA-12K_Edition1 Page56
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (61,1)
qFront Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.
The inflation mechanism for the front passenger air bag is the same as the driver's air bag,
as mentioned above.
For more details about air bag deployment, refer to“SRS Air Bag Deployment Criteria”
(page 2-52).
(With Front Passenger Occupant Classification System)
In addition, the front passenger air bag is designed to only deploy in accordance with the
total seated weight on the front passenger seat. For details, refer to the front passenger
occupant classification system (page 2-55).
qSide Air Bags
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to“SRS Air Bag Deployment Criteria”
(page 2-52).
Essential Safety Equipment
SRS Air Bags
2-49
CX-5_8CT5-EA-12K_Edition1 Page61
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (76,1)

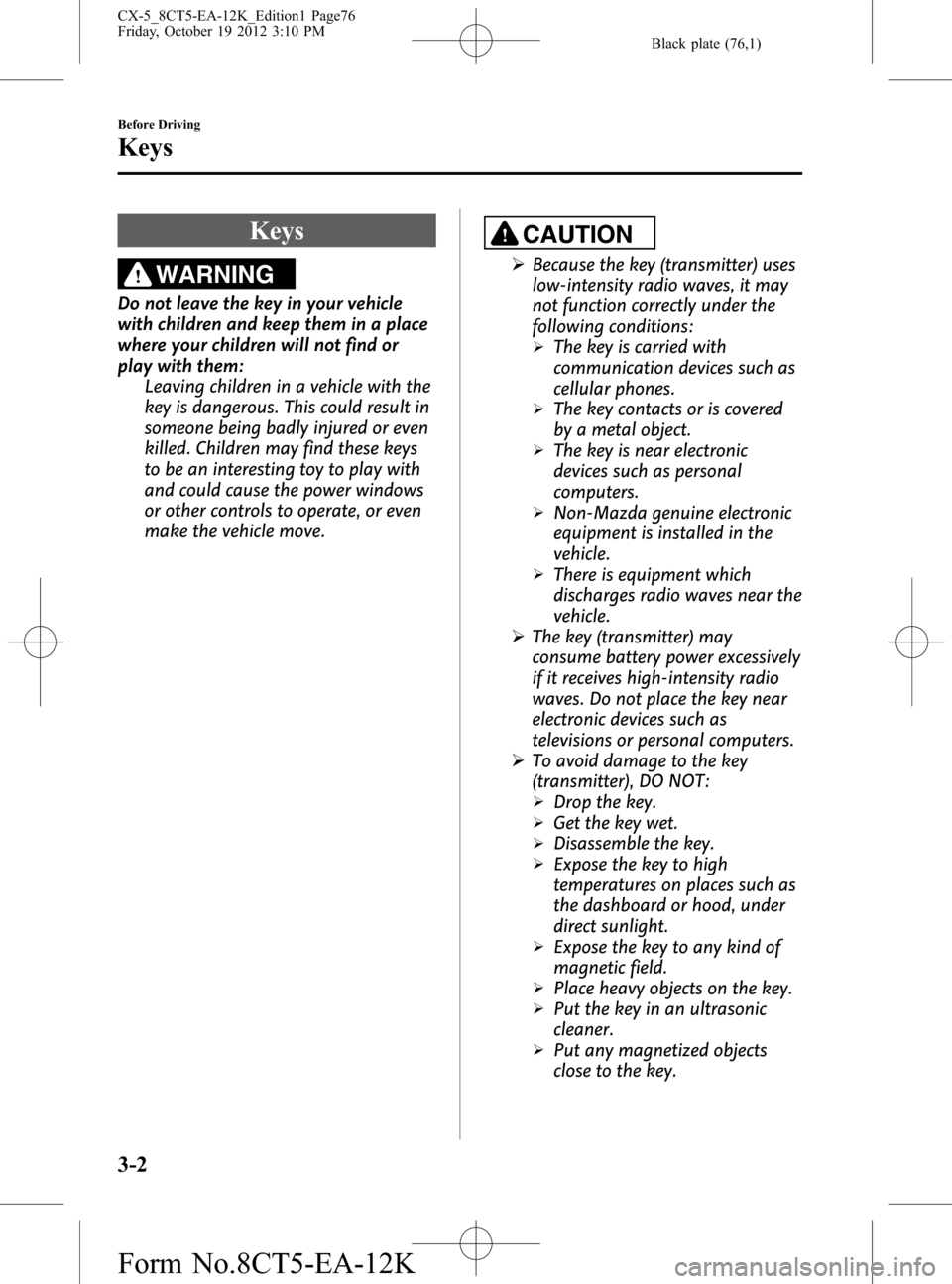

Keys
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these keys
to be an interesting toy to play with
and could cause the power windows
or other controls to operate, or even
make the vehicle move.
CAUTION
ØBecause the key (transmitter) uses
low-intensity radio waves, it may
not function correctly under the
following conditions:
ØThe key is carried with
communication devices such as
cellular phones.
ØThe key contacts or is covered
by a metal object.
ØThe key is near electronic
devices such as personal
computers.
ØNon-Mazda genuine electronic
equipment is installed in the
vehicle.
ØThere is equipment which
discharges radio waves near the
vehicle.
ØThe key (transmitter) may
consume battery power excessively
if it receives high-intensity radio
waves. Do not place the key near
electronic devices such as
televisions or personal computers.
ØTo avoid damage to the key
(transmitter), DO NOT:
ØDrop the key.
ØGet the key wet.
ØDisassemble the key.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
ØExpose the key to any kind of
magnetic field.
ØPlace heavy objects on the key.
ØPut the key in an ultrasonic
cleaner.
ØPut any magnetized objects
close to the key.
3-2
Before Driving
Keys
CX-5_8CT5-EA-12K_Edition1 Page76
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (81,1)
With the advanced keyless function
Interior antenna
Operational range
Without the advanced keyless function
Interior antenna
Operational range
NOTE
The engine may not start if the key is placed in
the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
qKey Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the push
button start.
l(With the advanced keyless function)
Operating the request switches.
To restore these functions, perform any
one of the following:
lPress a button on the key which has
had its functions temporarily
suspended.
l(Manual transaxle)
When carrying another key, depress the
clutch pedal until the KEY indicator
light (green) illuminates.
(Automatic transaxle)
When carrying another key, depress the
brake pedal until the KEY indicator
light (green) illuminates.
Refer to Warning/Indicator Lights on
page 4-22.
Before Driving
Keys
3-7
CX-5_8CT5-EA-12K_Edition1 Page81
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (109,1)
Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system have been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or
the vehicle.
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
ØIf the engine does not start with
the correct key, and the security
indicator light keeps illuminating
or flashing, the system may have
a malfunction. Consult an
Authorized Mazda Dealer.
Before Driving
Security System
3-35
CX-5_8CT5-EA-12K_Edition1 Page109
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (110,1)
NOTElThe keys carry a unique electronic code.
For this reason, and to assure your safety,
obtaining a replacement key requires some
waiting time. They are only available
through an Authorized Mazda Dealer.
lAlways keep a spare key in case one is lost.
If a key is lost, consult an Authorized
Mazda Dealer as soon as possible.
lIf you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
qOperation
NOTElThe engine may not start and security
indicator light may illuminate or flash if the
key is placed in an area where it is difficult
for the system to detect the signal, such as
on the dashboard or in the glove
compartment. Move the key to a location
within the signal range, switch the ignition
off, and then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or mobile telephone could
interfere with your immobilizer system. If
you are using the proper key and the engine
fails to start, check the security indicator
light.
Arming
The system is armed when the push
button start is pressed from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Refer to Warning/Indicator Lights on page
4-22.
Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart
the engine. If the engine does not start
after 3 or more tries, contact an
Authorized Mazda Dealer.
NOTE
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lBecause the electronic codes are reset when
the immobilizer system is repaired, the keys
are needed. Make sure to bring all the keys
to an Authorized Mazda Dealer so that they
can be programmed.
3-36
Before Driving
Security System
CX-5_8CT5-EA-12K_Edition1 Page110
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K
