2014 LEXUS RX270 display

197
2-2. Instrument cluster
2
When driving
RX350/270_EE
Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. (
→P. 5 9 8 )
RX350_270_EE_48D77E.book 197 ページ ２０１４年１月２４日　金曜日　午前１０時４分

198
2-2. Instrument cluster
RX350/270_EE
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all indica-
tors and warning lights illuminated.
■Instrument cluster
RX350_270_EE_48D77E.book 198 ページ ２０１４年１月２４日　金曜日　午前１０時４分

203
2-2. Instrument cluster
2
When driving
RX350/270_EE
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
■Multi-information switches
“∧” “∨” switch
Changes items.
“ENTER” switch
Turns on/off electronic features
controls and changes customi-
zation settings.
Menu switch
Changes mode from normal
display to electronic features,
customization or back to normal
display.
RX350_270_EE_48D77E.book 203 ページ ２０１４年１月２４日　金曜日　午前１０時４分

204
2-2. Instrument cluster
RX350/270_EE
■Display contents
Trip information contentsSwitching display items
Current fuel consumption
Press the “∧” or “∨” switch.
Average fuel consumption after
refueling
Average fuel consumption
Average vehicle speed
Cruising range
Multi-information display off
Eco Driving Indicator Zone Dis-
play
RX350_270_EE_48D77E.book 204 ページ ２０１４年１月２４日　金曜日　午前１０時４分

205
2-2. Instrument cluster
2
When driving
RX350/270_EE
Display order may vary depending on vehicle condition.
Electronic features control contentsSetting electronic features controls
Lexus parking assist-sensor
(if equipped)→P. 2 4 8
Snow mode→P. 1 8 8
AFS (if equipped)→P. 2 1 9
RX350_270_EE_48D77E.book 205 ページ ２０１４年１月２４日　金曜日　午前１０時４分

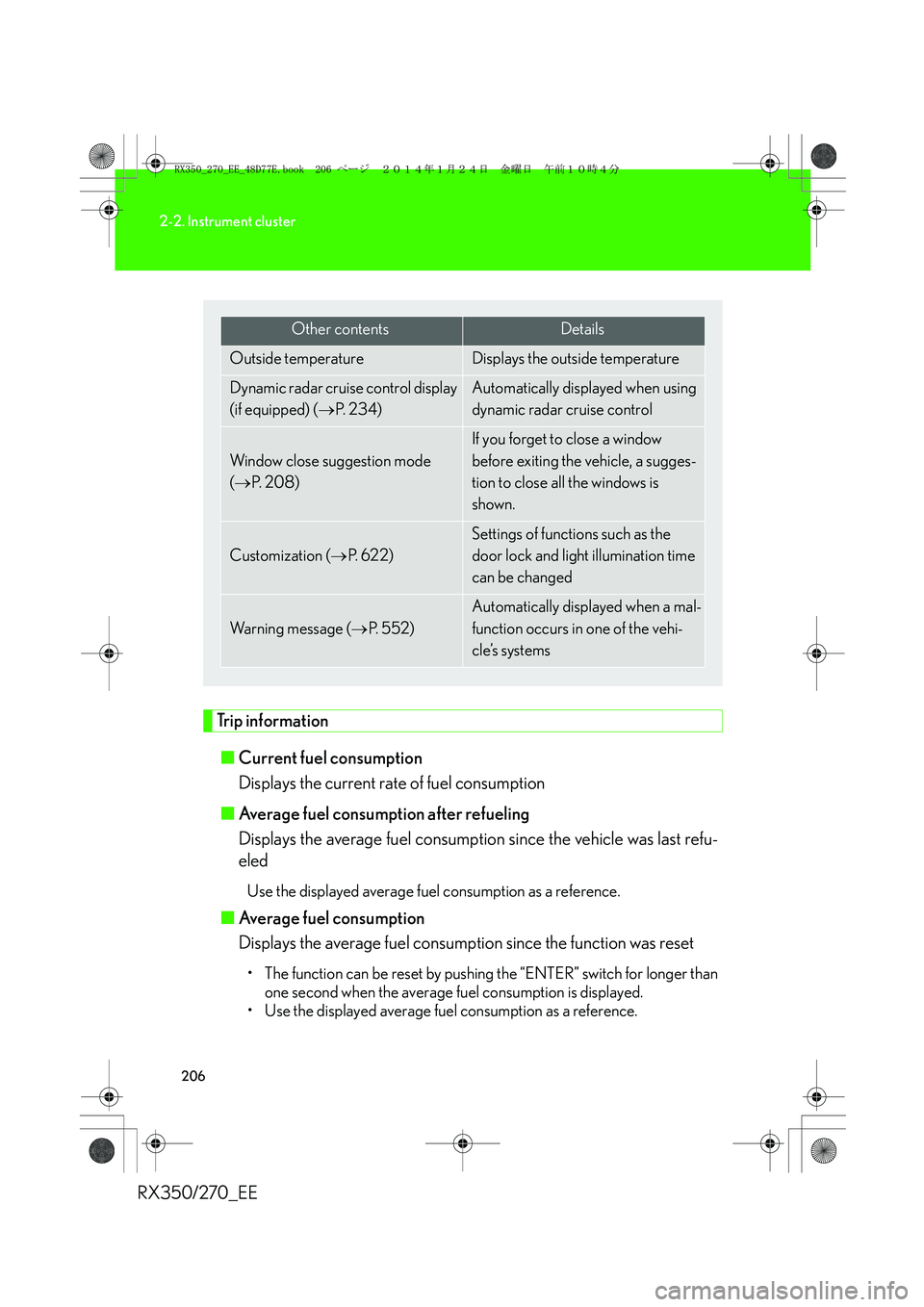

206
2-2. Instrument cluster
RX350/270_EE
Trip information
■Current fuel consumption
Displays the current rate of fuel consumption
■Average fuel consumption after refueling
Displays the average fuel consumption since the vehicle was last refu-
eled
Use the displayed average fuel consumption as a reference.
■Average fuel consumption
Displays the average fuel consumption since the function was reset
• The function can be reset by pushing the “ENTER” switch for longer than
one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Other contentsDetails
Outside temperature Displays the outside temperature
Dynamic radar cruise control display
(if equipped) (→P. 2 3 4 )Automatically displayed when using
dynamic radar cruise control
Window close suggestion mode
(→P. 2 0 8 )
If you forget to close a window
before exiting the vehicle, a sugges-
tion to close all the windows is
shown.
Customization (→P. 622)
Settings of functions such as the
door lock and light illumination time
can be changed
Wa r n i n g m e s s a g e (→P. 552)
Automatically displayed when a mal-
function occurs in one of the vehi-
cle’s systems
RX350_270_EE_48D77E.book 206 ページ ２０１４年１月２４日　金曜日　午前１０時４分

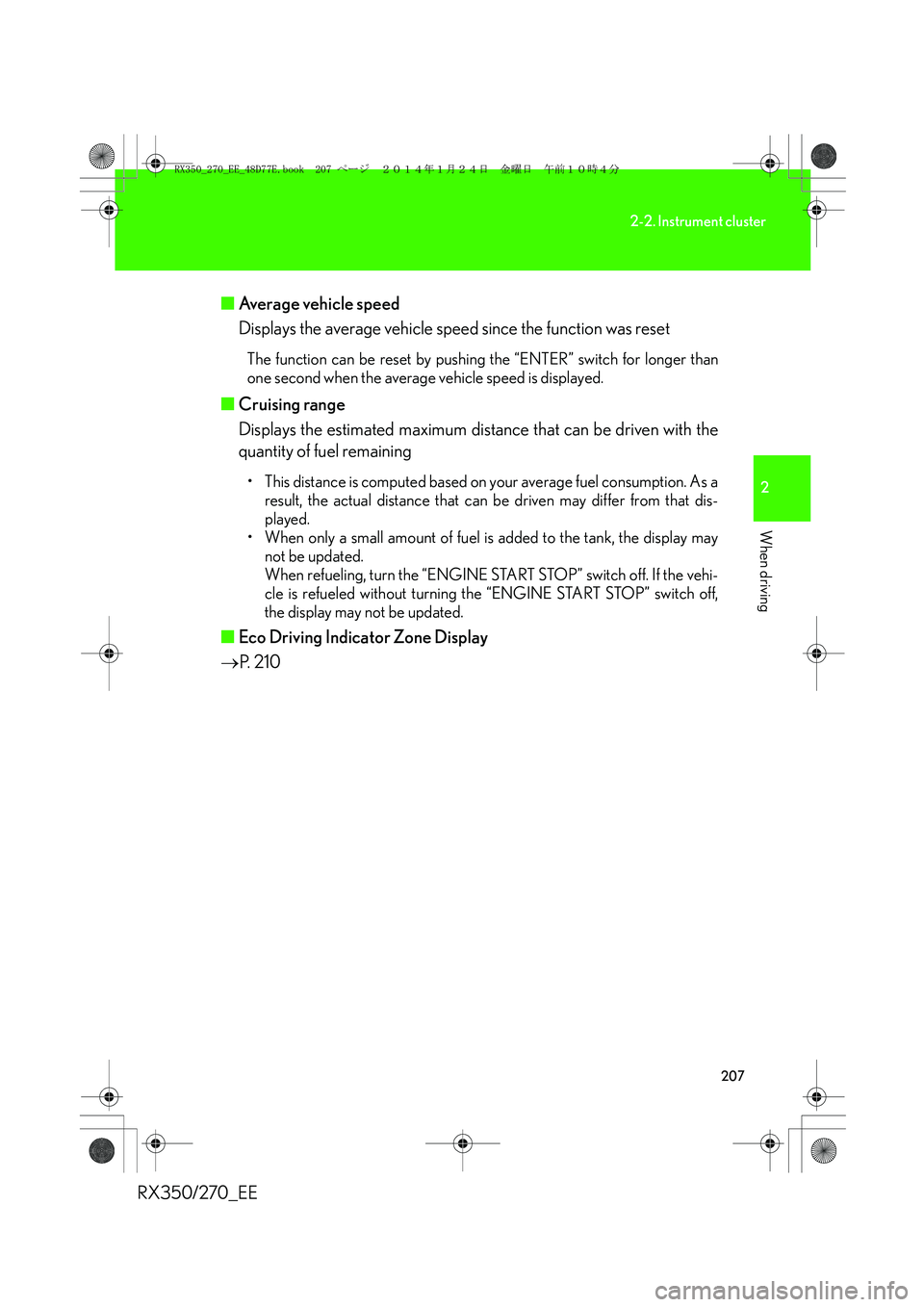

207
2-2. Instrument cluster
2
When driving
RX350/270_EE■Average vehicle speed
Displays the average vehicle speed since the function was reset
The function can be reset by pushing the “ENTER” switch for longer than
one second when the average vehicle speed is displayed.
■Cruising range
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining
• This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the “ENGINE START STOP” switch off. If the vehi-
cle is refueled without turning the “ENGINE START STOP” switch off,
the display may not be updated.
■Eco Driving Indicator Zone Display
→P. 210
RX350_270_EE_48D77E.book 207 ページ ２０１４年１月２４日　金曜日　午前１０時４分

208
2-2. Instrument cluster
RX350/270_EE
Window close suggestion mode
If any of the windows is open when the “ENGINE START STOP” switch is
turned off, a suggestion is shown on the multi-information display asking
the driver if they want to close all the windows. Following the procedure
below closes all the windows.
Press the “∧” or “∨” switch to
select “YES”.
Press the “ENTER” switch.
If “NO” is selected, the window
close suggestion mode will be ter-
minated.
Press the “∧” or “∨” switch to
select “START”.
Press the “ENTER” switch.
All the windows will start to close.
If “CANCEL” is selected, the win-
dow close suggestion mode will be
terminated.
STEP1
STEP2
