2014 LEXUS LX570 display

3042-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■ Changing the screen mode
This system has a 2 screen mode and a 3 screen mode. 2 screen mode: Only the wide view front & side monitor simultaneous dis-
play can be used.
3 screen mode: The wide view front & side monitor simultaneous display or
the individual display can be used. The display can be switched between the
simultaneous display and the individual display by operating the VIEW
switch.
The screen mode is changed from
the wide view front & side monitor
simultaneous display screen. The
screen mode will change as the
or buttons
are touched. If the screen is changed to the wide
view front & side monitor simulta-
neous display screen while the
Lexus parking assist monitor is dis-
played, it is not possible to switch to
the 3 screen mode. (The switch is
not displayed.)

3052-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Changing the display in 3 screen mode
When in 3 screen mode, you can ch ange the display from the simulta-
neous display to each individual display.
The screen changes as follows with each press of the VIEW switch.
When the wide view front monitor was displayed the previous time:
When the side monitor was displayed the previous time:
The wide view front monitor and side monitor individual displays are not
accessible when the shift lever is in “R”.
■ Automatic display mode
You can set the automatic display mode, which automatically changes
the display.
Touch “AUTO”. When automatic display mode is on, you can have the system display auto-
matically in the following situations:
● When the shift lever is in “N”, “D” or “S”.
● When the shift lever is in a position other than “R”, and the vehicle speed
is approximately 6 mph (10 km/h) or less.
“AUTO” will not be displayed when the shift lever is in “R”. Wide view front & side monitor simultaneous display
Side monitor Wide view front monitor
Wide view front & side monitor simultaneous display
Wide view front monitor Side monitor

3062-4. Using other driving systems
LX570_OM_OM60L21U_(U) Using the side monitor
Simultaneous display
Individual display Front wheel contact point Shows the position of the vehicle’s
front tire.
Vehicle front edge line Shows the position of the vehicle’s
leading edge.
Vehicle width line (blue) Indicates the width of the vehicle
including the outside rear view mir-
ror.
Projected course line (yellow) Displays a rough guide of the vehi-
cle path that moves according to
the steering wheel position. Dis-
played along with the minimum
projected turning circle.
Minimum projected turning cir-
cle (blue) Displays the smallest turning circle
projected by the system if the
steering wheel is turned to full lock.
Displayed when the steering wheel
is turned to the right (further than
90  from straight ahead).
Rear wheel contact point Shows the position of the vehicle’s
rear tire.
When in individual display mode, the ri ght front view will be expanded and dis-
played.

3072-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Changing the course line display mode
No course lines mode
Vehicle width line is displayed.
Minimum projected turning circle display mode
The minimum projected turning
circle line is added to the no
course lines mode.
Turning course line display mode
The projected course line is added
to the minimum projected turning
circle mode.

3082-4. Using other driving systems
LX570_OM_OM60L21U_(U) Change to the side monitor individual display.
To u c h .
The course line display mode will change as follows each time the switch is
touched.
The selected mode will also be displayed on the wide view front & side monitor
simultaneous display screen. STEP 1
STEP 2
No course lines mode
Minimum projected turning circle display mode Turning course line display mode

3102-4. Using other driving systems

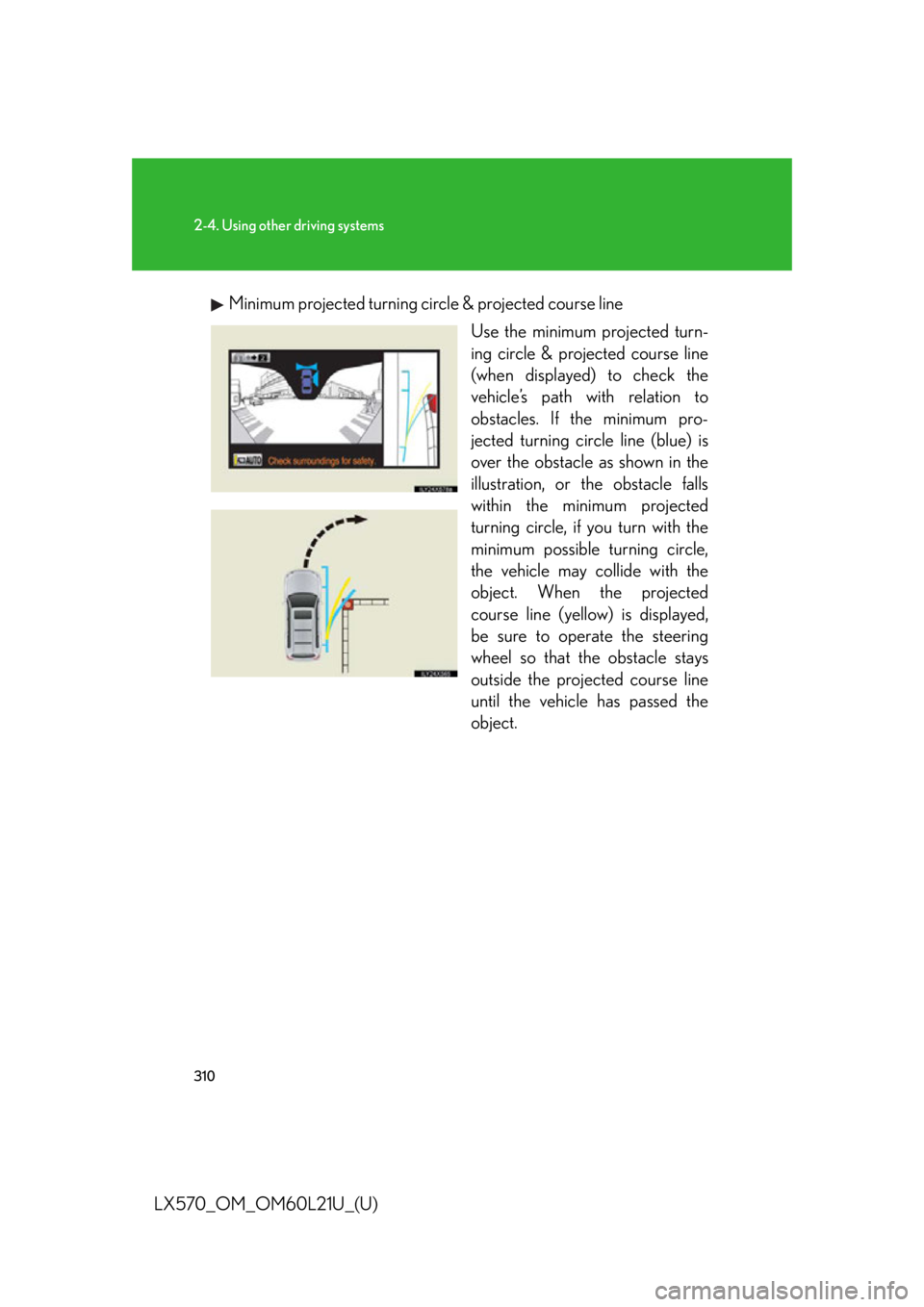

LX570_OM_OM60L21U_(U) Minimum projected turning circ le & projected course line
Use the minimum projected turn-
ing circle & projected course line
(when displayed) to check the
vehicle’s path with relation to
obstacles. If the minimum pro-
jected turning circle line (blue) is
over the obstacle as shown in the
illustration, or the obstacle falls
within the minimum projected
turning circle, if you turn with the
minimum possible turning circle,
the vehicle may collide with the
object. When the projected
course line (yellow) is displayed,
be sure to operate the steering
wheel so that the obstacle stays
outside the projec ted course line
until the vehicle has passed the
object.

3112-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) If the battery is disconnected
If the battery is disconnected and
connected again, the message
“System initializing” will be dis-
played on the screen. The help
screen appears when “?” is
touched. Make a correction using
the following method in accor-
dance with the display.
Carry out one of the following.
• When the vehicle is stopped,
turn the steering wheel all the
way to the left, then all the way
to the right.
• Drive for at least 5 minutes on a
road with as few turns and
curves and as little heavy traffic
as possible.
When the screen returns to the
original display, correction is com-
plete.
If the above screen remains, have
the vehicle inspected at your
Lexus dealer.

3122-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
The wide view front & side monitor can be operated when ●
The “ENGINE START STOP” switch is in IGNITION ON mode. ●
The vehicle speed is less than approximately 6 mph (10 km/h).■
Automatic system cancelation
In the following situations, the system is canceled automatically. ●
When the vehicle speed exceeds approximately 7 mph (12 km/h).●
When the shift lever is in “R”.■
When the outside rear view mirrors have been folded
The side monitor screen can be displayed even if the outside rear view mirrors have
been folded. In this case, there will be a slight difference between the image dis-
played when the outside rear view mirrors are extended and when the outside rear
view mirrors have been folded.
If the side monitor is displayed while the outside rear view mirrors are folded, you
cannot check the area near the front edge of the vehicle as the base of the outside
rear view mirrors will be in the way. ■
When switched to from the Lexus parking assist monitor
If the wide view front & side monitor is
switched to from the Lexus parking assist
monitor, the icon display area will flash to
inform the driver that the currently displayed
area is the front or side. The icon display area
will continue to flash until the screen is turned
off.
