5298-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Take out the repair kit from the tool box.
Remove the valve cap from the valve
of the punctured tire.
Remove the protective film from the
bottle and extend the hose. Remove
the air release cap from the hose.
Attach the sticker enclosed with the bot-
tle on the specified locations. (See step
9. )
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Emergency repair method
1
2
3
4
IS300h_EE_OM53C61E.book 529 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5308-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket. (→P. 4 2 1 )5
6
7
IS300h_EE_OM53C61E.book 530 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5318-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Remove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the label. If it is
impossible to attach the label, make sure
to tell any authorized Lexus dealer or
repairer, or another duly qualified and
equipped professional when you have
them repair and replace the tire that
sealant is injected.
8
9
IS300h_EE_OM53C61E.book 531 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5328-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
Connect the bottle to the compres-
sor.
As shown in the illustration, insert the
bottle vertically into the compressor to
connect making sure that the claw on
the bottle's neck is hooked onto the cut-
out of the compressor case.
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (→P. 5 6 8 )
10
11
XLeft-hand drive vehiclesXRight-hand drive vehicles
IS300h_EE_OM53C61E.book 532 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5338-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Start the hybrid system.
To inject the sealant and inflate the
tire, turn the compressor switch on.
Inflate the tire until the specified air
pressure is reached.
The sealant will be injected and the
pressure will surge and then gradu-
ally decrease.
The air pressure gauge will display
the actual tire inflation pressure
about 1 minute (5 minutes at low
temperature) after the switch is
turned on.
Inflate the tire until the specified air
pressure.
• Turn the compressor switch off and
then check the tire inflation pressure.
Being careful not to over inflate,
check and repeat the inflation pro-
cedure until the specified tire infla-
tion pressure is reached.
• If the tire inflation pressure is still lower than the specified point after inflation
for 35 minutes with the switch on, the tire is too damaged to be repaired. Turn
the compressor switch off and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out some air
to adjust the tire inflation pressure. (→P. 5 3 7 , 5 6 8 )12
13
14
1
2
3
IS300h_EE_OM53C61E.book 533 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5348-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
With the compressor switch off, disconnect the hose from the valve on the tire
and then pull out the power plug from the power outlet socket.
Some sealant may leak when the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Temporarily store the bottle in the luggage compartment while it is connected
to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive safely for
about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a safe
place on a hard, flat surface and
remove the air release cap from the
hose before reconnecting the repair
kit.
15
16
17
18
19
20
IS300h_EE_OM53C61E.book 534 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5358-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)

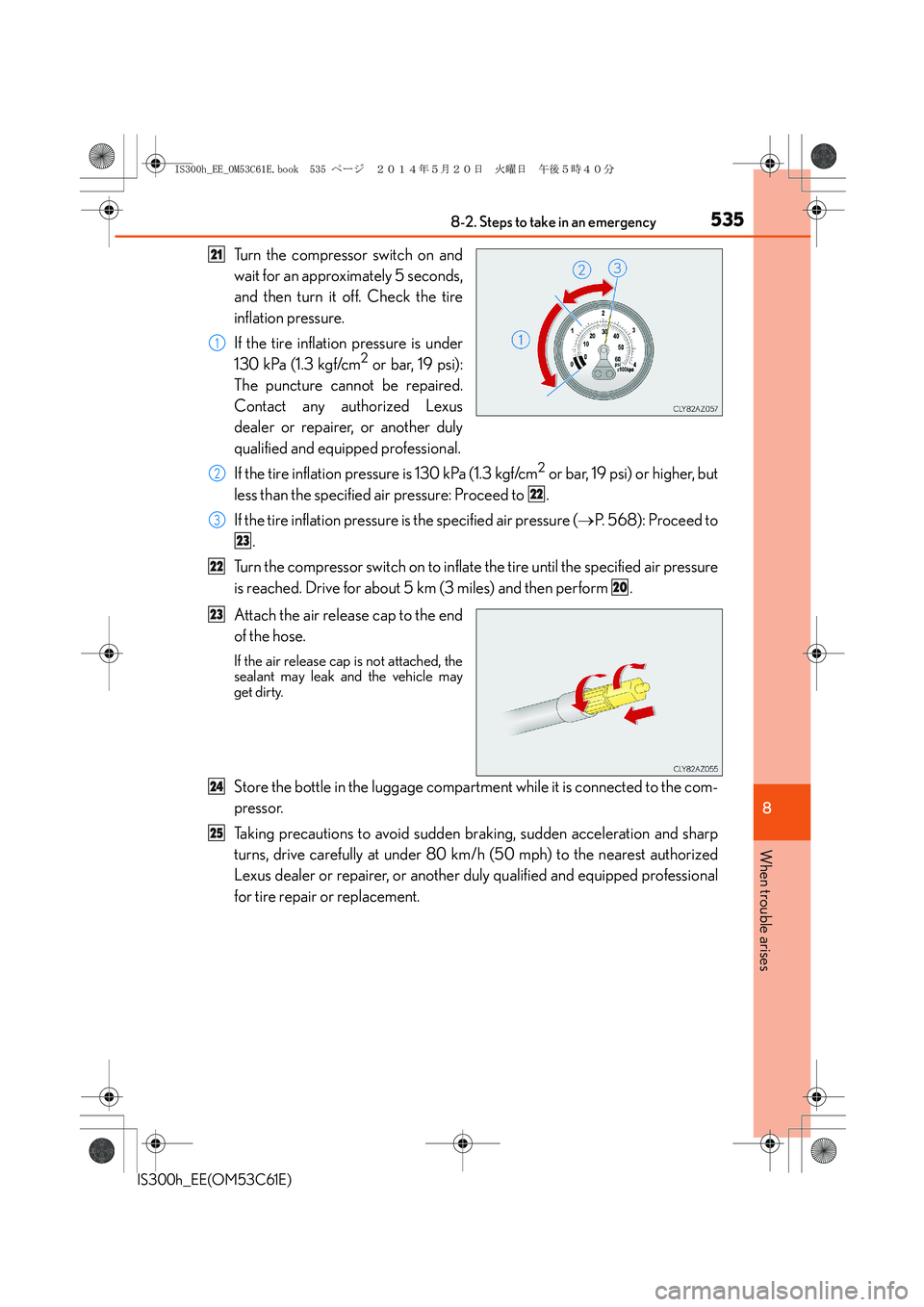

Turn the compressor switch on and
wait for an approximately 5 seconds,
and then turn it off. Check the tire
inflation pressure.
If the tire inflation pressure is under
130 kPa (1.3 kgf/cm
2 or bar, 19 psi):
The puncture cannot be repaired.
Contact any authorized Lexus
dealer or repairer, or another duly
qualified and equipped professional.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm
2 or bar, 19 psi) or higher, but
less than the specified air pressure: Proceed to .
If the tire inflation pressure is the specified air pressure (→P. 568): Proceed to
.
Turn the compressor switch on to inflate the tire until the specified air pressure
is reached. Drive for about 5 km (3 miles) and then perform .
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Store the bottle in the luggage compartment while it is connected to the com-
pressor.
Taking precautions to avoid sudden braking, sudden acceleration and sharp
turns, drive carefully at under 80 km/h (50 mph) to the nearest authorized
Lexus dealer or repairer, or another duly qualified and equipped professional
for tire repair or replacement.
21
1
2
22
3
23
22
20
23
24
25
IS300h_EE_OM53C61E.book 535 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5368-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
■In the following cases, the tire cannot be repaired with the emergency tire puncture
repair kit. Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When there is more than one hole or cut in the damaged tire
■Emergency tire puncture repair kit
●The sealant has a limited lifespan. The expiry date is marked on the bottle. The sealant
should be replaced before the expiry date. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to
temporarily repair a single tire. If the sealant in the bottle and other parts of the kit have
been used and need to be purchased, contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
●The sealant can be used when the outside temperature is from -30°C (-22°F) to 60°C
(140°F).
●The kit is exclusively designed for size and type of tires originally installed on your vehi-
cle. Do not use it for tires that a different size than the original ones, or for any other
purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not be
removable if it is not cleaned at once. Immediately wipe away the sealant with a wet
cloth.
●During operation of the kit, a loud operation noise is produced. This does not indicate a
malfunction.
■The valve of a tire that has been repaired
After a tire is repaired with the emergency tire puncture repair kit, the valve should be
replaced.
■Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date has already
passed. Otherwise, repairs conducted using the emergency tire puncture repair kit may
not be performed properly.
