2014 Lexus IS250C Owner's Manual

168
2-2. Instrument cluster
IS250C/350C_U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 5 8 )“ECT SNOW” indicator
(→ P. 1 5 2 )
Headlight high beam indi-
cator ( →P. 1 7 8 )“ECT PWR” indicator
(→ P. 1 5 2 )
(U.S.A.)
Headlight indicator
(→ P. 1 76 )Cruise control indicator
(→ P. 190, 194)
(Canada)
Tail light indicator
(→ P. 1 76 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 0 8 )
Front fog light indicator
(→ P. 1 8 0 ) Slip indicator ( →P. 2 1 5 )*1, 2

169
2-2. Instrument cluster
2
When driving
IS250C/350C_U
*1: These lights turn on when the “ENGINE START STOP” switch isturned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light flashes when the system is turned off. The light flashes quicklyto indicate that the system is operating.
Shift position and shift range indica-
tors ( →P. 151)
VSC off indicator
(→ P. 2 1 6 )
SRS airbag on-off indica-
tor ( →P. 117)
(if equipped)
Pre-collision system
warning light ( →P. 222)
*1
*1
*1, 3

170
2-2. Instrument cluster
IS250C/350C_U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
■Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. ( →P. 4 9 1 )
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by your
Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(if equipped)(for
driver)(for front
passen-
ger)
******
******
*

171
2-2. Instrument cluster
2
When driving
IS250C/350C_U
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
●Trip information ( →P. 172)
Displays driving range, fuel con-
sumption and other cruising
related information.
●Satellite switch mode display
(→P. 366)
This switch is used to configure
various function settings.
●Intuitive parking assist dis-
play (if equipped) (→ P. 2 0 8 )
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped)
(→P. 1 9 4 )
Automatically displayed when
using dynamic radar cruise con-
trol.
●Roof function status indicator
(→P. 8 8 )
Shows the operation status of
the retractable hardtop.
●Warning messages
(→P. 500)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.

172
2-2. Instrument cluster
IS250C/350C_U

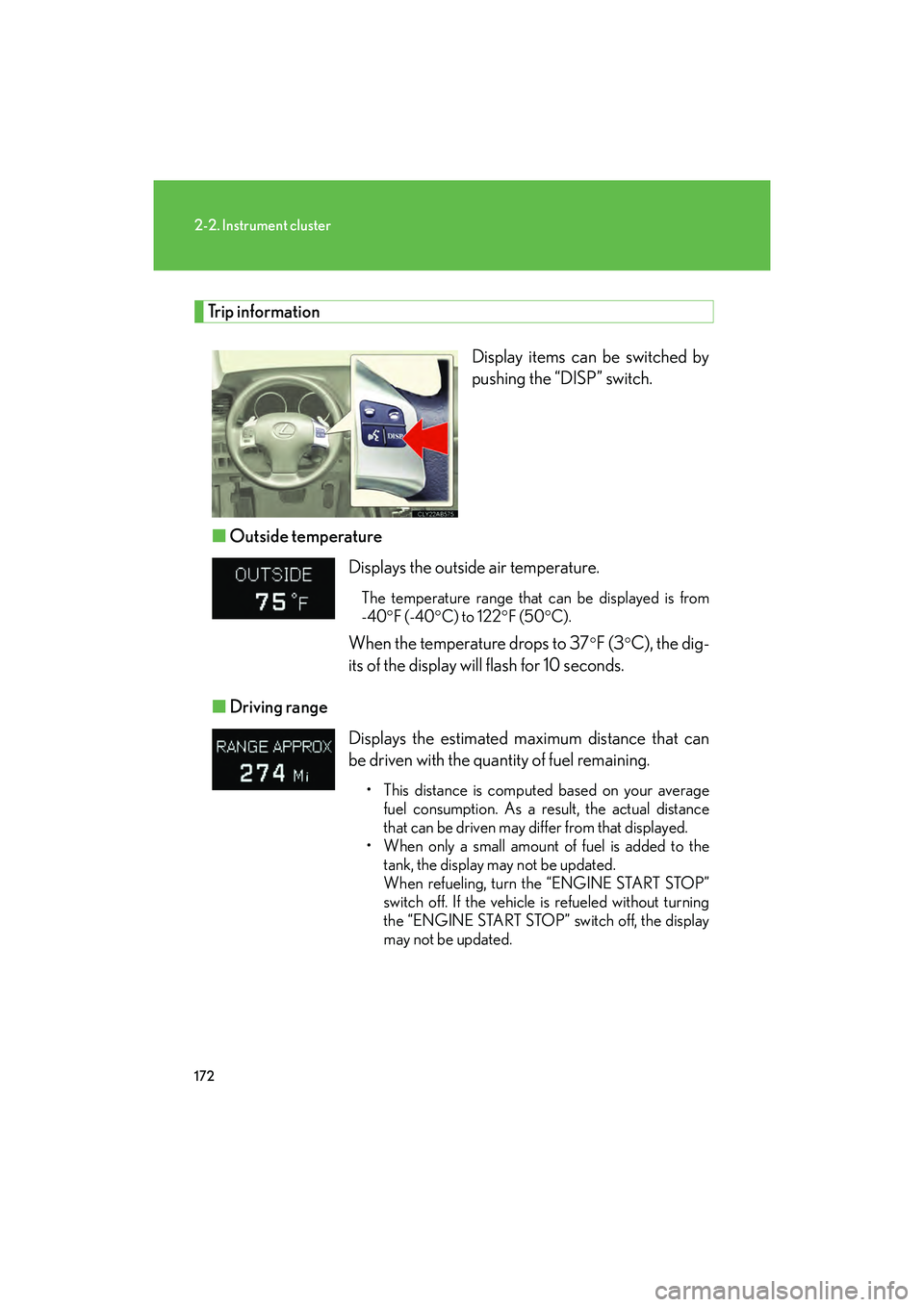

Trip informationDisplay items can be switched by
pushing the “DISP” switch.
■ Outside temperature
■ Driving range
Displays the outside air temperature.
The temperature range that can be displayed is from
-40 °F (-40 °C) to 122 °F (50 °C).
When the temperature drops to 37°F (3°C), the dig-
its of the display will flash for 10 seconds.
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the “ENGINE START STOP”
switch off. If the vehicle is refueled without turning
the “ENGINE START STOP” switch off, the display
may not be updated.

173
2-2. Instrument cluster
2
When driving
IS250C/350C_U■
Average fuel consumption
■ Average fuel consumption after refueling
■ Current fuel consumption
■ Average vehicle speed Displays the average fuel consumption since the
function was reset.
• The function can be reset by pushing the “DISP”
switch for longer than one second when the average
fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average fuel consumption since the
vehicle was last refueled.
Use the displayed average fuel consumption as a refer-
ence.
Displays the current rate of fuel consumption.
Displays the average vehicle speed since the engine
was started or the function was reset.
The function can be reset by pushing the “DISP” switch
for longer than one second when the average vehicle
speed is displayed.

174
2-2. Instrument cluster
IS250C/350C_U■
Gear position display
Indicates the current gear, and the range of gears
that is available when the shift lever is in the D or S
position. The gear range is shown by the number of
dots ( •) and the current gear is shown as a number.
The transmission automatically selects the gears
within the driver selected gear range.
In the illustration to the left, a range of 6 available gears
(1 through 6) has been selected by the driver. (The shift
lever is in the D or S position with 6 ranges enabled) It is
possible for the transmission to automatically select
between all 6 of the gears. In this case, the transmission
has selected third gear.
■System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECK” is displayed while system operation is checked. When the system check
is complete, “COMPLETE” is displayed before returning to the normal screen.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

175
2-2. Instrument cluster
2
When driving
IS250C/350C_U
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear number
appearing on the display. In this case, wait until the display changes and take care
not to downshift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
