2014 Lexus IS250 VOICE COMMAND SYSTEM OPERATION / LEXUS 2014 IS250,IS350 OWNERS MANUAL (OM53758U)

571-1. For safe use
1
For safety and security
IS350/250_U (OM53758U)
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use. Do
not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child rest raint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the event
of a sudden stop, sudden swerve or accident.

581-1. For safe use
IS350/250_U (OM53758U)
Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats, behind the anchor
covers.
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
(P. 3 2 )
Anchor brackets (for top tether strap)
An anchor bracket is provided for each
rear seat.

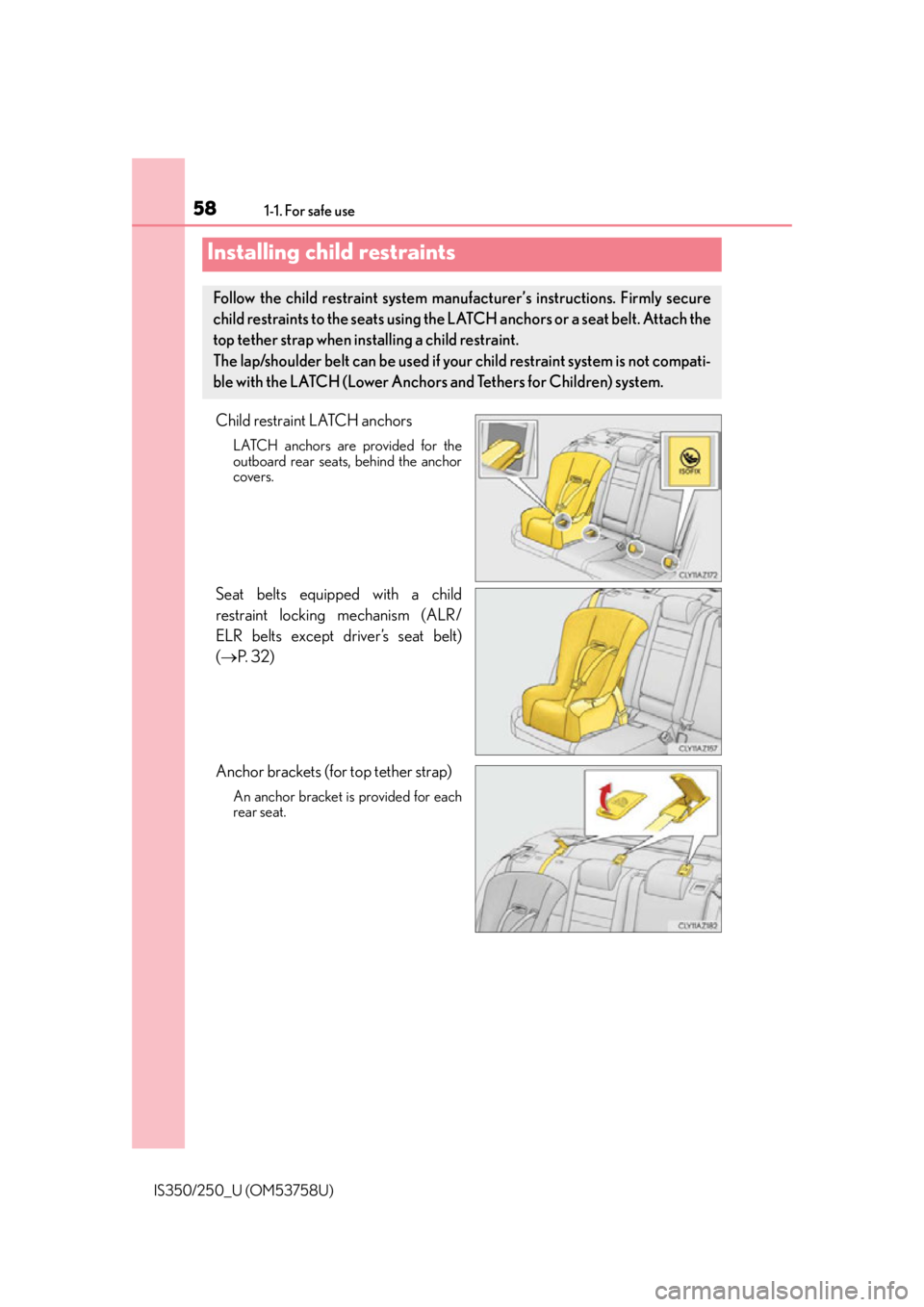

Installing child restraints
Follow the child restraint system manu facturer’s instructions. Firmly secure
child restraints to the seats using the LATCH anchors or a seat belt. Attach the
top tether strap when installing a child restraint.
The lap/shoulder belt can be used if yo ur child restraint system is not compati-
ble with the LATCH (Lower Anchor s and Tethers for Children) system.

591-1. For safe use
1
For safety and security
IS350/250_U (OM53758U)
Remove the head restraint if it
interferes with your child restraint
system.
Ty p e ALatch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Installation with LATCH system
1
Canada only
2

601-1. For safe use
IS350/250_U (OM53758U)
Ty p e BLatch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
2

611-1. For safe use
1
For safety and security
IS350/250_U (OM53758U)
■Rear-facing  Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear of
the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
Installing child restraints using a se at belt (child restraint lock function
belt)
1
2
3

621-1. For safe use
IS350/250_U (OM53758U)
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
■For ward-facing Convertible seat
Remove the head restraint if it
interferes with your child restraint
system.
Place the child restraint system
on the seat facing the front of the
vehicle.
4
1
2

631-1. For safe use
1
For safety and security
IS350/250_U (OM53758U)
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, the top tether strap should be
latched onto the top tether strap anchor. (P. 6 5 )
3
4
5
6

641-1. For safe use
IS350/250_U (OM53758U)
■Booster seatPlace the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( P. 3 0 )
Push the buckle release button and fully
retract the seat belt.
1
2
Removing a child restraint installed with a seat belt
