2014 Lexus GS350 display

322
GS350_OM_OM30D41U_(U)
5-1. Remote Touch screen
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
GS350_OM_OM30D41U_(U).book Page 322 Monday, July 29, 2013 2:22 PM

326
GS350_OM_OM30D41U_(U)
5-1. Remote Touch screen
If “Other” is selected, the zone
can be adjusted manually. Select
“+” or “-” to adjust the time zone
and then select “OK”.
●Daylight saving time
To select “On” or “Off” for daylight saving time.
■Selecting a language
The language can be changed.Select “Language” on the “General Settings” screen.
Select the desired screen but-
ton.
Select “Yes”.
The previous screen will be displayed.
Select “Save”.
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 326 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3315-1. Remote Touch screen
5
Interior features

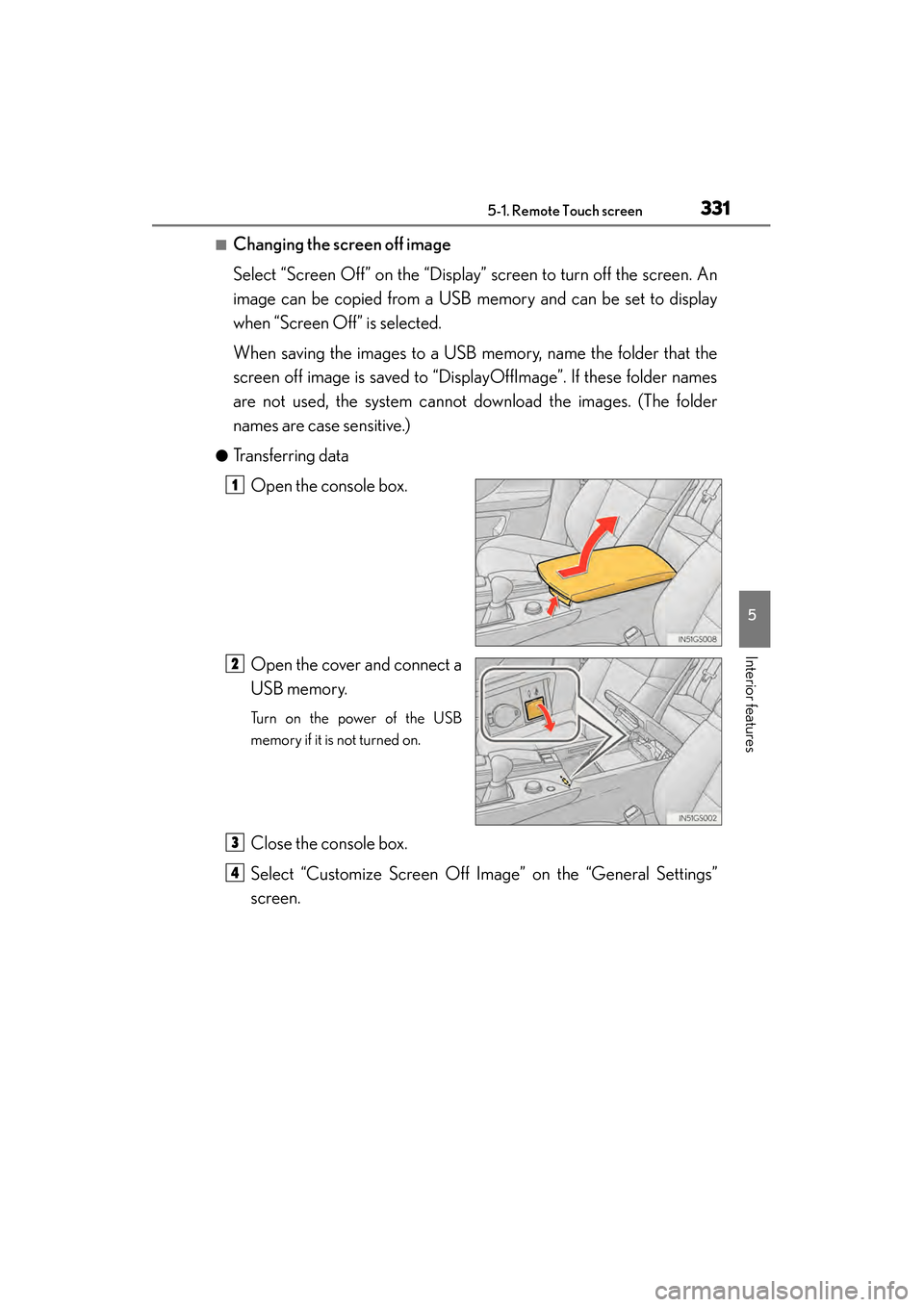

■Changing the screen off image
Select “Screen Off” on the “Display” screen to turn off the screen. An
image can be copied from a USB memory and can be set to display
when “Screen Off” is selected.
When saving the images to a USB memory, name the folder that the
screen off image is saved to “DisplayOffImage”. If these folder names
are not used, the system cannot download the images. (The folder
names are case sensitive.)
●Transferring dataOpen the console box.
Open the cover and connect a
USB memory.
Turn on the power of the USB
memory if it is not turned on.
Close the console box.
Select “Customize Screen Off Image” on the “General Settings”
screen.
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 331 Monday, July 29, 2013 2:22 PM

334
GS350_OM_OM30D41U_(U)
5-1. Remote Touch screen
■Delete personal data
This function is not available while driving.Select “Delete Personal Data” on the “General Settings” screen.
Select “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
Select “Yes”.
The following personal data can be deleted or returned to their default settings:
• Maintenance conditions*
• Maintenance information off setting*
• Address book*
•Areas to avoid*
•Previous points*
• Route guidance*
•Route trace*
• Phonebook data
•Call history data
• Speed dial data
•Bluetooth
® phone data
• Phone sound settings
• Phone display settings
• Message settings
• Audio setting
•Bluetooth
® audio setting
•Startup image data
• Screen off image data
*: Vehicles with a navigation system.
1
2
3
GS350_OM_OM30D41U_(U).book Page 334 Monday, July 29, 2013 2:22 PM

338
GS350_OM_OM30D41U_(U)
5-1. Remote Touch screen
Select “Phone” on the “Setup” screen.Phone sound settings
Detailed information: →P. 5 2 5
Phonebook settings
Detailed information: →P. 5 2 6
Message settings
Detailed information: →P. 5 4 1
Phone display settings
Detailed information: →P. 5 4 5
Select “Bluetooth*” on the “Setup” screen.
Registered devices
Detailed information: →P. 5 4 9
Selecting a Bluetooth® phone
Detailed information: →P. 555
Selecting portable player
Detailed information: →P. 5 5 6
Detailed Bluetooth® settings
Detailed information: →P. 5 5 7
*: Bluetooth is a registered trademark
of Bluetooth SIG, Inc.
Phone settings
1
2
3
4
Bluetooth® Settings
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 338 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3415-1. Remote Touch screen
5
Interior features
■Voice command system operationPress .
After the “Shortcut Menu” screen has been displayed, voice guidance will
commence.
Voice guidance for the voice command system can be skipped by pressing
.
After a beep sounds, say the
command of your choice.
Voice commands are marked with
.
Some commonly used commands
are displayed on the screen.
If you wish to display the com-
mands displayed on the page in the
background, perform one of the
following: • Say “Next page” or “Previous page”.
• Select “Next Pg.” or “Prev. Pg.”
If you wish to display the “Main
Menu” screen when the “Shortcut
Menu” screen is displayed, per-
form one of the following: • Say “Main menu”.
• Select “Main Menu”.
To cancel, select “Cancel”, or press
and hold .
Saying “Help” prompts voice guid-
ance to offer examples of com-
mands and operation methods.
Voice command system operation
1
2
GS350_OM_OM30D41U_(U).book Page 341 Monday, July 29, 2013 2:22 PM

342
GS350_OM_OM30D41U_(U)
5-1. Remote Touch screen
Say the command displayed on
the screen.
If a desired outcome is not shown, or if
no selections are available, perform
one of the following to return to the
previous screen:• Say “Go back”.
• Select “Go Back”.
•Press .
To cancel, select “Cancel”, or press
and hold .
■Voice command example (search for a track using artist name or
album name)
Press .
“Play Artist ” and “Play Album ” are displayed in the “Shortcut
Menu” screen.
Say “Play artist ” or “Play album ”.
Say the desired artist name or album name in the place of the “<>”.
A confirmation screen will be displayed showing the recognition results. If mul-
tiple matching items are found, a selection screen will be displayed.
When “Play Artist ” is used to play music, the first track is selected ran-
domly.
Say “Yes” or select “Yes”.
3
1
2
3
GS350_OM_OM30D41U_(U).book Page 342 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3435-1. Remote Touch screen
5
Interior features
Due to natural language speech recognition technology, this system
enables recognition of a command when spoken naturally. However, the
system cannot recognize every variation of each command. In some situa-
tions, it is possible to omit the command for the procedure and directly
state the desired operation. Not all voice commands are displayed in the
short cut menu.
■Expression examples for each function
*: Say the desired artist name or album name in the place of the “<>”.
Commands that are not displayed in the “Shortcut Menu” screen can be
accessed from the main menu.
For example, to make an “International Call”, say “Main menu” while the “Short-
cut Menu” screen is being displayed. Then say “Use the phone” followed by say-
ing the desired number, e.g. “123456789”.
Natural speech information (English only)
CommandExpression examples
“Call ”
Get me .
I need to call at
right away.
“Dial ”
Please dial the number
<3334445555>.
Ring <3334445555>.
“Play Artist ”Play the artist .
I’d like to hear the band .
*
“Play Album ”Play album .
Music from album .
*
GS350_OM_OM30D41U_(U).book Page 343 Monday, July 29, 2013 2:22 PM
